XBee Grove Development Board
The XBee Grove Development Board is a simple-to-use base unit. You can use it to evaluate
XBee modules, as it connects any XBee/XBee-PRO module to a PC or microcontroller. One of
the main features of the board is that it has several Grove connectors where you can plug in a
Grove Module. You can learn more about the
Grove module
on the Seeed Studio wiki.

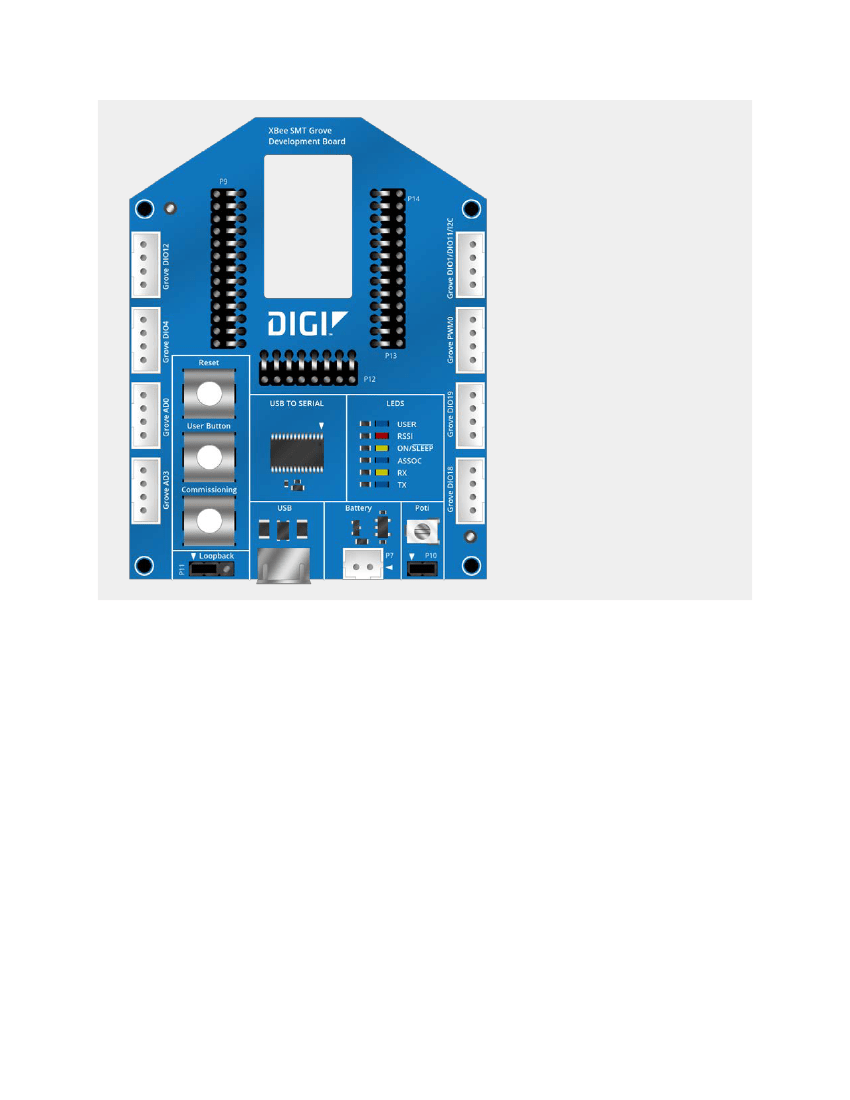

There are two variants of the board: THT and SMT.
This guide includes the following topics:
•

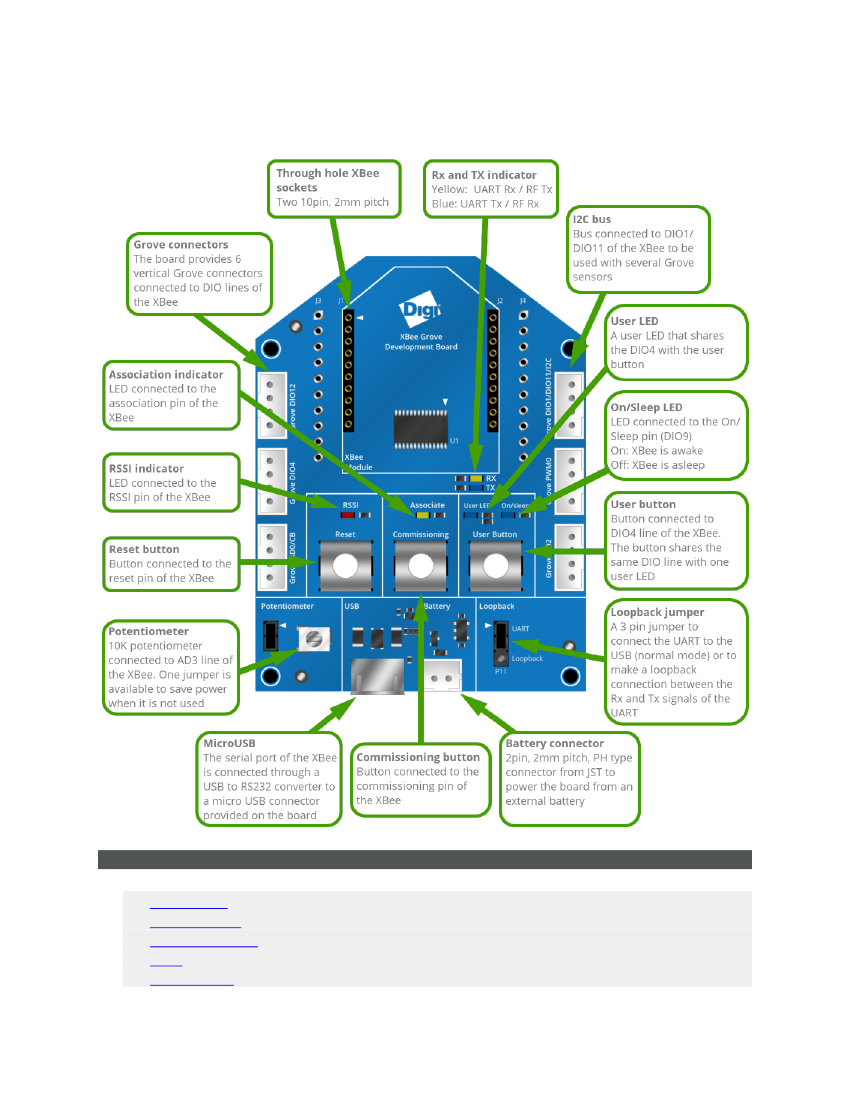

Overview

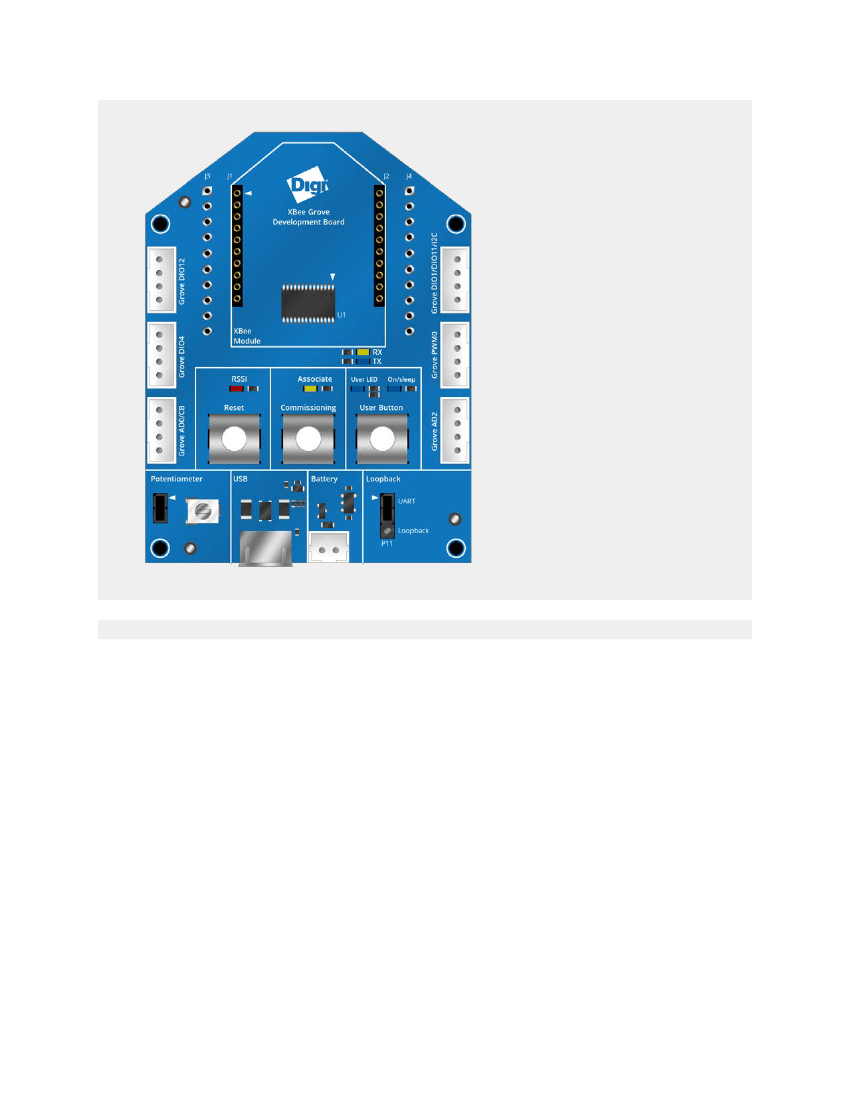

XBee THT Grove Development Board
•
•
•
•
•
•
•
•
•
Commissioning button
Association LED
RSSI LED
User LED and User button
On/Sleep LED
Potentiometer
I2C
Grove connectors
Loopback jumper
Mechanical
The XBee Grove Development Board is 44.8mm x 66mm with a shape similar to a regular XBee
module.
The board provides four 3.2 mm assemble drills.
