FOLC-145-L4-SQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> FOLC-145-L4-SQ

FOLC-145-L4-SQ: Description180 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET, ROHS COMPLIANT; CategoryThe connector; File Size747KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FOLC-145-L4-SQ Overview

180 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET, ROHS COMPLIANT

FOLC-145-L4-SQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	LOW INSERTION FORCE
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	FOLC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	180
Base Number Matches	1

Preview

Download Datasheet

View All

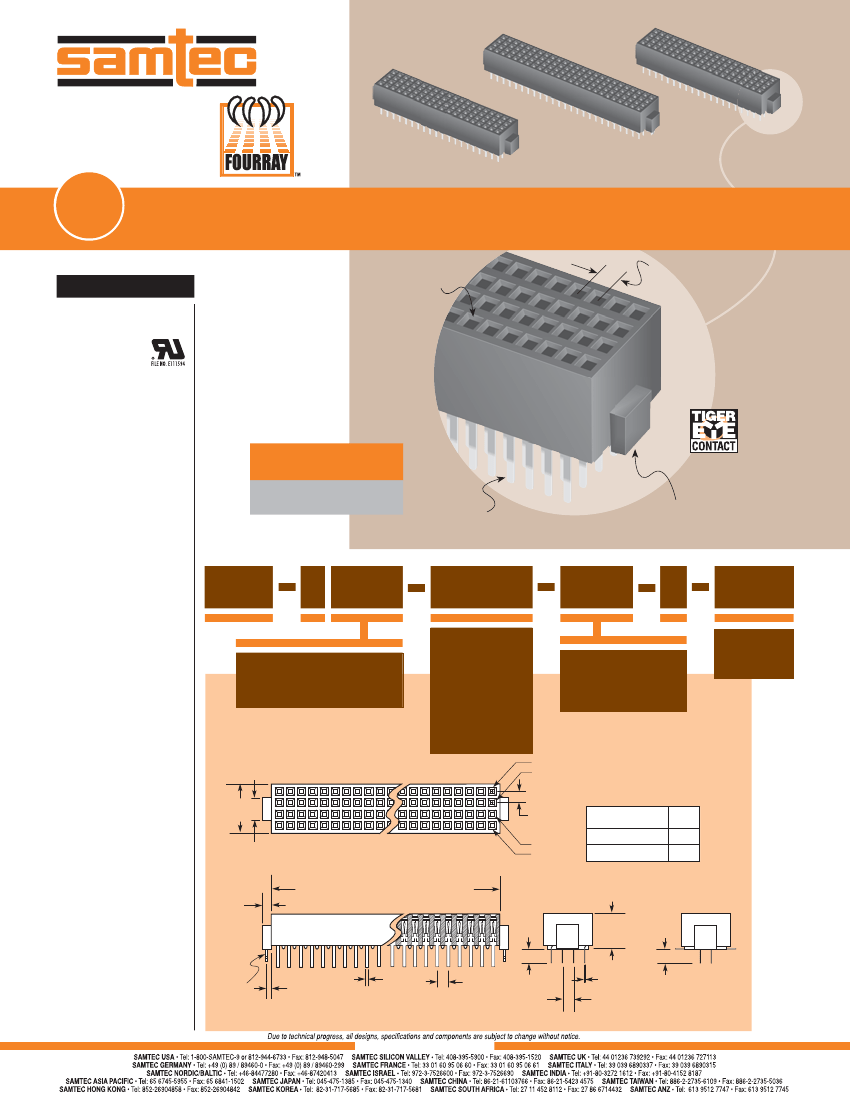

F-209-1

FOLC–125–01–S–Q–LC

FOLC–120–04–S–Q

FOLC–120–01–S–Q

Through

T/H

Hole

.050" x .050" SOCKETS

Mates with:

MOLC

Low Insertion Force

contacts available

High reliability

Tiger Eye™

contacts

FOLC

SERIES

(1,27mm) .050" x

(1,27mm) .050"

micro pitch

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?FOLC

Insulator Material:

Black Liquid Crystal

Polymer

Contact Material:

BeCu

Current Rating:

1A @ 80°C ambient

Operating Temp Range:

-55°C to +125°C

Plating:

Au, PdNi or Sn

over 50µ" (1,27µm) Ni

Contact Resistance:

15 mΩ max

Insertion Depth:

(3,30mm) .130" to

(4,06mm) .160"

Insertion Force:

(Single contact only)

Standard= 5.0oz (1,39N) avg.

LIF= 2.0oz (0,56N) avg.

Normal Force:

Standard= 70 grams

(0,69N) avg. LIF= 40 grams

(0,39N) avg.

Withdrawal Force:

(Single contact only)

Standard= 4oz (1,11N) avg.

LIF= 1.5oz (0,42N) avg.

Max Cycles:

100 with 30µ" (0,76µm) Au

RoHS Compliant:

Yes

™

APPLICATION

SPECIFIC OPTION

Alignment pins available.

Call Samtec.

Through-hole

Locking clip

options available

FOLC

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

Processing:

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 3x

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,15mm) .006" max

–01 & –04

20, 25, 30, 35,

40, 45, 50

(Call Samtec for other sizes)

= Through-Hole

–LC

–S

= 30µ" (0,76µm)

Gold on contact,

Matte Tin on tail

= Locking

Clip

–M1 & –M2

= Mixed Technology

–L1 & –L4

= Low Insertion Force

Through-Hole

(2,54)

.100

(5,59)

.220

(1,27)

.050

TYP

LEAD

STYLE

(1,91)

.075

(3,04)

.120

– 01, –M1

– 04, –M2

No. of positions x (1,27) .050 + (0,51) .020

(1,02) .040 TYP (2)

(4,57)

.180

Note:

Other Gold plating

options available.

Contact Samtec.

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(0,13)

.005

TYP

Mixed

Technology

Optional

Locking

Clip

(–LC)

(0,51)

.020

(0,41)

.016

(1,27)

.050

(1,27)

.050

TYP

WWW.SAMTEC.COM
