HMC270AMS8GE
v03.0818
Gaas MMIC sPDT sWITCH
NON-REFLECTIVE, DC -8 GHz
Typical applications
Features
Broadband Performance: DC - 8 GHz
Very High Isolation: 45 dB @ 6 GHz
Non-Reflective Design
Low Cost MSOP-8 Package: 14.8 mm
2
SWITCHES - SPDT - SMT
The HMC270AMS8GE is ideal for
DC - 8.0 GHz applications:
• CATV
• MMDS & WirelessLAN
• Wireless Local Loop
Functional Diagram
General Description
The HMC270AMS8GE are broad-band non-reflective
GaAs SPDT switches in 8 lead MSOP grounded base
surface mount plastic packages. Covering DC to 8
GHz, the switch offers excellent isolation from 70 to
35 dB. The negative control voltage of -5 volts allows
operation down to DC. If positive control is required
along with high isolation, see the DC to 3.5 GHz
HMC284AMS8GE non-reflective SPDT.
Electrical specifications,
T
a
= +25° C, With 0/-5V Control, 50 Ohm system
Parameter
Insertion Loss
Frequency
DC - 2.0 GHz
DC - 6.0 GHz
DC - 8.0 GHz
DC - 2.0 GHz
DC - 4.0 GHz
DC - 6.0 GHz
DC - 8.0 GHz
“On State”
DC - 2.0 GHz
DC - 6.0 GHz
DC - 8.0 GHz
DC - 2.0 GHz
DC - 6.0 GHz
DC - 8.0 GHz
0.5 - 8.0 GHz
0.5 - 8.0 GHz
DC - 8.0 GHz
15
50
ns
ns
43
42
37
28
11
9
7
15
13
10
24
37
Min.
Typ.
0.8
1.0
2.4
53
52
45
33
14
12
10
20
18
15
28
42
Max.
1.2
1.7
2.8
Units
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
Isolation
Return Loss
Return Loss RF1, RF2
Input Power for 1 dB Compression
Input third Order Intercept
(Two-Tone Input Power = +10 dBm Each Tone)
Switching Characteristics
tRISE, tFALL (10/90% RF)
tON, tOFF (50% CTL to 10/90% RF)
“Off State”
1
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
HMC270AMS8GE
v03.0818
Gaas MMIC sPDT sWITCH
NON-REFLECTIVE, DC -8 GHz

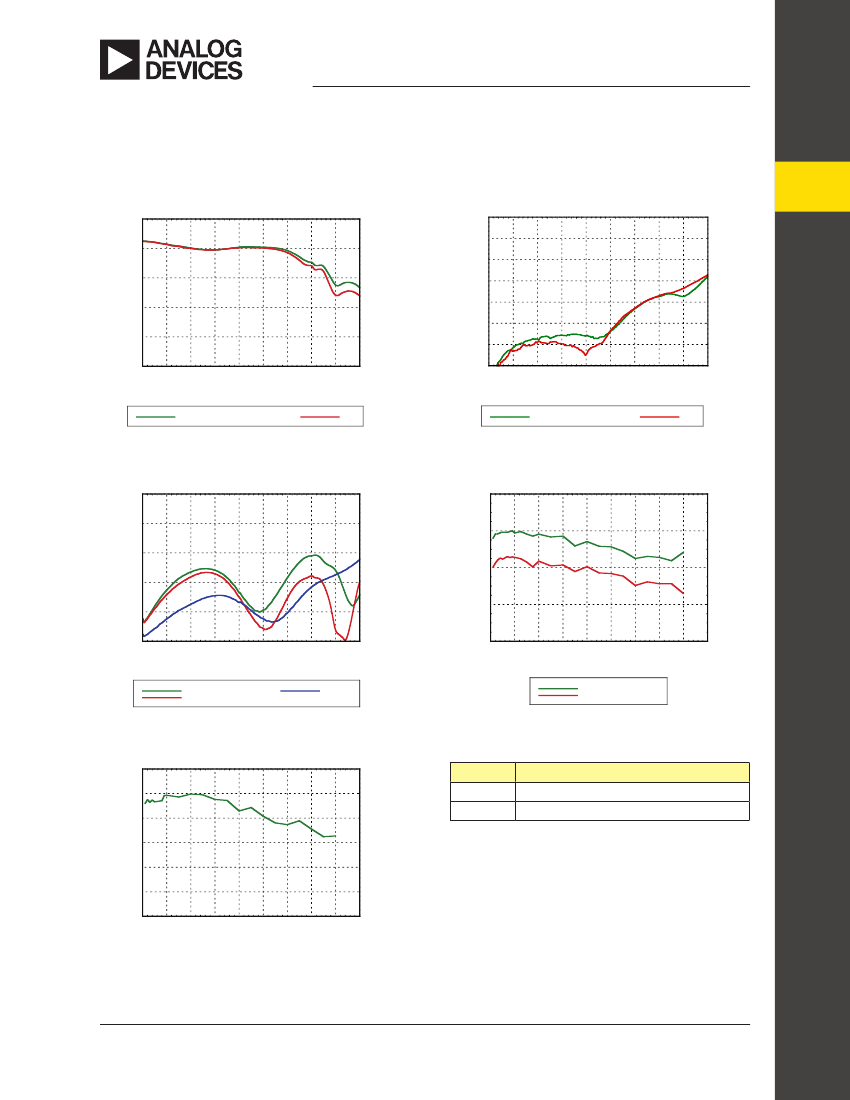

Insertion Loss
0
-1
ISOLATION (dB)
-20
-30
-40
-50
-60
Isolation
0
-2
-3
-4
-5
0
1
2
3
4
5
6
7
8
9
FREQUENCY (GHz)
RF1
RF2
-70
0
1
2
3
4
5
6
7
8
9
FREQUENCY (GHz)
RF1
RF2
Return Loss
0
-5
RETURN LOSS (dB)
0.1 and 1 dB Input Compression Point
34
COMPRESSION POINT (dBm)
30
-10
26
-15
-20
22
-25
0
1
2
3
4
5
6
7
8
9
FREQUENCY (GHz)
RFC
RF1, 2 On
RF1,2 Off
18
0
1
2
3
4
5
6
7
8
9
FREQUENCY (GHz)
1 dB Compression Point
0.1 dB Compression Point
Input Third Order Intercept Point
55
THIRD ORDER INTERCEPT (dBm)
50
45
40
35
30
25
0
1
2
3
4
5
6
7
8
9
FREQUENCY (GHz)
Control Voltages
State
Low
High
Bias Condition
0 to -0.2V @ 0.5 uA Typ.
-5V @ 2 uA Typ. to -7V @ 15 uA Typ (±0.5 Vdc)
For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
SWITCHES - SPDT - SMT
2
-10
INSERTION LOSS (dB)
HMC270AMS8GE
v03.0818
Gaas MMIC sPDT sWITCH
NON-REFLECTIVE, DC -8 GHz
absolute Maximum Ratings
Truth Table
Control Input
+29 dBm
25.5 dBm
+0.5 to -7 Vdc
-65 to +150 °C
-40 to +85 °C
A
High
Low
B
Low
High
Signal Path State
RFC to RF1
ON
OFF
RFC to RF2
OFF
ON
SWITCHES - SPDT - SMT
Max RF Input Power, Vctl = -5V
Insertion Loss Path
Terminated Path
Control Voltage Range
Storage Temperature
Operating Temperature
Thermal Resistance
Insertion Loss Path
Terminated Path
ESD Sensitivity (HBM)
143 °C/W
183 °C/W
Class 1A
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS

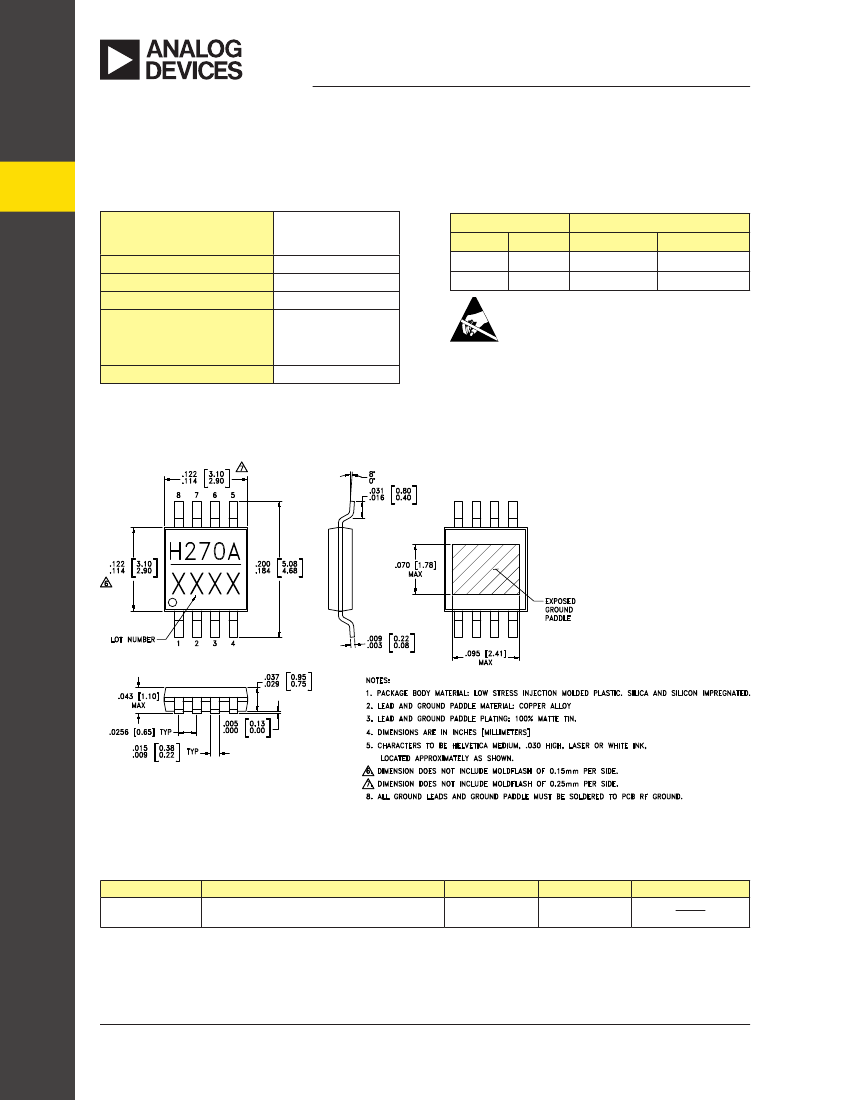

Outline Drawing
Package Information
Part Number
HMC270AMS8GE
Package Body Material
RoHS-compliant Low Stress Injection Molded Plastic
Lead Finish
100% matte Sn
MSL Rating
MSL3
[1]
Package Marking
[2]
H270A
XXXX
[1] Max peak reflow temperature of 260 °C
[2] 4-Digit lot number XXXX
3
For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
HMC270AMS8GE
v03.0818
Gaas MMIC sPDT sWITCH
NON-REFLECTIVE, DC -8 GHz
suggested Driver Circuit
Simple driver using inexpensive standard logic ICs provides fast switching using minimum DC current while translating from
standard positive voltage TTL or CMOS logic to negative voltage GaAs IC logic.
Pin Descriptions
Pin Number
1
Function
A
Description
See truth table and control voltage table.
Interface Schematic
2
B
See truth table and control voltage table.
3, 5, 8
RFC, RF1, RF2
This pin is DC coupled and matched to 50 Ohm. Blocking
capacitors are required if RF line potential is not equal to 0V.
4, 6, 7
GND
This pin must be connected to RF/DC ground.
For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
SWITCHES - SPDT - SMT
4
HMC270AMS8GE
v03.0818
Gaas MMIC sPDT sWITCH
NON-REFLECTIVE, DC -8 GHz

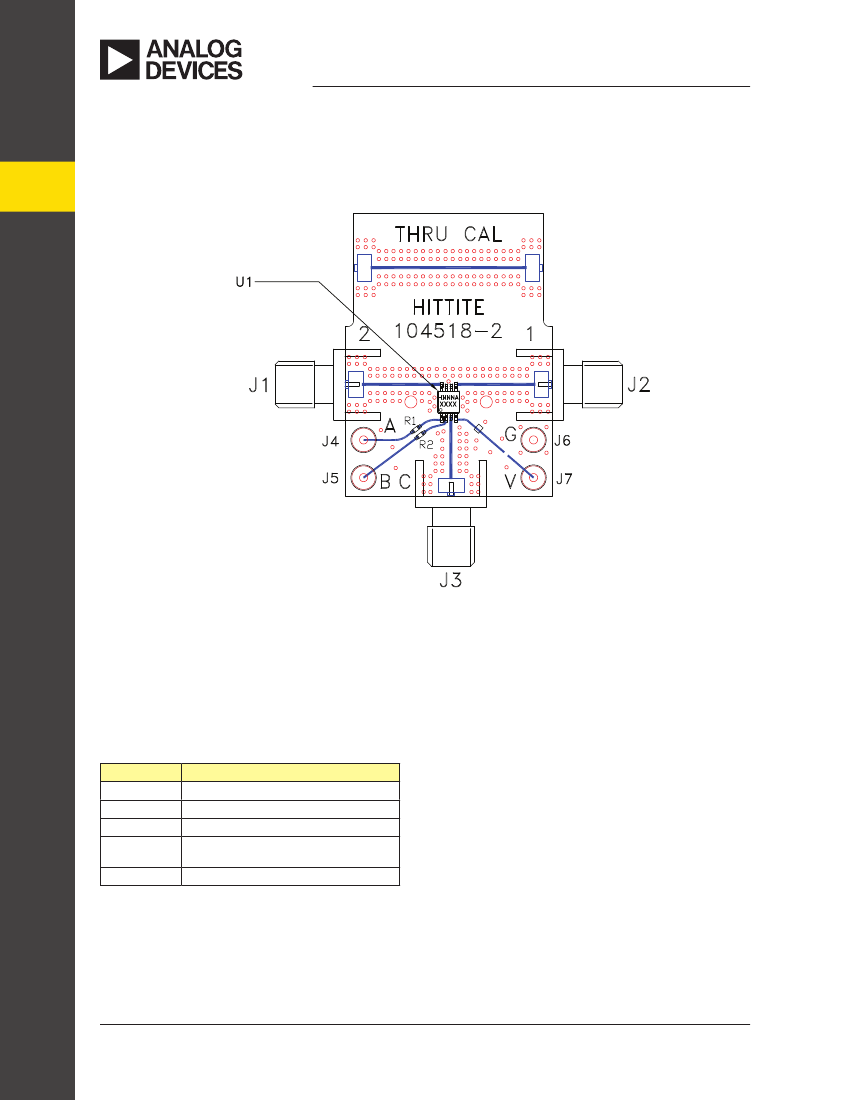

Evaluation PCB
SWITCHES - SPDT - SMT
List of Materials for Evaluation PCB EV1HMC270aMs8G
[1]
Item
J1 - J3
J4 - J5
R1 - R2
U1
PCB
[2]
Description
PCB Mount SMA RF Connector
DC Pin
100 Ohm Resistor, 0402 Pkg.
HMC270AMS8GE
SPDT Switch
104518 Evaluation PCB
[1] Reference this number when ordering complete evaluation PCB
[2] Circuit Board Material: Rogers 4350
The circuit board used in the application should
be generated with proper RF circuit design tech-
niques. Signal lines at the RF ports should have
50 Ohm impedance and the package ground leads
and exposed ground paddle should be connected
directly to the ground plane similar to that shown
above. The evaluation circuit board shown above
is available from Analog Devices Inc. upon request.
5
For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
