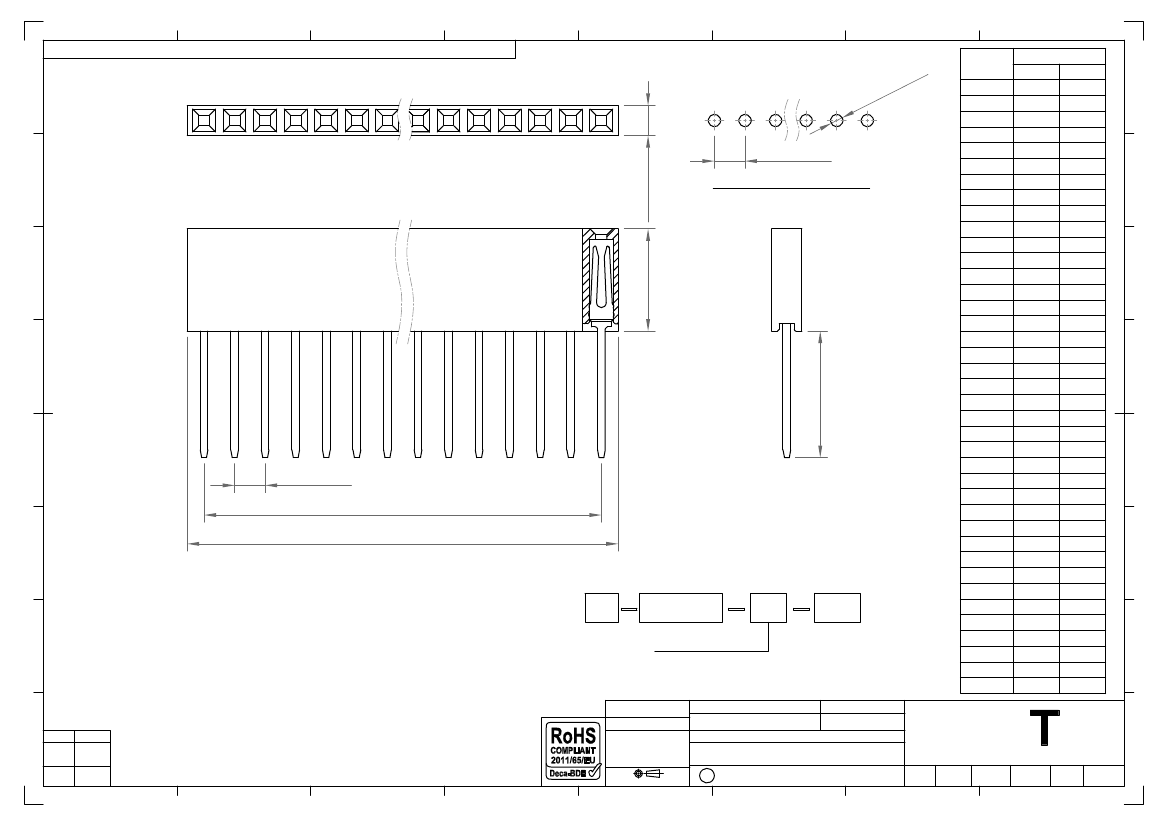

Global Connector Technology Ltd. - SP-140520-XX-001 : 2.54mm Pitch Socket, Single Row, Straight
A
5
6
7
8
DIMENSIONS
CONTACTS
2
3
4
5
A
2.54
5.08
7.62
10.16
12.70
15.24
17.78
20.32
22.86
25.40
27.94
30.48
33.02
35.56
38.10
40.64
43.18
45.75
48.26
50.80
53.34
55.88
58.42
60.96
63.50
66.04
68.58
71.12
73.66
76.20
78.74
81.28
83.82
86.36
88.90
91.44
93.98
96.52
99.06
B
5.63
8.17
10.71
13.25
15.79
18.33
20.87
23.41
25.95
28.49
31.03
33.57
36.11
38.65
41.19
43.73
46.27
48.81
51.35
53.89
56.43
58.97
61.51
64.05
66.59
69.13
71.67
74.21
76.75
79.29
81.83
84.37
86.91
89.45
91.99
94.53
97.07
99.61
102.15
.0
Ø1
05
±0 .
2
A
2.54±0.05
B
6
7
2.50±0.15
Recommended PCB Layout
8
9
10
11
12
B
C
8.50±0.15
13
14
15
16
17
18
C
10.50±0.30
D
19
20
21
22
23
24
D
E
25
26
E
2.54±0.10
A±0.20
B±0.30
F
Specifications:
Current Rating: 3 Amp
Insulator Resistance: 1000 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding: 500 V AC
G
Contact Material: Brass
Contact Plating: Gold Flash
Insulator Material: PBT + 30%GF, UL 94V-0
Operating Temperature: -40°C to +105°C
27
28
29
30
31
32
F
Ordering Grid
33
SP
140520
No of Contacts
02 - 40
Tolerances
(Except as noted)
XX
001
34
35
36
37
38
39
40
G
Part Number:-
Date:-
Dimensions in mm
SP-140520-XX-001
Description:-
20 May 14
H
By
DETAIL
REV
DATE
AJO
Drawing
Release
A
20/05/14
X.X ± 0.30
X.XX ± 0.20
2.54mm Pitch Socket, Single Row, Straight
GC
Scale
NTS
H
Sheet No.
E & OE
1/1
www.gct.co
Drawn by
AJO
1
2
3
4
Third Angle Projection
C
THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE
COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT
Revision
A
Material
See Note
5
6
7
8
