REVISION Z
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
2.
3.
4.
REPRESENTS A CRITICAL DIMENSION.
ASSEMBLE GOLD PLATED END AS SHOWN.
TERMINAL PUSHOUT FORCE: 2 lbs BEFORE HEAT.
TERMINALS TO BE FLUSH TO .010[.25] BELOW TOP OF SHROUD.
C

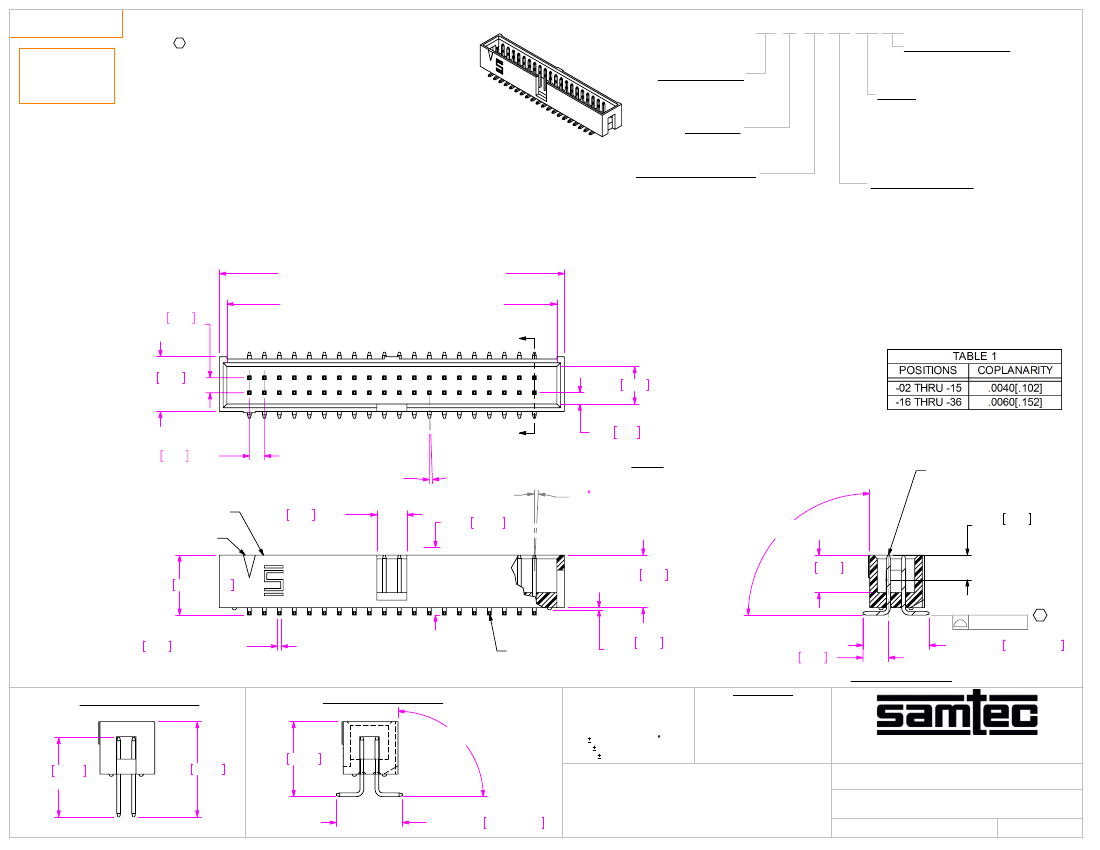

HTST-1XX-01-XX-DV-XX-XX
PACKAGING OPTION
No OF POSITIONS
-02 THRU -36
(PER ROW)
LEAD STYLE
-01: SURFACE MOUNT
(USE T-1S6-08-X-2)
-TR: TAPE & REEL
(POSITIONS -02 THRU -25 ONLY)
OPTION
-A: ALIGNMENT PIN (* ASO OPTION)
(SEE FIG. 3 SHT. 2)
-P: PICK & PLACE PAD
(USE PPP-22)
-XX: POLARIZATION OPTION
(INDICATES POSITION OMITTED)
{(No OF POS x .100[2.54]) + .300[7.62]} REF
{(No OF POS x .100[2.54]) + .200[5.08] REF
.100 2.54
REF
02
04
"A"
PLATING SPECIFICATION
ROW SPECIFICATION
(VALUES GIVEN ARE IN MICRO-INCHES)
-T: MATTE TIN, CONTACT AND TAIL
-DV: DOUBLE VERTICAL
-S: SELECTIVE, 30 Au / 50 NI MIN ON CONTACT,
(USE HTST-XX-D)
MATTE TIN TAIL
-L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
-H: HEAVY GOLD, 30 Au / 50 Ni MIN ON CONTACT,
3 Au / 50 NI MIN ON TAIL
-F: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
-TM: MATTE TIN CONTACT AND TAIL
-SM: SELECTIVE, 30 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
-FM: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
-LM: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
.250 6.35 REF
.365 9.27
REF
01
03
"A"
.075 1.91 REF
.100 2.54 REF
2° MAX SWAY
(EITHER DIRECTION)
HTST-XX-D
FIRST POSITION
INDICATOR
.200 5.08 REF
HTST-120-01-X-DV SHOWN
2 MAX SWAY
(EITHER DIRECTION)
.450 11.43
90°
- 2°
.250 6.35
REF
+4°
FIG. 1
SEE NOTE 4
.165 4.19 REF
(SEE NOTE 2)
.400±.010 10.16±0.25
.350 8.89
REF
C
L
.025 0.64 SQ REF (TYP)
T-1S6-08-XX-2
.015 0.38
REF
.170 4.32
SEE TABLE 1
C
1
.440±.010 11.18±0.25
SECTION "A"-"A"
IN-PROCESS VIEW 1
IN-PROCESS VIEW 2
+5°
90°
- 0°
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
.530 13.46
REF
.635 16.13
.500 12.70
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
INSULATOR:
LCP, UL 94 VO
COLOR: NATURAL
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
HIGH TEMP TOP SHROUD
DWG. NO.
.440±.010 11.18±0.25
TERMINAL: PHOS BRONZE
F:\DWG\MISC\MKTG\HTST-1XX-01-XX-DV-XX-XX-MKT.SLDDRW
HTST-1XX-01-XX-DV-XX-XX
T. WERNE
07/11/2001
SHEET
1
OF
3
BY:
REVISION Z
(((NO POS X .100) +.300) / 2 - .1875)
+/- .020
.375 9.53
REF
.390 9.91
REF
.400 10.16
REF
.450±.015 11.43±0.38
FIG. 2
-P: PICK & PLACE PAD OPTION
(SAME AS FIG. 1 UNLESS OTHERWISE STATED)
.050 1.27
.100 2.54 REF
FULL R (TYP)
(NO OF POS. x .100 [2.54]) -.200 [5.08]
.060 1.52 DIA REF
FIG. 3
-A: ALIGNMENT PIN OPTION
(SAME AS FIG. 1 UNLESS OTHERWISE STATED)
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
HIGH TEMP TOP SHROUD
SHEET SCALE: 2:1
HTST-1XX-01-XX-DV-XX-XX
T. WERNE
07/11/2001
F:\DWG\MISC\MKTG\HTST-1XX-01-XX-DV-XX-XX-MKT.SLDDRW
BY:
SHEET
2
OF
3
REVISION Z
POS. 1
ROUND HOLES
"B"
"B"
OBLONG HOLES
SECTION "B"-"B"
SCALE 1 : 1
USER DIRECTION OF REELING
POCKET NOT DETAILED
TUBE VIEW
TAPE & REEL VIEW
TUBE: PT-1-24-02-08
PLUG: TP-13
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
HIGH TEMP TOP SHROUD
SHEET SCALE: 2:1
HTST-1XX-01-XX-DV-XX-XX
T. WERNE
07/11/2001
SHEET
3
OF
3
F:\DWG\MISC\MKTG\HTST-1XX-01-XX-DV-XX-XX-MKT.SLDDRW
BY:
