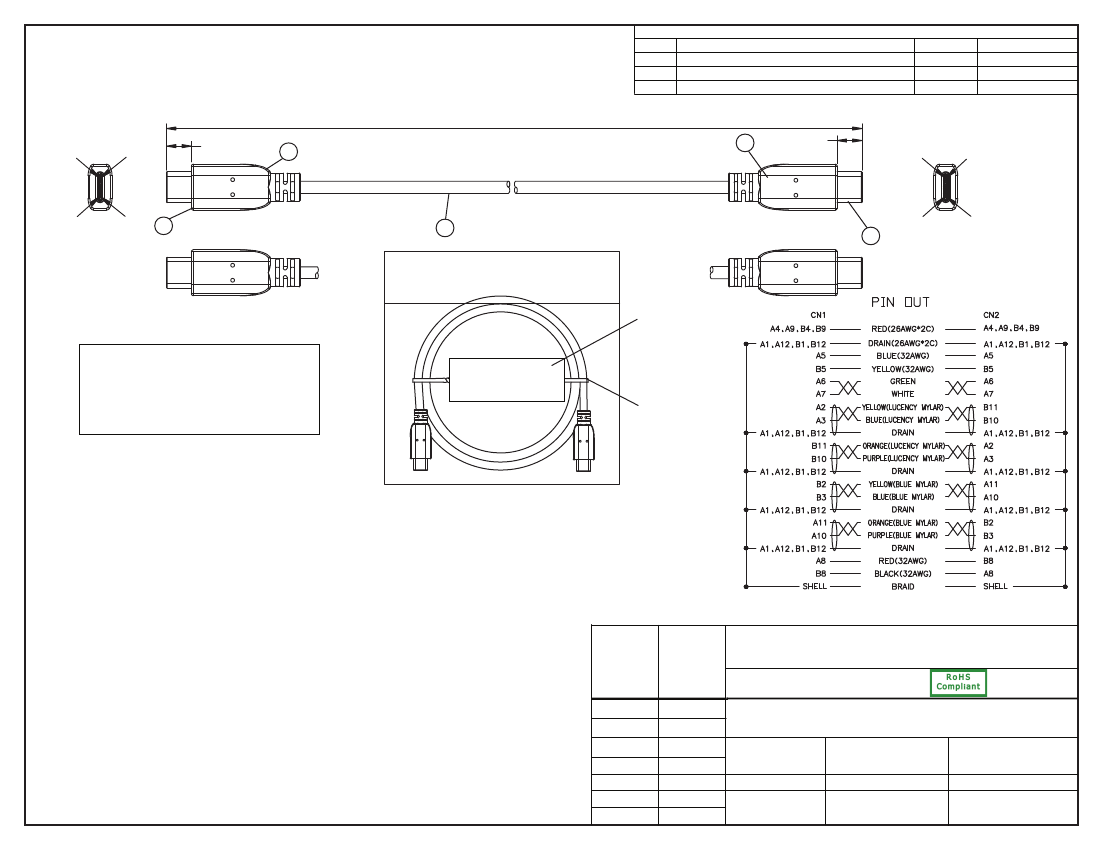

1000 ± 30mm
4
B1
A12
6.65 ± 0.10
4
6.65 ± 0.10
A1
B12
B12
CN1
A1
2
1
3
A12
CN2
B1
LABEL
P /N: 3023041-01M
US B 3.1 TYPE C - US B 3.1 TYPE C
Length: 1M
C olor: B lac k
P /N: 3023041-01M
US B 3.1 TYPE C - USB 3.1 TYPE C
Length: 1M
C olor: B lac k
MINI TIE x2
NOTES:
1. CABLE: UL2725
(7/0.085TAx1PR+EAM)x4+7/0.08TAx1PR+19/0.1TAx2C+
7/0.08TAx4C+19/0.10TAx2+CONDUCTIVE FILM(PE)+ B 85%
PVC OUTER JACKET: BLACK, OD: 4.8 ± 0.2mm
2. CONNECTOR: USB 3.1 GEN 1 TYPE C MALE
INSULATOR: BLACK PBT
PIN GOLD PLATED
NICKEL PLATED SHELL
PCB WITH E-MARKED
3. CONNECTOR: USB 3.1 GEN 1 TYPE C MALE
INSULATOR: BLACK PBT
PIN GOLD PLATED
NICKEL PLATED SHELL
4. PVC MOLDED: COLOR V398 45P BLACK
5. ELECTRICAL TEST:
<1>.100% OPEN SHORT & MISS WIRE TEST
6. DATA TRANSFER RATE UP TO 5Gbps (NOMINAL)
7. CURRENT RATING UP TO 5A (NOMINAL)
8. VOLTAGE RATING UP TO 12V (NOMINAL)
9. PACKING: 1PC/POLYBAG W/ LABEL
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
WCI DIVISION
3023041-01M
USB 3.1(C)/M - USB 3.1 (C)/M
UNIT: mm
Drawn / Date
R. Nuti
08-24-15
Checked / Date
08-24-15
Approved / Date
LY / 08-24-15
