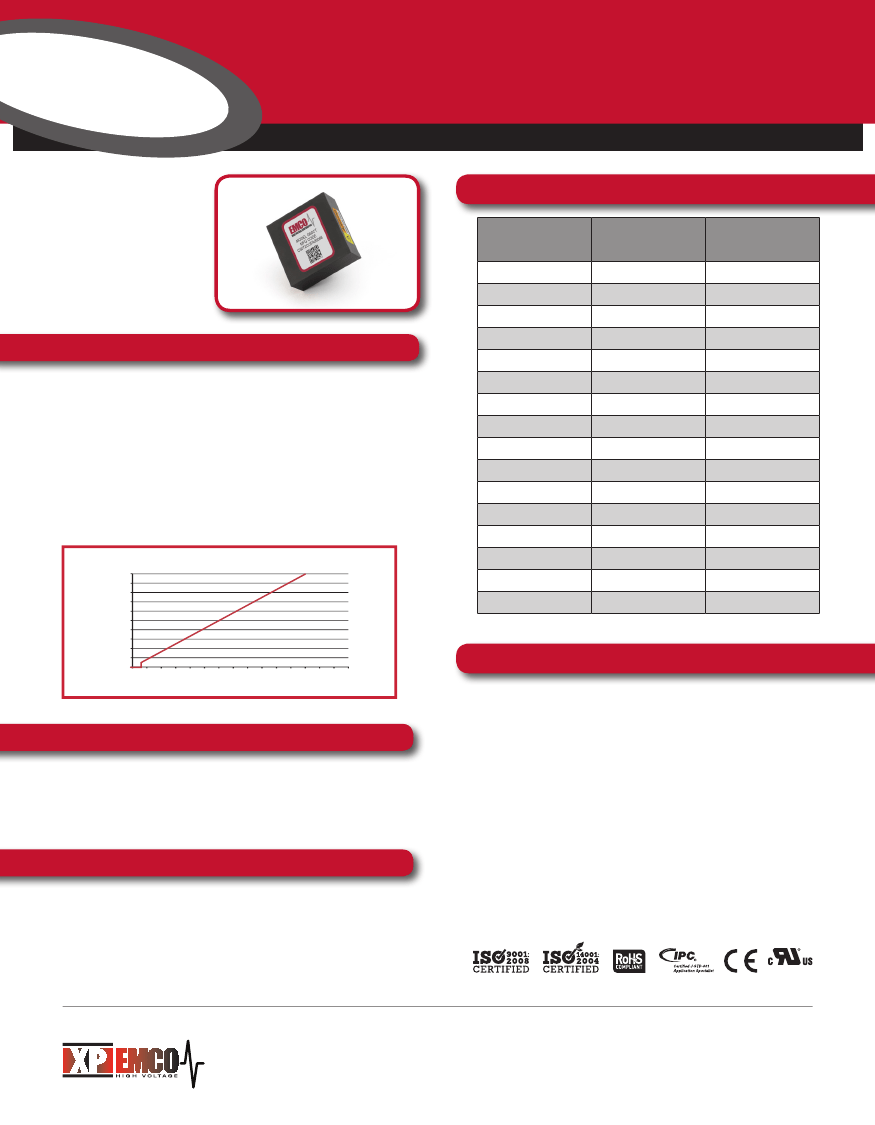

Proven
Reliabilit y
ISOLATED, PROPORTIONAL DC TO HV DC CONVERTERS
100V to 6kV at 1.5W
PRODUCT SELECTION TABLE
G SERIES
UL
NOW
NIZED
OG
REC
MODEL
G01
G02
G03
G04
G05
G06
G10
G12
G15
G20
G25
G30
G40
*8
G50
*8
G60
*8
GPMT
*7
OUTPUT
VOLTAGE*
2
100V
200V
300V
400V
500V
600V
1kV
1.2kV
1.5kV
2kV
2.5kV
3kV
4kV
5kV
6kV
1.25kV
OUTPUT
CURRENT*
1
15mA
7.5mA
5mA
3.75mA
3mA
2.5mA
1.5mA
1.25mA
1.0mA
0.75mA
0.60mA
0.50mA
0.37mA
0.30mA
0.25mA
350uA
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
The G Series is a line of miniature, versatile component level build-
ing blocks that provide up to 6kV, positive or negative, in a compact
PC mount package. The isolated output is directly proportional to the
input, and is linear from approximately 0.7 volts in. Excellent filtering
techniques and a low noise quasi-sinewave oscillator provide clean,
reliable DC to HV DC conversion with low ripple and low EMI/RFI.
The isolated output allows for user selectable output polarity. A dual
output option with center-tap pin which, when grounded provides both
positive and negative outputs from one compact, low cost module. The
pin pattern on the G Series allows for a direct drop-in replacement
for many larger high voltage modules. The GPMT model has been
specifically designed for biasing PMT’s.
Typical Input vs. Output Voltages
100
90
80
% Of Full Output
70
60
50
40
30
20
10
0
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
FEATURES
• Proportional Input/Output
• Compact, PCB Mount Package
• Low Ripple, Low EMI / RFI
• Proven Reliability
• Short Circuit Protection
• Input/Output Isolation
• Low Leakage Current
• Low Input/Output Coupling Capacitance
• No External Components Required
• No Minimum Load Required
• MTBF: >2.29 Million Hours per Bellcore TR-332
• RoHS Compliant
• UL Recognized
Input Voltage
APPLICATIONS
• Capacitor Charging
• Piezo Devices
• Mass Spectrometry
• Electrostatic Chuck
• Igniter / Spark Module
• Sustaining Ion Pumps
• Piezo Devices
• Vacuum Gauges
• Photomultiplier Tubes
• Lamp Ignition and Drive
OPTIONS
• Dual output (Center Tap) Models Available (CT Suffix)
• External Mounting Enclosure (AB Suffix)
• Alternate Input/Output Combinations (Consult Factory)
E139109
WWW.XPPOWER.COM
4726BH03
PAGE 1
G SERIES
G01 THRU G40, GPMT MECHANICAL SPECIFICATIONS
TOP VIEW
RECOMMENDED
PCB LAYOUT
TOP VIEW
HIGH
VOLTAGE
1.50
(38.10)
0.15
(3.81)
1.200
(30.48)
1.50
(38.10)
0.63
(16.00)
0.20
(5.08)
0.800
(20.32)
2
1
4
3
1.000
(25.40)
0.35
(8.89)
0.25
(6.35)
00.031
Ø
PC PIN
(0.79)
4 PLACES
RECOMMENDED
HOLE & PAD O.D. SIZE:
Ø
0.052 (1.32 ) &
Ø
0.082 (2.08 )
4 PLACES
DIMENSIONS ARE IN INCHES (METRIC EQUIVALENTS ARE IN PARENTHESIS)
DIMENSIONAL TOLERANCES: .XX = + 0.02 (0.51), .XXX = + 0.005 ( 0.127)
-
-
PARAMETER
WEIGHT
VOLUME
DIMENSIONS
CASE MATERIAL
VALUE
Weight: 1.5 OZ (43 Grams)
1.4 cubic Inches (23 cubic centimeters)
1.5L (38.1L) x 1.5W (38.1L) x 0.63H (16.0H)
Diallyl Phthalate (DAP)
PIN #
1
2
3
4
FUNCTION
(+) Input
(-) Input
(+) Output
(-) Output
WWW.XPPOWER.COM
4726BH03
PAGE 4
G SERIES
G50 THRU G60 MECHANICAL SPECIFICATIONS
TOP VIEW
RECOMMENDED
PCB LAYOUT
TOP VIEW
1.200
(30.48)
HIGH
VOLTAGE
1.50
(38.10)
0.15
(3.81)
1.50
(38.10)
0.63
(16.00)
0.20
(5.08)
0.800
(20.32)
2
1
4
1.200
(30.48)
3
0.15
(3.81)
0.35
(8.89)
0.031
Ø
PC PIN
(0.79)
4 PLACES
RECOMMENDED
HOLE & PAD O.D. SIZE:
Ø
0.052 (1.32 ) &
Ø
0.082 (2.08 )
4 PLACES
DIMENSIONS ARE IN INCHES (METRIC EQUIVALENTS ARE IN PARENTHESIS)
DIMENSIONAL TOLERANCES: .XX = + 0.02 (0.51), .XXX = + 0.005 ( 0.127)
-
-
PARAMETER
WEIGHT
VOLUME
DIMENSIONS
CASE MATERIAL
VALUE
Weight: 1.5 OZ (43 Grams)
1.4 cubic Inches (23 cubic centimeters)
1.5L (38.1L) x 1.5W (38.1L) x 0.63H (16.0H)
Diallyl Phthalate (DAP)
PIN #
1
2
3
4
FUNCTION
(+) Input
(-) Input
(+) Output
(-) Output
WWW.XPPOWER.COM
4726BH03
PAGE 5
