BJ3450S datasheet, PDF - EEWORLD Datasheet

BJ3450S: DescriptionCONN 1553 TWIN JACK STR SOLDER; CategoryThe connector; File Size221KB，1 Pages; ManufacturerCINCH; Environmental Compliance

Download Datasheet Parametric Compare View All

BJ3450S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BJ3450S	-	-	View	Buy Now

CONN 1553 TWIN JACK STR SOLDER

Parameter Name	Attribute value
Connector style	1553, dual axis
Connector type	Jack, male pin, female socket (coaxial)
Contact termination	solder cup
Protective termination	welding labels
impedance	non-constant
Installation type	Panel mounting
Installation features	Bulkhead type - front side nut
cable set	-
Fastening type	Threaded
Frequency - maximum	2MHz
Number of ports	1
characteristic	-
Shell color	silver
Intrusion protection	-
include	3 pieces - 1 connector, 1 lock washer, 1 nut
Matrix material	brass
substrate surface	nickel
Center contact plating	gold
dielectric materials	-
Operating temperature	-65°C ~ 125°C
center contact material	copper beryllium
Rated voltage	900V
Number of patches	-
Insertion loss	-

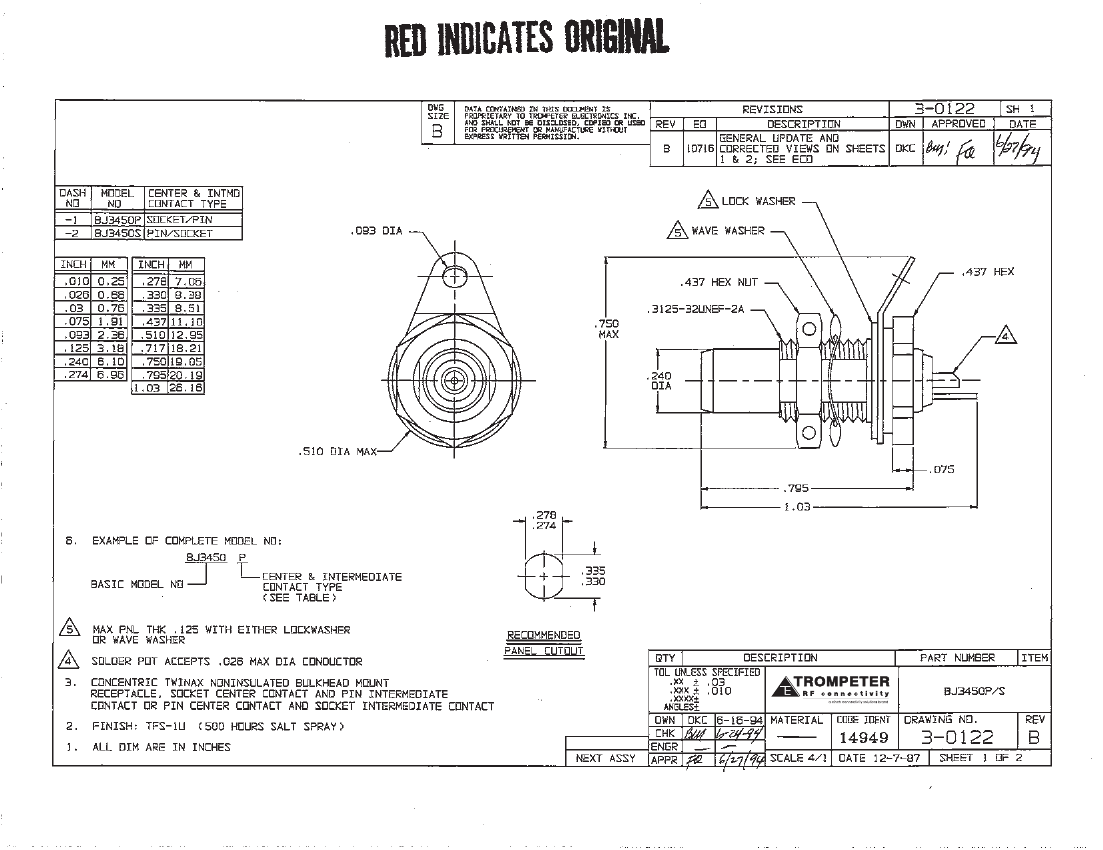

U

N

C

O

N

TR

O

LL

ED

C

O

PY

	BJ3450S	BJ3450P
Description	CONN 1553 TWIN JACK STR SOLDER	CONN 1553 TWIN JACK STR SOLDER
Connector style	1553, dual axis	1553, dual axis
Connector type	Jack, male pin, female socket (coaxial)	Jack, female socket, male pin (coaxial)
Contact termination	solder cup	solder cup
Protective termination	welding labels	welding labels
impedance	non-constant	non-constant
Installation type	Panel mounting	Panel mounting
Installation features	Bulkhead type - front side nut	Bulkhead type - front side nut
Fastening type	Threaded	Threaded
Frequency - maximum	2MHz	2MHz
Number of ports	1	1
Shell color	silver	silver
include	3 pieces - 1 connector, 1 lock washer, 1 nut	3 pieces - 1 connector, 1 lock washer, 1 nut
Matrix material	brass	brass
substrate surface	nickel	nickel
Center contact plating	gold	gold
Operating temperature	-65°C ~ 125°C	-65°C ~ 125°C
center contact material	copper beryllium	copper beryllium
Rated voltage	900V	900V
