DEMO MANUAL DC1488A
LTC2634
Quad 12-Bit SPI V
OUT
DAC
with Internal Reference
DESCRIPTION

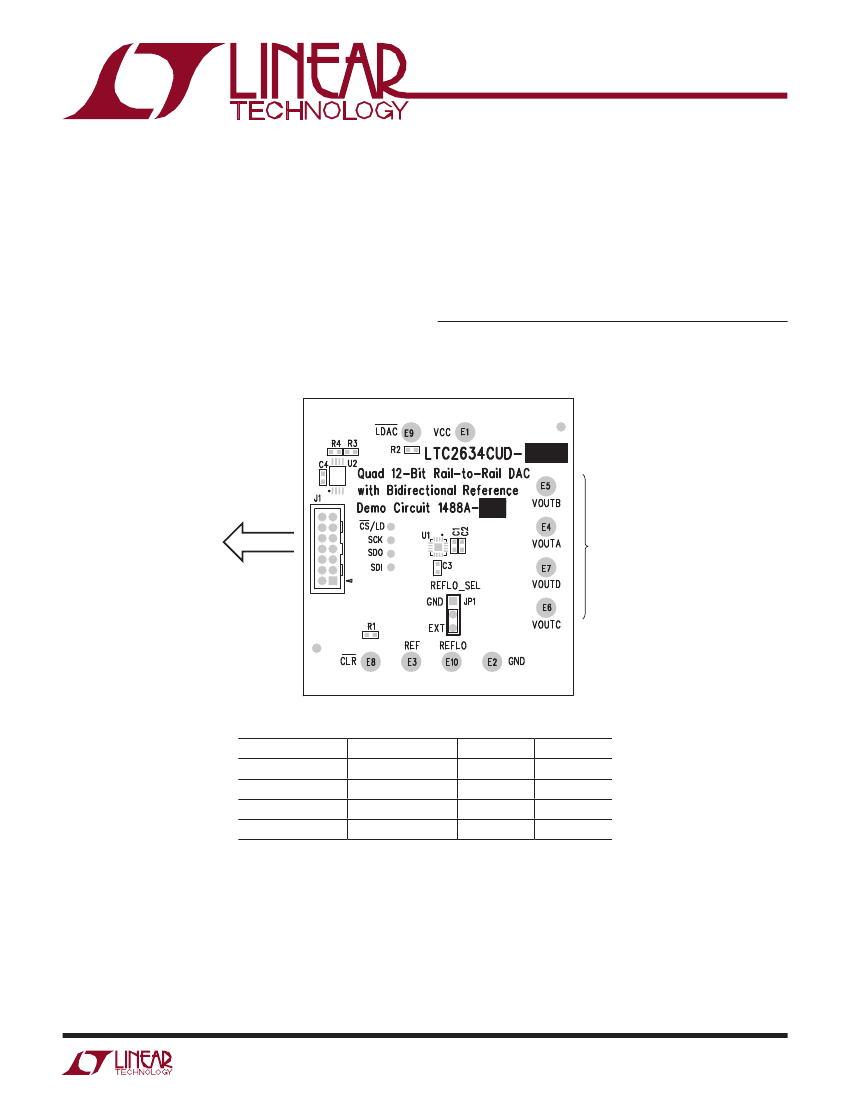

Demonstration circuit 1488A features the LTC
®
2634 quad
12-bit DAC. This device has an integrated, high accuracy,
low drift reference. It has a rail-to-rail output buffer and is
guaranteed monotonic. This DAC communicates through
the simple SPI/MICROWIRE compatible interface.
Design files for this circuit board are available at
http://www.linear.com/demo
L,
LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
QuikEval is a trademark of Linear Technology Corporation. All other trademarks are the property
of their respective owners.
TO DC590
ANALOG
OUTPUTS
DEMOBOARD TYPE
DC1488A-A
DC1488A-B
DC1488A-C
DC1488A-D
LTC2634 VARIATION
LZ
LMI
HZ
HMI
POWER UP
Zero
Mid-Scale
Zero
Mid-Scale
FULL SCALE
2.5V
2.5V
4.096V
4.096V
dc1488af
1
DEMO MANUAL DC1488A
QUICK START PROCEDURE

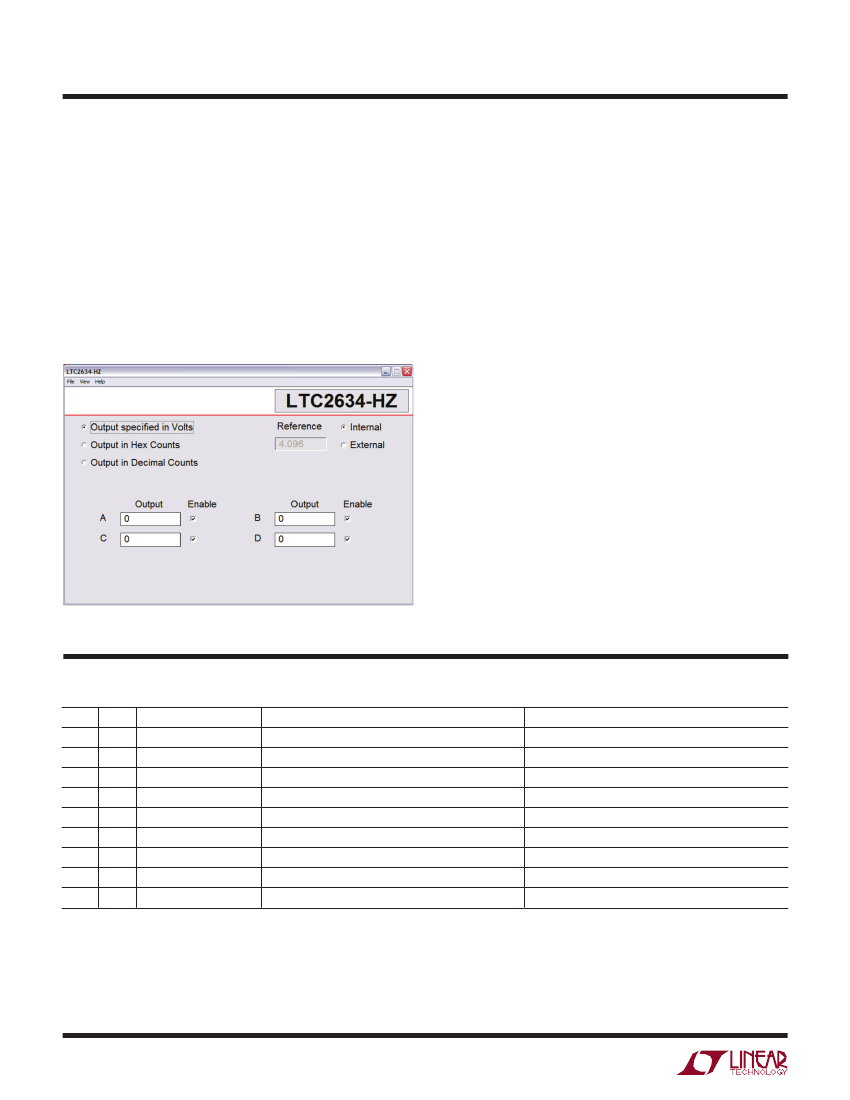

Connect DC1488A to a DC590 USB serial controller using
the supplied 14 conductor ribbon cable. Connect DC590 to
a host PC with a standard USB A/B cable. Run the evalu-
ation software supplied with DC590 or download it from
www.linear.com. The correct control panel will be loaded
automatically. To update DAC values, enter new value in
corresponding output text box and press enter. Be sure
the DAC is enabled.
Complete software documentation is available from the
Help menu item, as features may be added periodically.
HARDWARE SETUP
Analog Connections
DAC Outputs: The four DAC outputs from the LTC2634
are brought out to turrets labeled V
OUTA
through V
OUTD
.
These may be connected to external instruments or other
circuitry.
NOTE: DAC outputs are not in alphabetical order on the
circuit board.
VREF: The REF turret is connected directly to the reference
terminals of the LTC2634. When the integrated reference
is being used, the reference voltage may be monitored at
this point. An external reference may also be applied to this
turret after changing the setting in the QuikEval™ software.
Grounding And Power Connections
Power (VCC): Normally DC1488A is powered by the DC590
controller. VCC can be supplied to this turret, however the
power supply on DC590 must be disabled! Refer to the
DC590 Quick Start Guide for more details on this mode
of operation.
Grounding: Ground turrets as well as 2 grounding strips
are provided.
PARTS LIST
ITEM
1
2
3
4
5
6
7
8
9
QTY
3
1
10
1
1
1
2
2
1
REFERENCE
C1, C3, C4
C2
E1-E10
JP1
JP1
J1
R1, R2
R3, R4
U2
PART DESCRIPTION
CAP X7R, 0.1μF 16V, 10%, 0603
.,
,
CAP X5R, 10μF 6.3V, 20%, 0603
.,
,
TESTPOINT, TURRET, 0.095"
0.1" SINGLE ROW HEADER, 3-PIN
SHUNT, 0.1" BLK
HEADER, 2X7PIN, 0.079CC
RES., CHIP 10k, 1/16W, 1%, 0603
,
RES., CHIP 4.99k, 1/16W, 1%, 0603
,
IC, 24LC025-I/ST, TSSOP
MANUFACTURER/PART NUMBER
AVX, 0603YC104KAT
AVX, 06036D106MAT
MILL-MAX, 2501-2-00-80-00-00-07-0
SAMTEC, TSW-103-07-L-S
SAMTEC, SNT-100-BK-G
MOLEX, 87831-1420
VISHAY, CRCW060310K0FKEA
VISHAY, CRCW06034K99FKEA
MICROCHIP 24LC025-I/ST
,
dc1488af
2
DEMO MANUAL DC1488A

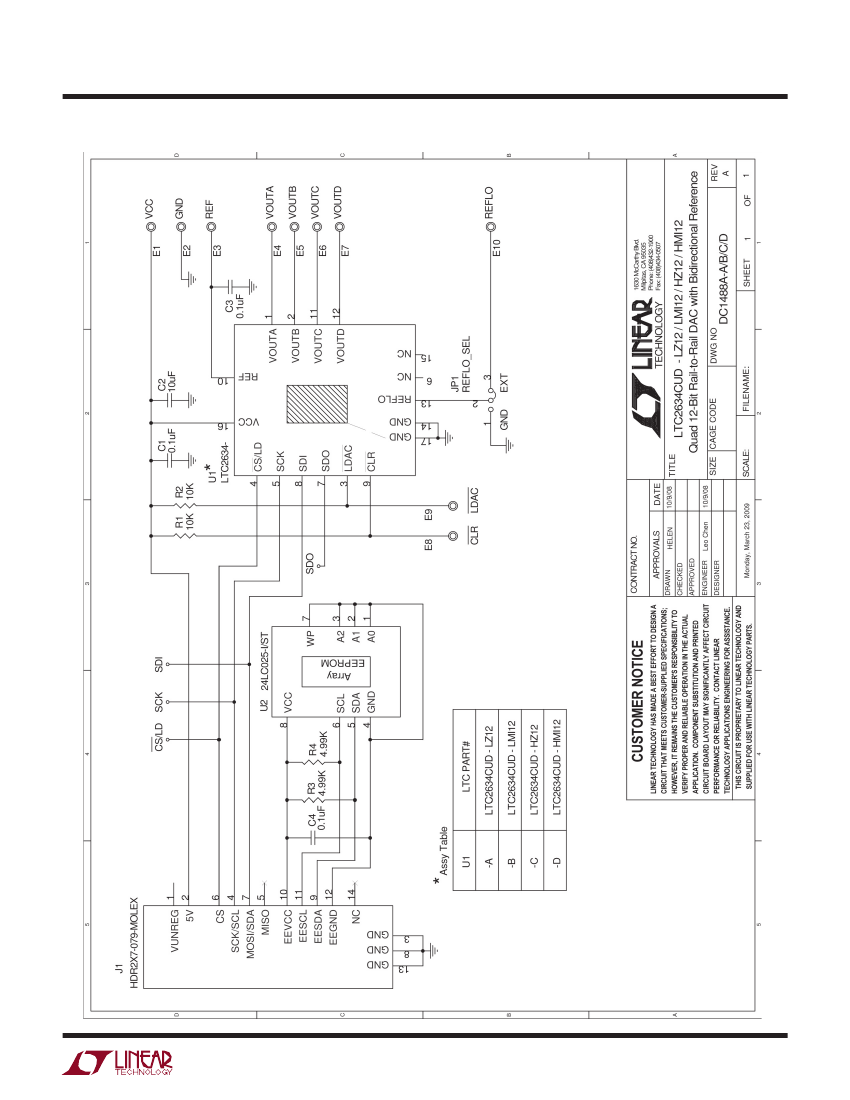

SCHEMATIC DIAGRAM
dc1488af
