ADAM-4056SO-AE Overview

MODULE DGTL OUTPUT 12-CH 1W

ADAM-4056SO-AE Parametric

Parameter Name	Attribute value
type	Digital output module
Supporting products/related products	RS-485 communication

Preview

Download Datasheet

View All

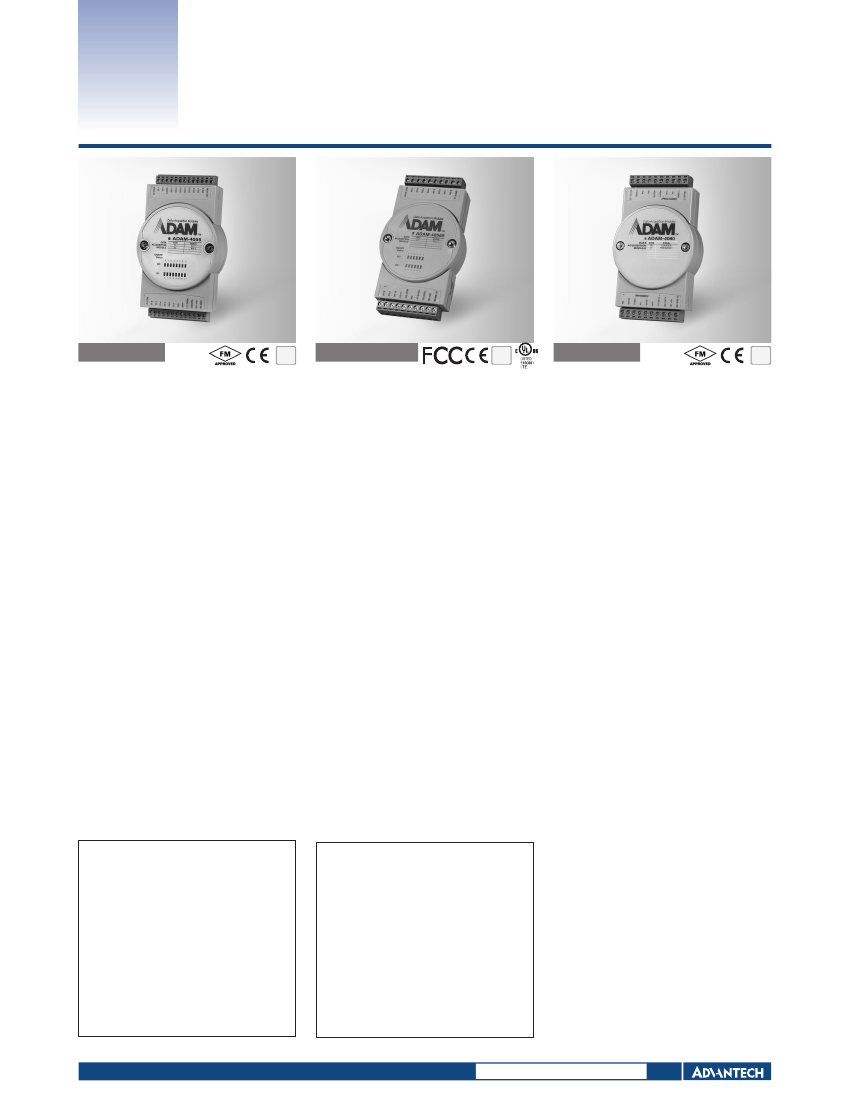

ADAM-4055

ADAM-4056S/4056SO

ADAM-4080

16-ch Isolated Digital I/O Module with

Modbus

12-ch Sink/Source Type Isolated Digital

Output Modules with Modbus

2-ch Counter/Frequency Module

ADAM-4055

RoHS

2002/95/EC

COMPLIANT

ADAM-4056S/4056SO

RoHS

2002/95/EC

COMPLIANT

ADAM-4080

RoHS

2002/95/EC

COMPLIANT

Specifications

General

Connectors

2 x plug-in terminal blocks

(#14 ~ 28 AWG)

Power Consumption

1 W @ 24 V

Watchdog Timer

System (1.6 second) &

Communication

Supported Protocols

ASCII command and

Modbus/RTU

Isolation Voltage

2,500 V

LED Indicators

Yes

Specifications

General

Connectors

Watchdog Timer

Support Protocol

Isolation Voltage

LED Indicators

2 x Plug-in terminal blocks

(#14~22 AWG)

System (1.6 second) &

Communication

ASCII command and

Modbus/RTU

5000 V

Yes

Specifications

General

2 x plug-in terminal blocks

(#14 ~ 22 AWG)

Power Consumption

2.0 W @ 24 V

Watchdog Timer

System (1.6 second)

Supported Protocols

ASCII command

Connectors

Counter Input

2 independent counters

(32-bit + 1-bit overflow)

Input Frequency

50 kHz max.

Input Pulse Width

>10 μs.

Input Mode

lsolated or non-isolated

Isolated Input Level

Logic level 0: 1 V max.

Logic level 1: 3.5~30 V

Isolation Voltage

2,500 V

RMS

Non-isolated

Programmable

Input Level

threshold:

Logic level 0: 0.8 Vmax.

Logic level 1: 2.4 ~ 5.0 V

Maximum Count

4,294,967,295 (32-bit)

Preset Type

Absolute or relative

Programmable

2 μs ~ 65 ms

Digital Noise Filter

Alarm

Alarm comparators on each

counter

Frequency

5 Hz ~ 50 kHz

Measurement Range

Programmable

1 or 0.1 second

Built-in Gate Time

Channels

Digital Input

Channels

Input Level

Dry Contact:

Wet Contact:

Overvoltage

Protection

Logic level 0: open

Logic level 1: close to GND

Logic level 0: 3 V max.

Logic level 1: 10 ~ 50 V

70 V

ADAM-4056S

Digital Output

Channels

Power Dissipation

Open collector to 40V

(200mA max. load)

Channel: 1 W max

Total: 4 W

(12 Channels)

Sink

Digital Output Type

ADAM-4056SO

VCC: 10 ~ 35 V

Current: 1A

(per channel)

Digital Output Type

Source

Over Current Detection and Protection

Digital Output

Channels

Digital Output

Channels

Power Dissipation

8, open collector to 40 V

(200 mA max. load)

Channel: 1 W max.

Total: 2.2 W (8 Channels)

Common Specifications

General

Power Input

Unregulated 10 ~ 30 V

Ordering Information

ADAM-4055

ADAM-4056S

16-ch Isolated Digital I/O

Module with Modbus

12-ch Sink Type Isolated

Digital Output Module

with Modbus

12-ch Source Type

Isolated Digital Output

Module with Modbus

2-ch Counter/Frequency

Modules

Digital Output

Channels

Power Dissipation

2, open collector to 30 V,

30 mA max. load

300 mW for each channel

Environment

Operating Humidity

5 ~ 95% RH

Operating

-10 ~ 70°C

Temperature

(14 ~ 158°F)

Storage Temperature

-25 ~ 85°C

(-13 ~ 185°F)

ADAM-4056SO

ADAM-4080

Online Download

www.advantech.com/products

All product specifications are subject to change without notice

Last updated : 5-May-2015
