51730-238LF: DescriptionPWRBLADE R/A LF HDR; CategoryThe connector The connector; File Size307KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51730-238LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51730-238LF	-	-	View	Buy Now

51730-238LF Overview

PWRBLADE R/A LF HDR

51730-238LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
body width	0.574 inch
subject depth	0.93 inch
body length	5.45 inch
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51730
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Termination type	SOLDER
Evacuation force-minimum value	.1668 N

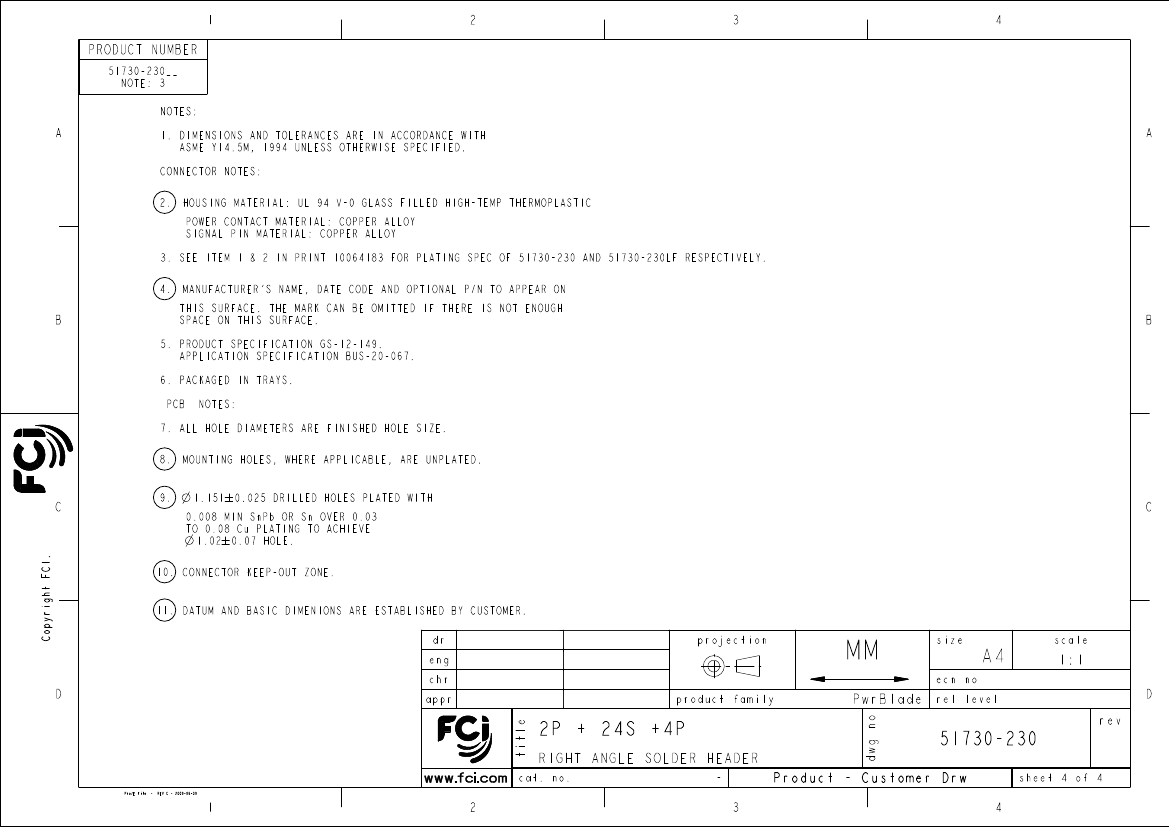

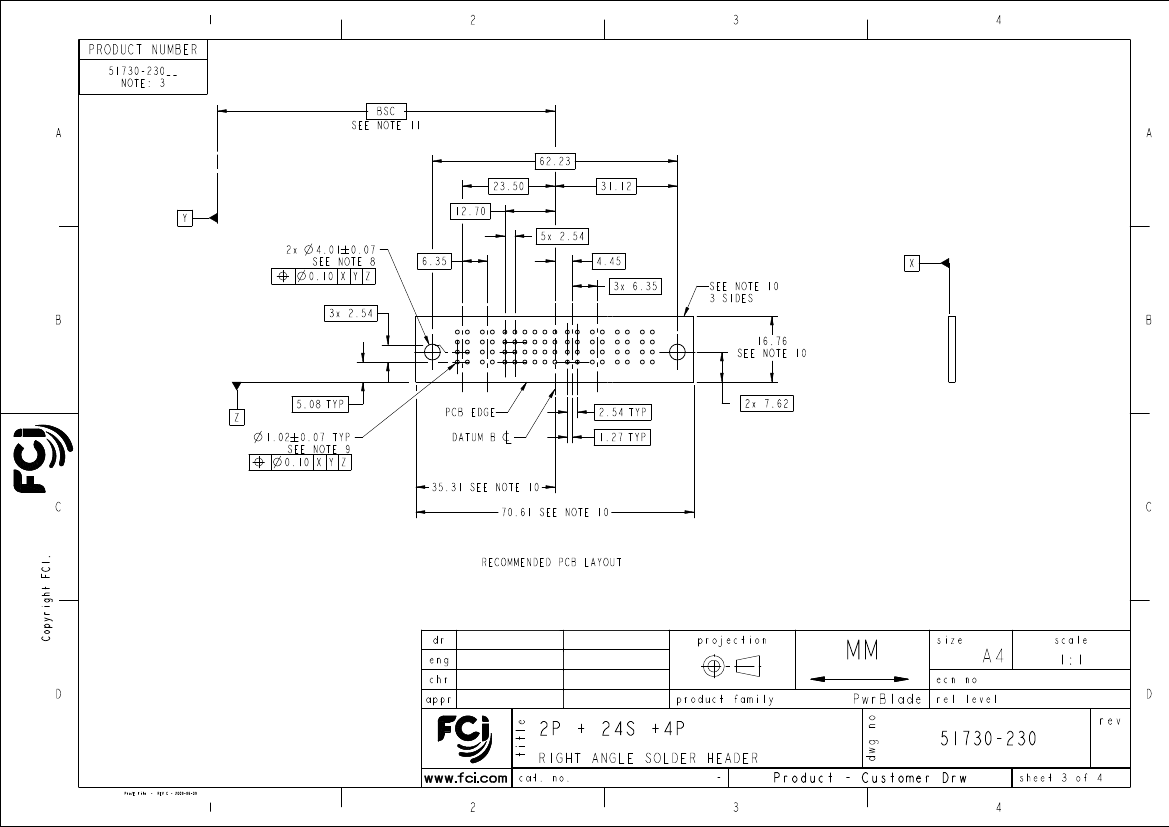

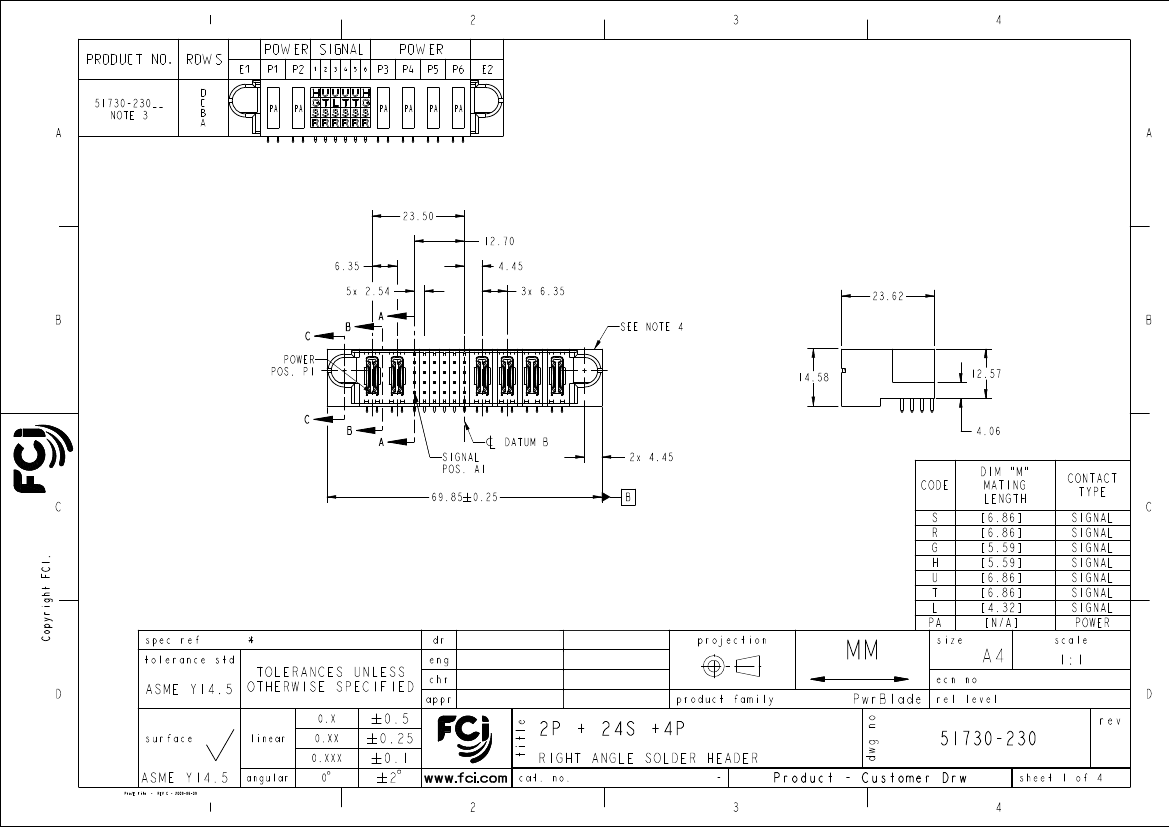

Preview

Download Datasheet

View All

De-Ming Lu

-

Pei-Ming Zheng

2014/07/31

2014/08/04

-

2014/08/04

-

Released

A

PDS: Rev :A

STATUS:Released

Printed: Aug 04, 2014

51730-238LF Related Products

	51730-238LF	51730-230LF	51730-236LF	51730-237LF
Description	PWRBLADE R/A LF HDR	PWRBLADE R/A LF HDR	PWRBLADE R/A LF HDR	PWRBLADE R/A LF HDR
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	6 weeks	6 weeks	6 weeks	6 weeks
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact material	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY
body width	0.574 inch	-	0.574 inch	0.574 inch
subject depth	0.93 inch	-	0.93 inch	0.93 inch
body length	5.45 inch	-	7.25 inch	2.05 inch
Contact completed and terminated	TIN OVER NICKEL	-	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	-	MALE	MALE
Contact resistance	20 mΩ	-	20 mΩ	20 mΩ
Contact style	HYBRID	-	HYBRID	HYBRID
Dielectric withstand voltage	2500VDC V	-	1000VDC V	1000VDC V
Durability	200 Cycles	-	200 Cycles	200 Cycles
maximum insertion force	.973 N	-	.973 N	.973 N
Insulation resistance	500000000 Ω	-	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	-	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51730	-	51730	51915
Mixed contacts	YES	-	YES	YES
Installation option 1	LOCKING	-	LOCKING	LOCKING
Installation method	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	-	BOARD	BOARD
Number of connectors	ONE	-	ONE	ONE
Maximum operating temperature	85 °C	-	105 °C	105 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C
Guideline	UL	-	UL	UL
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	-	0.135 inch	0.135 inch
Termination type	SOLDER	-	SOLDER	SOLDER
Evacuation force-minimum value	.1668 N	-	.1668 N	.1668 N
