BBD-122-G-B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BBD-122-G-B

BBD-122-G-B: DescriptionINTERCONNECT STRIPS; CategoryThe connector The connector; File Size157KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

BBD-122-G-B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BBD-122-G-B	-	-	View	Buy Now

BBD-122-G-B Overview

INTERCONNECT STRIPS

BBD-122-G-B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
body length	2.2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS/PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	20u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	44

Preview

Download Datasheet

View All

F-218

BDL–110–G–F

BBL–112–T–E

BBD–130–T–B

BHS–125–G–A

(2.54 mm) .100"

BBS–116–G–C

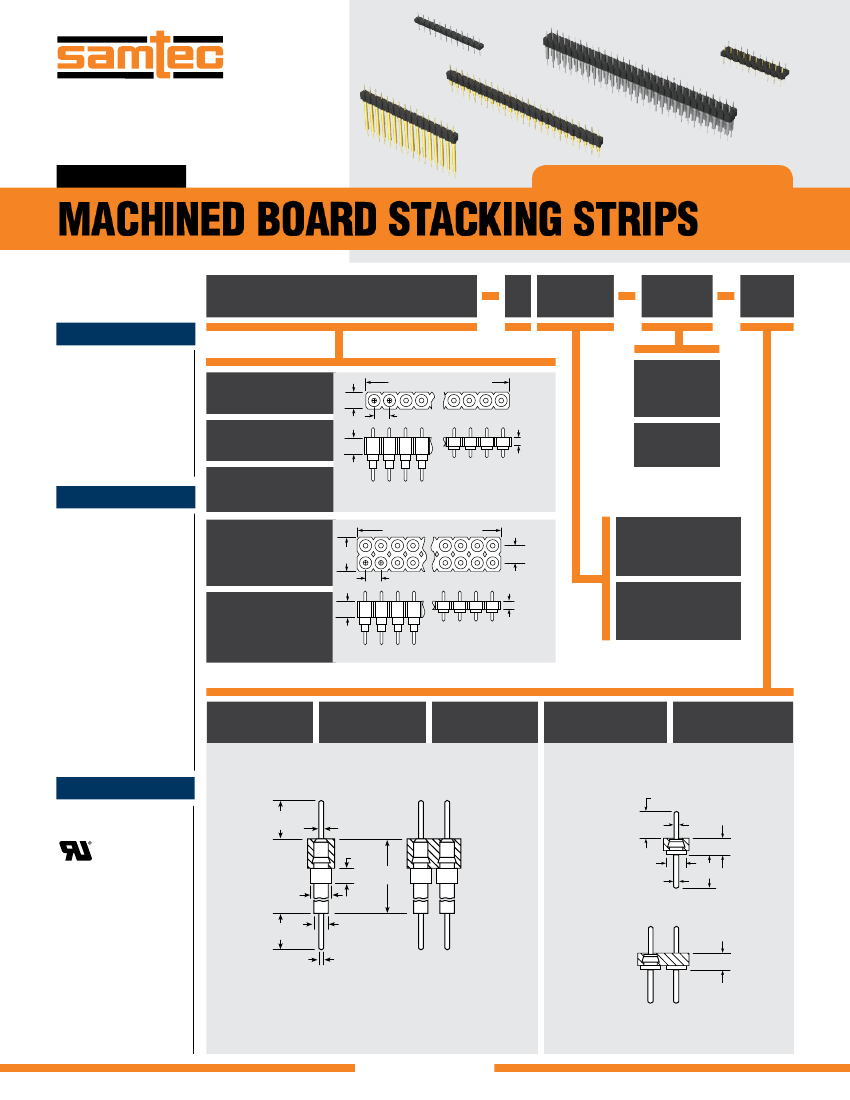

BBS, BBL, BHS, BBD, BDL SERIES

MACHINED BOARD STACKING STRIPS

Mates with:

SS, SD, HSS, SL, SDL,

ESS, ESD

TYPE

STRIP

NO. PINS

PER ROW

PLATING

OPTION

LEAD

STYLE

FEATURES

•

Low-profile design

achieves (3.89 mm)

.153" board spacings

when mated with SL

Series.

•

Approach the reliability

of a permanent

connection with the

flexibility of a separable

connection.

= Standard Single Row

BBS

BBL

(2.54) .100 x No. of Positions

(2.54)

.100

(2.54) .100 TYP

(1.27)

.050

=20 µ" (0.51 µm)

Gold

–G

–T

=Tin

= Low-Profile Single Row

(2.54)

.100

SPECIFICATIONS

For complete specifications

see www.samtec.com?BBS,

www.samtec.com?BBL,

www.samtec.com?BHS

www.samtec.com?BBD or

www.samtec.com?BDL

Insulator Material:

Black Glass Filled Polyester

(BBS, BBD, BBL)

Black High Temp Nylon

(BDL)

Black Liquid Crystal Polymer

(BHS)

Temperature Range:

-55 °C to +125 °C

Terminal Material:

Phosphor Bronze or Brass

Plating:

Au or Sn over 50 µ" (1.27 µm) Ni

RoHS Compliant:

Yes

Lead-Free Solderable:

Wave only

(BBS, BBD, BBL, BDL)

Wave, or reflow with

all Au (BHS)

= High Temp Single Row

BHS

BBL body available with

Styles –E & –F only.

BBS

BHS

BBL

(2.54) .100 x No. of Positions

= Standard Double Row

BBD

BDL

(5.08)

.200

(2.54) .100 TYP

(2.54)

.100

(1.27)

.050

01 thru 32

= BBS & BBL

(2.54)

.100

01 thru 36

BDL body available with

Styles –E & –F only.

= Low-Profile Double Row

BBD

= BBD, BDL & BHS

BDL

Z = (5.33 mm) .210"

–A

Z = (8.51 mm) .335"

–B

Z = (14.86 mm) .585"

–C

Z = (1.78 mm) .070"

–E

Z = (2.16 mm) .085"

–F

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

(3.18)

.125

(0.46)

.018

DIA

(1.27)

.050

(1.78)

.070

DIA

(1.27)

.050 DIA

(0.46)

.018

DIA

Style E:

(2.74)

.108

Style F:

(3.18)

.125

(0.46)

.018 DIA

(1.78)

.070 DIA

(0.46)

.018 DIA

(3.18)

.125

FILE NO. E111594

BBL

Series

(3.18)

.125

BBD

Series

BDL

Series

BBS and BHS

Series

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
