SADH-003G-P0.2: DescriptionCONTACT ADH 28 AWG; CategoryThe connector; File Size56KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

SADH-003G-P0.2 Overview

CONTACT ADH 28 AWG

SADH-003G-P0.2 Parametric

Parameter Name	Attribute value
type	-
pin or socket	Female blade socket
Contact termination	crimp
Wire gauge	28 AWG
Contact plating	gold
Contact plating thickness	-

Preview

Download Datasheet

View All

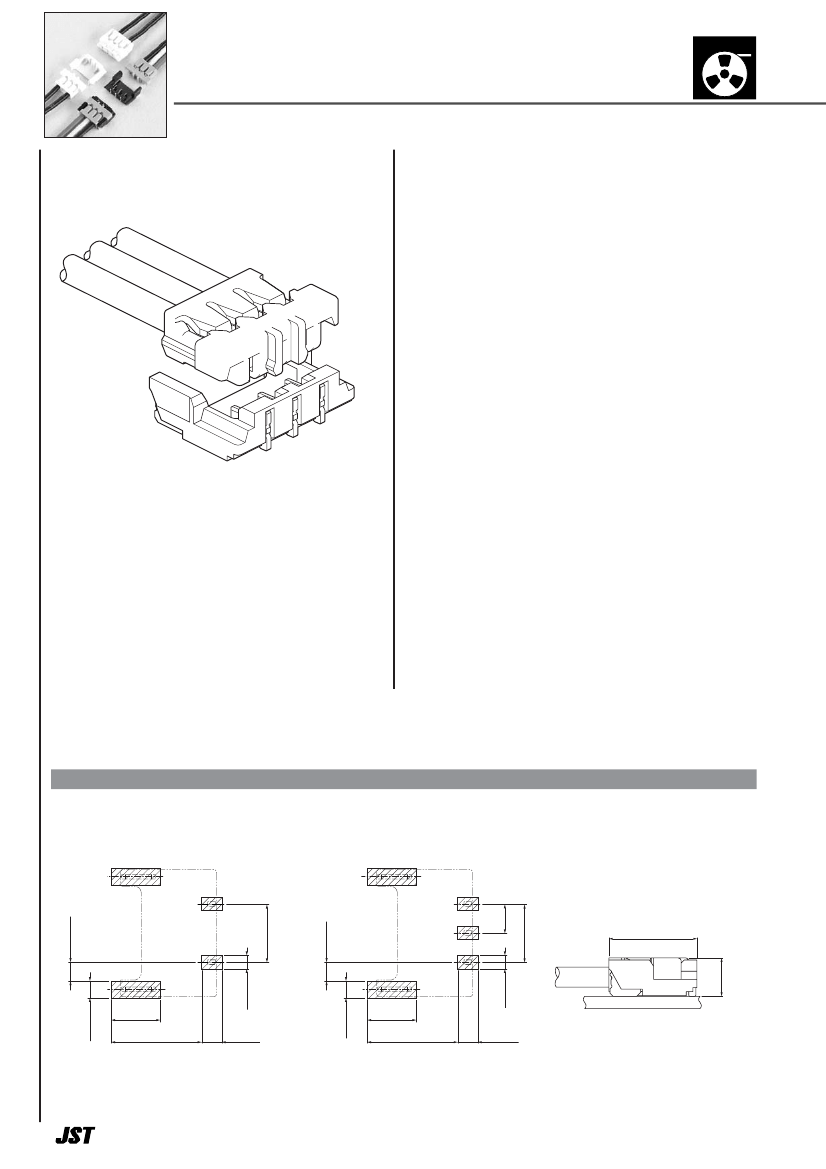

ADH

CONNECTOR

Emboss Tape

1.3mm pitch/Disconnectable Crimp style connectors

Specifications –––––––––––––––––––

• Current rating: 3 A AC, DC

(Apply 1 A for the 3rd circuit of 5-circuit.) (AWG #26)

• Voltage rating: 30 V AC, DC

• Temperature range:

25˚C to

85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/ 20 mΩ max.

After environmental tests/ 30 mΩ max.

• Insulation resistance: 100 MΩ min.

• Withstanding voltage: 500 VAC/minute

• Applicable wire: Conductor size/ AWG #28 to #26

Insulation O.D./ 0.63 mm, 0.98 mm

This ADH connector is compact and low

profile type, height 1.9 mm and width

4.3 mm, 1.3 mm pitch wire-to-board

connector.

• Space saving

• Top entry but side feed type

• Connector for power supply (3 A)

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

* Compliant with RoHS.

Standards–––––––––––––––––––––––

Recognized E60389

PC board layout and Assembly layout

<2 circuits>

<3, 5 circuits>

±0.05

1.3

±0.05

0.85

2.6

0.85

4.3

±0.05

0.6

±0.05

2.2

±0.05

2.2

±0.05

0.75

4.05

±0.05

0.9

±0.05

0.75

4.05

±0.05

0.9

Note: 1. The above figure is the figure viewed from the connector mounting side.

2. Tolerances are non-cumulative:

0.05 mm for all centers. The dimensions above should serve as a guideline. Contact JST for details.

0.6

±0.05

(1.9)
