LTM9003IV-AA#PBF datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> LTM9003IV-AA#PBF

LTM9003IV-AA#PBF: DescriptionIC PRE-DIST RECEIVER 108-LGA; CategoryAnalog mixed-signal IC The signal circuit; File Size386KB，6 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

LTM9003IV-AA#PBF Overview

IC PRE-DIST RECEIVER 108-LGA

LTM9003IV-AA#PBF Parametric

Parameter Name	Attribute value
Brand Name	Linear Technology
Is it Rohs certified?	conform to
Maker	Linear ( ADI )
Parts packaging code	LGA
package instruction	LGA,
Contacts	108
Manufacturer packaging code	LGA
Reach Compliance Code	compliant
ECCN code	5A991
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PBGA-N108
JESD-609 code	e4
length	15 mm
Humidity sensitivity level	3
Number of functions	1
Number of terminals	108
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LGA
Package shape	RECTANGULAR
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	245
Certification status	Not Qualified
Maximum seat height	2.42 mm
Maximum supply voltage (Vsup)	2.625 V
Minimum supply voltage (Vsup)	2.375 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Gold (Au)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	30
width	11.25 mm

Preview

Download Datasheet

View All

DEMO MANUAL DC1642A

LTM9003

12-Bit Digital Predistortion

Receiver Subsystem

Description

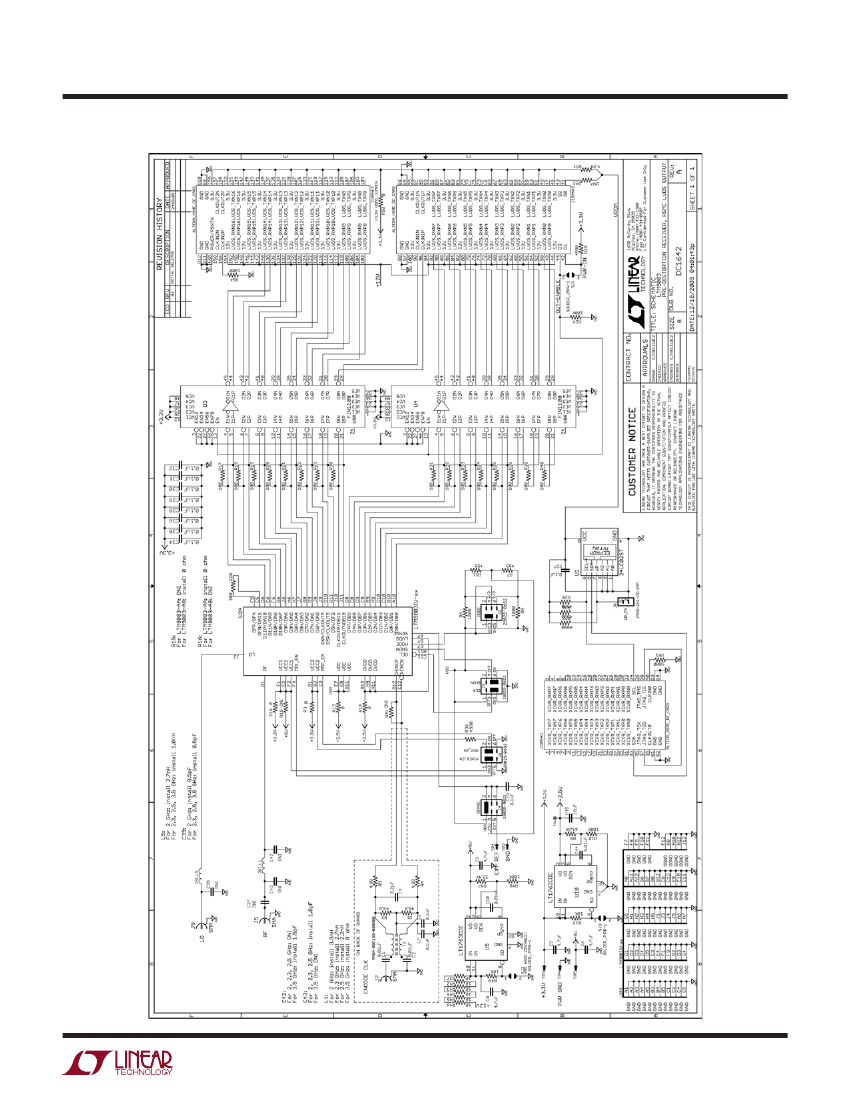

Demonstration circuit DC1642A is an evaluation board fea-

turing Linear Technology Corporation’s LTM

9003 12-Bit

predistortion receiver subsystem. DC1642A demonstrates

good circuit layout techniques and recommended external

circuitry for optimal system performance.

DC1642A comes with Linear Technology’s 12-bit LTM9003

receiver subsystem installed. The board includes output

LVDS buffers. DC1642A plugs into the DC890 data acqui-

sition demo board using an FT149 adapter card and the

output can be easily analyzed with Linear Technology’s

PScope™ data processing software, which is available

for no charge on our website at

http://www.linear.com.

Design files for this circuit board are available at

http://www.linear.com/demo

LT, LTC, LTM, µModule, Linear Technology and the Linear logo are registered trademarks

and PScope is a trademark of Linear Technology Corporation. All other trademarks are the

property of their respective owners.

quick start proceDure

Validating the performance of the LTM9003 is simple

with DC1642A, and requires only two input sources, a

clock source, a computer, and a lab power supply. Refer

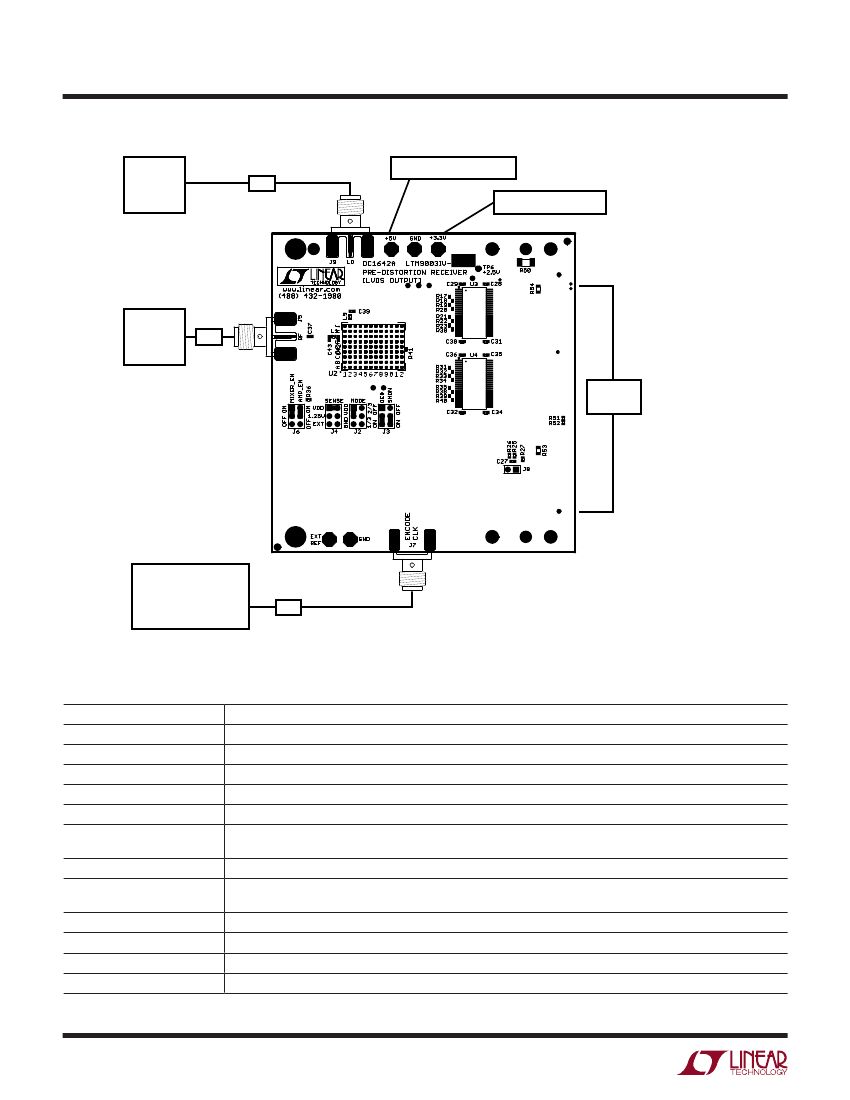

to Figure 1 for proper board evaluation equipment setup

and follow the procedure below:

1. Connect the power supply as shown in Figure 1. There

are on-board low-noise voltage regulators that provide

the supply voltage for the DC1642A. The entire board

and all components share a common ground. The power

supply should still be a low-noise lab power supply

capable of supplying at least 1A.

2. Provide an encode clock to the ADC via SMA connector

J7. Use a low-phase-noise clock source such as a filtered

RF signal generator or a high-quality clock oscillator.

Note:

Similar to having a noisy input, a high-jitter (phase

noise) encode clock will degrade the signal-to-noise ratio

(SNR) of the system.

3. Apply an RF input signal to the board. For best results,

use a low distortion, low noise signal generator with

sufficient filtering to avoid degrading the performance

of the receiver.

4. Apply an LO input signal to the board. Note that the

difference in frequency between this signal and the RF

signal will be the IF frequency resulting at the IF filter

and ADC input.

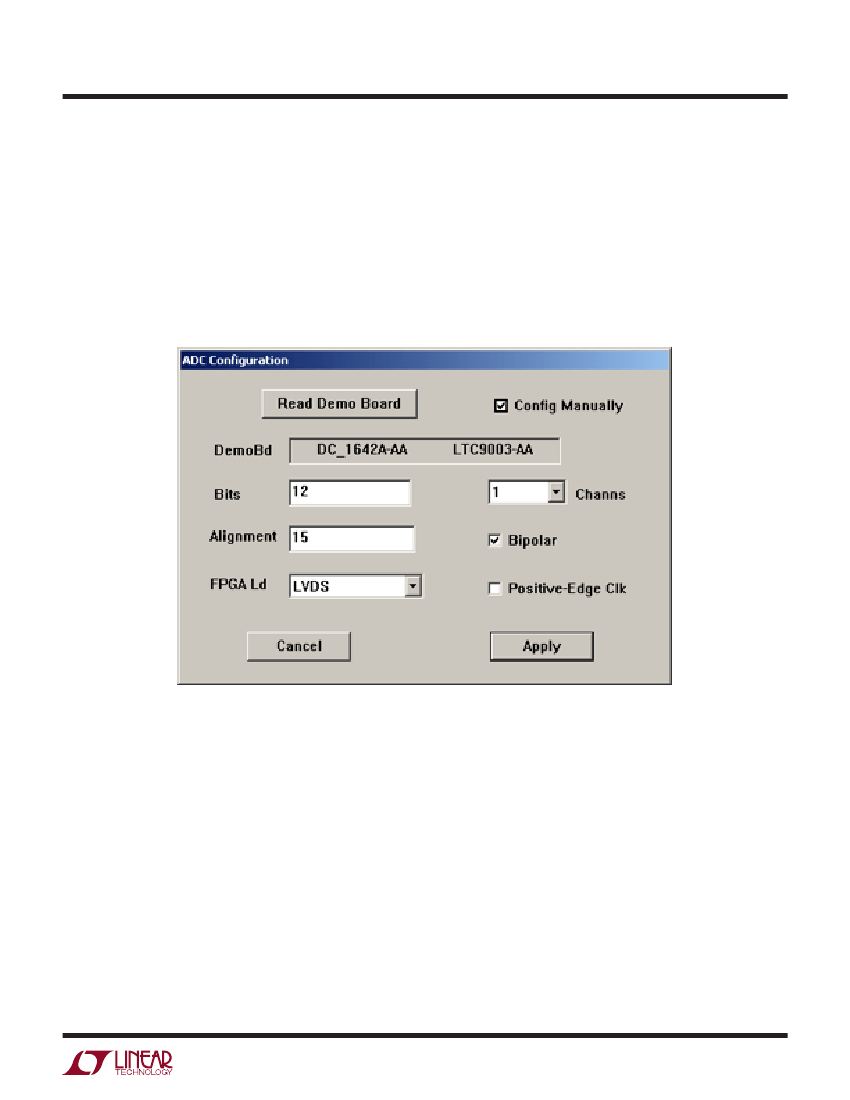

5. Observe the ADC output with the FT149 adapter card

connected to the DC890, a USB cable, a Windows

computer, and Linear Technology’s PScope data pro-

cessing software. Note that the DC890 will also require

an external 6V/1A power supply when receiving LVDS

outputs.

orDer options

Table 1. DC1642A Variants

DC1624 VARIANTS

1624A-AA

1624A-AB

PART NUMBER

LTM9003A-AA

LTM9003A-AB

SFDR

58.8dB

62.4dB

SUPPLY VOLTAGE

2.5V ADC, 3.3V Amplifier, 3.3V Mixer

2.5V ADC, 3.3V Amplifier, 5V Mixer

BANDPASS FILTER

184MHz Center, 125MHz Bandwidth

dc1642af
