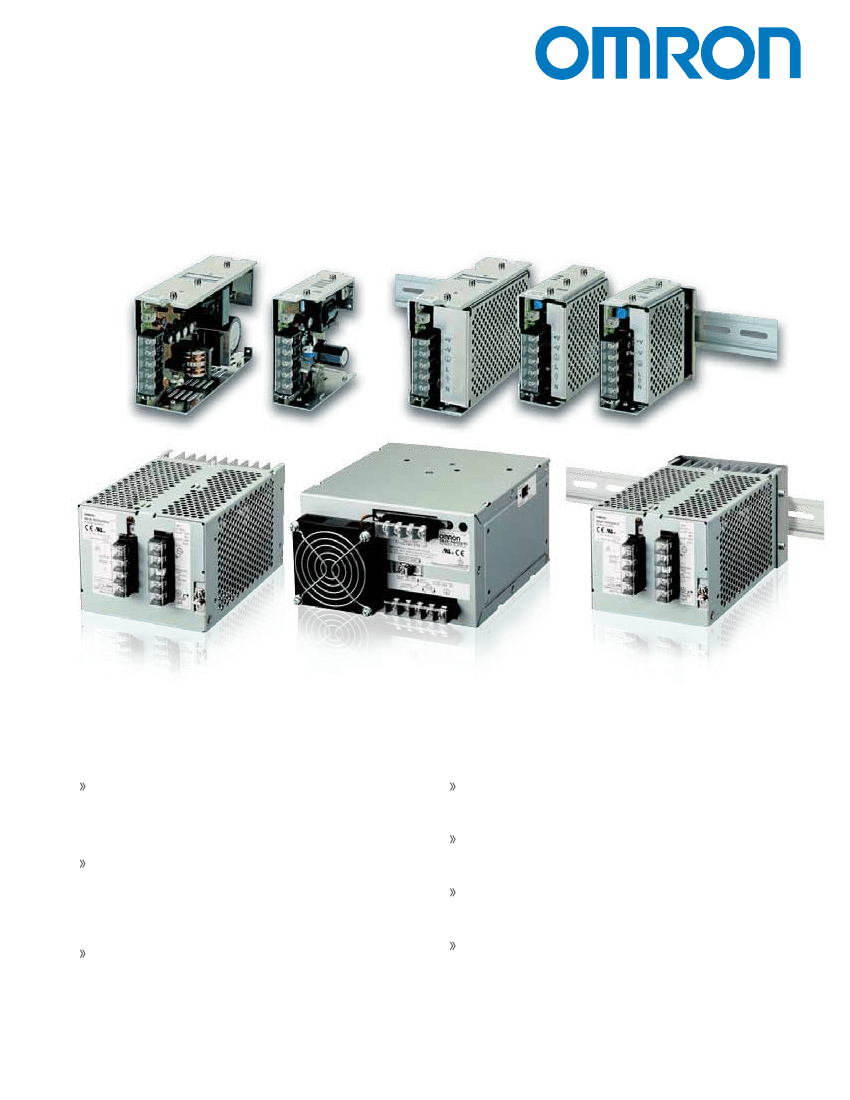

S8JX
Power Supplies
Cost Effective Power Supplies with Multiple Mounting Options
Wide range of DC output voltages
5 V, 12 V, 15 V, 24 V, and 15W, 35W,
50W, 100W, 150W, 300W, 600W sizes
85-264 VAC, 50/60 Hz (15W to 150W);
switchable 100-120 VAC/200-240 VAC
for 300W and 600W
Series operation
Available for up to 2 power supplies
Universal input voltage
Parallel operation
Up to 5 units, 300W and 600W models
Extend machine life
With built-in overload and overvoltage protection
Multiple mounting options
For panel design flexibility – DIN, front,
bottom, or side
Approvals
UL, cUL, UL508 Listed, CE, SEMI F47, VDE
Adjustable voltage output (-10% to 15%)
Two-year warranty
S8JX Power Supplies
Specifications & Ordering Information
Power
Rating
Output
Voltage
Output
Current
Dimensions
HxWxD
mm (inches)
Max. DIN mount
96 x 39.5 x 114.5
(3.78 x1.56 x 4.51)
Part Numbers
Open Frame
Front* Mount
S8JX-G01505
S8JX-G01512
S8JX-G01515
S8JX-G01524
96 x 39.5 x 114.5
(3.78 x1.56 x 4.51)
S8JX-G03505
S8JX-G03512
S8JX-G03515
S8JX-G03524
97 x 40 x 124.5
(3.82 x 1.57 x 4.90)
S8JX-G05005
S8JX-G05012
S8JX-G05024
97 x 50 x 174.5
(3.82 x 1.97 x 6.87)
S8JX-G10005
S8JX-G10012
S8JX-G10024
97 x 50 x 174.5
(3.82 x 1.97 x 6.87)
96 x 110 x 204.8
(3.78 x 4.33 x 8.06)
92 x 150 x 184.2
(3.62 x 5.90 x 7.25)
S8JX-G15024
—
—
DIN-rail Mount
S8JX-G01505D
S8JX-G01512D
S8JX-G01515D
S8JX-G01524D
S8JX-G03505D
S8JX-G03512D
S8JX-G03515D
S8JX-G03524D
S8JX-G05005D
S8JX-G05012D
S8JX-G05024D
S8JX-G10005D
S8JX-G10012D
S8JX-G10024D
S8JX-G15024D
—
—
Covered Frame
Front* Mount
S8JX-G01505C
S8JX-G01512C
S8JX-G01515C
S8JX-G01524C
S8JX-G03505C
S8JX-G03512C
S8JX-G03515C
S8JX-G03524C
S8JX-G05005C
S8JX-G05012C
S8JX-G05024C
S8JX-G10005C
S8JX-G10012C
S8JX-G10024C
S8JX-G15024C
S8JX-G30024C
S8JX-G60024C
DIN-rail Mount
S8JX-G01505CD
S8JX-G01512CD
S8JX-G01515CD
S8JX-G01524CD
S8JX-G03505CD
S8JX-G03512CD
S8JX-G03515CD
S8JX-G03524CD
S8JX-G05005CD
S8JX-G05012CD
S8JX-G05024CD
S8JX-G10005CD
S8JX-G10012CD
S8JX-G10024CD
S8JX-G15024CD
S8JX-G30024CD
—
15 W
5 V
12 V
15 V
24 V
35 W
5 V
12 V
15 V
24 V
50 W
5 V
12 V
24 V
100 W
5 V
12 V
24 V
150 W
300 W
600 W
24 V
24 V
24 V
3 A
1.3 A
1 A
0.65 A
7 A
3 A
2.4 A
1.5 A
10 A
4.2 A
2.1 A
20 A
8.5 A
4.5 A
6.5 A
14 A
27 A
* - Front mount models can also be side or bottom mounted. Front mounting bracket included. See datasheet for other optional mounting bracket details.
Optional Mounting Brackets
Description
Mounting Bracket A (bottom mounting for 50 W models)
Mounting Bracket B (bottom mounting for 100 W: 24 V models)
Mounting Bracket C (bottom mounting for 100 W: 5 V and 12 V models and 150 W models)
Mounting Bracket D (front mounting for 100 W: 5 V and 12 V models and 150 W models)
Part Numbers
S82Y-JX05B
S82Y-JX10B
S82Y-JX15B
S82Y-JX15F
OMRON ELECTRONICS LLC • THE AMERICAS HEADQUARTERS
• Schaumburg, IL USA • 847.843.7900 • 800.556.6766 • www.omron247.com
OMRON CANADA, INC. • HEAD OFFICE
Toronto, ON, Canada • 416.286.6465 • 866.986.6766 •
www.omron247.com
OMRON ELETRÔNICA DO BRASIL LTDA • HEAD OFFICE
São Paulo, SP, Brasil • 55.11.2101.6300 • www.omron.com.br
OMRON ELECTRONICS MEXICO SA DE CV • HEAD OFFICE
Apodaca, N.L. • 52.811.156.99.10 • 001.800.556.6766 • mela@omron.com
T07I-E-02 Note: Specifications are subject to change. © 2009 Omron Electronics LLC Printed in U.S.A.
Printed on recycled paper.
