OPA730G: DescriptionLED MOD OPA730 GREEN RING; CategoryLED optoelectronic/LED; File Size219KB，2 Pages; ManufacturerTT Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

OPA730G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	OPA730G	-	-	View	Buy Now

OPA730G Overview

LED MOD OPA730 GREEN RING

OPA730G Parametric

Parameter Name	Attribute value
type	LED module
color	green
CCT（K）	-
wavelength	530nm
Configuration	Ring (disk)
Flux@Current/Temperature-Test	530 lm (standard)
Current - Test	700mA
Temperature - Test	25°C
Voltage - Forward (Vf) (Typical)	21.6V
Lumens/Watt at different test currents	35 lm/W
Current - maximum	-
CRI (high color rendering index)	-
perspective	120°
characteristic	-
size/dimensions	85.10mm diameter
high	7.40mm
Luminous surface (LES)	35.6mm diameter
Lens type	flat

Preview

Download Datasheet

View All

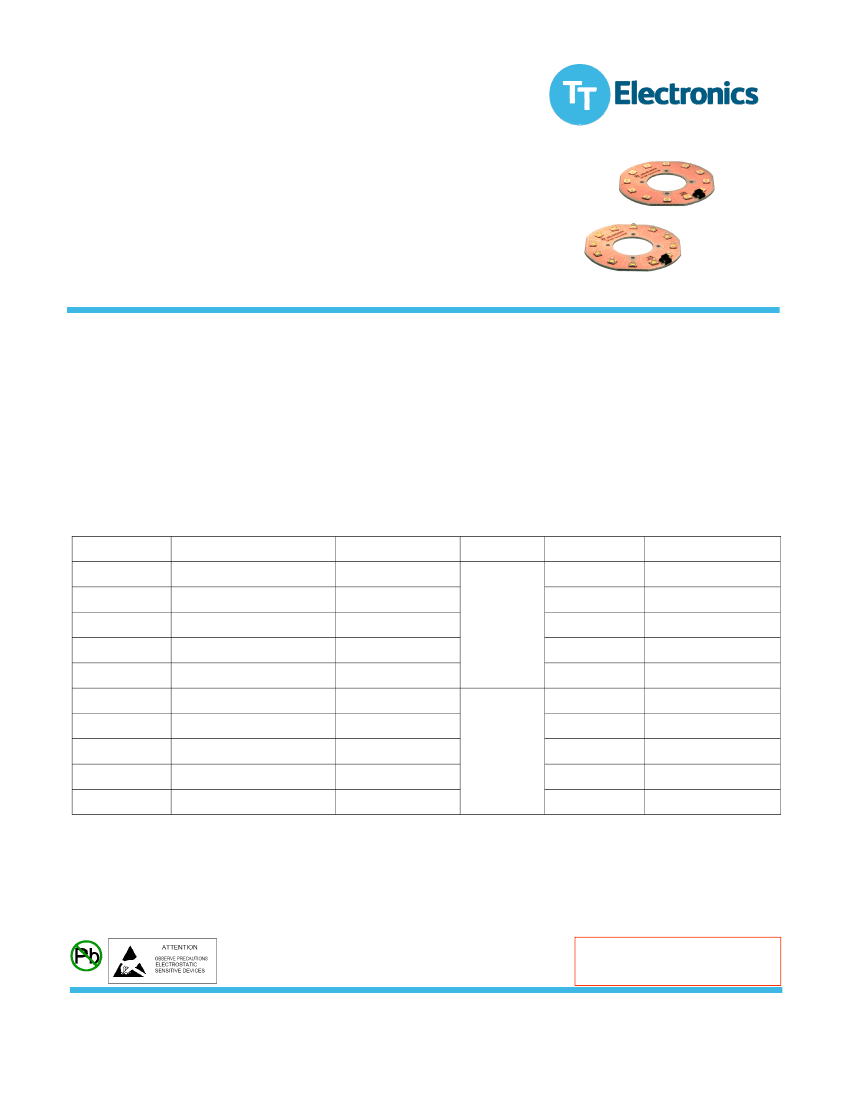

12 Watt Light Ring on

OptoTherm

®

Linear Heat

Spreader

OPA730 Series

Features:

•

12, 1 wa LEDs per ring

Mono-color per ring (Blue, Green, Red, Yellow, White)

Two component beam angle op ons (120° or 40°)

Universal connector (Tyco 2-292173-2 mates with 173977-2)

RoHS Compliant

OPA730_

OPA730_D

Description:

The

OPA730

Series are designed for areas where light output and reliability are essen al. The light beam angles of 40° and

120° are ideal for illumina ng small and medium size areas while requiring minimal space.

A High Performance Heat Spreader (HPHS) is used to ensure the best heat dissipa on of any light assembly in the industry.

OptoTherm

®

is designed to be the op mum material for distribu on of heat for high power devices.

For custom colors and design contact your OPTEK representa ve.

Electrical / Op cal Characteris cs: T

A

=25°C, I

F

=700mA

Part Number

OPA730Y

OPA730B

OPA730G

OPA730R

OPA730W

OPA730YD

OPA730BD

OPA730GD

OPA730RD

OPA730WD

Typical Forward Voltage (V) Luminous Flux (lm)

15.0

21.6

15.0

21.6

15.0

21.6

15.0

21.6

420

108

576

312

576

420

108

576

312

576

40°

120°

Beam Angle

Color

Yellow

Blue

Green

Red

White

Yellow

Blue

Green

Red

White

Dominant Wavelength

587 nm

470nm

530 nm

625 nm

6500°K

587 nm

470 nm

530 nm

625 nm

6500°K

RoHS

DO NOT LOOK DIRECTLY AT LED WITH

UNSHIELDED EYES OR DAMAGE TO RETINA

MAY OCCUR.

OPTEK Technology, Inc.

1645 Wallace Drive, Carrollton, TX 75006|Ph: +1 972 323 2200

www.optekinc.com | www.ttelectronics.com

Issue C

09/2016

Page 1

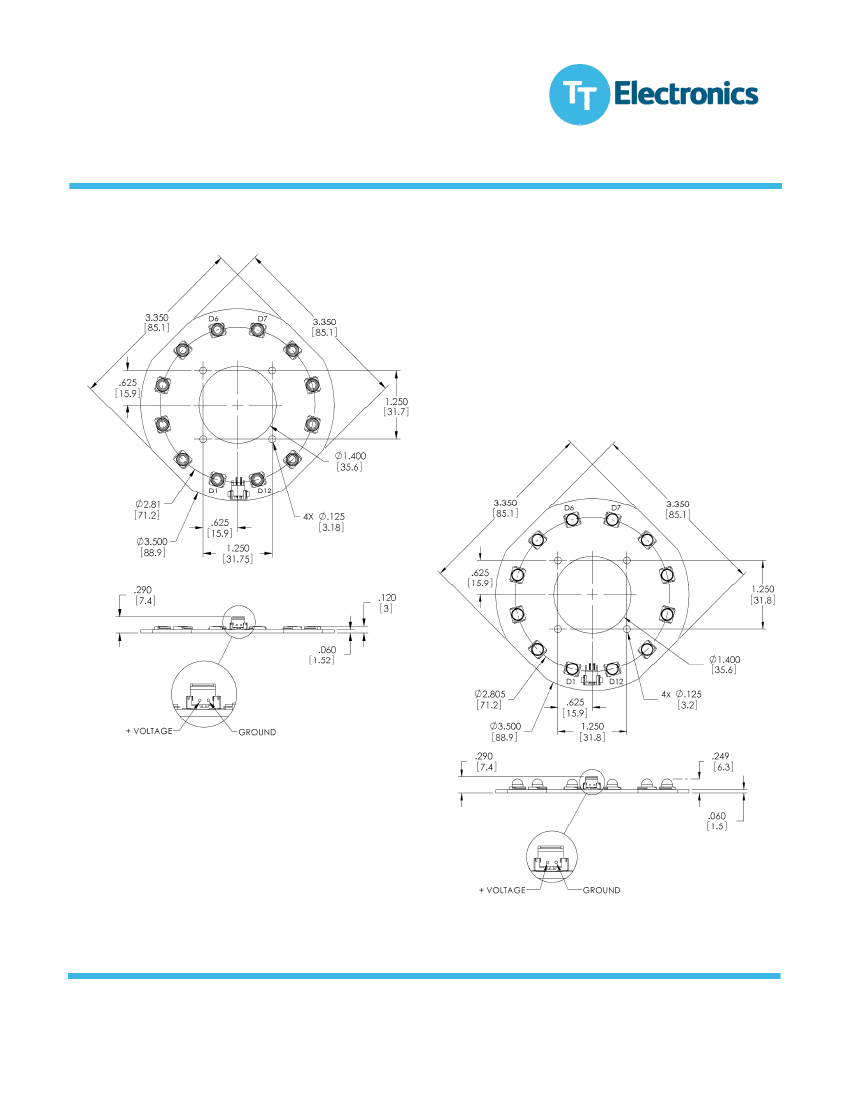

General Note

TT Electronics reserves the right to make changes in product speciﬁcation without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.
