5016285191 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5016285191

5016285191: DescriptionCONN FPC BOTTOM 51POS 0.30MM R/A; CategoryThe connector; File Size365KB，4 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

5016285191 Overview

CONN FPC BOTTOM 51POS 0.30MM R/A

5016285191 Parametric

Parameter Name	Attribute value
Flat flexible type	FPC
Installation type	Surface mount, right angle
Connector/contact type	contact, bottom
Number of pins	51
spacing	0.012"（0.30mm）
Termination	welding
FFC, FCB thickness	0.20mm
board height	0.035"（0.88mm）
Lock function	trigger lock
Cable end type	Welding lug type
Contact material	copper alloy
Contact plating	gold
Shell material	Liquid crystal polymer (LCP), glass fiber reinforced
Actuator material	Polyamide (PA), nylon, glass fiber reinforced
characteristic	-
Rated voltage	50V
Operating temperature	-25°C ~ 85°C
Material flammability rating	UL94 V-0
Rated current	0.2A
Contact plating thickness	-
Shell color	-
Actuator color	-
Number of patches	10

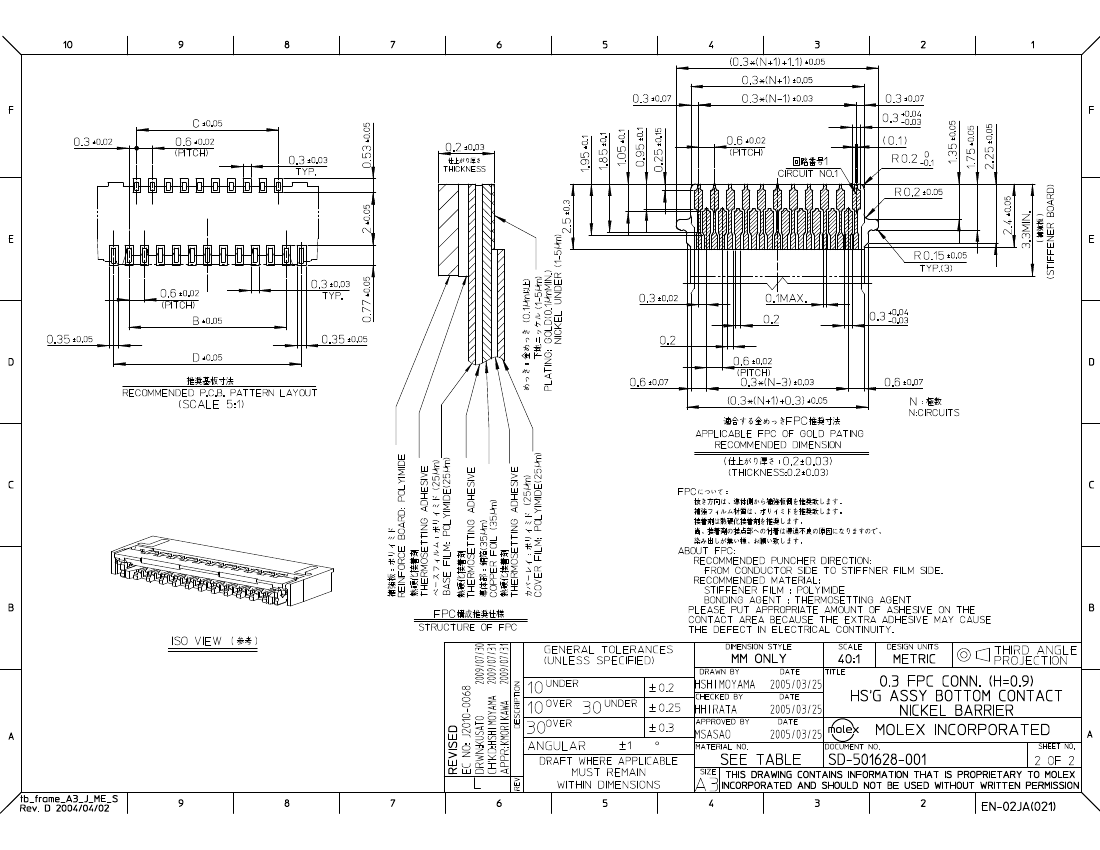

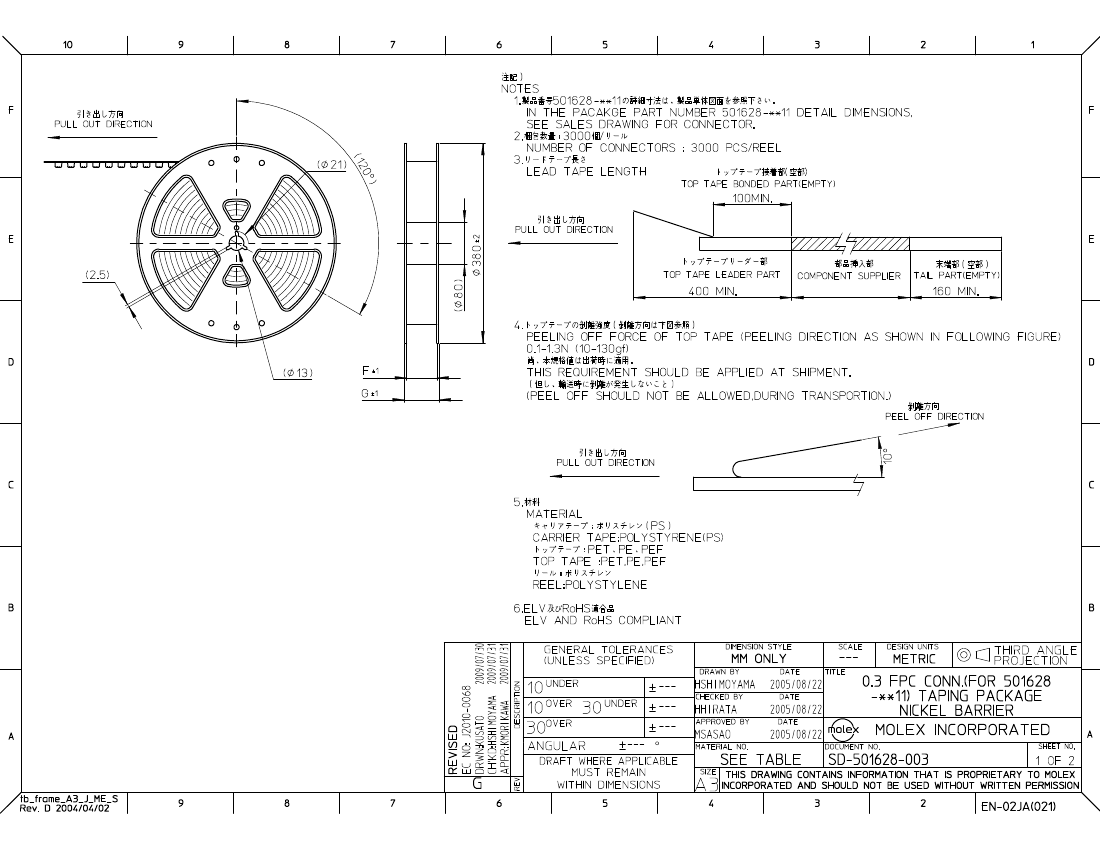

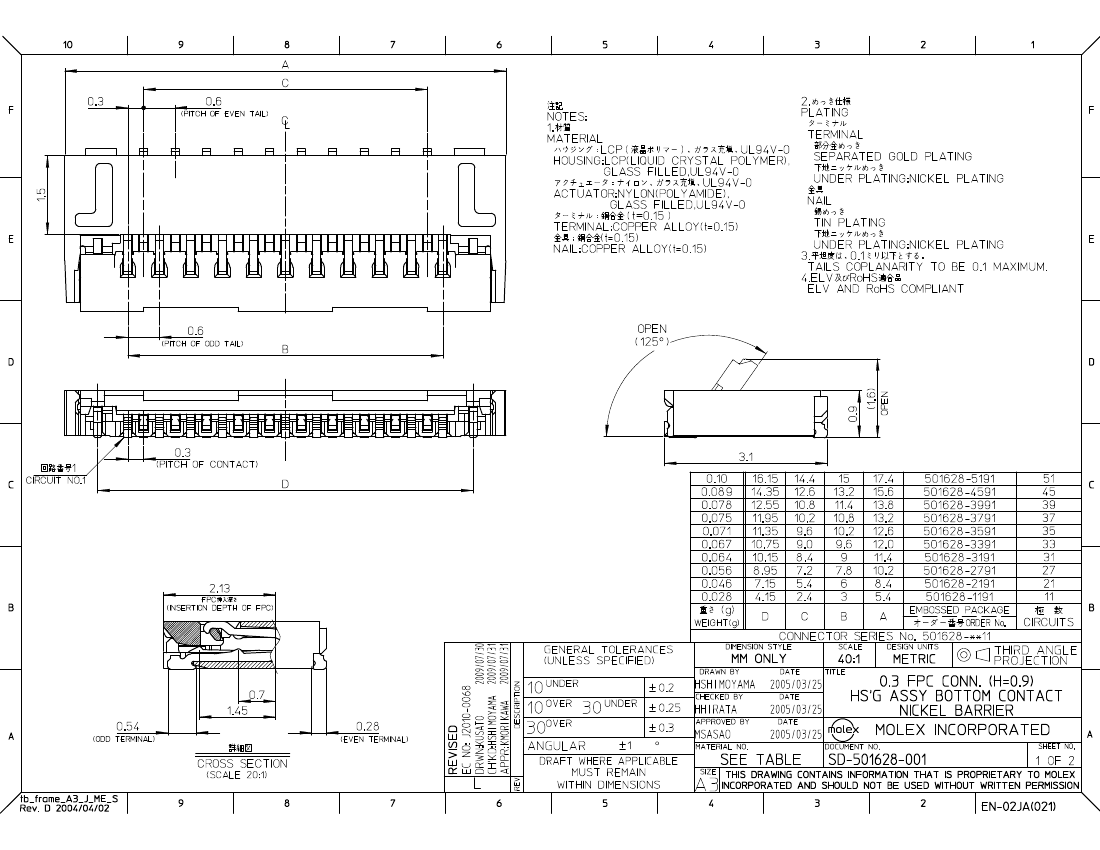

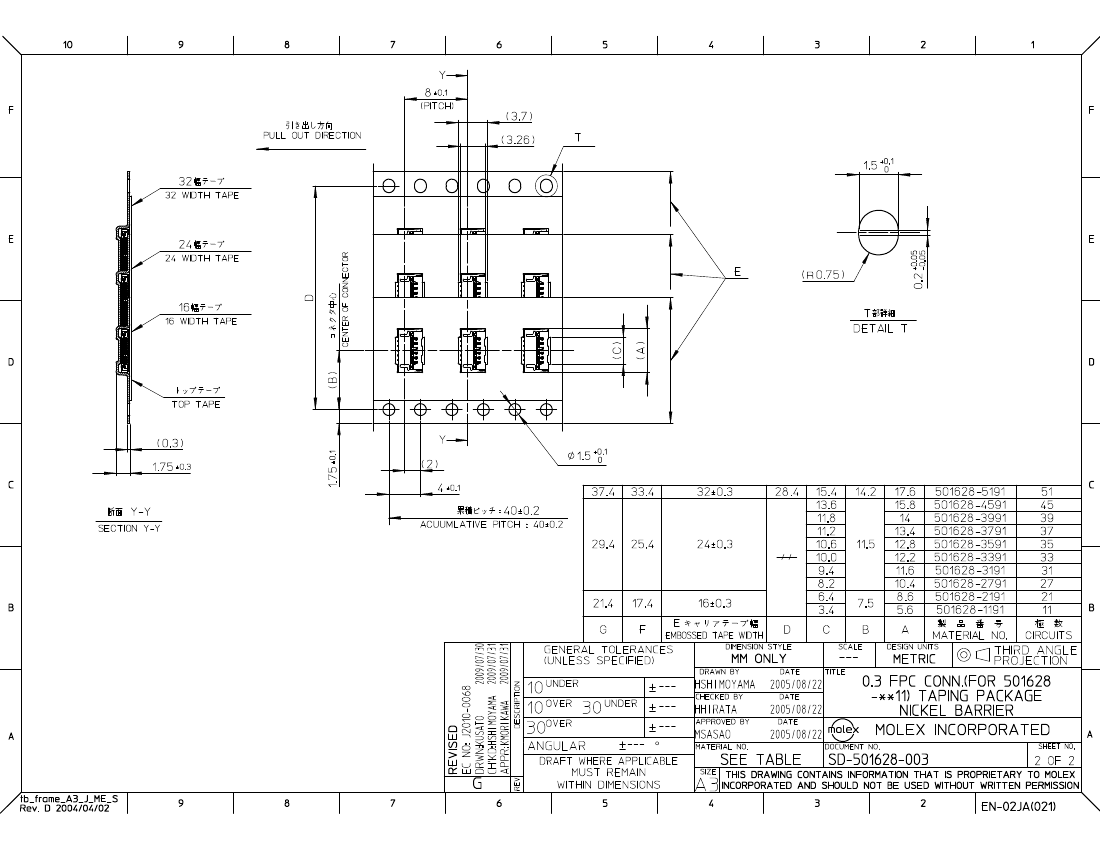

Preview

Download Datasheet

View All

5016285191 Related Products

	5016285191	501628-2191	5016281191	5016282791	5016283791	501628-3391	5016283591	5016283191
Description	CONN FPC BOTTOM 51POS 0.30MM R/A	CONN FPC BOTTOM 21POS 0.30MM R/A	CONN FPC BOTTOM 11POS 0.30MM R/A	CONN FPC BOTTOM 27POS 0.30MM R/A	CONN FPC BOTTOM 37POS 0.30MM R/A	CONN FPC BOTTOM 33POS 0.30MM R/A	CONN FPC BOTTOM 35POS 0.30MM R/A	CONN FPC BOTTOM 31POS 0.30MM R/A
Flat flexible type	FPC	FPC	FPC	FPC	FPC	FPC	FPC	FPC
Installation type	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle
Connector/contact type	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom
Number of pins	51	21	11	27	37	33	35	31
spacing	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）
Termination	welding	welding	welding	welding	welding	welding	welding	welding
FFC, FCB thickness	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm
board height	0.035"（0.88mm）	0.035"（0.88mm）	0.035"（0.88mm）	0.035"（0.88mm）	0.035"（0.88mm）	0.035"（0.88mm）	0.035"（0.88mm）	0.035"（0.88mm）
Lock function	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock
Cable end type	Welding lug type	Welding lug type	Welding lug type	Welding lug type	Welding lug type	Welding lug type	Welding lug type	Welding lug type
Contact material	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy
Contact plating	gold	gold	gold	gold	gold	gold	gold	gold
Shell material	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced
Actuator material	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced
Rated voltage	50V	50V	50V	50V	50V	50V	50V	50V
Operating temperature	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Rated current	0.2A	0.2A	0.2A	0.2A	0.2A	0.2A	0.2A	0.2A
Number of patches	10	10	10	10	10	10	10	10
