8W-33.333MBE-T: DescriptionOSC XO 33.333MHZ CMOS SMD; CategoryPassive components; File Size270KB，1 Pages; ManufacturerTXC Corporation; Websitehttp://www.txccrystal.com/; Environmental Compliance

Download Datasheet Parametric View All

8W-33.333MBE-T Overview

OSC XO 33.333MHZ CMOS SMD

8W-33.333MBE-T Parametric

Parameter Name	Attribute value
type	XO (Standard)
frequency	33.333MHz
Function	enable/disable
output	CMOS
Voltage - Power	3.3V
frequency stability	±50ppm
Absolute pulling range (APR)	-
Operating temperature	-40°C ~ 85°C
Current - Power (maximum)	15mA
grade	-
Installation type	surface mount
Package/casing	4-SMD, no leads
size/dimensions	0.098" long x 0.079" wide (2.50mm x 2.00mm)
Height - Installation (maximum)	0.035"（0.90mm）
Current - Power (disabled) (maximum)	-

Preview

Download Datasheet

View All

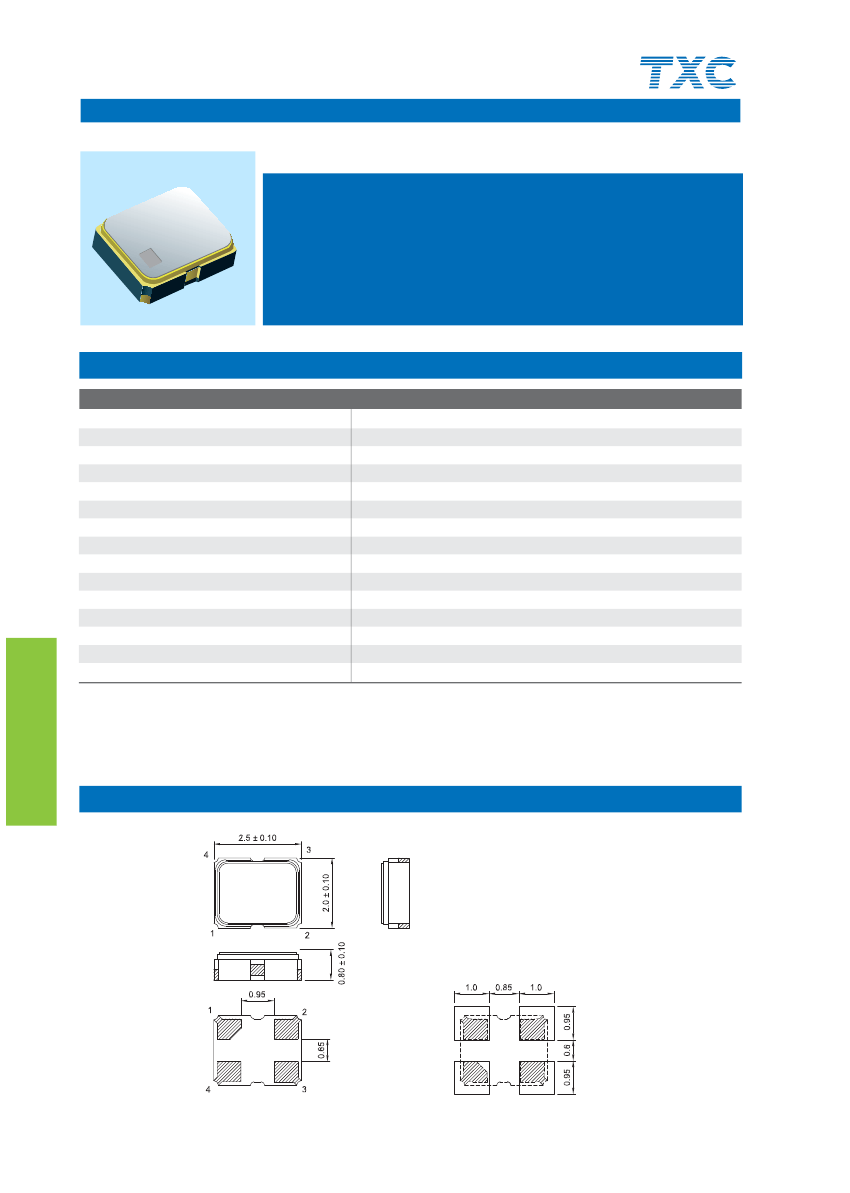

Oscillators

2.5 x 2.0 mm SMD CMOS CXO

8W SERIES

Features

>

Ultra Small SMD seam sealed clock crystal oscillator units.

192 01

T AN

>

For applications in WLAN, Bluetooth, DSC, DSL and other IT product.

>

Tri-state function available.

>

RoHS Compliant / Pb Free

Electrical Specifications

Item / Type

Output Type

Output Load

Oscillation Mode

Supply Voltage

Frequency Range

Frequency Stability

Operating Temperature Range

Storage Temperature Range

Voltage Vol (Max.) / Voh (Min.)

Rise (Tr) / Fall (Tf) Time

Supply Current

Symmetry

Start-up Time

8W

CMOS

15 pF

Fundamental

3.3 V (1.8 V , 2.5 V available)

4 ~ 54 MHz

± 25 ppm (-10 ~ + 70 ºC), or specify

- 40 ~ + 85 ºC

- 55 ~ + 125 ºC

0.1 VDD / 0.9 VDD

8 ns Max.

15 mA Max.

45 ~ 55 %

5 ms Max.

2 ps Max.

± 3 ppm / year Max.

Oscillators

32

Phase Jitter (12 KHz ~ 20 MHz)

Aging (at 25 ºC)

Dimensions

PAD FUNCTION:

1:ENABLE CONTROL

2:GND

3:OUT

4:VDD

Suggested Layout

Units:mm

Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com
