5988840307F

Description
LED BLUE/GRN/YLW CLEAR 1208 R/A
CategoryLED optoelectronic/LED
File Size1MB，2 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Environmental Compliance
Download Datasheet Parametric Compare View All

5988840307F Overview

LED BLUE/GRN/YLW CLEAR 1208 R/A

5988840307F Parametric

Parameter NameAttribute value
colorblue, green, yellow
Configurationcommon anode
Lens colorcolorless
Lens transparencytransparent
millicandela level90mcd blue, 220mcd green, 110mcd yellow
Lens style/sizeRectangular, with dome, 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typical)3.2V blue, 3.2V green, 2.2V yellow
Current - Test20mA 파란색, 20mA green, 20mA yellow
perspective160°
Installation typeSurface mount, right angle
Wavelength - Main470nm blue, 525nm green, 590nm yellow
Wavelength - Peak-
characteristic-
Package/casing2-SMD, no leads
Supplier device packaging1208
size/dimensions3.20mm length x 1.50mm width
Height (maximum value)1.00mm

Preview

Download Datasheet

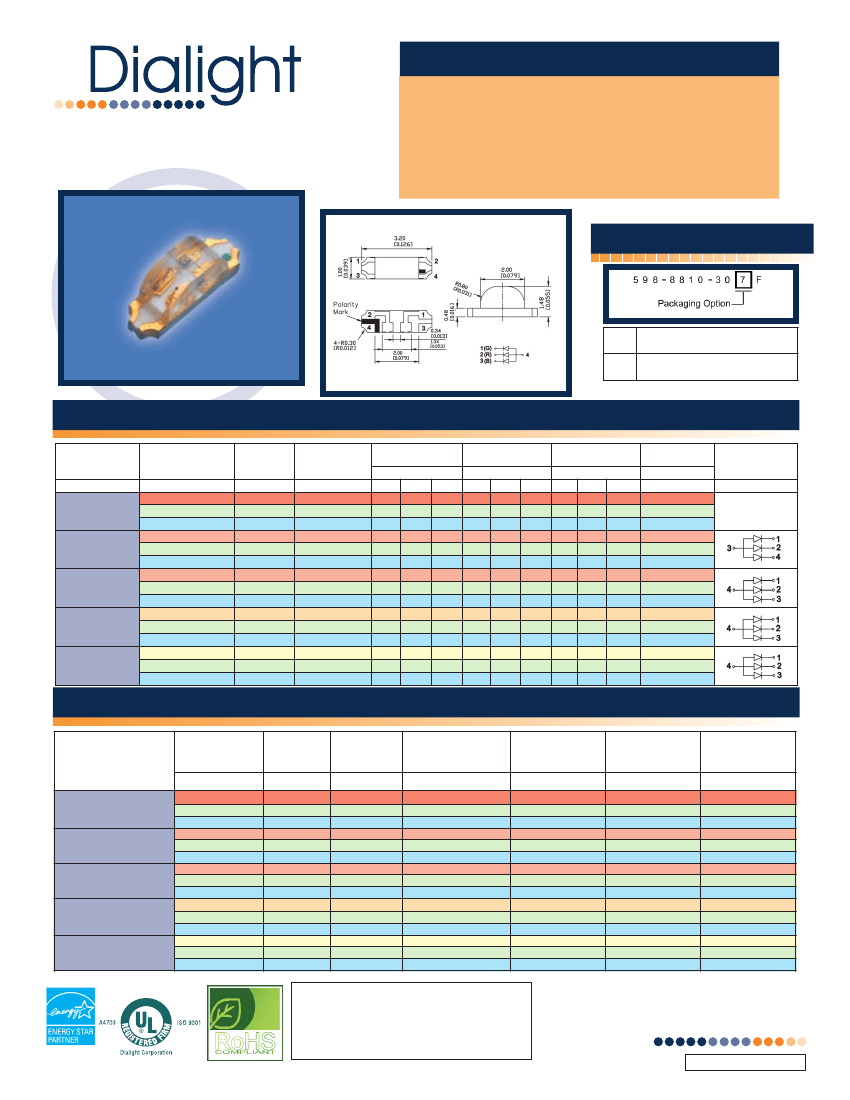

FEATURES / BENEFITS
Compatible with automatic placement equipment
Micro LED
®
SMD LED
“598 SERIES” 1208 PACKAGE
(3.2mm X 1.5mm X 1.0mm) Tri-Color Right Angle
RoHS compliant
Packaged in 8mm tape, 7” reel and 20 per strip
Meets EIA-481-1 pkg. std.

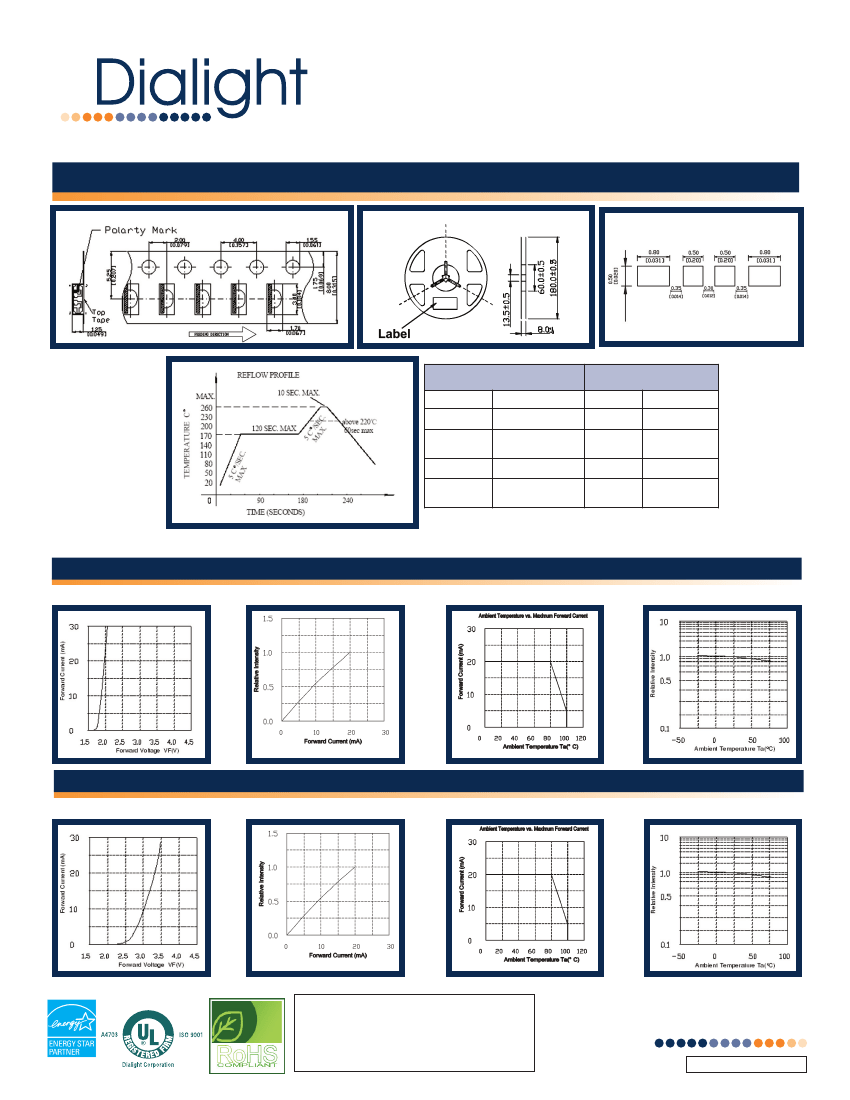

Package Outline Drawing:
ORDERING INFORMATION
2
Notes 1. All dimensions are in mm [inches];
2. Tolerances are ±0.1mm [0.004inch] unless noted.
20 pieces on tape
7” reel 3000pcs / reel
7
PART NUMBERS
Dialight P/N
EMITTED COLOR
MATERIAL
LENS COLOR
LUMINOUS
INTENSITY
If = 20 ma
MIN TYP MAX
40
60
80
90
120
220
60
90
140
90
120
150
150 220
300
60
90
140
90
120
150
150 220
300
60
90
140
70
120
150
150 220
300
60
90
140
90
110
150
150 220
300
60
90
140
DOMINANT
FORWARD
WAVELENGTH
VOLTAGE
If = 20 ma
If = 20 ma
MIN TYP MAX MIN TYP MAX
630 635 645 1.8 2.2
2.4
520 525 530 2.8 3.2
3.4
465 470 475 2.8 3.2
3.4
620 625 630 1.8
2
2.4
520 525 530
3
3.2
3.5
465 470 475
3
3.2
3.5
620 625 630 1.8 2.2
2.4
520 525 530 2.8 3.2
3.5
465 470 475 2.8 3.2
3.5
600 605 610 1.8 2.2
2.4
520 525 530 2.8 3.2
3.5
465 470 475 2.8 3.2
3.5
587 590 595 1.8 2.2
2.4
520 525 530 2.8 3.2
3.5
465 470 475 2.8 3.2
3.5
VIEWING
ANGLE
° DEGREES
160
160
160
160
160
160
160
160
160
160
160
160
160
160
160
PINOUT
598-8810-307F
598-8820-307F
598-8821-307F
598-8830-307F
598-8840-307F
RED
GREEN
BLUE
RED-ORANGE
GREEN
BLUE
RED-ORANGE
GREEN
BLUE
ORANGE
GREEN
BLUE
YELLOW
GREEN
BLUE
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
SEE EXAMPLE
B
G
RO
G
RO
B
G
O
B
G
Y
B
ABSOLUTE RATINGS
(@ Ta = 25ºC)
Power
Dissipation
(mW)
598-8810-307F
48
68
68
48
70
70
48
70
70
48
70
70
48
70
70
Forward
Current
(mA)
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Reverse
Voltage
(V)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Operating
Temperature
Range
(ºC)
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
Storage
Temperature
Range
(ºC)
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
Peak Pulse
Forward
Current
(mA)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Electrostatic
Discharge
(HBM)
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
Dialight P/N
598-8820-307F
598-8821-307F
598-8830-307F
598-8840-307F
PRELIMINARY
Dialight reserves the right to make changes at any
time in order to supply the best product possible.
Contact us directly for the latest information.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEI5981208TRI_A

5988840307F Related Products

5988840307F 5988810307F 5988840302F
Description LED BLUE/GRN/YLW CLEAR 1208 R/A LED RGB CLEAR 1208 R/A SMD LED BLUE/GRN/YLW CLEAR 1208 R/A
color blue, green, yellow Red, green, blue (RGB) blue, green, yellow
Configuration common anode common anode common anode
Lens color colorless colorless colorless
Lens transparency transparent transparent transparent
millicandela level 90mcd blue, 220mcd green, 110mcd yellow 60mcd red, 120mcd green, 90mcd blue 90mcd blue, 220mcd green, 110mcd yellow
Lens style/size Rectangular, with dome, 2.00mm x 1.00mm Rectangular, with dome, 2.00mm x 1.00mm Rectangular, with dome, 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typical) 3.2V blue, 3.2V green, 2.2V yellow 2.2V red, 3.2V green, 3.2V blue 3.2V blue, 3.2V green, 2.2V yellow
Current - Test 20mA 파란색, 20mA green, 20mA yellow 20mA red, 20mA green, 20mA 파란색 20mA 파란색, 20mA green, 20mA yellow
perspective 160° 160° 160°
Installation type Surface mount, right angle Surface mount, right angle Surface mount, right angle
Wavelength - Main 470nm blue, 525nm green, 590nm yellow 635nm red, 525nm green, 470nm blue 470nm blue, 525nm green, 590nm yellow
Package/casing 2-SMD, no leads 2-SMD, no leads 2-SMD, no leads
Supplier device packaging 1208 1208 1208
size/dimensions 3.20mm length x 1.50mm width 3.20mm length x 1.50mm width 3.20mm length x 1.50mm width
Height (maximum value) 1.00mm 1.00mm 1.00mm
