TIME DELAY RELAY

Preview

Download Datasheet

View All

Time Delay Relays

Dedicated - Delay-on-Make

TRM SERIES

*8-pin models UL listed when used in

combination with P1011-6 socket only.

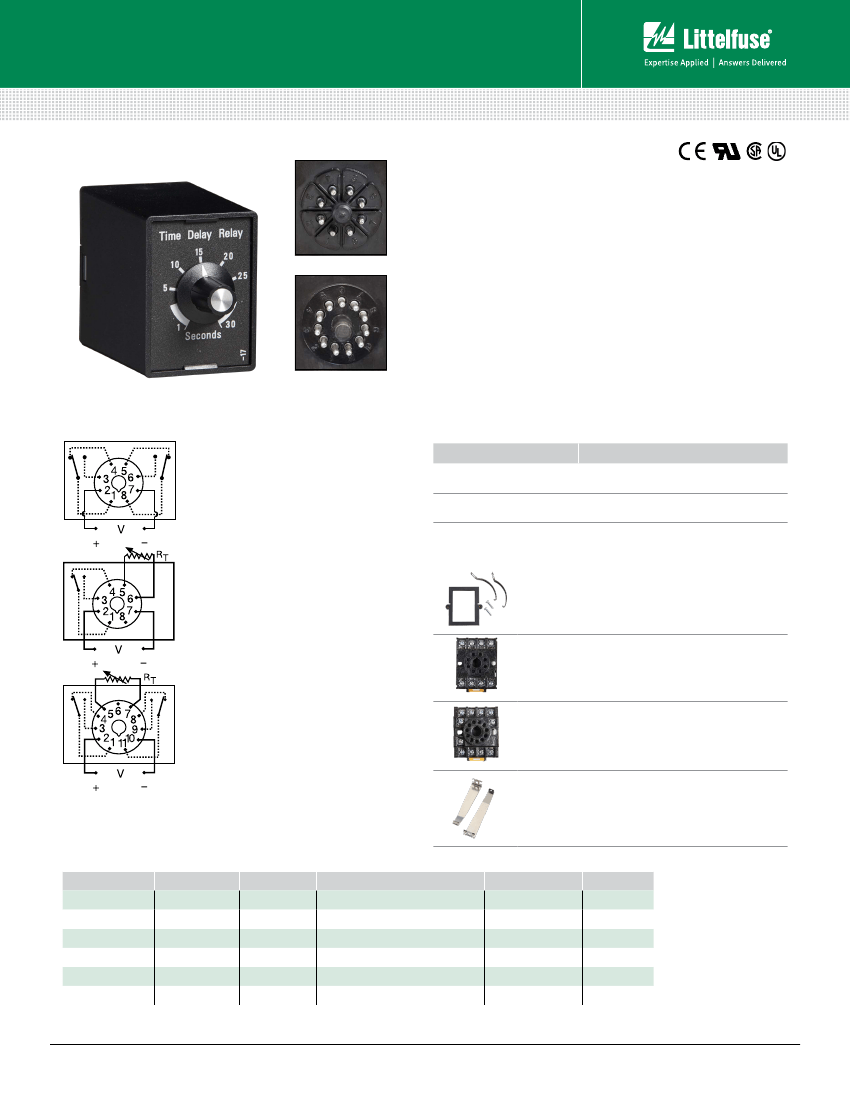

Description

8-PIN

The TRM Series is a combination of analog electronic circuitry

and electromechanical relay output. It provides input to output

isolation with a wide variety of input voltages and time ranges.

Standard plug-in base wiring, fast reset, rugged enclosure, and

good repeat accuracy make the TRM a select choice in any

OEM application.

Operation (Delay-on-Make)

Upon application of input voltage, the time delay begins. The

output is de-energized before and during the time delay. At the

end of the time delay, the output relay energizes and remains

energized until input voltage is removed.

Reset:

Removing input voltage resets the time delay and output.

11-PIN

Wiring Diagram

8-pin octal DPDT

Features & Benefits

FEATURES

Electronic circuitry with

electromechanical relay

Isolated 10A, SPDT or

DPDT output contacts

BENEFITS

Repeat Accuracy + / - 2%

Allows control of loads for AC or DC voltages.

N/L2

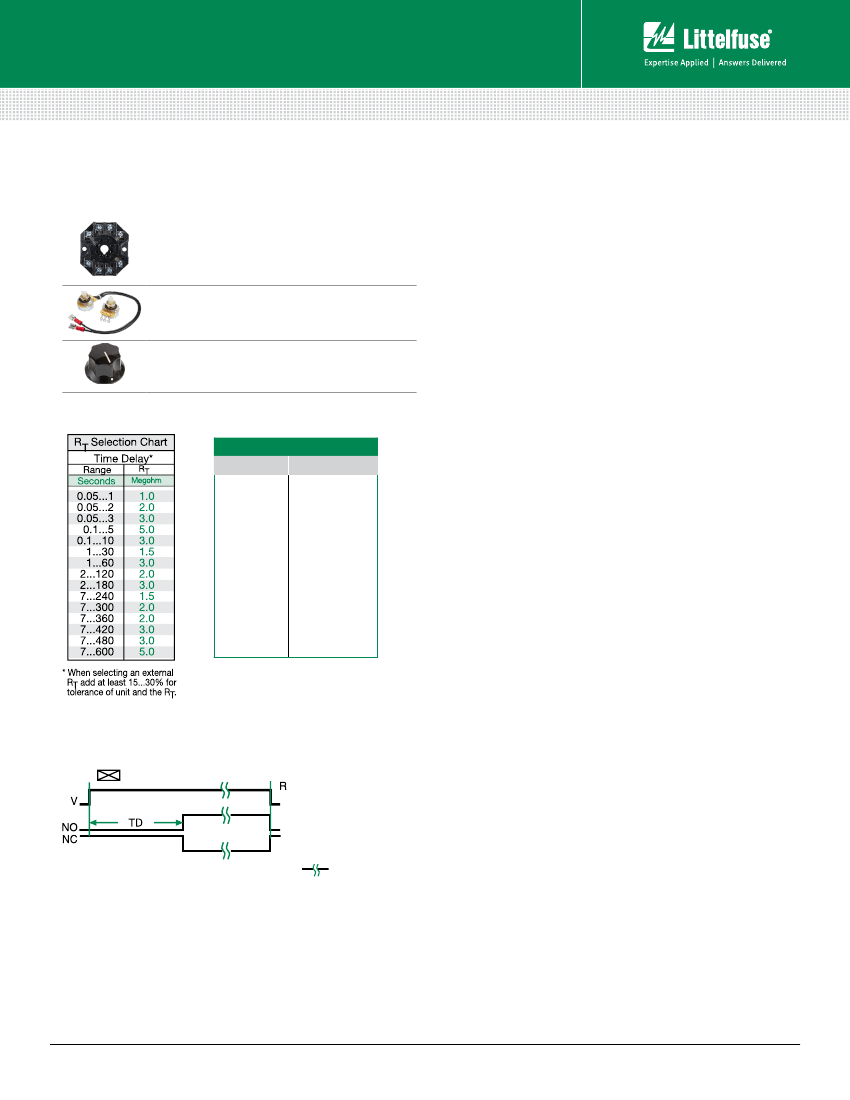

Accessories

8-pin octal SPDT

V = Voltage

RT is used when

external adjustment

is ordered. Relay

contacts are isolated.

11-pin DPDT

BZ1 Front Panel Mount Kit

Provides an easy method of through-the-panel

mounting of 8- or 11-pin plug-in timers, flashers,

and other controls.

NDS-8 Octal 8-pin Socket

8-pin 35mm DIN rail or surface mount. Surface

mounted with two #6 screws or snaps onto a

35 mm DIN rail. Uses PSC8 hold-down clips.

NDS-11 11-pin Socket

11-pin 35mm DIN rail or surface mount. Surface

mounted with two #6 screws or snaps onto a

35 mm DIN rail. Uses PSC11 hold-down clips.

N/L2

PSC8 or PSC11 Hold-down Clips

Securely mounts plug-in controls in any position.

Provides protection against vibration. Use PSC8

with NDS-8 Octal Socket or PSC11 with NDS-11

Socket. Sold in sets of two.

Ordering Information

MODEL

INPUT VOLTAGE

ADJUSTMENT

OUTPUT

TIME TOLERANCE

TIME DELAY

TRM120A2X30

TRM120A2Y120

TRM120A2Y180

TRM24A8Y5

TRM24D1X10

TRM24D1X2

120VAC

24VAC

24VDC/28VDC

Knob

External

Fixed

Octal, DPDT

Octal, SPDT without potentiometer

Octal, DPDT

+/- 20%

+/- 10%

+/- 20%

1 - 30s

2 - 120s

2 - 180s

0.1 - 5s

10s

If you don’t find the part you need, call us for a custom product 800-843-8848

www.littelfuse.com/trm

Rev: 1-A-062216
