DATA SHEET
CITILED COB Series
Standard Type
Ra70,80min. Model
CLU058-3618C4
Introduction
Performance Characteristics
Mechanical Dimensions
Characteristic Curves
Reliability
Packing Specification
Precaution
P 2
P 3
P 5
P 6
P 9
P 10
P 11
1
Ref.CE-P3705 05/16
Product Nomenclature
CLU058 - 36 18 C4 - 27 3 M2 K1
[1]
[1]
[2]
[3]
[4]
[5]
Product shape
Die count in series
Die count in parallel
Nominal CCT
CRI (Ra)
[2]
[3]
[4]
CLU058
36
18
2700K
Min.80
[5]

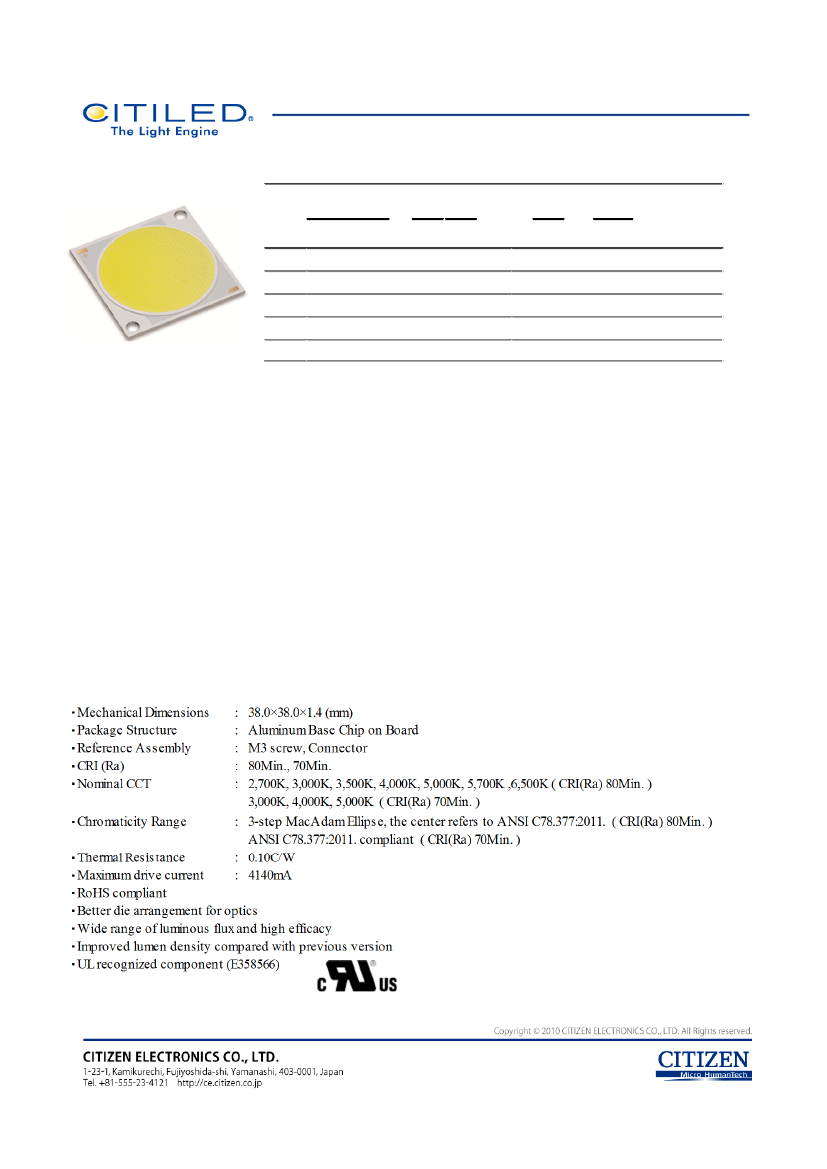

1. Introduction
1-1. Product Description
CITIZEN ELECTRONICS is the first COB manufacture. Our advanced knowledge and packaging technology for many
years has excellent reliability and high quality of our products. CITILED COB Series covers a wide range of luminous flux
from a 10W incandescent bulb to a 500W mercury lamp in general lighting sources. The element arrangement of LED
package is capable of utilizing light more effectively and higher performance.
The new version of CITILED COB Series succeed to reduce the thermal resistance significantly. New version creates
more options to match luminaire's products design (ex. High performance , Cost effective , Higher lumen density ,
Increased allowable max. If). The outline and LES size is same since version 1. 3-step MacAdam ellipse color definition at
Tj=85
℃
is available.
1-2. Features
2
Ref.CE-P3705 05/16
2. Performance Characteristics
2-1. Electro Optical Characteristics
( Tj=85C )
Nominal
CCT
CRI
Ra
Min.
CLU058-3618C4-273M2K1
CLU058-3618C4-303M2K1
CLU058-3618C4-353M2K1
CLU058-3618C4-403M2K1
CLU058-3618C4-503M2K1
CLU058-3618C4-573M2K1
CLU058-3618C4-653M2K1
CLU058-3618C4-30AL7K3
CLU058-3618C4-40AL7K3
CLU058-3618C4-50AL7K3
Notes :
1. Citizen Electronics maintains forward voltage +/-3%, luminous flux +/-10%,Ra and R9 +/-1.
2700K
3000K
3500K
4000K
5000K
5700K
6500K
3000K
4000K
5000K
80
80
80
80
80
80
80
70
70
70
R9
Min.
0
0
0
0
0
0
0
-
-
-
Luminous flux
( lm )
Efficacy Forward
( lm/W ) Current
Tc=25C*
( mA )
Typ.
Typ.
24,871
26,041
26,629
26,851
27,304
27,577
27,796
27,514
28,421
28,929
136
142
146
147
149
151
152
150
155
158
1,620
1,620
1,620
1,620
1,620
1,620
1,620
1,620
1,620
1,620
Voltage
( V)
Min.
95.6
95.6
95.6
95.6
95.6
95.6
95.6
95.6
95.6
95.6
Typ.
103.9
103.9
103.9
103.9
103.9
103.9
103.9
103.9
103.9
103.9
Max.
112.3
112.3
112.3
112.3
112.3
112.3
112.3
112.3
112.3
112.3
Thermal
Resistance
Rj-c
(
C/W )
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
Product code
T
½
=85C
Min.
Typ.
20,136 22,882
21,083 23,958
21,559 24,499
21,738 24,703
22,105 25,120
22,326 25,371
22,504 25,573
22,275 25,313
23,010 26,148
23,421 26,615
2-2. Absolute Maximum Ratings
Parameter
Input Power (W)
Forward Current (mA)
Reverse Current (mA)
Operating Temperature (C)
Storage Temperature (C)
Case Temperature (C)
Junction Temperature (C)
Symbol
Pi
If
Ir
Top
Tst
Tc
Tj
Rating
526.0
4140
1
-40 ~ +100
-40 ~ +100
105
140
*2
*3
*1
*1
*1. Input power and forward current are the values when the LED is used within the range of the derating
curve in this data sheet.
*2. Refer to 3. Outline drawing for Tc measurement point.
*3. D.C. Current : Tj = Tc + Rj-c
×
Pi
3
Ref.CE-P3705 05/16

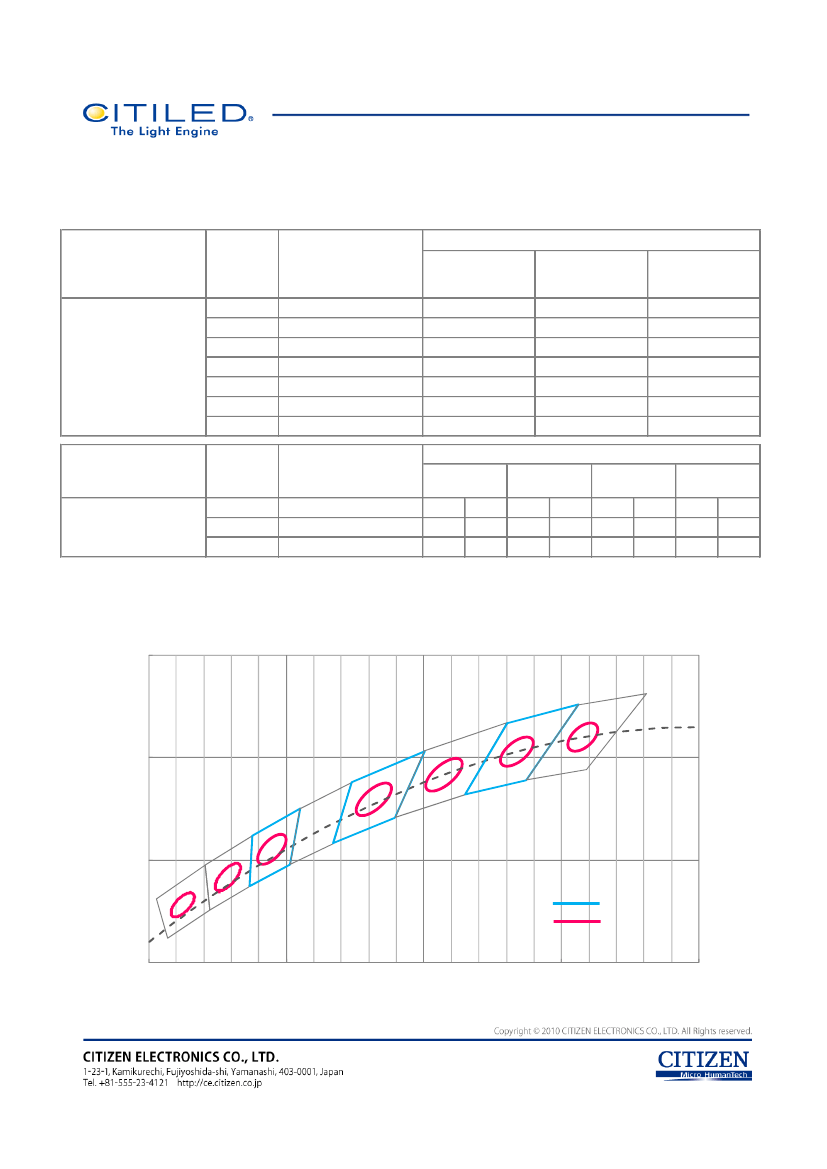

2-3. Chromaticity Characteristics
( Rated current, Tj=85C )
Oval parameter
Color Region
Nominal
CCT
2700K
3000K
3500K
3-step MacAdam ellipse
4000K
5000K
5700K
6500K
Nominal
CCT
3000K
ANSI C78. 377:2011
4000K
5000K
Center Point
( x, y )
( 0.4577 , 0.4098 )
( 0.4339 , 0.4032 )
( 0.4078 , 0.3929 )
( 0.3818 , 0.3796 )
( 0.3446 , 0.3551 )
( 0.3287 , 0.3417 )
( 0.3123 , 0.3283 )
Center Point
( x, y )
( 0.4339 , 0.4032 )
( 0.3818 , 0.3796 )
( 0.3446 , 0.3551 )
Major Axis
a
0.00774
0.00834
0.00951
0.00939
0.00822
0.00760
0.00669
Minor Axis
b
0.00411
0.00408
0.00417
0.00402
0.00354
0.00296
0.00285
ANSI parameter
a
( x, y )
b
( x, y )
c
( x, y )
d
( x, y )
Ellipse
Rotation Angle
θ
57.28
53.17
52.97
54.00
59.62
59.46
58.38
Color Region
0.4561 0.4259 0.4302 0.4171 0.4149 0.3820 0.4373 0.3892
0.4003 0.4034 0.3737 0.3879 0.3671 0.3583 0.3895 0.3708
0.3550 0.3752 0.3375 0.3619 0.3366 0.3372 0.3514 0.3480
* Color region stay within MacAdam 3-step ellipse from the chromaticity center.
* The chromaticity center refers to ANSI C78.377:2011.
Please refer to ANSI C78. 377 for the chromaticity center.
0.45
x-y chart CIE1931
3,000K
3,500K
2,700K
0.40
4,000K
5,000K
5,700K
Black
Body
Locus
y
0.35
6,500K
ANSI
3-step
0.30
0.30
0.35
0.40
x
0.45
0.50
Note : Citizen Electronics maintains chromaticity ( x, y ) +/-0.005
4
Ref.CE-P3705 05/16

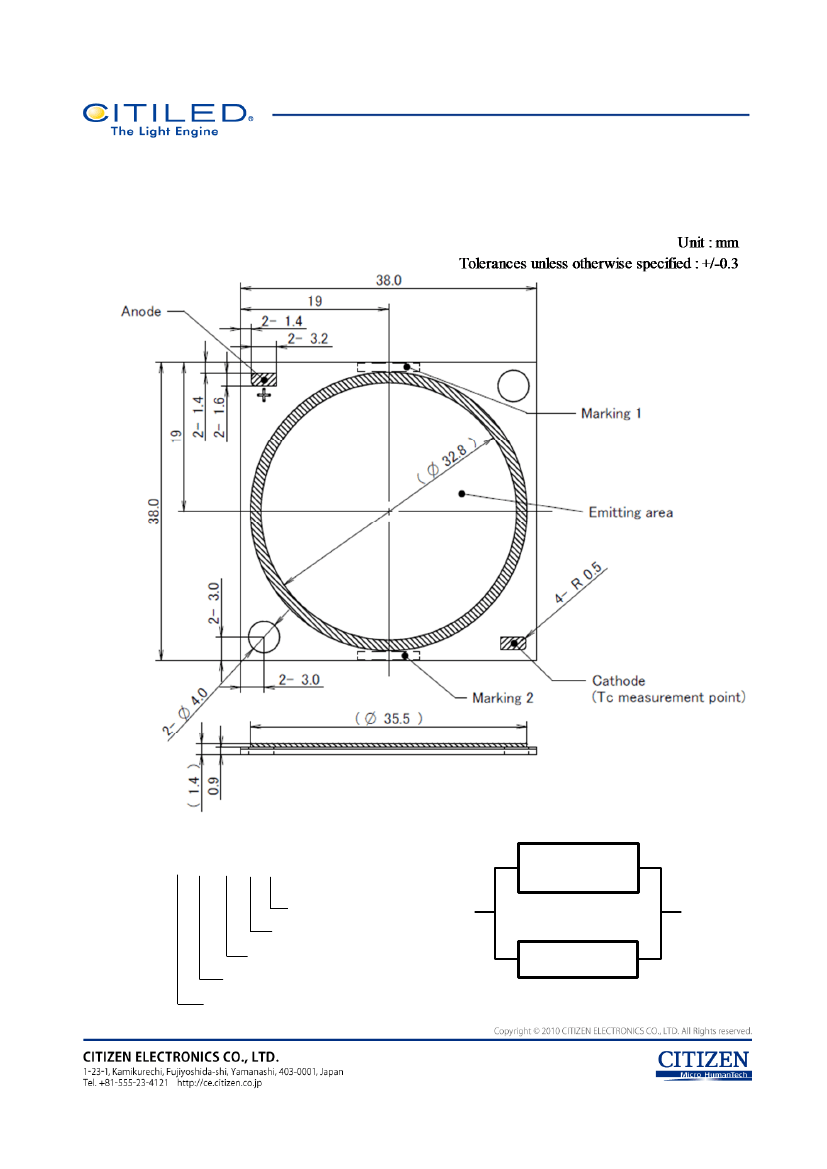

3. Mechanical Dimensions
・
Internal Circuit
Marking 1 :
Serial No.
Marking 2 : H 36 18 ** **
CRI
CCT
Dies count in parallel
Dies count in series
CLU058
Protection
device
Anode
LED device
Cathode
36 s 18 p
5
Ref.CE-P3705 05/16
