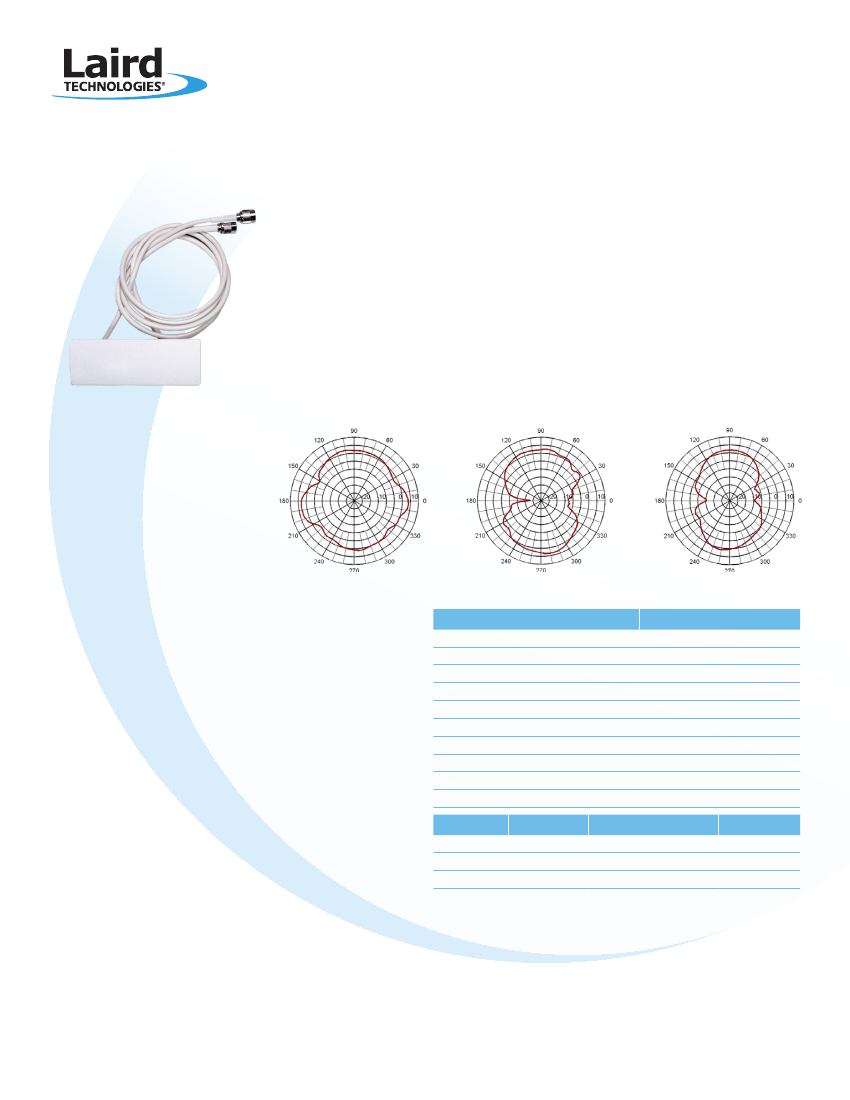

2.4 GHz MicroSphere Diversity Antenna
IFD2450
2.4 GHz OmnI-DIrectIOnal In-BuIlDInG antenna
The widespread use of cellular phones and wireless network applications inside buildings has increased the
need for antenna systems that can provide considerable gain over traditional dipole antennas.
Laird Technologies’ in-building wireless antennas are particularly applicable in environments where aesthetics
and wide angle coverage are necessary for successful wireless deployment. Their surprisingly small size allow
the antennas to be hidden almost anywhere, providing an invisible solution for most applications.
Features
• Surprisingly small size allows it to be hidden almost anywhere,
providing an invisible solution for many applications.
• The field pattern is toroidal, providing omni-directional
coverage in any plane around the long axis of the antenna,
and two lobes in any plane parallel to the long axis.
markets
•
The omni-directional pattern is suited to a variety
of uses, including handheld devices, in-building
systems or other applications where mobility is
a factor.
Azimuth Plane
Elevation Plane
phi=0
Elevation Plane
phi=90
SpecIfIcatIonS
element type
frequency Range
peak Gain
polarization
1
Impedance
Maximum Input power
VSWR (Min. performance)
Dimensions (L x W x H)
Housing
operating/Storage temperature
Microstrip
2.4 – 2.5 GHz
3 dBi
Linear
50 ohms
50 watts
2.0:1
12.3 x 4.4 x 1.1 cm
aBS
-40º to +70ºc
MoDeL #
RefeRence # pLenuM RateD coax connectoR
36” White RG-142
36” White RG-142
60” White RG-142
Rp-Bnc x 2
Rp-tnc x 2
Rp-tnc x 2
IfD2450-RB36 caf94270
IfD2450-Rt36 caf94165
IfD2450-Rt60 caf94675
global
solutions:
local
support
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +1.32.80.7866.12
IAS-EUSales@lairdtech.com
Asia: +1.65.6.243.8022
IAS-AsiaSales@lairdtech.com
mOuntInG OptIOns
TM
• Wall-mount bracket & screws included
ANT-DS-IFD2450 0609
