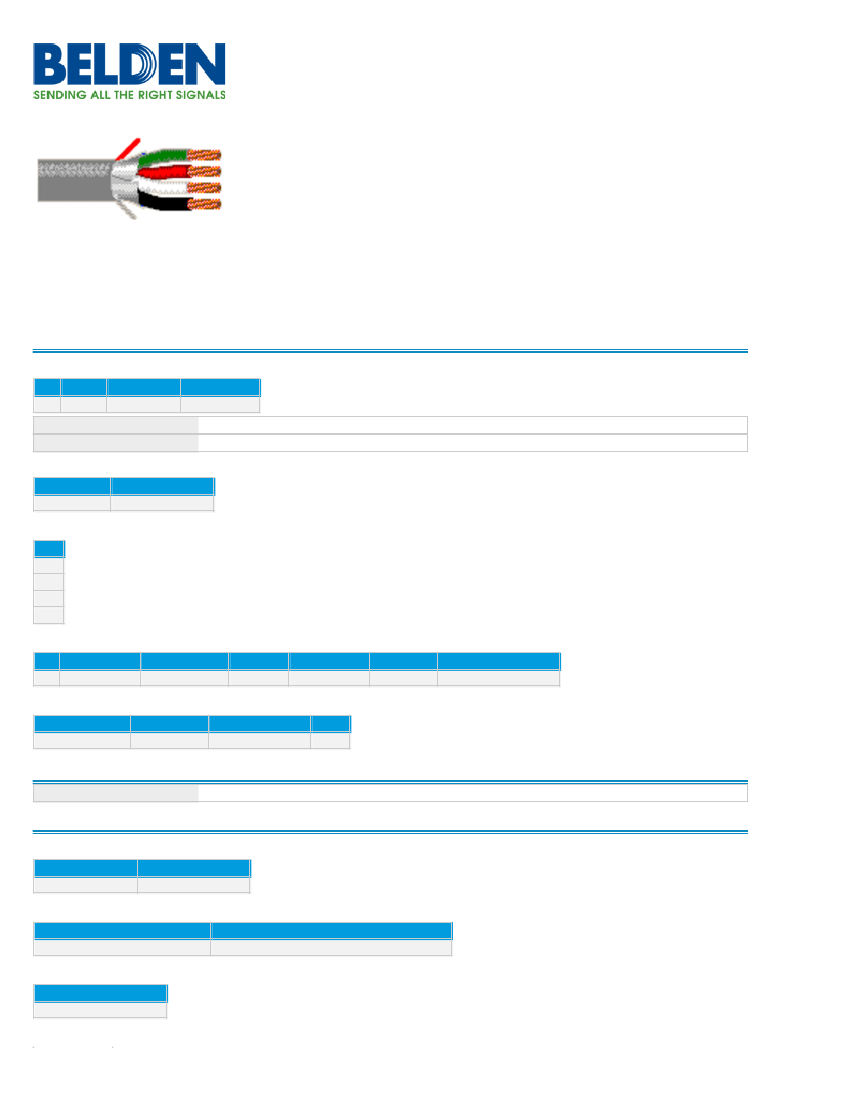

Part Number:
5402FE
Security & Sound, #20-4c, BC, Shielded, CMR
Product Description
Security & Sound Cable, Riser-CMR, 4-20 AWG stranded bare copper conductors with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord
Technical Specifications
Physical Characteristics (Overall)
Conductor
AWG Stranding
20
7x28
Material
No. of Conductors
BC - Bare Copper 4
4
20 AWG
Conductor Count:
Conductor Size:
Insulation
Material
Nominal Wall Thickness
PP - Polypropylene 0.008 in
Color Chart
Color
Black
Red
White
Green
Outer Shield Material
Type
Material
Material Trade Name Coverage [%] Drainwire Material
100 %
Drainwire AWG Drainwire Construction n x D
Solid
Tape Aluminum/Polyester Beldfoil®
Outer Jacket Material
Material
TC - Tinned Copper 24
Nominal Diameter Nominal Wall Thickness Ripcord
0.017 in
Yes
PVC - Polyvinyl Chloride 0.163 in
Construction and Dimensions
Print Legend:
NEW GENERATION(R) BY BELDEN 5402FE CMR 75C 4C20 SHIELDED (UL) E108998 OR C(UL) CMG ---- FT4 (SEQUENTIAL NUMBER) FEET
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
10.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
24.75 pF/ft
Current
Max. Recommended Current [A]
3 Amps per conductor @ 25°C A
Voltage
44.5 pF/ft
11.3 Ohm/1000ft
UL Voltage Rating
300 V RMS
Temperature Range
UL Temp Rating:
Operating Temp Range:
75°C
-20°C To +75°C
Mechanical Characteristics
Bulk Cable Weight:
Max Recommended Pulling Tension:
Min Bend Radius/Minor Axis:
22 lbs/1000ft
59.5 lbs
1.75 in
Standards
NEC Articles:
CEC/C(UL) Specification:
800
CMG
Applicable Environmental and Other Programs
EU Directive Compliance:
EU CE Mark:
EU Directive 2003/11/EC (BFR)
Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable):
MII Order #39 (China RoHS):
Yes
Yes
Flammability, LS0H, Toxicity Testing
UL Flammability:
CSA Flammability:
UL voltage rating:
UL1666 Riser
FT4
300 V RMS
Plenum/Non-Plenum
Plenum (Y/N):
Plenum Number:
No
6402FE
Part Number
Variants
Item #
5402FE 0081000
5402FE 008500
5402FE 008C500
Color Footnote
Gray
Gray
Gray
C
5402FE 008U1000 Gray
5402FE 008U500
Footnote:
Gray
C - CRATE REEL PUT-UP.
© 2018 Belden, Inc
All Rights Reserved.
Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without
notice, and the listing of such information and specifications does not ensure product availability.
Belden provides the information and specifications herein on an "ASIS" basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages
(including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract,
negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein.
All sales of Belden products are subject to Belden's standard terms and conditions of sale.
Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden's knowledge, information and belief
at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product
Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and
regulations based on their individual usage of the product.
