NJW4820: Description35V / 500mA Low Side Switch; File Size122KB，1 Pages; ManufacturerNew JRC; Websitehttps://www.njr.com

Download Datasheet Compare View All

NJW4820 Overview

35V / 500mA Low Side Switch

Preview

Download Datasheet

View All

BCD

Process

Series

NJW4820

35V / 500mA Low Side Switch

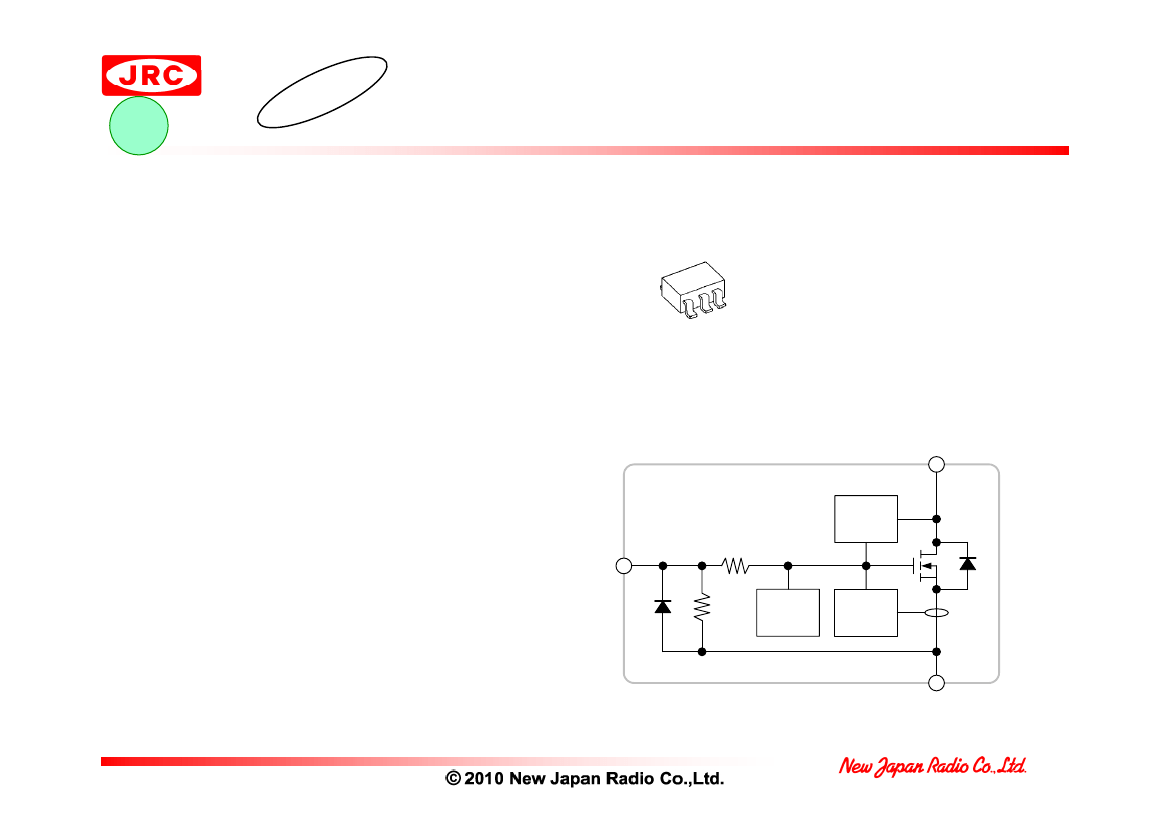

PACKAGE OUTLINE

GENERAL DESCRIPTION

The NJW4820 is an 1 channel Low-side Switch that

is able to supply 500mA.

Its output device is N channel MOSFET and Over

Voltage Protection, Over Current Protection and

Thermal Shutdown circuit are built-in.

NJW4820 is corresponding to logic control.

NJW4820 is suitable for Power-line driving that

motor, solenoid and lamp and so on.

NJW4820F

BLOCK DIAGRAM

DRAIN

FEATURE

Drain Source Voltage 35V

Drain Current

500mA

ON Resistance

0.45

typ. (V

=5V)

0.5

typ. (V

=3.3V)

Quiescent Current

75μA typ. (V

=5V)

60μA typ. (V

=3.3V)

Thermal Shut Down Circuit

Over Voltage Protection

Over Current Protection

Package

SOT-23-5

Active

Clamp

Thermal

Shut Down

Over

Current

Protection

SOURCE

Ver.2010/09/03　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　
