CBM-120-UV Product Datasheet
CBT-120 Product Datasheet
CBM-120
Mosaic Array Series
Ultraviolet Chip On Board LEDs
Table of Contents
Technology Overview
. . . . . .2
Ordering Information
. . . . . .3
Binning Structure
. . . . . . . . . .4
Ordering Bin Kits
. . . . . . . . . . .5
Optical & Electrical
Characteristics
. . . . . . . . . . . . .6
Typical Spectrum
. . . . . . . . . .8
Angular Distribution
. . . . . . .8
Reliability Data
. . . . . . . . . . . . .9
Thermal Resistance
. . . . . . 10
Electrical Pinout (C31)
. . . . 10
Mechanical Dimensions
Square Package (C31)
. . . . 11
Mechanical Dimensions
Slim Package (C14)
. . . . . . . 12
Shipping Tray Square Package
(C31)
. . . . . . . . . . . . . . . . . . . .
13
Shipping Tray Slim Package
(C14)
. . . . . . . . . . . . . . . . . . . .
14
Packaging Specifications
. 15
Revision History
. . . . . . . . . . 16

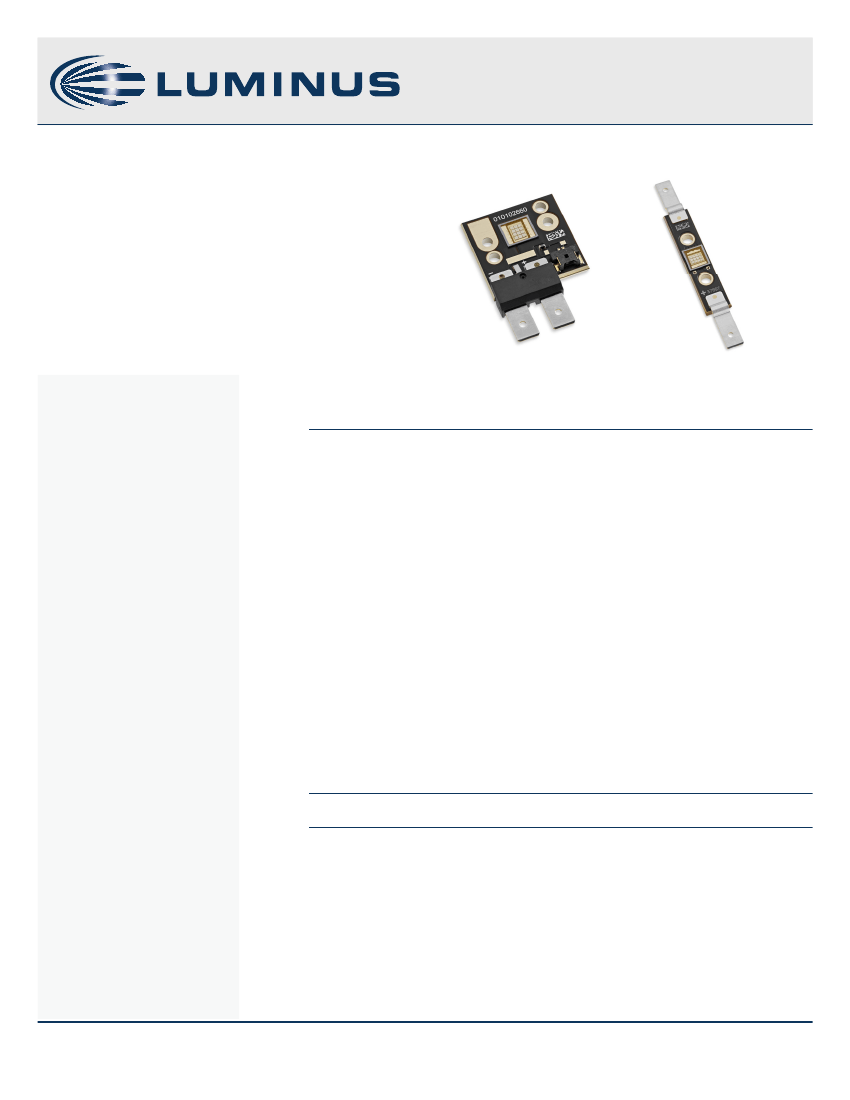

Features:
•
Mosaic Array UV LED chipset with surface emitting area of 12 mm
2
, 4:3 aspect ratio
•
All the benefits of chip on board processing without the need for complicated
assembly process
•
Vertical chip UV LED technology for high power density and uniform emission
•
Wide Range of UVA Wavelengths
•
High thermal conductivity copper coreboard package
•
Low-profile window for efficient coupling into small-etendue systems
•
Can be operated at variable drive currents up to 18A
•
NIST traceable optical and electrical measurement testing
•
Environmentally friendly: RoHS and Halogen compliant
Applications:
•
Curing:
›
Inks
›
Coatings
›
Adhesives
•
Inspection
•
Machine Vision
•
Fiber-coupled illumination
•
Specialty Projection Systems for
Maskless Lithography
•
Rapid Prototyping and 3D printing
•
Medical and Scientific
Instrumentation
1
PDS-002545 Rev03
© 2016 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
175 New Boston Street • Woburn, MA 01801
CBM-120-UV Product Datasheet
Technology Overview
Luminus LEDs benefit from innovations in device technology, chip packaging and thermal management. This suite of technologies give
engineers and system designers the freedom to develop solutions both high in power and efficiency.
Luminus Mosaic Array LED Technology
Luminus’ Devices vertical chip technology enables LED chips
with uniform brightness over the entire chip surface. The optical
power and brightness produced by these densely packed arrays
of devices enable solutions not possible with single chip
packages that be used to replace arc and halogen lamps.
Reliability
With designs based on years of chip and packaging
development experience, Luminus LEDs are one of the most
reliable light sources in the world today. Luminus LEDs pass a
rigorous suite of environmental and mechanical stress tests,
including mechanical shock, vibration, temperature cycling and
humidity, and have been fully qualified for use in extreme high
power and high current applications. With very low failure rates
and median lifetimes that can exceed 30,000 hours, Luminus UV
LEDs are ready for even the most demanding applications.
Packaging Technology
Thermal management is critical in high power LED applications.
With a thermal resistance from junction to heat sink of 0.6 ºC/W,
Luminus CBM-120 LEDs have the lowest thermal resistance of
any UV LED on the market. This will allow the LEDs to be driven
at higher current densities while maintaining a low junction
temperature, thereby resulting in brighter solutions and longer
lifetimes.
Environmental Benefits
Luminus LEDs help reduce power consumption and the amount
of hazardous waste entering the environment. All LED products
manufactured by Luminus are RoHS and Halogen compliant
and free of hazardous materials, including lead and mercury.
Understanding Mosaic Array UV LED Test Specifications
Every Luminus LED is fully tested to ensure that it meets the high quality standards expected from Luminus’ products.
Testing Temperature
Luminus core board products are typically measured in such a
way that the characteristics reported agree with how the
devices will actually perform when incorporated into a system.
This measurement is accomplished by mounting the devices on
a 40ºC heat sink and measuring the device while fully powered.
This method of measurement ensures that Luminus LEDs
perform in the field just as they are specified.
Multiple Operating Points
The tables on the following pages provide typical optical and
electrical characteristics for the standard drive conditions. Since
the LEDs can be operated over a wide range of drive
conditions(currents from 200 mA to 18 A, and duty cycle from
<1% to 100%) there are many other potential values attainable.
Driving devices beyond recommended driving conditions
shortens lifetime.
2
PDS-002545 Rev03
© 2016 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
175 New Boston Street • Woburn, MA 01801
CBM-120-UV Product Datasheet
Ordering Information
Products
Ordering Part Number
CBM-120-UV-C31-
FF###-2#
CBM-120-UV
CBM-120-UV-C14-
FF###-2#
Description
CBM-120 Mosaic Array UV chipset consisting of 12x1mm2 UV LEDs, a
thermistor, connectors, and a square copper-core PCB.
CBM-120 Mosaic Array UV chipset consisting of 12x1mm2 UV LEDs,
connectors, and a slim (rectangular) copper-core PCB.
Part Number Nomenclature
CBM
Product Family
120
Chip Area
CC
Color
C##
Package Configuration
FF###-2#
Bin Kit
1,2
CBM: Copper-
core PCB, Mosiac
Array
120: 12 mm
2
UV = Ultraviolet
C14: 44.5 mm x 10 mm - Slim Package
C31: 28 mm x 26.75 mm - Square Package
See Mechanical Drawing section
See page 5
for complete bin
definition table
Note 1:
Note 2:
A Bin Kit represents a group of individual flux or power bins that are shippable for a given ordering part number. Individual flux bins are not orderable..
Flux Bin listed is minimum bin shipped - higher bins may be included at Luminus’ discretion
3
PDS-002545 Rev03
© 2016 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
175 New Boston Street • Woburn, MA 01801
CBM-120-UV Product Datasheet
CBM-120-UV Binning Structure
CBM-120-UV LEDs are specified for luminous flux and chromaticity/wavelength at a drive current of 9 A (750 mA/mm2) and placed into
one of the following Power Bins and Wavelength Bins:
Power Bins
3
Color
Power Flux Bin (FF)
FA
FB
GA
GB
Minimum Flux (W)
6.0
6.5
7.0
7.5
8.0
9.1
10.0
11.0
12.1
Maximum Flux (W)
6 .5
7 .0
7 .5
8 .0
9 .1
10 .0
11 .0
12 .1
13.3
UV
H
I
J
K
L
Note 3: Luminus maintains a +/- 6% tolerance on power measurements.
Peak Wavelength Bins
Color
Wavelength Bin (###)
365
370
375
380
Minimum Wavelength
(nm)
365
370
375
380
385
390
395
400
405
Maximum Wavelength
(nm)
370
375
380
385
390
395
400
405
410
UV
385
390
395
400
405
4
PDS-002545 Rev03
© 2016 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
175 New Boston Street • Woburn, MA 01801
CBM-120-UV Product Datasheet
CBM-120 UV Mosaic Array Bin Kits
Luminous Flux
Wavelength Range
Bin Kit Flux
Code
FA
FB
Min. Flux
6 .0
6 .5
7 .7
8 .0
Wavelength Bins
365
365, 370
365
365, 370
365
365, 370
365
365, 370
380
Ordering
Bin Kit Number
FA365-21
FA365-22
FB365-21
FB365-22
GB365-21
GB365-22
H365-21
H365-22
K380-21
K385-21
K380-22
L380-21
L385-21
L380-22
K390-21
K395-21
K390-22
L390-21
L395-21
L390-22
K400-21
K405-21
K400-22
L400-21
L405-21
L400-22
365-375
GB
H
K
11 .0
385
380, 385
380
380-390
L
12 .1
385
380, 385
390
K
11 .0
395
390, 395
390
390-400
L
12 .1
395
390, 395
400
K
11 .0
405
400, 405
400
400-410
L
12 .1
405
400, 405
5
PDS-002545 Rev03
© 2016 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
175 New Boston Street • Woburn, MA 01801
