Part Number

Search

5025841170

Description
CONN RCPT 11CKT VERT BEIGE
CategoryThe connector
File Size576KB,5 Pages
ManufacturerMolex Premise Network
Environmental Compliance
Download Datasheet Parametric Compare View All

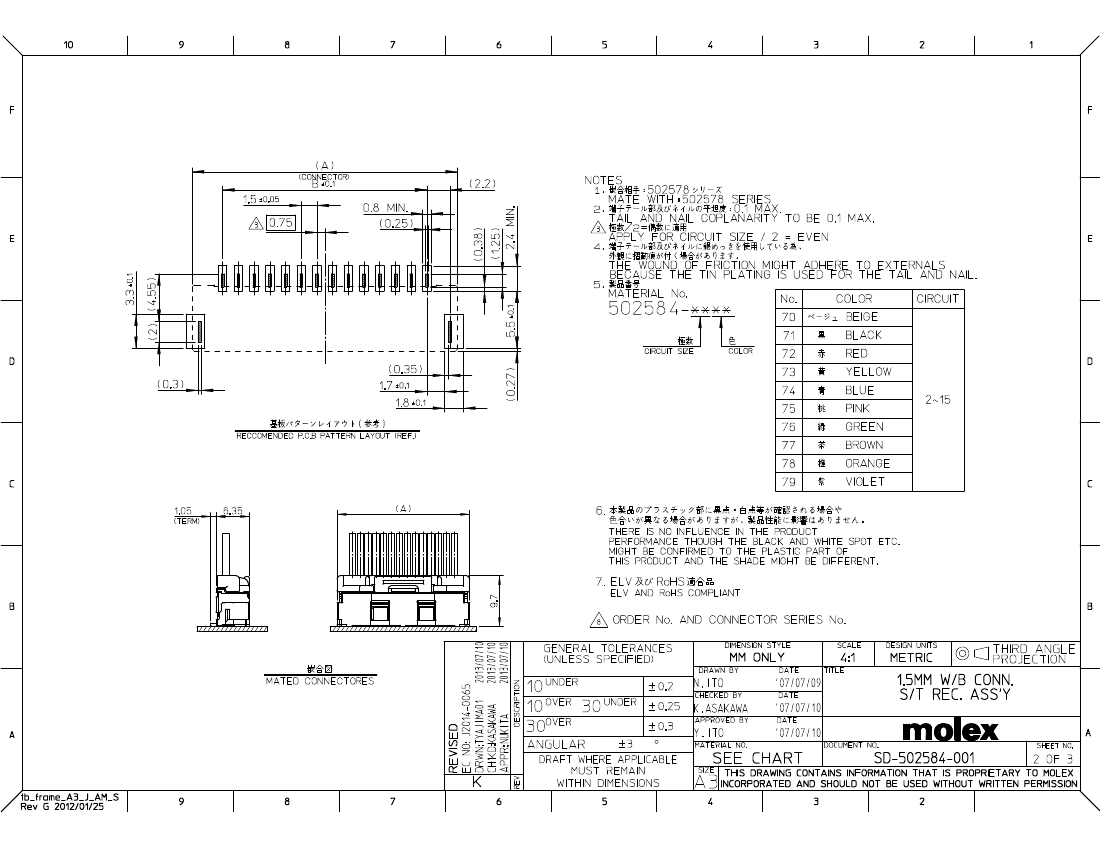

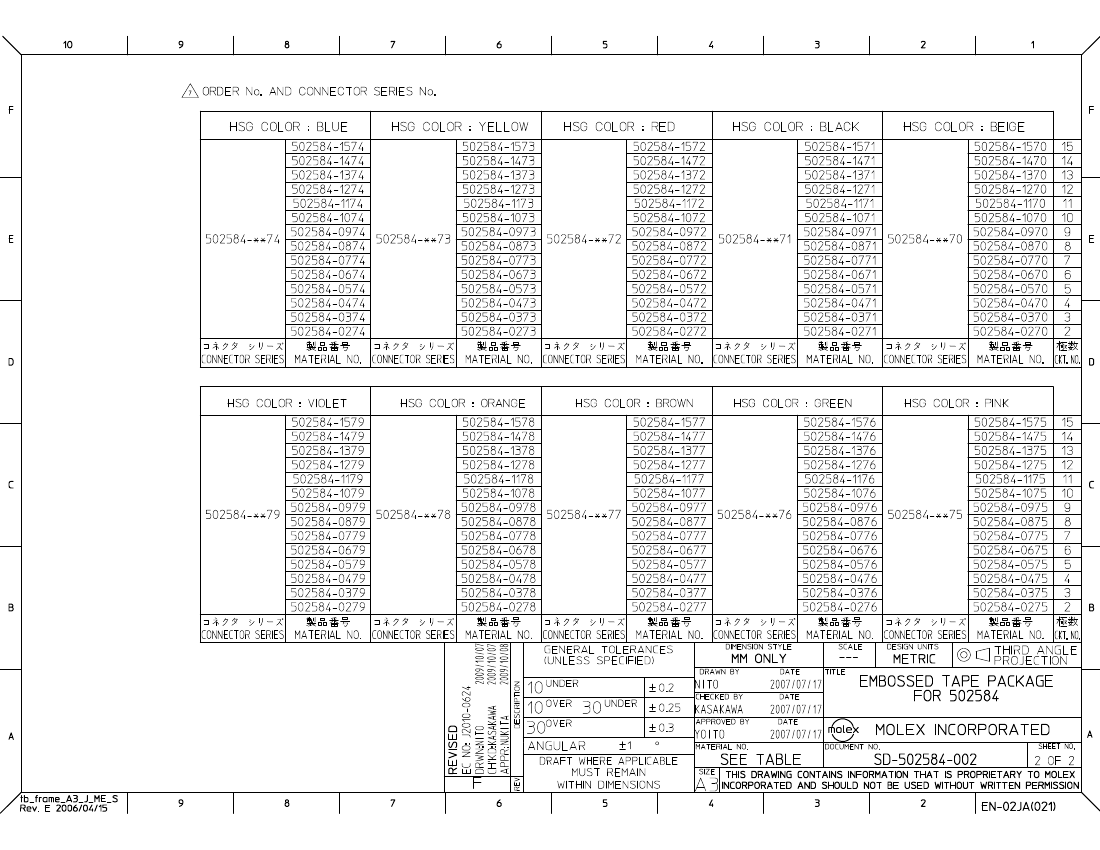

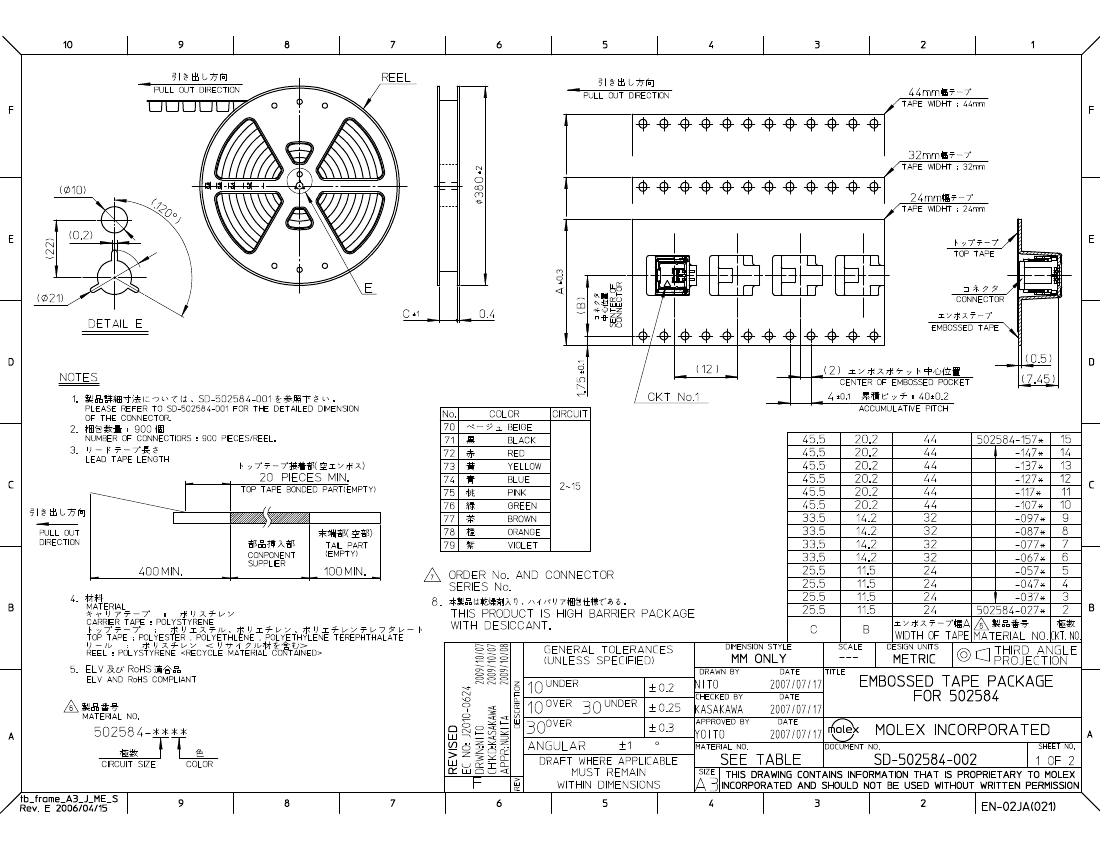

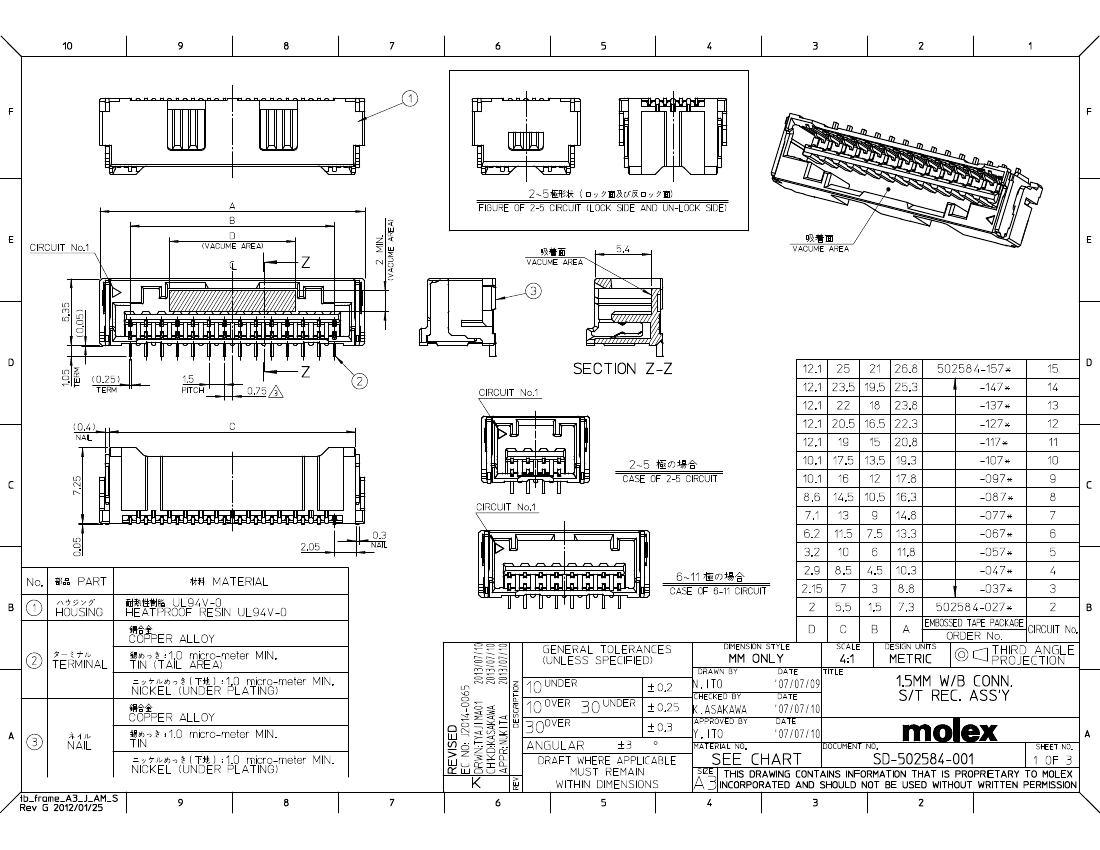

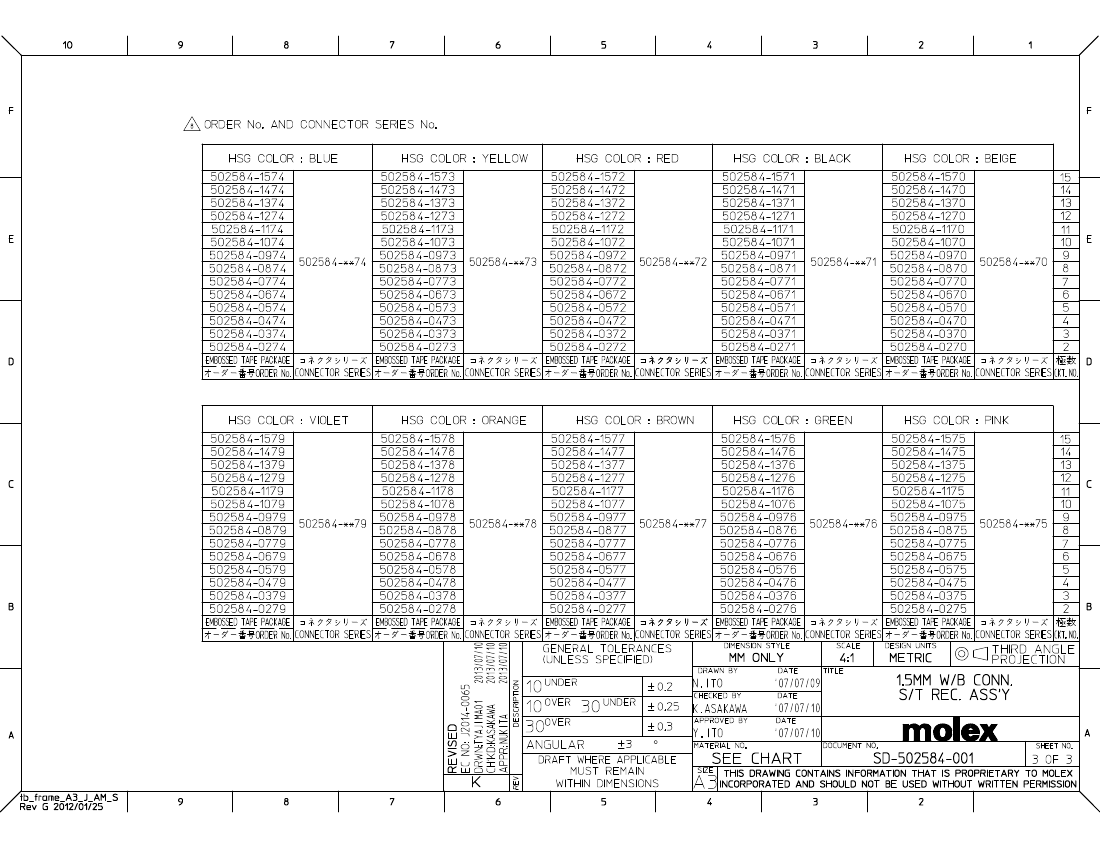

5025841170 Overview

CONN RCPT 11CKT VERT BEIGE

5025841170 Parametric

Parameter NameAttribute value
Connector typesocket
Contact typeForked
styleBoard to cable/wire
Number of pins11
Number of pins loadedall
Spacing - Mating0.059"(1.50mm)
Number of rows1
Line spacing - patching-
Installation typesurface mount
Terminationwelding
Fastening typelatch holder
Contact surface treatment - matingtin
Contact Surface Treatment Thickness - Mating39.4µin(1.00µm)
Insulation colorbeige
Insulation height0.285"(7.25mm)
Contact length - terminal-
Operating temperature-40°C ~ 105°C
Material flammability ratingUL94 V-0
Contact Surface Preparation - Columntin
Joint stack height-
Intrusion protection-
characteristicPick and place, weld hold
Rated current-
Rated voltage-
applicationAutomotive, general, industrial, lighting, medical
Insulation MaterialsResin
Contact shape-
Contact materialcopper alloy
Contact Surface Treatment Thickness - Column39.4µin(1.00µm)

5025841170 Related Products

5025841170 5025841070 5025841370
Description CONN RCPT 11CKT VERT BEIGE CONN RCPT 10CKT VERT BEIGE CONN RCPT 13CKT VERT BEIGE
Connector type socket socket socket
Contact type Forked Forked Forked
style Board to cable/wire Board to cable/wire Board to cable/wire
Number of pins 11 10 13
Number of pins loaded all all all
Spacing - Mating 0.059"(1.50mm) 0.059"(1.50mm) 0.059"(1.50mm)
Number of rows 1 1 1
Installation type surface mount surface mount surface mount
Termination welding welding welding
Fastening type latch holder latch holder latch holder
Contact surface treatment - mating tin tin tin
Contact Surface Treatment Thickness - Mating 39.4µin(1.00µm) 39.4µin(1.00µm) 39.4µin(1.00µm)
Insulation color beige beige beige
Insulation height 0.285"(7.25mm) 0.285"(7.25mm) 0.285"(7.25mm)
Operating temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
Material flammability rating UL94 V-0 UL94 V-0 UL94 V-0
Contact Surface Preparation - Column tin tin tin
characteristic Pick and place, weld hold Pick and place, weld hold Pick and place, weld hold
application Automotive, general, industrial, lighting, medical Automotive, general, industrial, lighting, medical Automotive, general, industrial, lighting, medical
Insulation Materials Resin Resin Resin
Contact material copper alloy copper alloy copper alloy
Contact Surface Treatment Thickness - Column 39.4µin(1.00µm) 39.4µin(1.00µm) 39.4µin(1.00µm)
