Datasheet> All Categories > Power/power management> DMTT-650

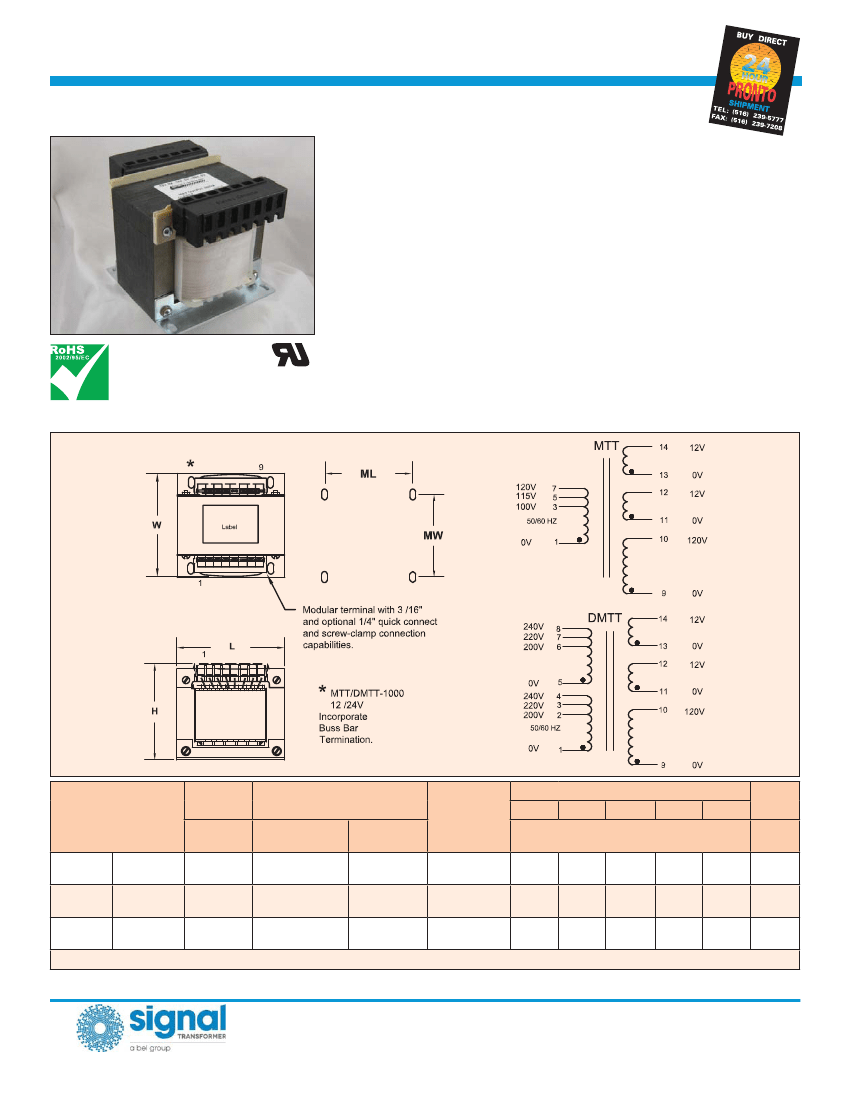

Preview

DMTT-650: DescriptionXFRMR LAMINATED 650VA CHAS MOUNT; CategoryPower/power management; File Size208KB，1 Pages; ManufacturerSignal Transformer; Environmental Compliance

Download Datasheet Parametric Compare View All

DMTT-650 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DMTT-650	-	-	View	Buy Now

DMTT-650 Overview

XFRMR LAMINATED 650VA CHAS MOUNT

DMTT-650 Parametric

Parameter Name	Attribute value
type	laminated core
Voltage - Primary	200V，220V，240V，400V，420V，440V，460V，480V
Voltage - Secondary (full load)	Parallel 12V, series 24V
Current - Output (maximum)	Parallel 54A, Series 27A
primary winding	Double, multiple taps
secondary winding	Three-way
center tap	none
Power - Max	650 VA
Installation type	Base installation
Terminal type	Termination block
size/dimensions	133.30mm length x 139.70mm width
Height - Installation (maximum)	117.80mm
Voltage - Isolation	4000Vrms
weight	20 pounds (9.1kg)

Preview

Download Datasheet

View All

SM

Solutions for the heavy duty machine industry

7A

DMTT-650 Related Products

	DMTT-650	MTT-300	MTT-650	DMTT-300	MTT-1000	DMTT-1000
Description	XFRMR LAMINATED 650VA CHAS MOUNT	XFRMR LAMINATED 300VA CHAS MOUNT	XFRMR LAMINATED 650VA CHAS MOUNT	XFRMR LAMINATED 300VA CHAS MOUNT	XFRMR LAMINATED 1000VA CHAS MNT	XFRMR LAMINATED 1000VA CHAS MNT
type	laminated core	laminated core	laminated core	laminated core	laminated core	laminated core
Voltage - Primary	200V，220V，240V，400V，420V，440V，460V，480V	100V，115V，120V	100V，115V，120V	200V，220V，240V，400V，420V，440V，460V，480V	100V，115V，120V	200V，220V，240V，400V，420V，440V，460V，480V
Voltage - Secondary (full load)	Parallel 12V, series 24V	Parallel 12V, series 24V	Parallel 12V, series 24V	Parallel 12V, series 24V	Parallel 12V, series 24V	Parallel 12V, series 24V
Current - Output (maximum)	Parallel 54A, Series 27A	Parallel 25A, series 12.5A	Parallel 54A, Series 27A	Parallel 25A, series 12.5A	Parallel 83.3A, series 41.7A	Parallel 83.3A, series 41.7A
primary winding	Double, multiple taps	single	single	Double, multiple taps	single	Double, multiple taps
secondary winding	Three-way	Three-way	Three-way	Three-way	Three-way	Three-way
center tap	none	none	none	none	none	none
Power - Max	650 VA	300 VA	650 VA	300 VA	1000 VA	1000 VA
Installation type	Base installation	Base installation	Base installation	Base installation	Base installation	Base installation
Terminal type	Termination block	Termination block	Termination block	Termination block	Termination block	Termination block
size/dimensions	133.30mm length x 139.70mm width	104.80mm length x 128.10mm width	133.30mm length x 139.70mm width	104.80mm length x 128.10mm width	179.30mm length x 129.60mm width	179.30mm length x 129.60mm width
Height - Installation (maximum)	117.80mm	98.20mm	117.80mm	98.20mm	154.90mm	154.90mm
Voltage - Isolation	4000Vrms	4000Vrms	4000Vrms	4000Vrms	4000Vrms	4000Vrms
weight	20 pounds (9.1kg)	9.9 pounds (4.5kg)	20 pounds (9.1kg)	9.9 pounds (4.5kg)	34 lbs (15.4kg)	34 lbs (15.4kg)
