DT200Z-14 Overview

AC/DC DESKTOP ADAPTER 48V 200W

DT200Z-14 Parametric

Parameter Name	Attribute value
Use area	internationality
form	Desktop (Class I)
input type	Cable (sold separately)
Voltage - input	90 ~ 264 VAC
Voltage - Output	48V
Current - Output (maximum)	4.2A
Power (W)	202W
No-load power consumption	500mW (maximum)
polarization	-
application	ITE (Business)
efficiency	87%
Operating temperature	-20°C ~ 60°C
Output connector	Rectangular, 6-pin position
size/dimensions	8.27" long x 4.06" wide x 2.05" high (210.0mm x 103.0mm x 52.0mm)
Approval	-
input connector	IEC 320-C14
Wire length	72"（1.83m）
weight	2.4 pounds (1.1kg)

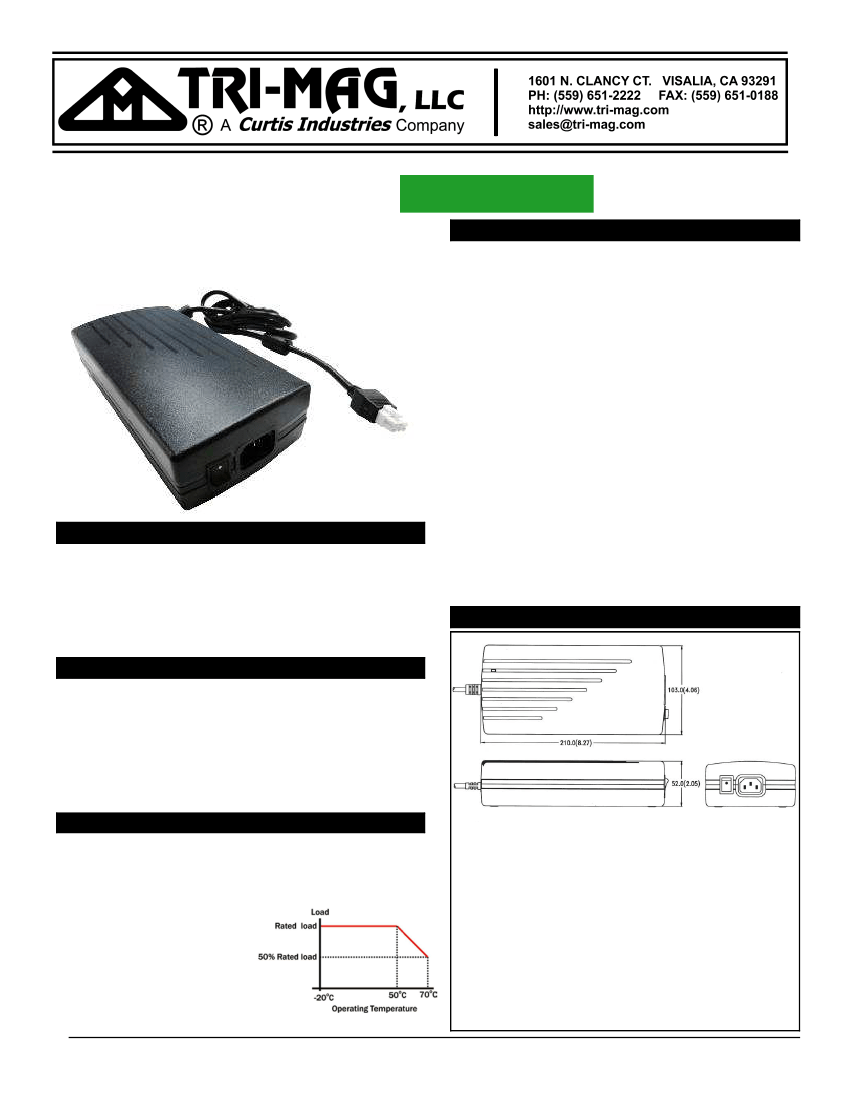

Preview

Download Datasheet

View All

½











InputVoltage………………...…...90VACto264VAC

InputFrequency………………………..47Hzto63Hz

InrushCurrent(cold)…………...……Lessthan40Aat

115VACor80Aat230VACcoldstart,25°C

OperatingTemperature……………………0°Cto40ºC

StorageTemperature…………..………..–20ºCto85ºC

Cooling………………………...…FreeAirConvection

Efficiency…………………………...…..>87%Typical

HoldupTime…………………………………….>16ms

OverloadProtection……...……….……AutoRecovery



Safety:

Designedinfullcompliancewith…….…...UL609501

UL606011

EMI………………...……………………..…..FCC“B”

CISPR22level“B”

Harmonics………...…………….EN6100032classD

EMS……………………...EN6100042,3,4,5,6,11



DT200Zxx(M)seriesisdesignedforbothmedical

andITEapplications.Itfeaturesnoloadinput

power<0.5watt,PF>0.9andaverageefficiency>

87%thatcancomplywithworldwideGreenPower

requirements.ForindicatingDCOK,agreenLEDis

provided.



































1.Dimensionsshowninmm(inch)asleft.Tolerance:±1mm(Excluding

cables).

2.Size:210.0X103.0X52.0(mm)

3.Packing:Netweight:1.1kgapprox./unit

 Grossweight:14.0kgapprox./carton,10units/carton

 Cartonsize(mm):412(L)x336(W)x387(H)

4.Connectors:

 ACinput:IEC3201Inlet

 DCoutput:Molex555706orequivalent

5.Outputcablelength:150cm

6.DCOKLED:Greenlightontopofbox

7.Boxcolor:Black





Jan. 2014
