ADVANCED ENGINEERING
Technical Data Sheet
E LE C TR I C A L I N S U LATI O N
Te c hni c a l D a t a S he e t
Rated to 266°F
Class H (130°C)
Grade A (8,000 V)
Mil-I-3190/2
Cut and Abrasion
Resistant
Grade C (2,500 V)
Excellent Low Temp.
Flexibility

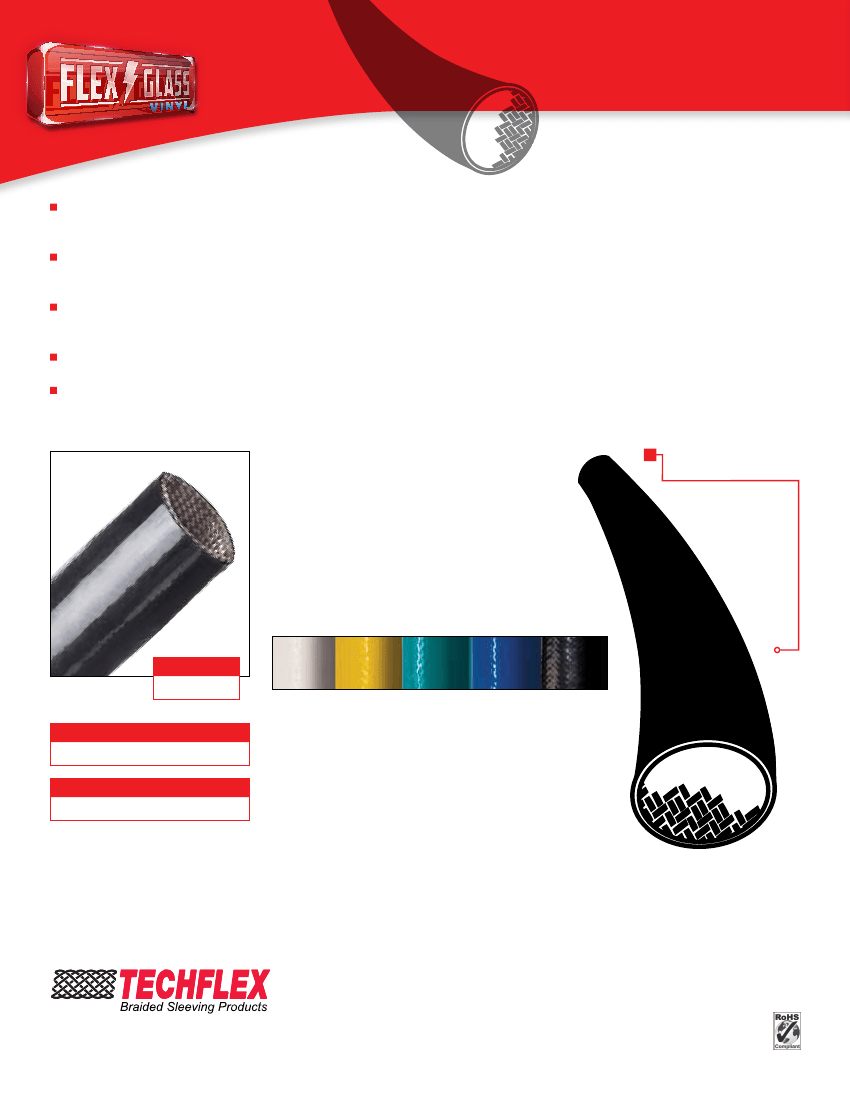

Vinyl Coated Fiberglass Sleeving Grade A & C
VINYL FLEX GLASS (VG) sleeving is a heat-treated, tightly braided fiberglass
sleeving coated with a firmly bonded plasticzed polyvinylchloride film. This dura-
ble sleeving will withstand mechanical stress and holds it dielectric strength on all
bends.
Vinyl Flex Glass is used for supplementary insulation on transformer, motor, gener-
ator, and resistor leads. Also other applications include television, radio, and other
electric circuits where it can be pushed back to permit soldering. Highly reistant to
acids and solvents, and will withstand tough assembly handling.
The Vinyl compound is designed for continuous operation at 130°C temperatures,
while providing excellent abrasion and cut-through resistance.
WH, YL, GN, BL, & BK
Colors Available:
Colors Available:
Cut Cleanly
Scissors
Material
Vinyl Coated Fiberglass
Grade
A&C
White (WH), Yellow (YL), Green (GN), Blue (BL), & Black (BK)
800.323.5140 • 973.300.9242 • fax: 973.300.9409
104 Demarest Road • Sparta, NJ 07871
www.techflex.com
EL ECTR IC A L INSULATION
ADVANCED ENGINEERING
Tech n i cal Data Shee t
Technical Data Sheet
Put-Ups
Nominal
Size
24
22
20
18
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
3/8”
7/16”
1/2”
5/8”
3/4”
7/8”
1”
Diameter
0.020”
0.025”
0.032”
0.040”
0.053”
0.057”
0.064”
0.072”
0.081”
0.091”
0.102”
0.114”
0.129”
0.144”
0.162”
0.182”
0.204”
0.229”
0.258”
0.289”
0.325”
0.375”
0.438”
0.500”
0.625”
0.750”
0.875”
1.000”
Part#
VGAG.24
VGAG.22
VGAG.20
VGAG.18
VGAG.16
VGAG.15
VGAG.14
VGAG.13
VGAG.12
VGAG.11
VGAG.10
VGAG.09
VGAG.08
VGAG.07
VGAG.06
VGAG.05
VGAG.04
VGAG.03
VGAG.02
VGAG.01
VGAG.00
VGA0.38
VGA0.44
VGA0.50
VGA0.63
VGA0.75
VGA0.88
VGA1.00
Grade
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
Part#
VGCG.24
VGCG.22
VGCG.20
VGCG.18
VGCG.16
VGCG.15
VGCG.14
VGCG.13
VGCG.12
VGCG.11
VGCG.10
VGCG.09
VGCG.08
VGCG.07
VGCG.06
VGCG.05
VGCG.04
VGCG.03
VGCG.02
VGCG.01
VGCG.00
VGC0.38
VGC0.44
VGC0.50
VGC0.63
VGC0.75
VGC0.88
VGC1.00
Grade
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
500’
500’
500’
500’
500’
500’
500’
250’
250’
250’
250’
250’
250’
250’
250’
250’
250’
250’
250’
100’
100’
100’
100’
100’
100’
100’
100’
100’
Bulk
Spool
250’
250’
250’
250’
250’
250’
250’
100’
100’
100’
100’
100’
100’
100’
100’
100’
100’
100’
100’
50’
50’
50’
50’
50’
50’
50’
50’
50’
Shop
Spool
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH,YL,GN,BL,BK
WH, YL, BK
WH, YL, BK
WH, YL, BK
WH, YL, BK
Available
Colors
www.techflex.com
RATE OF BURNING
Conforms with requirements of NEMA TF-1, MIL-I-3190/3, and ASTM D372.
CHEMICAL RESISTANCE
Resistant to oils, acids, alkalies and most organic solvents. After more than 168 hours in the most commonly
used aromatics, xylene and toluene, the dried sleeving substantially regains its original properties.
LOW TEMPERATURE
Bends without cracking at -25°C/-13°F.
© 2016 Techflex, Inc. - Any unauthorized reproduction, in whole or part, in any medium whatsoever, without the express written permission of Techflex, Inc. is strictly forbidden.
Techflex product names and logos are registered trademarks of Techflex, Inc., unless otherwise attributed. The contents and illustrations contained herein are believed to be reliable.
Techflex makes no warranties as to their accuracy or completeness and disclaims any liability in connection with their use. Techflex’s only obligations are those in standard terms of
sale for these products and Techflex will not be liable for any consequential or other damages arising due to misuse of these products or typographical errors or omissions.
11-15
Users should make their own evaluation to determine the suitability of these products for their unique and specific applications.
