CMA1825-0000-000N0H0A27G datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> CMA1825-0000-000N0H0A27G

CMA1825-0000-000N0H0A27G: DescriptionXLAMP CMA LIGHT EMITTING DIODE W; CategoryLED optoelectronic/LED photoelectric; File Size2MB，21 Pages; ManufacturerCree; Websitehttp://www.cree.com/; Environmental Compliance

Download Datasheet Parametric View All

CMA1825-0000-000N0H0A27G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CMA1825-0000-000N0H0A27G	-	-	View	Buy Now

CMA1825-0000-000N0H0A27G Overview

XLAMP CMA LIGHT EMITTING DIODE W

CMA1825-0000-000N0H0A27G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Cree
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
color	WHITE
Maximum forward current	1.6 A
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	1.7 mm
method of packing	BAG; CARTON
shape	CYLINDRICAL
size	12 mm
surface mount	YES
perspective	115 deg

Preview

Download Datasheet

View All

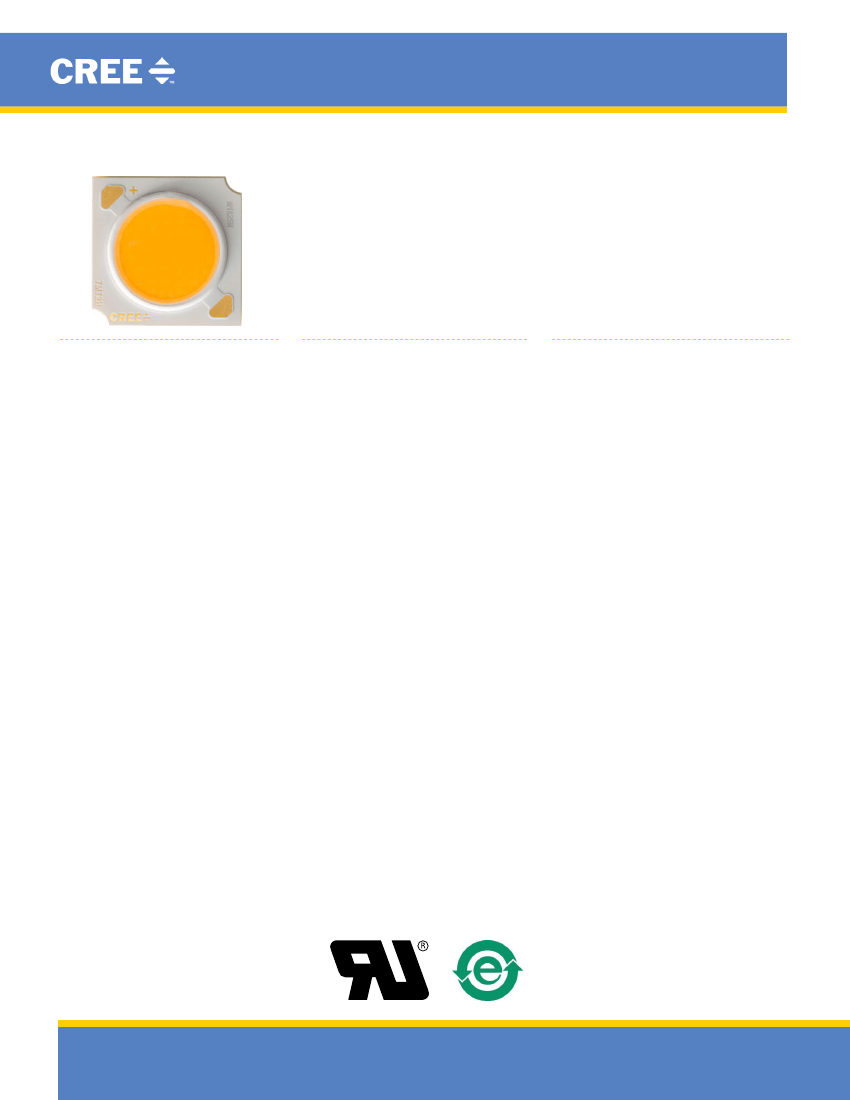

CLD-DS160 Rev 3A

Product family data sheet

Cree

XLamp

CMA1825 LED

ProDuCt DEsCriPtion

Cree’s XLamp

High-Current LeD Array

family is optimized for best-in-class

lumen output, efficacy and reliability at

high drive currents. XLamp CMA LeDs

share the same package design and

LeS sizes as Cree’s industry-leading

CXA2 Standard Density LeDs, enabling

lighting manufacturers to address a

range of performance requirements for

applications such as track, downlight

and outdoor lighting using a single

easy-to-use platform.

fEAturEs

•

12-mm optical source

Mechanical and optical design

consistent with CXA18 and CXB18

LeDs with a 12-mm optical source

•

Cree easyWhite

2- and 3- and 5-step

binning

Premium Color 2- and 3-step binning

Standard & Premium Color LeDs

available in 70, 80, 90 and 95 CRI

minimum options

•

eTone™ LeDs available in 90 CRI

minimum option

Forward voltage option: 36-v class

85 °C binning and characterization

Maximum drive current: 1600 mA

115° viewing angle, uniform

chromaticity profile

Top-side solder connections

RoHS and ReACh compliant

recognized component

(e349212)

are

now

•

tAbLE of ContEnts

Characteristics ............................................2

Operating Limits ..........................................3

Flux Characteristics, Order Codes & Bins -

Standard LeDs .............................................4

Flux Characteristics, Order Codes & Bins -

Standard LeDs, Premium Color ..................5

Flux Characteristics, Order Codes and

Bins - eTone™ LeDs .....................................6

Relative Spectral Power Distribution -

Standard LeDs .............................................7

Relative Spectral Power Distribution -

Standard LeDs, Premium Color ..................8

Relative Spectral Power Distribution -

eTone™ LeDs ............................................ 10

electrical Characteristics ......................... 10

Relative Luminous Flux ............................ 11

Typical Spatial Distribution...................... 11

Performance Groups - Chromaticity ....... 12

Premium Color Performance Groups -

Chromaticity ............................................. 13

Cree easyWhite

Bins Plotted on the

1931 CIe Color Space .............................. 14

Cree Premium Color Bins Plotted on the

1931 CIe Color Space .............................. 15

Bin and Order Code Formats ................... 17

Mechanical Dimensions .......................... 18

Thermal Design ........................................ 19

Notes ........................................................ 20

Packaging ................................................. 21

High-Current

LeD

Arrays

available in two different versions:

Standard and eTone LeDs.

The eTone version delivers beautiful 90

CRI light quality at the same efficacy

as today’s standard 80 CRI LeDs.

Featuring the same mechanical and

optical characteristics as the Standard

version, the eTone LeDs allow easy

upgrades from 80 CRI to 90 CRI without

sacrificing performance.

WWW.CREE.Com/XLAmp

, XLamp

and

EasyWhite

are registered trademarks and the Cree logo and eTone™ are trademarks of Cree, Inc. UL

and the UR logo are registered trademarks of

UL LLC.

Cree, Inc.

4600 Silicon Drive

Durham, NC 27703

USA Tel: +1.919.313.5300
