0603HP-5N6XGTU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 0603HP-5N6XGTU

0603HP-5N6XGTU: DescriptionGeneral Purpose Inductor, 0.0056uH, 2%, 1 Element, Ceramic-Core, SMD, 0603, CHIP, 0603, ROHS COMPLIANT; CategoryPassive components inductor; File Size102KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

0603HP-5N6XGTU Overview

General Purpose Inductor, 0.0056uH, 2%, 1 Element, Ceramic-Core, SMD, 0603, CHIP, 0603, ROHS COMPLIANT

0603HP-5N6XGTU Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	0603
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
uppercase and lowercase codes	0603
structure	Rectangular
core material	Ceramic
DC Resistance	0.036 Ω
Nominal inductance(L)	0.0056 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	0.94 mm
Package length	1.75 mm
Package form	SMT
Package width	1.09 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	48
Maximum rated current	1.7 A
self resonant frequency	6600 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	250 MHz
Tolerance	2%
Base Number Matches	1

Preview

Download Datasheet

View All

Document 537 -1

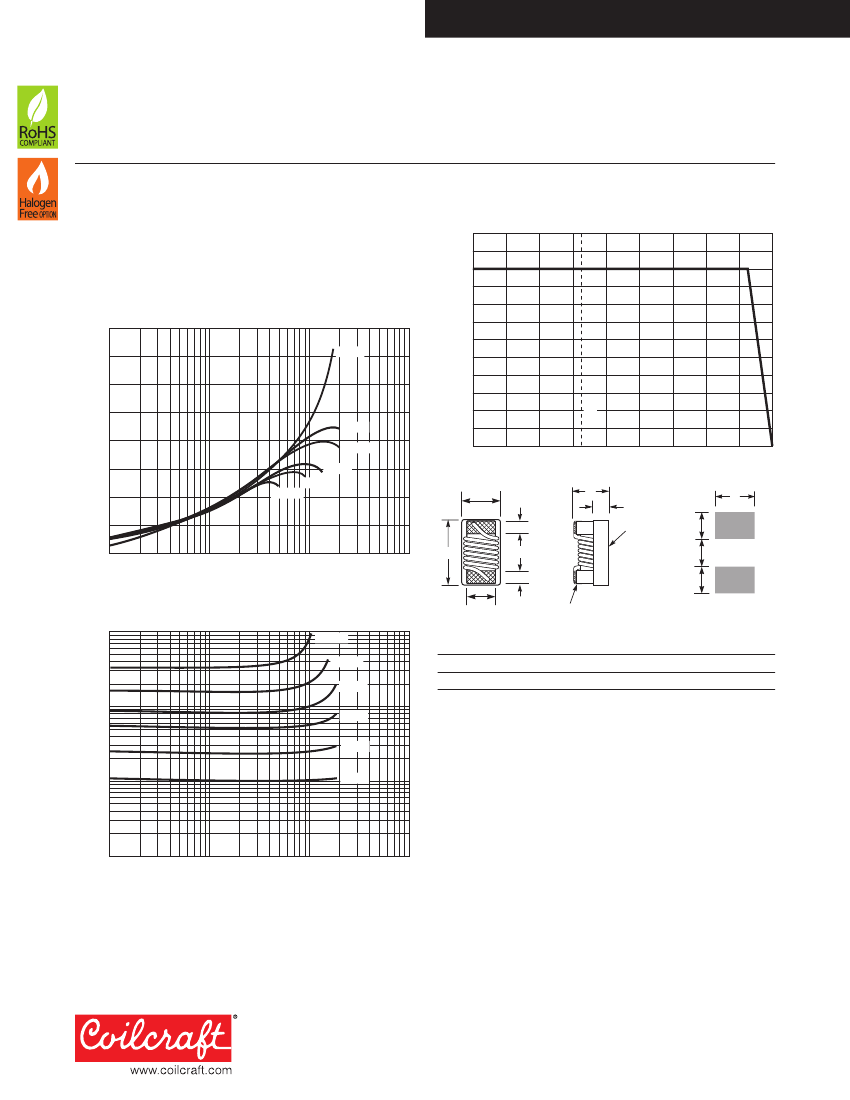

Chip Inductors – 0603HP Series (1608)

•

Higher Q and lower DCR than other 0603 inductors

Highest SRF values – as high as 16 GHz

Excellent current handling capability – up to 2100 mA

54 inductance values from 1.8 to 390 nH

Current Derating

120

110

100

-40

-20

100

120 140

Typical Q vs Frequency

160

140

120

100

24 nH

100

1000

10000

330 nH

51 nH

82 nH

150 nH

10 nH

Percent of rated

rms

Q Factor

Ambient temperature (°C)

overall

Pick and

place

material

25°C

terminal

Terminal wraparound:

approx 0.01/0,24 both ends

Frequency (MHz)

Typical L vs Frequency

1000

330 nH

150 nH

82 nH

Recommended

Land Pattern

max

1,75

(min

–

max) max

0,86 – 1,09

0,94

0.069 0.034 – 0.043 0.037 0.015 0.029 0.013 0.038 0.040 0.027 0.028 inches

0,38 0,74 0,33

0,96 1,02 0,69 0,71 mm

Note:

Height dimension (C) is before optional solder application. For maximum

height dimension including solder, add 0.006 in / 0,152 mm.

Inductance (nH)

100

51 nH

24 nH

10 nH

100

1000

10000

Frequency (MHz)

Core material

Ceramic

Environmental

RoHS compliant, halogen free optional

Terminations

RoHS compliant silver-palladium-platinum-glass frit.

Other terminations available at additional cost.

Weight

2.0 – 3.2 mg

Ambient temperature

–40°C to +125°C with

Irms

current, +125°C

to +140°C with derated current

Storage temperature

Component: –40°C to +140°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Temperature Coefficient of Inductance (TCL)

+25 to +125 ppm/°C

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

One per billion hours / one billion hours, calculated per Telcordia SR-332

Packaging

2000 per 7″ reel. Paper tape: 8 mm wide, 1 mm thick,

4 mm pocket spacing

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf.

Document 537-1

Revised 03/25/13

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
