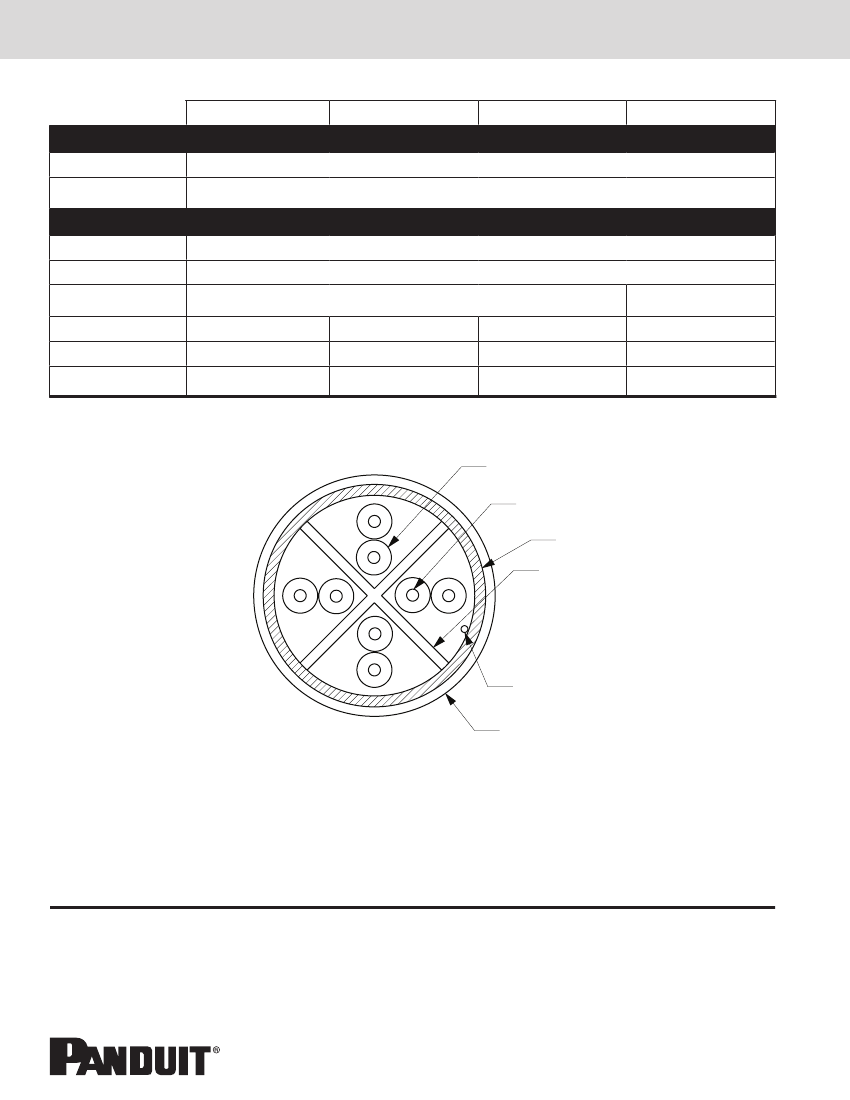

TX6A
™
10Gig
™
Shielded Copper Cable – F/UTP
specifications
Category 6A cable shall be constructed of 23 AWG copper conductors with
PE CM, CMR or LSZH insulation. The copper conductors shall be twisted in
pairs and separated by an integrated pair separator. All four pairs shall be
surrounded by an overall metallic foil shield within a low smoke zero halogen
jacket. The TX6A
™
10Gig
™
Shielded Copper Cable must be installed as part
of a complete TX6A
™
10Gig
™
Shielded Copper Cabling System to achieve
10GBASE-T certified performance.
SPECIFICATION SHEET
TX6A
™
10Gig
™
Shielded Copper Cabling System
TX6A
™
10Gig
™
Shielded Copper Cable – F/UTP
LSZH:
CM:
CMR:
CMP:
PFL6X04*-CEG
PFC6X04*-CEG
PFR6X04*-CG
PFP6X04*-UG
technical information
Electrical performance:
Certified channel performance in a 4-connector configuration up to
100 meters and exceeds the requirements of ISO 11801 Class E
A
and ANSI/TIA-568-C.2 Category 6A standards for supporting
10GBASE-T transmission over twisted-pair cabling systems as part
of the Panduit
®
TX6A
™
10Gig
™
Shielded Copper Cabling System
Certified component performance up to 100 meters and meets or
exceeds the component requirement of the ISO/IEC 11801 Category
6
A
and ANSI/TIA-568-C.2 Category 6A standards for supporting
10GBASE-T transmission over twisted-pair cabling systems
Conductors/insulators:
Flame rating:
23 AWG solid bare copper wire covered by PE insulation
LSZH: IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 601034-2,
EN 50575: Euroclass Dca - s2, d2, a1
CM: UL 1685
CMR: UL 1666
CMP: NFPA 262
UL Listed CMP-LP 0.7A and CMR-LP 0.5A
110 N (25 lbf) maximum
Meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications
-4°F to 167°F (-20°C to 75°C)
Installation (Operation)
LSZH, CM, CMR, CMP
LSZH: 7.3mm (0.287 in.) nominal
CM, CMR: 7.2mm (0.284 in.) nominal
CMP: 7.5mm (0.296 in.) nominal
LSZH: 16 kg/305m (35 lbs./1000 ft.)
CM, CMR: 15 kg/305m (33 lbs./1000 ft.)
CMP: 19kb/305m (42 lbs./1000 ft.)
LSZH: 18 kg/ 305m (40 lbs./1000 ft.) on a reel
CM, CMR: 17 kg/ 305m (37 lbs./1000 ft.) on a reel
CMP: 20kg/305m (46 lbs./1000 ft.)
Packaged tested to ISTA Procedure 1A
TX6A
™
10Gig
™
Shielded Jack Module
Jack Module:
CJS6X88TGY
TX6A
™
10Gig
™
Shielded Patch Cords
Meters:
Feet:
STP6X**MIG
STP6X***IG
Mini-Com
®
Angled All Metal
Shielded Modular Patch Panels
24-port, 1 RU:
48-port, 2 RU:
72-port, 2 RU:
CPA24BLY
CPA48BLY
CPA72BLY
Standards Compliance:
Installation tension:
PoE compliance:
Temperature rating:
Cable jacket:
Cable diameter:
Mini-Com
®
Flat All Metal Shielded
Modular Patch Panels
24-port, 1 RU:
48-port, 2 RU:
72-port, 2 RU:
Cable Prep Tools
Wire snipping tool:
CWST
Wire stripping tool:
CJAST
*To designate color, add suffix BU (Blue) or WH
(White). For additional cable colors, contact
customer service.
**For lengths 1 to 10 meters (increments of one
meter) and 1.5, 2.5, 15, 20 meters, change the
length designation in the part number to desired
length. For standard cable colors other than
IG (International Gray) substitute IG suffix with
BL (Black), BU (Blue), GR (Green), RD (Red),
YL (Yellow), OR (Orange) or VL (Violet) to
the end of the part number, For example, the
part number for a blue, 15-meter patch cord is
STP6X15MBU.
***For lengths 3 to 20 feet (increments of one
foot) and 25, 30, 35, 40 feet, change the length
designation in the part number to desired
length. For standard cable colors other than IG
(International Gray) substitute IG suffix with
BL (Black), BU (Blue), GR (Green), RD (Red),
YL (Yellow), OR (Orange) or VL (Violet) to
the end of the part number. For example, the
part number for a blue, 15-foot patch cord is
STP6X15BU.
CP24BLY
CP48BLY
CP72BLY
Cable weight:
Packaging:
key features and benefits
Integrated pair divider:
Overall foil shield:
Separates pairs for exceptional cable performance
Provides superior structural integrity and reduces low
frequency external interference to ensure exceptional cable
performance at all swept frequencies up to 500 MHz
Facilitates means of grounding the cable and provides for efficient
performance and protection of network investment
Easy identification of remaining cable reduces installation time and
cable scrap
Supplied 305m (1000 ft.) to a reel
Internal drain wire:
Descending length
cable markings:
Bulk packaging:
applications
TX6A
™
10Gig
™
Shielded Copper Cable is a
component of the Panduit
®
TX6A
™
10Gig
™
Shielded
Copper Cabling System. This end-to-end system
provides a cost-effective medium for ensuring that
network bandwidth needs are easily met today and
tomorrow. The shielded cabling system provides high
performance, excellent EMI suppression, and aids in
secure data transmission. The Panduit solution helps
ensure organizations efficiently and reliably meet
their data transmission needs. Usage of the TX6A
™
10Gig
™
Shielded Copper Cabling System include
high bandwidth applications within data centers and
connections to high-end workstations such as:
• 10GBASE-T Ethernet
• Data Center applications
• Virtual business management applications
w w w . panduit. co m
TX6A
™
10Gig
™
Shielded Copper Cable
–
F/UTP
LSZH
Ultimate Breaking Strength
Minimum Bend Radius
CM
Mechanical Test
>400 N (90 Ibf)
CMR
CMP
8 x cable diameter during installation
4 x cable diameter during operation
Electrical Test
Mutual Capacitance
Characteristic Impedance
Nominal Velocity of
Propagation (NVP)
DC Resistance
DC Resistance Unbalance
Capacitance Unbalance
<9.38 ohm per 100m (328 ft.)
<5%
<330 pF per 100m (328 ft.)
<5.6 nF per 100m (328 ft.) at 1 Khz
100 Ohm +/-15% up to 100 MHz
ca. 65% nominal
<9.50 ohm per 100m (328 ft.)
<2%
<160 pF per 100m (328 ft.)
<7.32 ohm per 100m (328 ft.)
<5%
<330 pF per 100m (328 ft.) at
1 kHz (pair/ground)
70% nominal
8.9 ohm per 100m (328 ft.)
<4%
<330 pF per 100m (328 ft.) at
1 kHz (pair/ground)
Conductor
Insulator
Conductor
Wire
Foil
Shield
Pair
Divider
Drain
Wire
Jacket
