MSC8144ADS Overview

EVAL BOARD FOR MSC8144

MSC8144ADS Parametric

Parameter Name	Attribute value
Board type	Evaluation platform
type	DSP
core processor	SC3400
operating system	-
platform	-
Supporting products/related products	MSC8144
Installation type	fixed
content	boards, cables, power supplies, accessories

Preview

Download Datasheet

View All

Freescale Semiconductor

Data Sheet

Document Number: MSC8144

Rev. 16, 5/2010

MSC8144

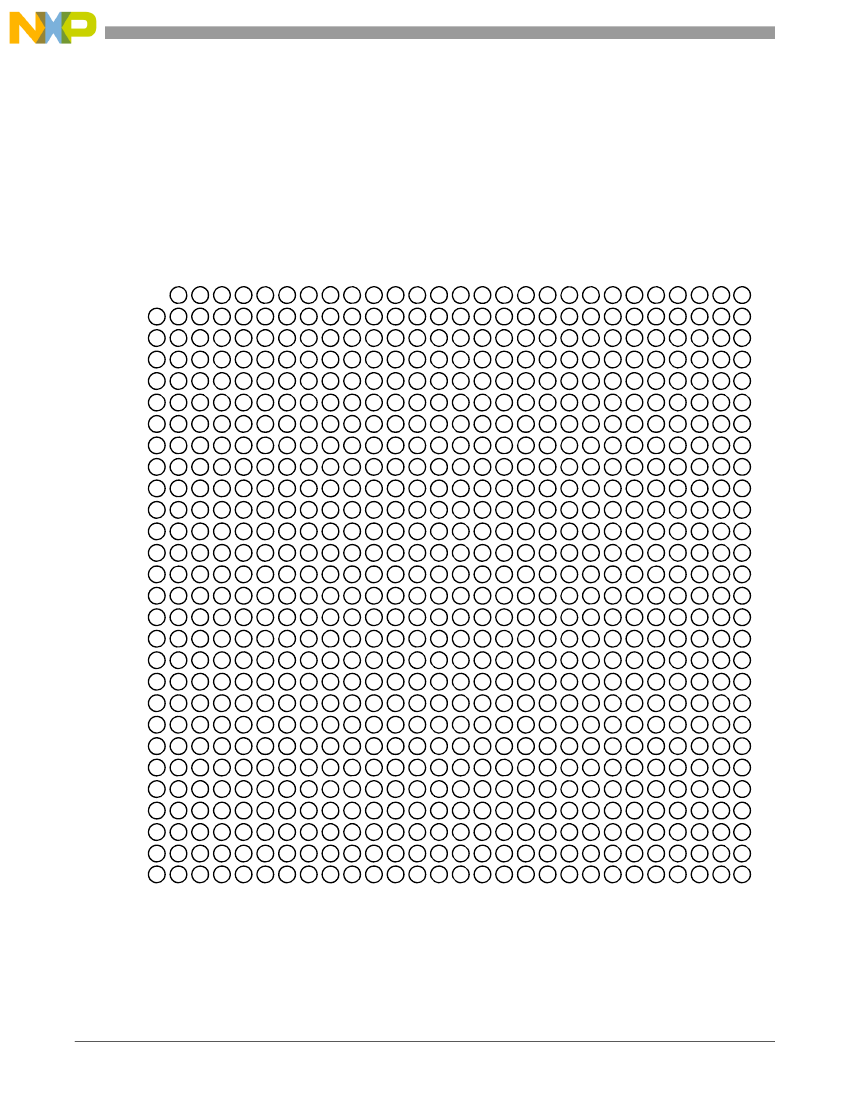

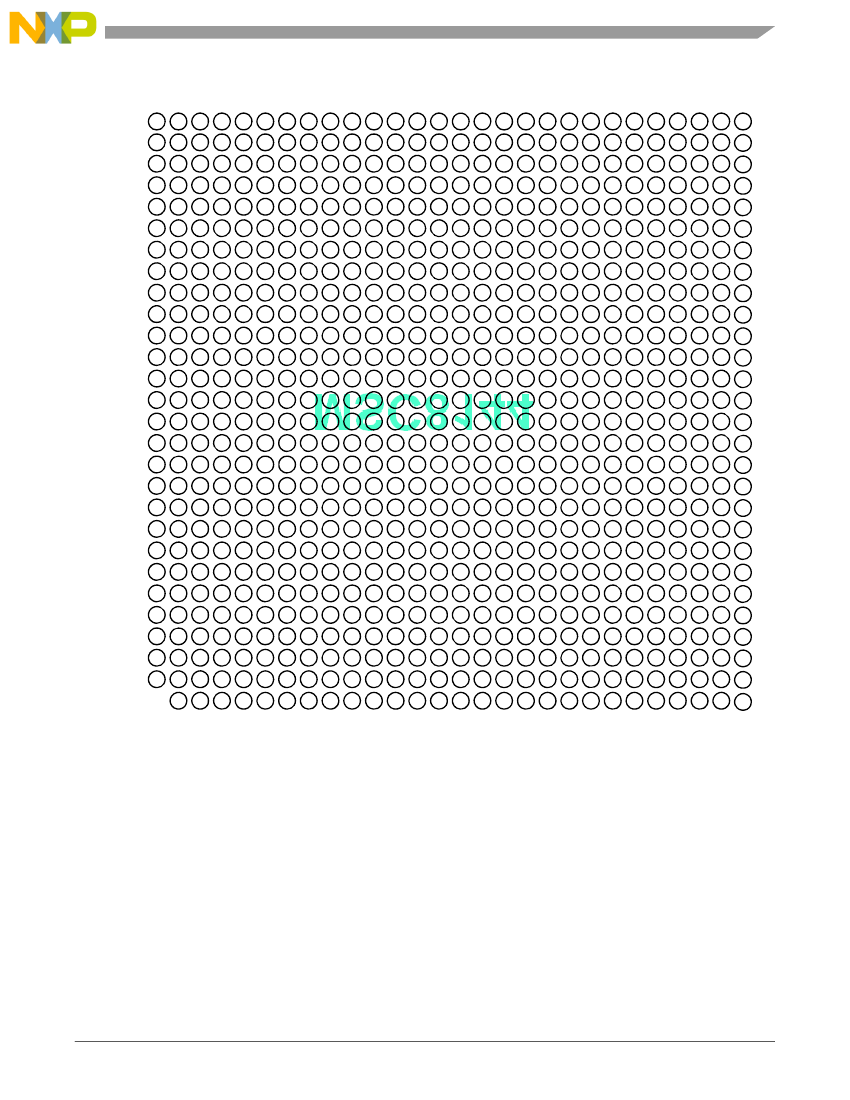

FC-PBGA–783

29 mm

Quad Core Digital Signal

Processor

• Four StarCore

SC3400 DSP subsystems, each with an SC3400

DSP core, 16 Kbyte L1 instruction cache, 32 Kbyte L1 data cache,

memory management unit (MMU), extended programmable

interrupt controller (EPIC), two general-purpose 32-bit timers,

debug and profiling support, and low-power Wait and Stop

processing modes.

• Chip-level arbitration and system (CLASS) that provides full

fabric non-blocking arbitration between the processing elements

and other initiators and the M2 memory, DDR SRAM controller,

device configuration control and status registers, and other

targets.

• 128 Kbyte L2 shared instruction cache.

• 512 Kbyte M2 memory for critical data and temporary data

buffering.

• 10 Mbyte 128-bit wide M3 memory.

• 96 Kbyte boot ROM.

• Three input clocks (shared, global, and differential).

• Four PLLs (system, core, global, and serial RapidIO).

• DDR controller with up to a 200 MHz clock (400 MHz data rate),

16/32 bit data bus, supporting up to 1 Gbyte in up to two banks

and support for DDR1 and DDR2.

• DMA controller with 16 bidirectional channels with up to 1024

buffer descriptors, and programmable priority, buffer, and

multiplexing configuration.

• Up to eight independent TDM modules with programmable word

size (2, 4, 8, or 16-bit), hardware-base A-law/μ-law conversion,

up to 128 Mbps data rate for all channels, with glueless interface

to E1 or T1 framers, and can interface with H-MVIP/H.110

devices, TSI, and codecs such as AC-97.

• QUICC Engine™ technology subsystem with dual RISC

processors, 48 Kbyte multi-master RAM, 48 Kbyte instruction

RAM, supporting three communication controllers with one ATM

and two Gigabit Ethernet interfaces, to offload scheduling tasks

from the DSP cores.

– The two Ethernet controllers support 10/100/1000 Mbps

operations via MII/RMII/SMII/RGMII/SGMII and the SGMII

protocol using a 4-pin SerDes interface at 1000 Mbps data rate

only.

– The ATM controller supports UTOPIA level II 8/16 bits at

25/50 MHz in UTOPIA/POS mode with adaptation layer

support AAL0, AAL2, and AAL5.

PCI designed to comply with the PCI specification revision 2.2 at

33 MHz or 66 MHz with access to all PCI address spaces.

Serial RapidIO® 1x/4x endpoint corresponds to Specification 1.2

of the RapidIO trade association, and supports read, write,

messages, doorbells, and maintenance accesses in inbound mode,

and messages and doorbells in outbound mode.

I/O interrupt concentrator consolidates all chip maskable interrupt

and non-maskable interrupt sources and routes them to

INT_OUT, NMI_OUT, and the cores.

UART that permits full-duplex operation with a bit rate of up to

6.25 Mbps.

Serial peripheral interface (SPI).

Four timer modules, each with four configurable16-bit timers.

Four software watchdog timer (SWT) modules.

Up to 32 general-purpose input/output (GPIO) ports, 16 of which

can be configured as maskable interrupt inputs.

C interface that allows booting from EEPROM devices.

Eight programmable hardware semaphores.

Thirty two virtual maskable interrupts and one virtual NMI that

can be generated by a simple write access.

Optional booting via serial RapidIO port, PCI, I

C, SPI, or

Ethernet interfaces.

•

Note:

This document supports mask set M31H.
