245110-08-03.00 datasheet, PDF

Datasheet> All Categories > Wire/cable> 245110-08-03.00

245110-08-03.00: DescriptionCBL ASSY SMA-MMCX RG178 3"; CategoryWire/cable; File Size124KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

245110-08-03.00 Overview

CBL ASSY SMA-MMCX RG178 3"

245110-08-03.00 Parametric

Parameter Name	Attribute value
gender	female to male
style	SMA to MMCX
first connector	SMA female jack
Second connector	MMCX male plug
length	3.000"（76.20mm）
Cable type	RG-178
color	-
characteristic	-
Operating temperature	-

Preview

Download Datasheet

View All

NOTES:

1. PACKAGE CABLE ASSEMBLY IN BAG. TAG IN BAG WITH "AMPHENOL CONNEX 245110-08-XX.XX AND DATE CODE".

2. CABLE ASSEMBLY TO BE 100% TESTED FOR HI-POT, CONTINUITY, SHORTS AND OPEN.

3. USE HEAT SHRINK TUBING PROVIDED WITH SMA CONNECTOR.

245110-08-XX.XX

DRAWING NO.

THIRD ANGLE PROJ.

REVISIONS

REV

RELEASE TO MFG.

DESCRIPTION

07-Nov-12

DATE

ECO

APPR

SCALE

1.000

LENGTH XX.XX (SEE TABLE)

LOCK WASHER

HEX NUT

D FLAT

CONNEX NUMBER

LENGTH TABLE

LENGTH (INCHES)

12.00 #

0.25

18.00 #

0.25

24.00 #

0.50

36.00 #

0.50

6.00 #

0.25

0.75 MAX

[19.05 MM]

245110-08-06.00

245110-08-12.00

245110-08-18.00

245110-08-24.00

245110-08-36.00

*ADDITIONAL LENGTH CAN BE PROVIDED

BY CHANGING XX.XX TO DESIRED LEGNTH IN INCHES

CONTACT CONNEX MARKETING FOR QUOTE

DESIGN REQUIREMENTS:

FREQUENCY____________ TO ________________ GHz

VSWR ____________ : 1 MAX

INS. LOSS ____________ dB MAX

CONTINUITY

HI-POT : 500 VRMS

OTHER

MATERIAL

DRAWN

DATE

009-954-341

009-881-240

PART NUMBER

RAJAVIJAYAN S

07-Nov-12

TITLE

262100

A/R

QTY

ITEM

HEAT SHRINK TUBE

SMA BULKHEAD CRIMP JACK

DESCRIPTION

RG-178 CABLE

MMCX CRIMP PLUG

132220

FINISH

UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015 (0,381 mm)

#.005 (0,127 mm)

# 1$

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

ENGINEER

REFERENCE

APPROVED

CAD FILE

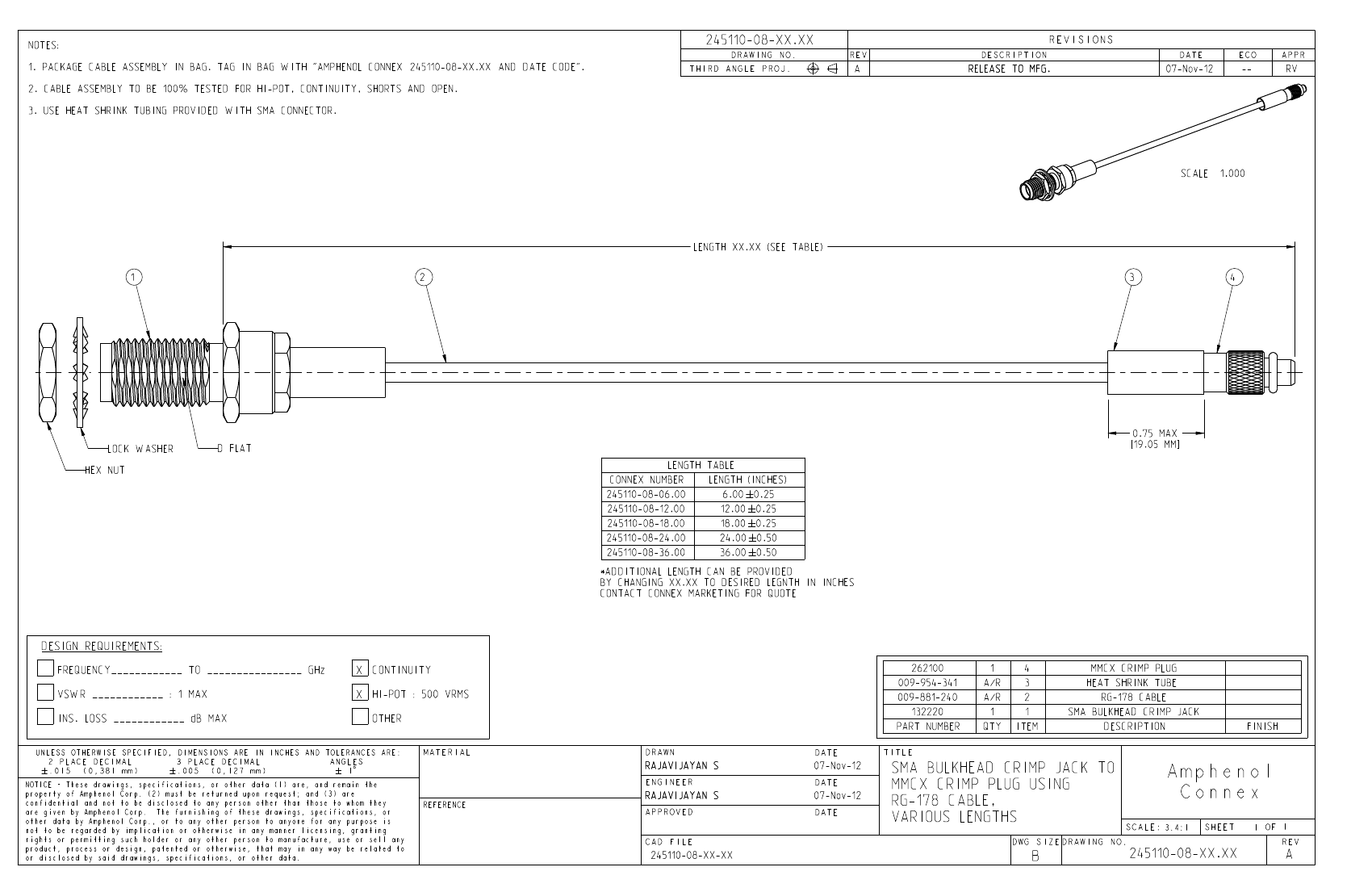

SMA BULKHEAD CRIMP JACK TO

MMCX CRIMP PLUG USING

RG-178 CABLE,

VARIOUS LENGTHS

Amphenol

Connex

SCALE: 3.4:1

SHEET

1 OF 1

REV

245110-08-XX-XX

DWG SIZE DRAWING NO.

245110-08-XX.XX
