DATASHEET

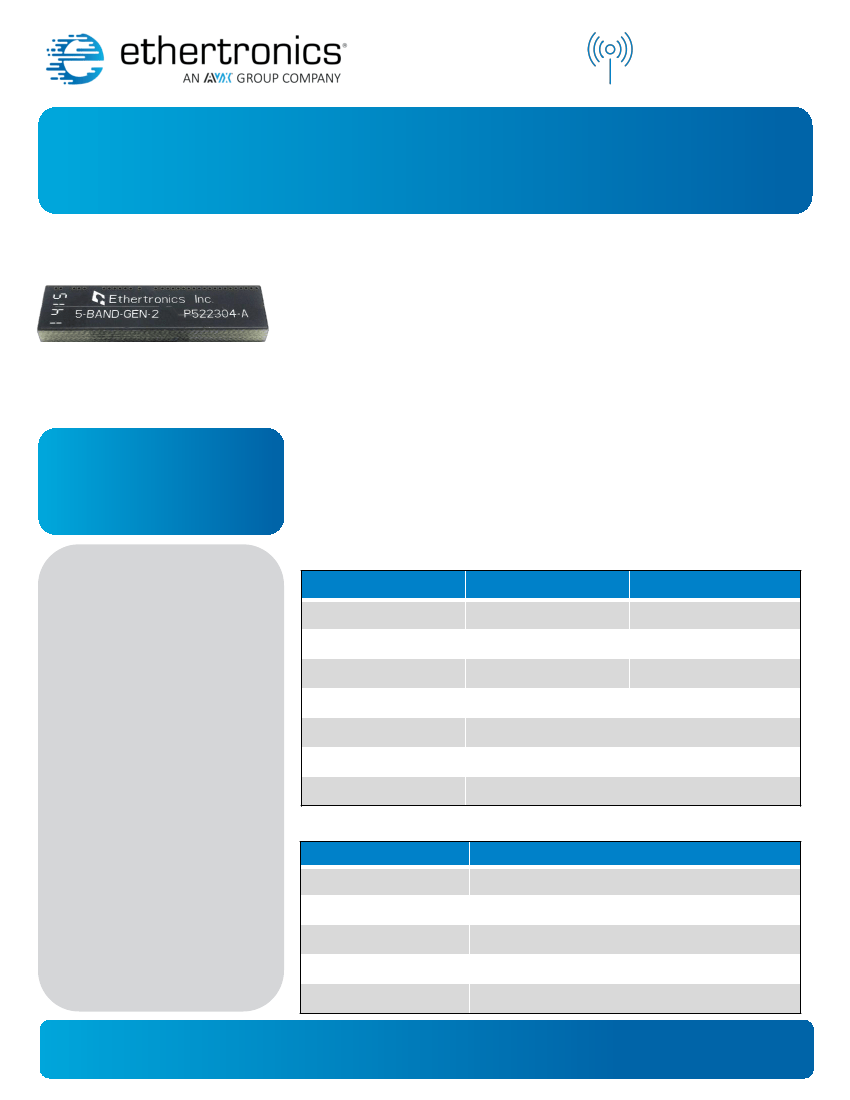

Part No. P522304

Product: Broadband FR4

Embedded Cellular Antenna

Part No. P522304

Broadband FR4 Embedded Cellular Antenna

850 / 900 / 1800 / 1900 / 2100 MHz

Supports: Broadband LTE (OCTA-BAND), LTE CAT-M, NB-IoT, SigFox, LoRa, Cellular LPWA, RPMA, Firstnet

Ethertronics’ Broadband Embedded Cellular antenna utilizes Isolated

Magnetic Dipole™ (IMD) technology which address the challenges facing

today’s product designers. IMD’s high performance and isolation

characteristics offer better connectivity and minimal interference.

Stays in Tune

IMD antenna technology provides superior RF field containment, resulting

in less interaction with surrounding components. Ethertronics IMD antennas

resist detuning; providing a robust radio link regardless of the usage

position

Ethertronics antennas use patented IMD technology in many antenna

configurations to provide high performance. IMD antennas requires a

smaller design keep-out area, carry lower program development risk which

yields a quicker time-to-market, without sacrificing RF performance.

Broadband FR4 Embedded

Cellular Antenna

Low Band 824 – 960 MHz

High Band 1710 - 2170 MHz

KEY BENEFITS

Reduced Costs and

Time-to-Market

Standard antenna eliminates

design fees and cycle time

associated with a custom solution;

getting products to market faster.

Electrical Specifications

Typical Characteristics, on 50 x 110 mm PCB

Frequency

Efficiency

VSWR

Peak Gain

Polarization

Power Handling

Radiation Pattern

Feed Point Impedance

824 - 960 MHz

62%

2.5:1 max

0 dBi

Linear

2 Watts CW

Omni-directional

50 ohms unbalanced

1710 - 2170 MHz

55%

2.7:1 max

0.7 dBi

Greater Flexibility with

Unique Form Factors

Ethertronics’ technology helps you

deliver more advanced ergonomic

designs without adverse impact

on product performance.

Reliability

Comply with latest RoHS

requirements

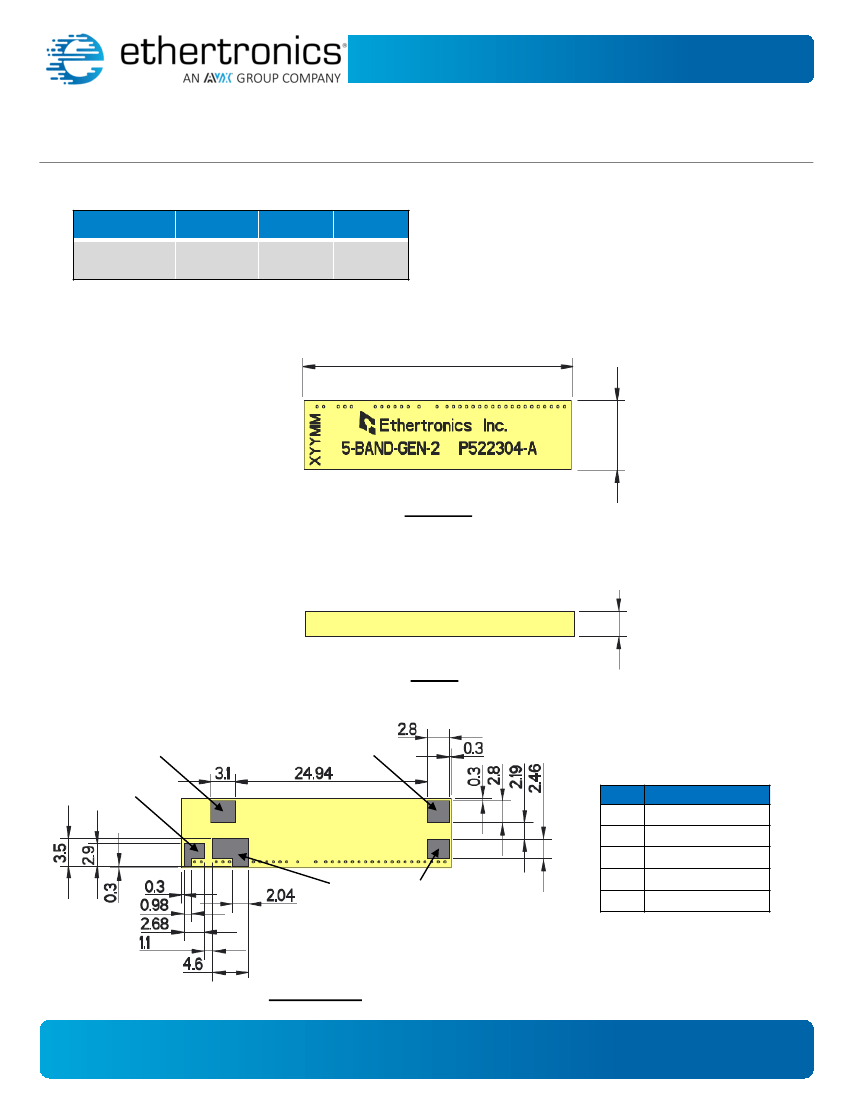

Mechanical Specifications & Ordering Part Number

Ordering Part #

Dimensions (mm)

Weight (grams)

Mounting

Packaging

Demo Board

P522304

35.0 x 9.0 x 3.2

2.1

SMT (P&P)

1,120 pcs/reel; 5,600 pcs/box

P522304-02

APPLICATIONS

•

Medical

applications

Home

automation

Smart

metering

M2M,

Industrial

devices

IoT

Firstnet

•

Automotive

Healthcare

Point of Sale

Tracking

Cellular

3G Systems

5/14/2018

Proprietary

www.ethertronics.com
