30 PSI-A-4V-ASCX datasheet, PDF

Datasheet> All Categories > The sensor> 30 PSI-A-4V-ASCX

30 PSI-A-4V-ASCX: DescriptionSENSOR AMP 0-30PSIA; CategoryThe sensor; File Size276KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

30 PSI-A-4V-ASCX Overview

SENSOR AMP 0-30PSIA

30 PSI-A-4V-ASCX Parametric

Parameter Name	Attribute value
pressure type	absolute
work pressure	30 PSI（206.84 kPa）
Output type	Wheatstone bridge
output	0.25 V ~ 4.75 V
Accuracy	±0.5%
Voltage - Power	4.5 V ~ 5.5 V
Port size	Male - 0.19" (4.8mm) tube
Port style	No barbs
characteristic	Amplified output, temperature compensation
Terminal type	PC pin
maximum pressure	100 PSI（689.48 kPa）
Operating temperature	-25°C ~ 105°C
Package/casing	4-SIP
Supplier device packaging	4-SIP

Preview

Download Datasheet

View All

Red

Original In Red

ASCX Series Compatible Pressure Sensors

www.allsensors.com

COMPATIBLE TO SENSYM ASCX SERIES

www.allsensors.com

Original In Red

Features

• 5 Vdc Supply

• High Level Voltage Output

•

Ratiometric 4.5 V Span

Temperature Compensated

Calibrated Zero and Span

MULTIPLE Pressure Ranges

all sensors

www.allsensors.com

408 225 2079

Original In Red

Applications

• Medical Instrumentation

• Environmental Instrumentation

• HVAC Instrumentation

• Pneumatic Controls

www.allsensors.com

Original In Red

General Description

The Amplified line of middle pressure sensors is based upon a proprietary package technology to reduce errors. This model provides a

ratiometric 4.5-volt output span with superior output characteristics. The sensor housing has been designed specifically to

reduce package induced parasitic stress and strain.

In addition the sensor utilizes a silicon, micromachined, stress

concentration enhanced structure to provide a very linear output to measured pressure.

Original In Red

These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range.

Each sensor is internally compensated using an ASIC compensation technique. This series is intended for use with non-

corrosive, non-ionic working fluids such as air, dry gases and the like.

The output of the device is ratiometric to the supply voltage over a supply voltage range of 4.5 to 5.5 volts.

www.allsensors.com

Original In Red

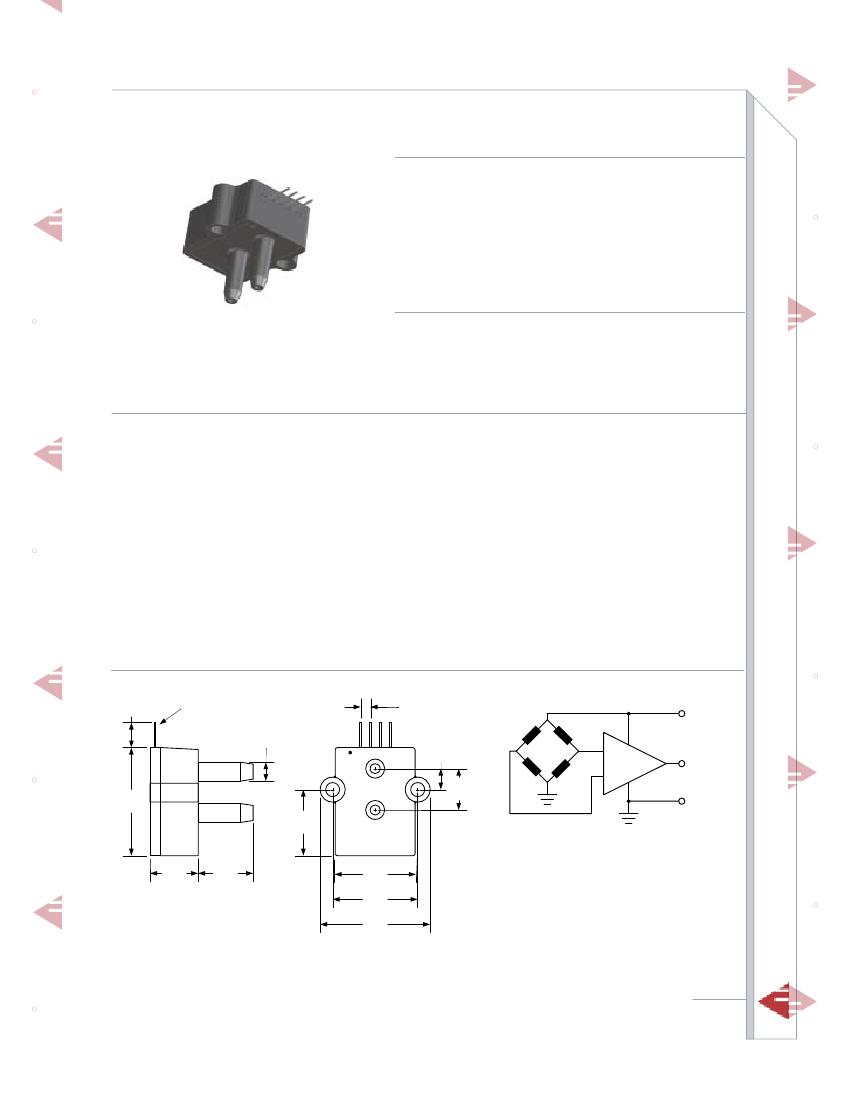

Physical Dimensions

0.25

(6.4)

Pin Size

0.010 x 0.020

(0.25 x 0.50)

0.174 to 0.190

(4.4 to 4.8)

Pin 1 2 3 4

0.21

(5.3)

1.08

(27.4)

0.66

(16.0)

0.42

(10.5)

0.10 Typical

(2.54)

Equivalent Circuit

Pin 1: Vsupply

408 225 4314

Pin 2: Voutput

16035 Vineyard Blvd., Morgan Hill, CA 95037

Original In Red

www.allsensors.com

Pin 3: Common

Original In Red

0.48

(12.2)

0.55

(14.0)

0.80

(20.3)

0.85

(21.6)

1.10

(27.9)

NOTES:

1) Dimensions in inches (millimeters)

1: Vsupply

2: Voutput

3: Common

4: Do not connect

iginal In Red

All Sensors reserves the right to make changes to any products herein. All Sensors does not assume any liability arising out of the application or use of any product or circuit

described herein, neither does it convey any license under its patent rights nor the rights of others.

www.allsensors

llsensors.com

All Sensors

06/20/2006

ASCX Series Compatible Rev A

Origina

DS-0023 Rev A

30 PSI-A-4V-ASCX Related Products

	30 PSI-A-4V-ASCX	1 PSI-D-4V-ASCX	100 PSI-D-4V-ASCX	30 PSI-D-4V-ASCX	15 PSI-A-4V-ASCX
Description	SENSOR AMP 0-30PSIA	SENSOR AMP 0-1PSID	SENSOR AMP 0-100PSID	SENSOR AMP 0-30PSID	SENSOR AMP 0-15PSIA
pressure type	absolute	difference	difference	difference	absolute
work pressure	30 PSI（206.84 kPa）	±1 PSI（±6.89 kPa）	±100 PSI（±689.48 kPa）	±30 PSI（±206.84 kPa）	15 PSI（103.42 kPa）
Output type	Wheatstone bridge	Wheatstone bridge	Wheatstone bridge	Wheatstone bridge	Wheatstone bridge
output	0.25 V ~ 4.75 V	0.25 V ~ 4.75 V	0.25 V ~ 4.75 V	0.25 V ~ 4.75 V	0.25 V ~ 4.75 V
Accuracy	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Voltage - Power	4.5 V ~ 5.5 V	4.5 V ~ 5.5 V	4.5 V ~ 5.5 V	4.5 V ~ 5.5 V	4.5 V ~ 5.5 V
Port size	Male - 0.19" (4.8mm) tube	Male - 0.19" (4.8mm) double barrel	Male - 0.19" (4.8mm) double barrel	Male - 0.19" (4.8mm) double barrel	Male - 0.19" (4.8mm) tube
Port style	No barbs	No barbs	No barbs	No barbs	No barbs
characteristic	Amplified output, temperature compensation	Amplified output, temperature compensation	Amplified output, temperature compensation	Amplified output, temperature compensation	Amplified output, temperature compensation
Terminal type	PC pin	PC pin	PC pin	PC pin	PC pin
maximum pressure	100 PSI（689.48 kPa）	±5 PSI（±34.47 kPa）	±150 PSI（±1034.21 kPa）	±100 PSI（±689.48 kPa）	45 PSI（310.26 kPa）
Operating temperature	-25°C ~ 105°C	-25°C ~ 105°C	-25°C ~ 105°C	-25°C ~ 105°C	-25°C ~ 105°C
Package/casing	4-SIP	4-SIP	4-SIP	4-SIP	4-SIP
Supplier device packaging	4-SIP	4-SIP	4-SIP	4-SIP	4-SIP
