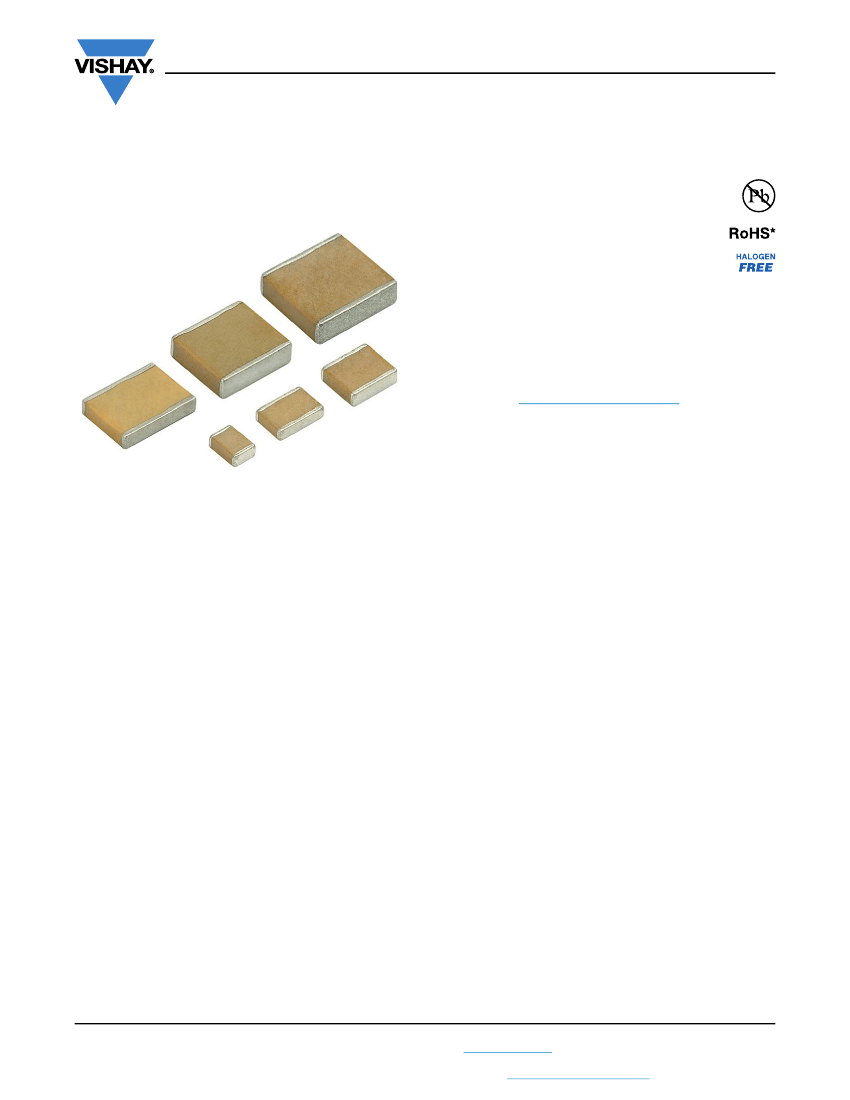

VJ Source Energy Capacitor (SEC)
www.vishay.com
Vishay Vitramon
Surface Mount Multilayer Ceramic Capacitors
for Pulse Current Applications
FEATURES
• Low electrostrictive ceramic formulation for
repeated charge and discharge cycles
• High pulse discharge currents
• Excellent reliability and high voltage performance
• Available with tin / lead barrier termination (code “L”)
• Wet built process
• Reliable Noble Metal Electrode (NME) system
• Made with a combination of design, materials and tight
process control to achieve very high field reliability
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details
Available
Available
APPLICATIONS
• Power supplies
• Converters
• Voltage multipliers
ELECTRICAL SPECIFICATIONS
Note
• Electrical characteristics at +25 °C unless otherwise specified
Operating Temperature:
-55 °C to +125 °C
Capacitance Range:
4.7 nF to 560 nF
Voltage Range:
1000 V
DC
, 1500 V
DC
Temperature Coefficient of Capacitance (TCC):
X7R: ± 15 % from -55 °C to +125 °C, with 0 V
DC
applied
Dissipation Factor (DF):
2.5 % max. at 1.0 V
RMS
and 1 kHz
Aging Rate:
1 % maximum per decade
Insulation Resistance (IR):
at +25 °C and rated voltage: 100 000 M minimum or
1000
F,
whichever is less
at +125 °C and rated voltage: 10 000 M minimum or
100
F,
whichever is less
Dielectric Strength Test:
performed per method 103 of EIA 198-2-E.
Applied test voltages:
1000 V
DC
/ 1500 V
DC
-rated: min. 120 % of rated voltage
Revision: 25-May-2018
Document Number: 45210
1
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ Source Energy Capacitor (SEC)
www.vishay.com
Vishay Vitramon
DIMENSIONS
in inches [millimeters]
L
W
T
MAX.
P
CASE CODE
1812
1825
2225
3040
3640
4044
PART
ORDERING
NUMBER
VJ1812
VJ1825
VJ2225
VJ3040
VJ3640
VJ4044
LENGTH
(L)
0.177 ± 0.012
[4.50 ± 0.30]
0.177 ± 0.012
[4.50 ± 0.30]
0.220 ± 0.010
[5.59 ± 0.25]
0.300 ± 0.015
[7.62 ± 0.38]
0.360 ± 0.015
[9.14 ± 0.38]
0.400 ± 0.015
[10.16 ± 0.38]
WIDTH
(W)
0.126 ± 0.008
[3.20 ± 0.20]
0.252 ± 0.010
[6.40 ± 0.25]
0.250 ± 0.010
[6.35 ± 0.25]
0.400 ± 0.015
[10.20 ± 0.38]
0.400 ± 0.015
[10.20 ± 0.38]
0.440 ± 0.015
[11.17 ± 0.38]
MAXIMUM THICKNESS
(T)
0.086
[2.18]
0.086
[2.18]
0.086
[2.18]
0.100
[2.54]
0.120
[3.05]
0.120
[3.05]
0.130
(1)
[3.30]
TERMINATION
(P)
MINIMUM
0.010
[0.25]
0.010
[0.25]
0.010
[0.25]
0.010
[0.25]
0.010
[0.25]
0.020
[0.50]
MAXIMUM
0.035
[0.90]
0.035
[0.90]
0.037
[0.95]
0.039
[1.00]
0.039
[1.00]
0.040
[1.00]
Note
(1)
Thickness used for 3640 - 1500 V - 220 nF and 270 nF
QUICK REFERENCE DATA
DIELECTRIC
CASE
1812
1825
X7R (X5P)
2225
3040
3640
4044
Note
• Detail ratings see “Selection Chart”
MAXIMUM VOLTAGE
(V)
1500
1500
1500
1500
1500
1500
CAPACITANCE
MINIMUM
4.7 nF
10 nF
18 nF
33 nF
47 nF
100 nF
MAXIMUM
27 nF
56 nF
100 nF
220 nF
330 nF
560 nF
ORDERING INFORMATION
VJ3640
CASE
CODE
1812
1825
2225
3040
3640
4044
Y
DIELECTRIC
184
CAPACITANCE
NOMINAL CODE
Expressed in
picofarads (pF).
The first two digits
are significant,
the third is a
multiplier.
Examples:
184 = 180 000 pF
K
X
R
A
MARKING
T
PACKAGING
(3)
SE
PROCESS
CODE
(2)
CAPACITANCE TERMINATION DC VOLTAGE
TOLERANCE
RATING
(1)
J=±5%
K = ± 10 %
M = ± 20 %
X = Ni barrier
100 % tin
matte plated
L = Ni barrier
with tin lead
plated finish
min. 4 % lead
G = 1000 V
R = 1500 V
Y = X7R
A = unmarked
T = 7" reel /
plastic tape
J = 7" reel /
plastic tape
(low quantity)
Notes
(1)
DC voltage rating should not be exceeded in application.
(2)
Process code with 2 digits has to be added.
(3)
All types of packaging may not be available for all case sizes, see table end of this datasheet.
Revision: 25-May-2018
Document Number: 45210
2
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ Source Energy Capacitor (SEC)
www.vishay.com
Vishay Vitramon
X7R
SELECTION CHART
DIELECTRIC
STYLE
CASE CODE
VOLTAGE (V
DC
)
VOLTAGE CODE
CAP. CODE
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
224
274
334
394
474
564
684
824
105
CAP.
3.3 nF
3.9 nF
4.7 nF
5.6 nF
6.8 nF
8.2 nF
10 nF
12 nF
15 nF
18 nF
22 nF
27 nF
33 nF
39 nF
47 nF
56 nF
68 nF
82 nF
100 nF
120 nF
150 nF
180 nF
220 nF
270 nF
330 nF
390 nF
470 nF
560 nF
680 nF
820 nF
1000 nF
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
G
VJ1812
(1)
1812
1000
1500
R
G
VJ1825
(1)
1825
1000
1500
R
G
VJ2225
(1)
2225
1000
1500
R
G
VJ3040
(1)
3040
1000
1500
R
G
VJ3640
(1)
3640
1000
1500
R
G
VJ4044
(1)
4044
1000
1500
R
Notes
RoHS-compliant except when supplied with lead (Pb)-containing termination, code “L”
• Plastic tape
(1)
See soldering recommendations within this data book, or visit
www.vishay.com/doc?45034
Revision: 25-May-2018
Document Number: 45210
3
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ Source Energy Capacitor (SEC)
www.vishay.com
Vishay Vitramon

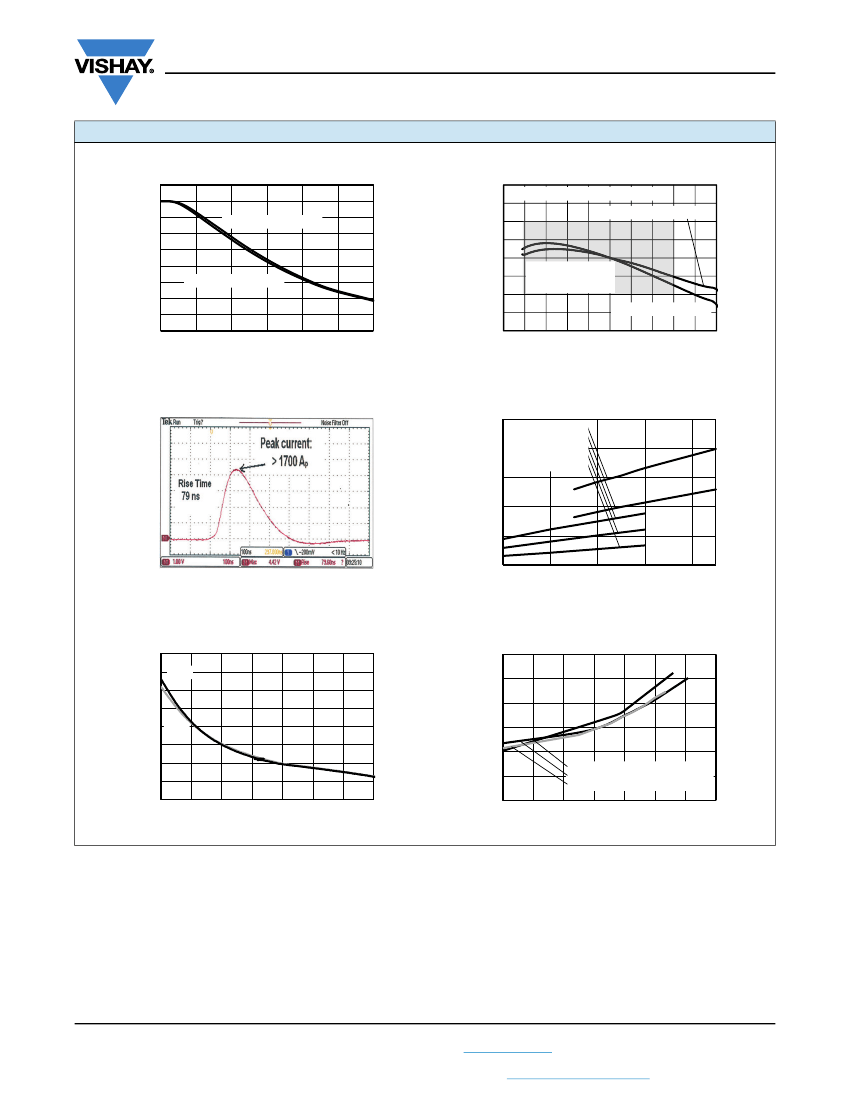

TYPICAL PARAMETERS
VOLTAGE COEFFICIENT OF CAPACITANCE
10
0
Δ
CAPACITANCE (%)
-10
-20
-30
-40
-50
-60
-70
-80
0
250
500
750
1000 1250
APPLIED VOLTAGE (V
DC
)
1500
3640, 180 nF, 1500 V
Δ
CAPACITANCE (%)
4044, 330 nF, 1500 V
TEMPERATURE COEFFICIENT OF CAPACITANCE
20
15
10
5
0
-5
-10
-15
-20
-75 -55 -35 -15 5 25 45 65
TEMPERATURE (°C)
85 105 125
TCC also meets X5P
± 10 % from
-55 °C to +85 °C
X7R: ± 15 % from -55 °C to 125 °C
3640, 180 nF, 1500 V
4044, 330 nF, 1500 V
DISCHARGE PULSE OF
330
nF, 4044
SEC
PEAK DISCHARGE CURRENT (A)
DISCHARGE CURRENT VS. CHARGE VOLTAGE
2500
2000
1500
1000
500
0
600
800
1000
1200
CHARGE VOLTAGE (V
DC
)
1400
4044, 330 nF, 1500 V
3040, 120 nF, 1500 V
2225, 100 nF, 1000 V
1825, 56 nF, 1000 V
1812, 27 nF, 1000 V
DISSIPATION FACTOR VS. TEMPERATURE
0.040
0.035
DISSIPATION FACTOR
0.030
0.025
0.020
0.015
0.010
0.005
0.000
-55
-35
-15
5
25
45
TEMPERATURE (°C)
65
85
3640
4044
TEMPERATURE (°C)
60
50
40
30
20
10
0
0
TEMPERATURE VS. RIPPLE CURRENT
1825, 27 nF, 1000 V tested at 240 kHz
1825, 56 nF, 1000 V tested at 120 kHz
2225, 100 nF, 1000 V tested at 60 kHz
0.1
0.2
0.3
0.4
0.5
CURRENT (A)
0.6
0.7
Revision: 25-May-2018
Document Number: 45210
4
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ Source Energy Capacitor (SEC)
www.vishay.com
Vishay Vitramon
STANDARD PACKAGING QUANTITIES
7" REEL QUANTITIES
CASE CODE
TAPE SIZE
PLASTIC TAPE
PACKAGING CODE “T”
1000
1000
500
500
350
300
LOW QUANTITY
PACKAGING CODE “J”
500
500
250
n/a
n/a
n/a
1812
1825
2225
3040
3640
4044
12 mm
12 mm
12 mm
16 mm
16 mm
24 mm
Notes
• Reference: EIA standard RS 481 - “Taping of Surface Mount Components for Automatic Placement”
• n/a = not available
STORAGE AND HANDLING CONDITIONS
(1) Store the components at 5 °C to 40 °C ambient temperature and
70 % relative humidity conditions.
(2) The product is recommended to be used within a time-frame of 2 years after shipment.
Check solderability in case extended shelf life beyond the expiry date is needed.
Precautions:
a. Do not store products in an environment containing corrosive elements, especially where chloride gas, sulfide gas, acid, alkali, salt or
the like are present. This may cause corrosion or oxidization of the terminations, which can easily lead to poor soldering.
b. Store products on the shelf and avoid exposure to moisture or dust.
c. Do not expose products to excessive shock, vibration, direct sunlight and so on.
Revision: 25-May-2018
Document Number: 45210
5
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
