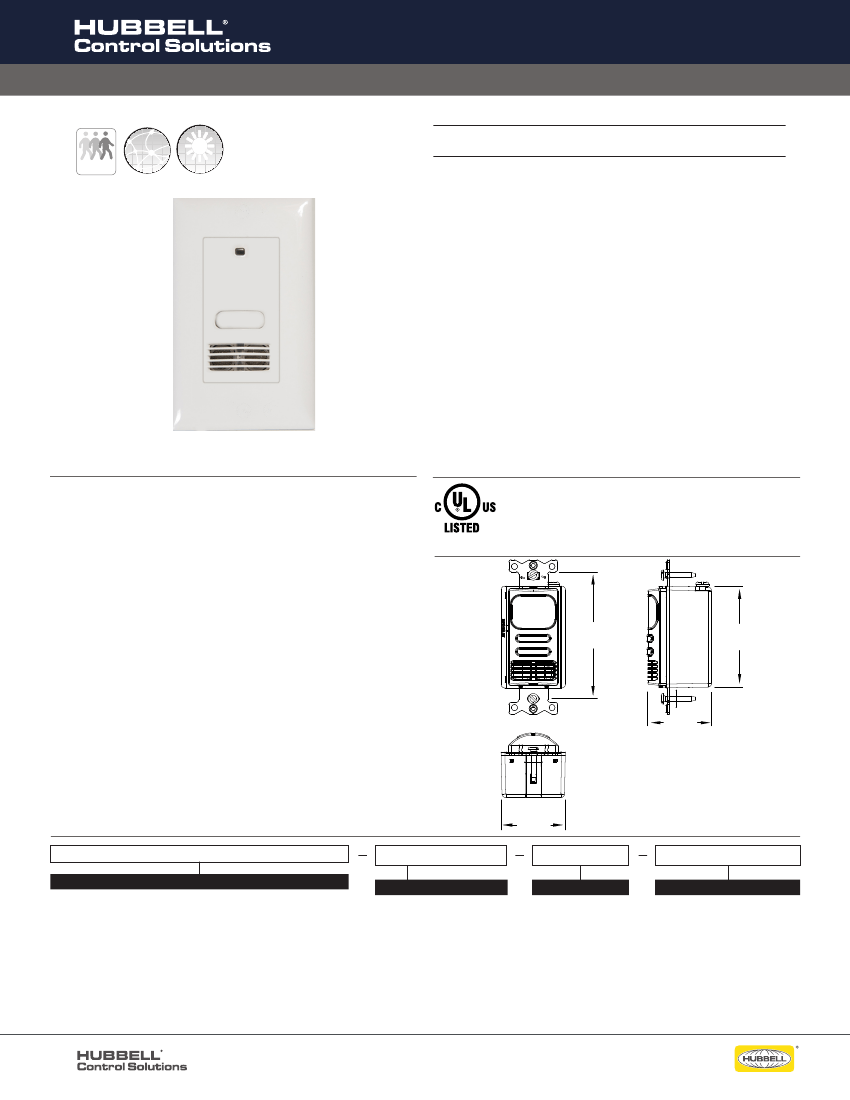

LightHAWK®2 Ultrasonic Wall Switch Sensor
Wall Switch Occupancy Sensors
Project Name
OCCUPANCY
IntelliDAPT
SENSING
DAYLIGHT
HARVESTING
Catalog No.
Date
The LightHAWK®2 Ultrasonic Wall Switch Sensor uses ultrasonic (US)
technology for detecting minor movement in areas with line-of-
sight obstacles such as cubicles and stalls. Ultrasonic technology is
volumetric in nature, its coverage pattern can adapt itself to fill oddly
shaped spaces such as alcoves, recesses, and nooks. This sensor has a
coverage area of up to 400 square feet and 180° of detection.
LHUS sensors feature Hubbell Controls' patented IntelliDAPT™
technology, which makes all the sensor adjustment decisions
automatically. Throughout the product’s lifespan, smart software
analyzes the controlled area and makes digital adjustments to
sensitivity and timer settings. Occupancy sensors with IntelliDAPT
technology provide a maintenance-free, install-and-forget operation.
With selectable operating modes—automatic On/Off or manual On/
automatic Off—and a built-in photosensor for automatic daylight
harvesting, the LHUS sensors are the most capable choice in today’s
market place.
Product Features
• Digital Ultrasonic (US) sensor
• IntelliDAPT self-adaptive technology—no manual adjustment required
• Dual circuit has isolated relays
• Occupancy (auto-on) and Vacancy (manual-on) operating modes
• Available with or without Neutral
• 400 square-foot, 180° coverage area
• 120/277VAC operation
• No minimum load requirement
• Zero Arc Point Switching
• Five-year limited warranty
• 120-277VAC and 347VAC models
• Low voltage device: 24VDC
1.70"
[43.26]
3.38"
[85.91]
2.70"
[68.69]
Compliance and Certification
24
COMPLIANCE
TITLE

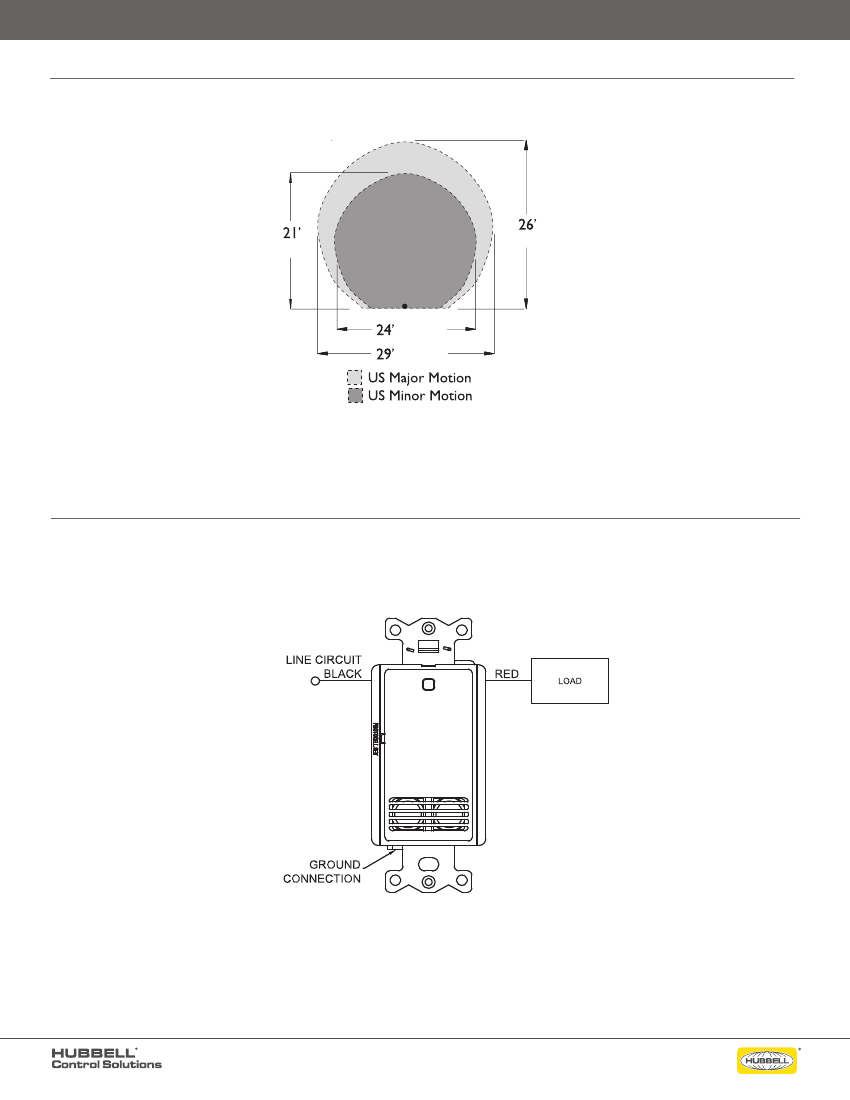

Dimensional Data
Ordering Information
1.72"
[43.61]
MODEL
LHUSS0
Ultrasonic Technology Single Relay, No Button
LHUSS1
Ultrasonic Technology Single Relay, One Button
LHUSD0
Ultrasonic Technology, Dual Relay
(One Input / Two Outputs), No Buttons
LHUSD2
Ultrasonic Technology, Dual Relay
(One Input / Two Outputs), Two Buttons
LHDCUSD0
Ultrasonic Technology, Dual Circuit
(Two Inputs / Two Outputs), No Buttons
LHDCUSD2
Ultrasonic Technology, Dual Circuit
(Two Inputs / Two Outputs), Two Buttons
WIRING
G
Ground (120/277V)
N
Neutral (120/277V)
24V
Low Voltage
G347
Ground (347V)
N347
Neutral (347V)
COLOR
WH
White
IV
Ivory
LA
Light Almond
GY
Gray
BK
Black
MODE
(Blank)
Switchable Vacancy
or Occupancy Mode
M
Vacancy Mode Only
*Not available with LHDCUSD version
-Low voltage sensors require a power pack that is sold separately
1
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2017 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identifiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
affiliation with or endorsement by such respective owners.
1116A 100417
LightHAWK®2

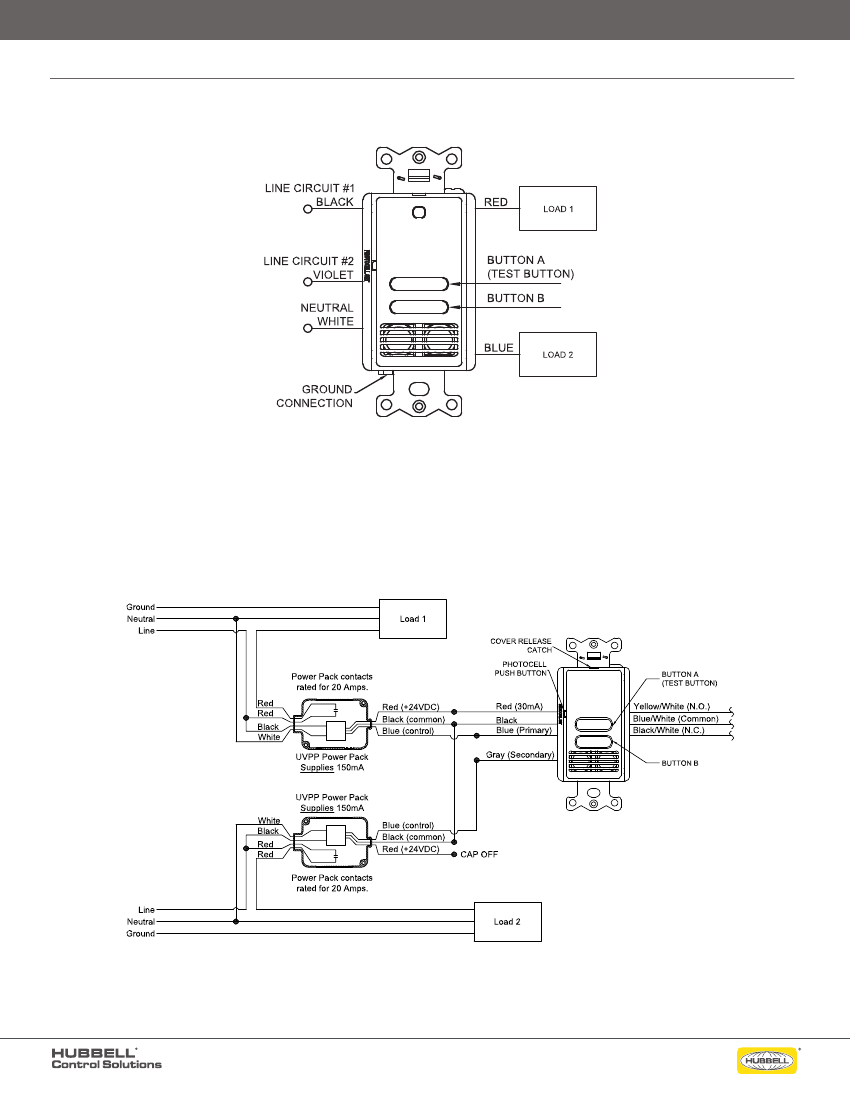

Wiring Diagram
Dual Load Wiring With Neutral
Wall Switch Occupancy Sensors
Low Voltage Dual Level Control with Two Power Packs
3
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2017 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identifiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
affiliation with or endorsement by such respective owners.
1116A 100417
LightHAWK®2
General Specifications
Self-adjusting timer
Self-adjusting Ultrasonic (US) and passive infrared (PIR) sensitivity
Automatic false-on/ false-off corrections
No manual adjustments required
Auto mode: 4-30 minutes; self-adjusts based on occupancy
Fixed mode: 4, 8, 15, and 30 minutes
Test mode: 5 seconds
40kHz output
Natural light override range: 10-500 foot-candles
400 square-foot, 180° coverage area
120/277VAC;50/60Hz
347VAC; 50/60Hz
24VDC (requires UVPP)
120VAC: 800W Incandescent/ Electronic Ballast/ LED Driver:
1,000W Magentic Ballast
1/6 HP Motor
277VAC: 1,800W Magnetic Ballast/ Electronic Ballast/ LED Driver:
1/6 HP Motor
347VAC: 1,500W Magnetic Ballast/ Electronic Ballast/ LED Driver:
1/6 HP Motor
Indoor use only
Operating temperature: 32° to 104°F (0° to 40°C)
Relative humidity (non-condensing): 0% to 95%
Casing- high- Impact injection-molded plastic (UL-94-5V)
Impact-resistant lens
Color- coded leads are 6” (152.4mm) long
Wrap-around galvanized steel mounting strap
Wall Switch Occupancy Sensors
IntelliDAPT Technology
Time Delay
Ultrasonic (US) Output
Photocell
Coverage
Power Requirements
Electrical Ratings
Operating Environment
Construction
Dimensions
Weight
Color
Mounting
4.2” H x 1.8”W x 1.75”D; .37” extension (106.68mm H x 44.45mm D; 9.4mm ext.)
2.9 oz (82.21g)
White; Ivory; Light Almond; Gray: Black
Single-gang NEMA-style switch box (standard switch box)
Decorator-style wall plate sold separately
Listed UL and cUL
Five-year limited
Certifications
Warranty
4
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2017 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identifiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
affiliation with or endorsement by such respective owners.
1116A 100417
