LightHAWK
®
2 Dual Technology Wall Switch Sensor
Wall Switch Occupancy Sensors
Project Name
OCCUPANCY
IntelliDAPT
SENSING
DAYLIGHT
HARVESTING
Catalog No.
Date

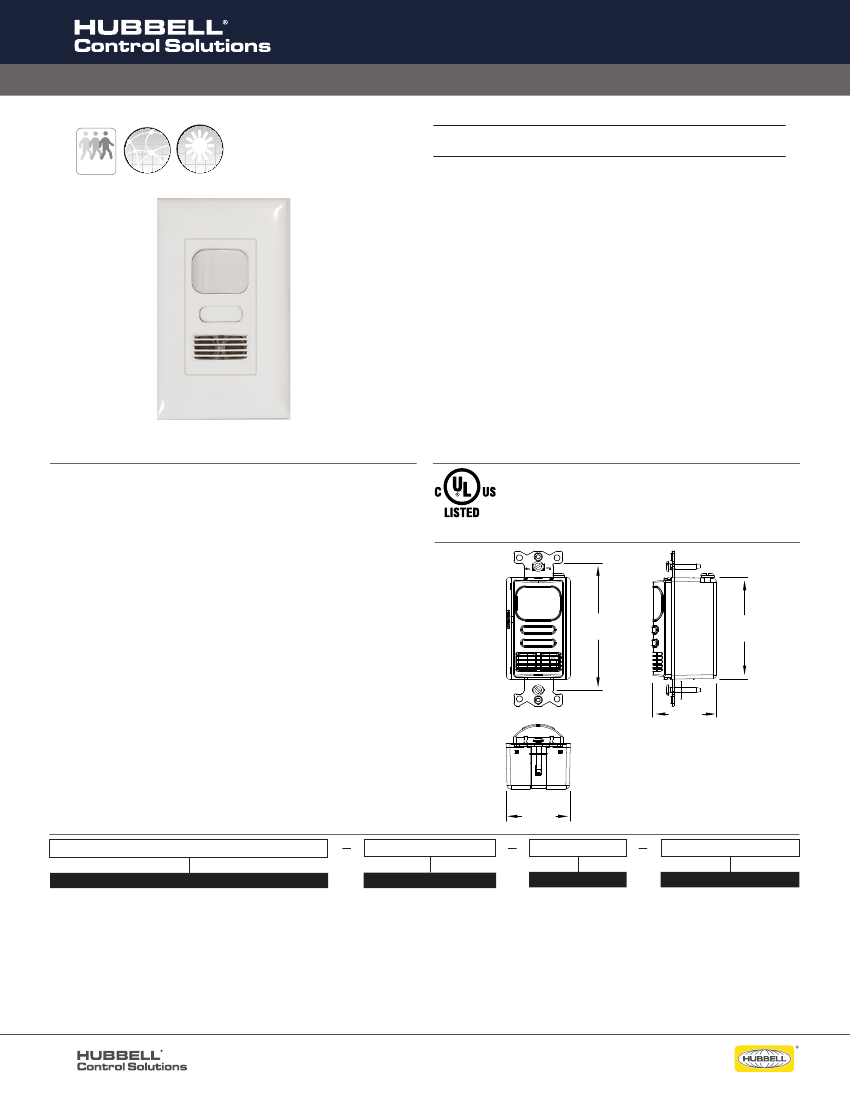

With a coverage area of up to 1,000 square feet and 180° of detection,
the LightHAWK2 Dual Technology Wall Switch Sensor combines
ultrasonic (US) and passive infrared (PIR) technologies for unequaled
motion detection. By far the most versatile and widely used sensorin
the LightHAWK2 product line, this sensor can be used in a large
number of applications,and won’t leave users waving their hands in
the dark.
LHMT sensors feature Hubbell Controls' patented IntelliDAPT™
technology, which makes all the sensor adjustment decisions
automatically. Throughout the product’s lifespan, smart software
analyzes the controlled area and makes digital adjustments to
sensitivity and timer settings. Occupancy sensors with IntelliDAPT
provide a maintenance-free, install-and-forget operation. With
selectable operating modes—auto on/off or manual on/auto off—
and a built-in photosensor for automatic daylight harvesting,
LHMT sensors are the most capable choice in today’s marketplace.
Product Features
•
Digital dual technology: (US) and (PIR) sensors
• IntelliDAPT self-adaptive technology—no manual adjustment required
• Dual circuit has isolated relays
• Occupancy (auto-on) and Vacancy (manual-on) operating modes
• Available with or without Neutral
• 1,000 square-foot, 180° coverage area
• RhinoTuff™ vandal resistant lens
• 120/277VAC operation
• No minimum load requirement
• Zero Arc Point Switching
• Five-year limited warranty
• 120-277 VAC and 347 VAC models
• Low voltage device: 24VDC
1.70"
[43.26]
3.38"
[85.91]
2.70"
[68.69]
Compliance and Certification
24
COMPLIANCE
TITLE
Dimensional Data
Ordering Information
1.72"
[43.61]
LHMTS0
LHMTS1
LHMTD0
LHMTD2
LHDCMTD0
LHDCMTD2
MODEL
Dual Technology, Single Relay, No Button
Dual Technology, Single Relay, One Button
Dual Technology, Dual Relay
(One Input / Two Outputs), No Buttons
Dual Technology, Dual Relay
(One Input / Two Outputs), Two Buttons
Dual Technology, Dual Circuit
(Two Inputs / Two Outputs), No Buttons
Dual Technology, Dual Circuit
(Two Inputs / Two Outputs), Two Buttons
WIRING
G
Ground (120/277V)
N
Neutral (120/277V)
24V*
Low Voltage
G347
Ground (347V)
N347
Neutral (347V)
COLOR
WH
White
IV
Ivory
LA
Light Almond
GY
Gray
BK
Black
MODE
Blank
Switchable Vacancy
or Occupancy Mode
M
Vacancy Mode Only
*Not available with LHDCMTD version
-Low voltage sensors require a power pack that is sold separately
1
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2017 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identifiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
affiliation with or endorsement by such respective owners.
1114A 121117

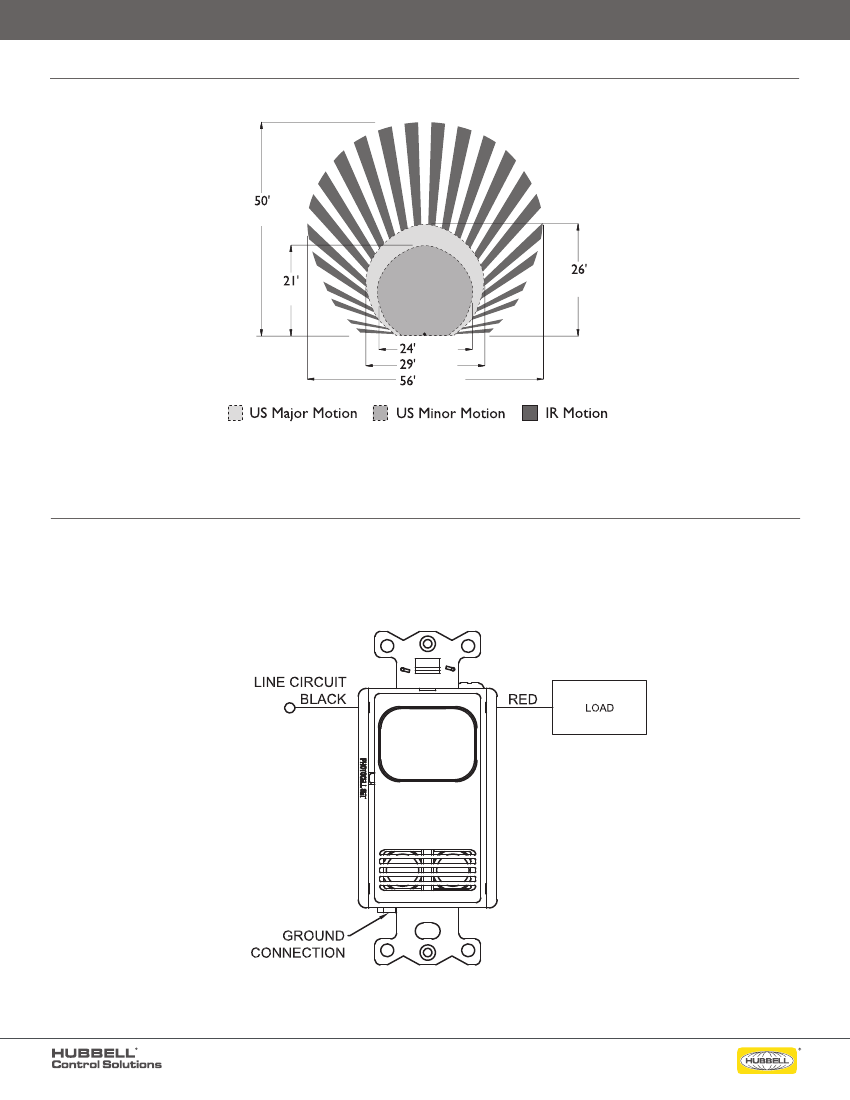

LightHAWK®2
Wiring Diagram
Wall Switch Occupancy Sensors

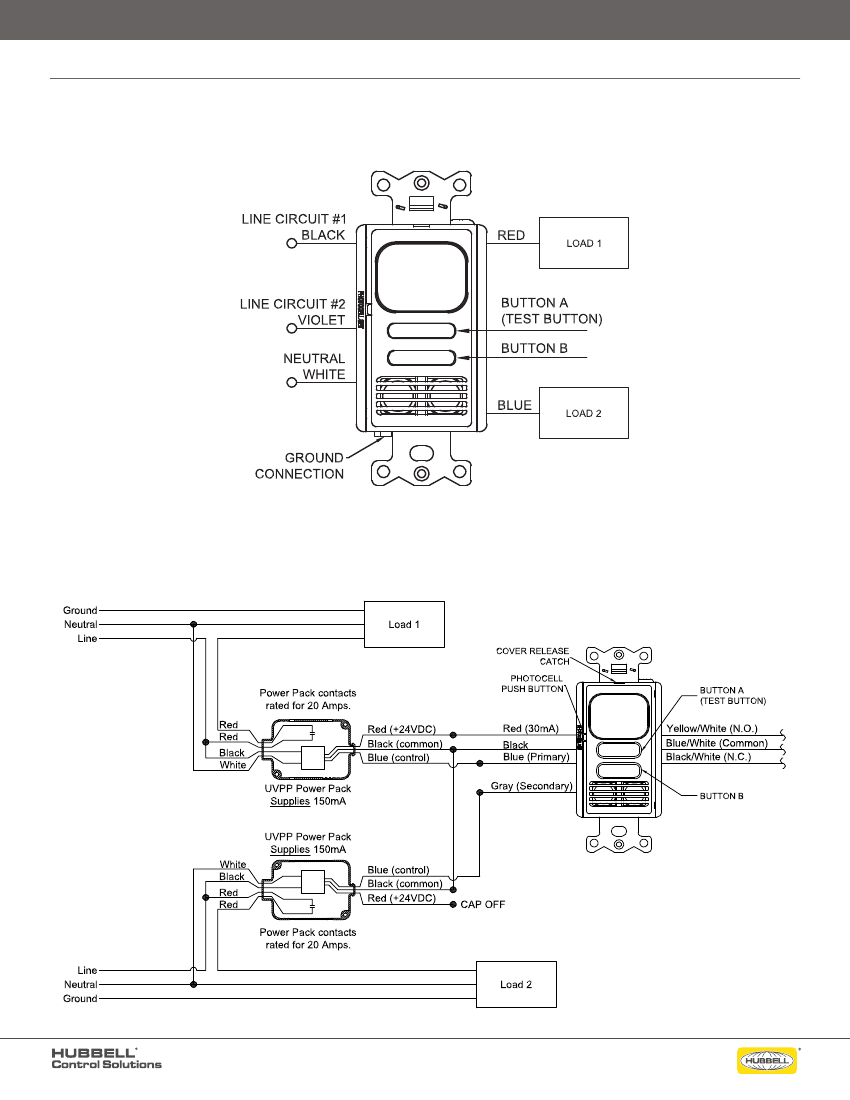

Dual Load Wiring With Neutral
Low Voltage Dual Level Control with Two Power Packs
3
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2017 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identifiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
affiliation with or endorsement by such respective owners.
1114A 121117
LightHAWK®2
General Specifications
Self-adjusting timer
Self-adjusting Ultrasonic (US) and passive infrared (PIR) sensitivity
Automatic false-on/ false-off corrections
No manual adjustments required
Auto mode: 4-30 minutes; self-adjusts based on occupancy
Fixed mode: 4, 8, 15, and 30 minutes
Test mode: 5 seconds
40kHz output
Dual-element pyrometer and 12-element cylindrical RhinoTuff lens
Natural light override range: 10-500 foot-candles
1,000 square-foot, 180° coverage area
120/277VAC;50/60Hz
347VAC; 50/60Hz
24VDC (requires UVPP)
120VAC: 800W Incandescent/ Electronic Ballast/ LED Driver
1,000W Magentic Ballast
1/6 HP Motor
277VAC: 1,800W Magnetic Ballast/ Electronic Ballast/ LED Driver:
1/6 HP Motor
347VAC: 1,500W Magnetic Ballast/ Electronic Ballast/ LED Driver:
1/6 HP Motor
None
Indoor use only
Operating temperature: 32° to 104°F (0° to 40°C)
Relative humidity (non-condensing): 0% to 95%
Casing- high- Impact injection-molded plastic (UL-94-5V)
Impact-resistant lens
Color- coded leads are 6” (152.4mm) long
Wrap-around galvanized steel mounting strap
Wall Switch Occupancy Sensors
IntelliDAPT Technology
Time Delay
Ultrasonic (US) Output
Passive Infrared (PIR)
Photocell
Coverage
Power Requirements
Electrical Ratings
Minimum Load Requirements
Operating Environment
Construction
Dimensions
Weight
Color
Mounting
4.2” H x 1.8”W x 1.75”D; .37” extension (106.68mm H x 44.45mm D; 9.4mm ext.)
2.9 oz (82.21g)
White; Ivory; Light Almond; Gray; Black
Single-gang NEMA-style switch box (standard switch box)
Decorator-style wall plate sold separately
Listed UL and cUL
Five-year limited
Certifications
Warranty
4
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2017 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identifiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
affiliation with or endorsement by such respective owners.
1114A 121117
