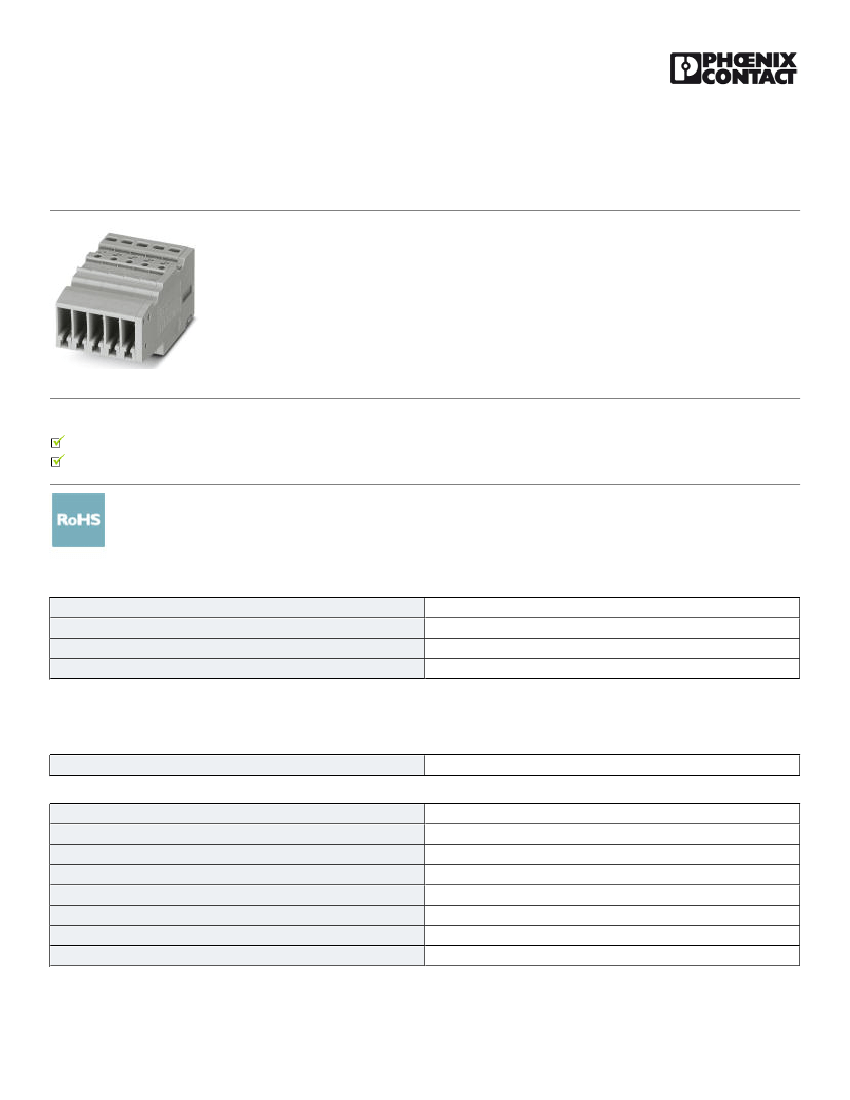

COMBI receptacle - PPC 1,5/S/13 - 3213496
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
COMBI receptacle, Connection method: Push-in connection, Number of positions: 13, Cross section: 0.14
mm² - 1.5 mm², AWG: 26 - 14, Width: 45.5 mm, Height: 17.8 mm, Color: gray
The figure shows a similar product
Why buy this product
For secure and space-saving accommodation of plug-in contacts in cable ducts and distributor shafts
The Push-in technology COMBI couplings for self-assembly provide solutions that users can implement themselves
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 STK
10 STK
85366990
Poland
Technical data
Environmental Product Compliance
China RoHS
No hazardous substances above threshold values
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
13
1
1
13
1.5 mm²
gray
PA
V0
09/02/2016 Page 1 / 18
https://www.phoenixcontact.com/us/products/3213496
COMBI receptacle - PPC 1,5/S/13 - 3213496
Technical data
General
Maximum load current
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
13.5 A (with 1.5 mm² conductor cross section)
6 kV
3
III
I
17.5 A (with 1.5 mm² conductor cross section)
17.5 A
500 V
Yes
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Dimensions
Width
End cover width
Length
Height
Pitch
45.5 mm
2.2 mm
27 mm
17.8 mm
3.5 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Push-in connection
IEC 61984
0.14 mm²
1.5 mm²
09/02/2016 Page 2 / 18
https://www.phoenixcontact.com/us/products/3213496
COMBI receptacle - PPC 1,5/S/13 - 3213496
Technical data
Connection data
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
26
14
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
0.14 mm²
1 mm²
8 mm ... 10 mm
A1 / B1
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
IEC 61984
V0
Drawings
Circuit diagram
Current strength [A]
20
16
12
8
4
0
0
20
40
60
80
100
Ambient temperature [°C]
= 2-pos.
= 5-pos.
= 10-pos.
= 15-pos.
Diagram
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27141151
27141151
27141151
09/02/2016 Page 3 / 18
https://www.phoenixcontact.com/us/products/3213496
COMBI receptacle - PPC 1,5/S/13 - 3213496
Classifications
eCl@ss
eCl@ss 9.0
27141151
ETIM
ETIM 4.0
ETIM 5.0
EC002021
EC002021
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211802
39121402
39121402
39121402
39121402
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / LR / CSA / GL / EAC / BV / NK / cULus Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
cUL Recognized
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
26-14
C
26-14
D
26-14
09/02/2016 Page 4 / 18
https://www.phoenixcontact.com/us/products/3213496
COMBI receptacle - PPC 1,5/S/13 - 3213496
Approvals
Nominal current IN
Nominal voltage UN
B
15 A
300 V
C
15 A
300 V
D
5A
600 V
LR http://www.lr.org/en 12/20038 (E2)
CSA
http://www.csagroup.org/us/en/services/testing-and-certification/certified-product-listing 13631
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
GL http://www.gl-group.com/newbuilding/approvals/index.html 2040111 HH
EAC 7500651.22.01.00246
BV http://www.veristar.com/wps/portal/!ut/p/_s.7_0_A/7_0_RIM 39979/A0 BV
NK http://www.classnk.or.jp/hp/en 14ME0912
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Accessories
Accessories
Cable housing
Cable housing - PH 1,5/S/3 - 3212756
Cable housing, Pitch: 10.5 mm, Length: 19.9 mm, Width: 10.5 mm, Height: 36.8 mm, Number of positions: 3, Color: gray
