DSP Analog Development Kit
Sku: 53311-704
Development Kit Options
Tools Included
Compiler for PIC10-
PIC18
Compiler for PIC24-
dsPIC33
Programmer
Prototyping board
Power supply &
cables
Exercise book
Price
12-24 Bit
Compilers
24 Bit
Compiler
Just H/W
Only PCB
The DSP Analog Development Kit demonstrates the DSP features of the dsPIC33EP256MU806 on an audio conditioning board. Along
with a prototyping board, it includes the powerful PCWHD Integrated Development Environment with compiler support for Microchip's 8
-bit and 16-bit PIC
®
MCU families and an ICD-U64 in-circuit programmer/debugger that supports C-aware real time debugging. The
®
Texas Instruments TLV320AIC23B audio codec allows the user to sample microphone inputs and produce digital signal outputs. The
TLV320AIC23B permits sample rates of 8, 32, 44.1, 48, and 96 KHz and the dsPIC
horsepower for user applications.
This board also includes a Texas Instruments TLV320AIC23B audio codec. This codec allows the user to sample microphone inputs and
produce digital signal outputs. The TLV320AIC23B permits sample rates of 8, 32, 44.1, 48, and 96 KHz and the dsPIC
amplified audio out (for headphones).
Exercise tutorial includes examples for reading/writing to the codec using the DMA peripheral. FAT libraries are included in the CCS C
Compiler.
The character LCD included on the prototyping board provides a user interface for quick development. Development Kit comes
equipped with a prototyping board.
®
DSC running at 40 MIPS provides plenty of
DSC running at
70 MIPS provides plenty of horsepower for user applications. The development kit provides for line in, line out, microphone in, and

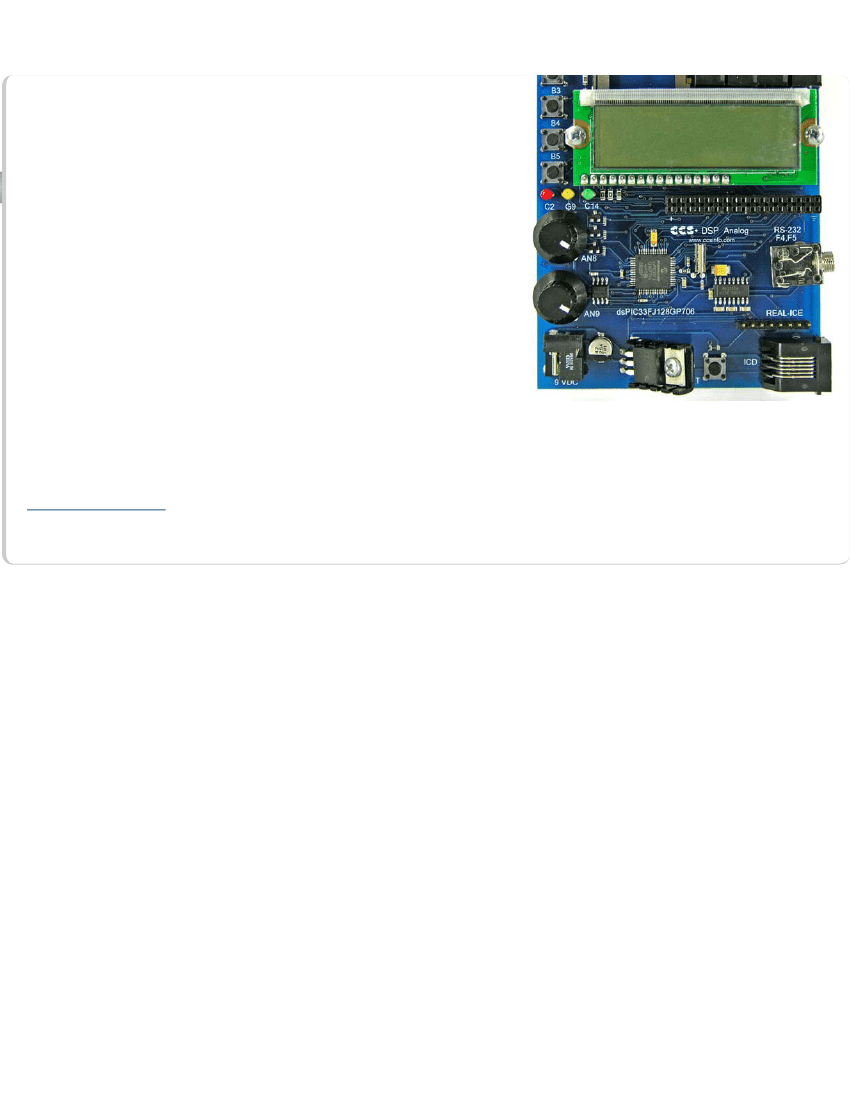

DSP Analog Prototyping Board (Size: 4" x 3.2") Includes:
• dsPIC33EP256MU806
• 21 I/O Pins (8 Can Be Analog)
• Two Potentiometer
Page 2 of 2
•
•
•
•
•
•
•
•
•
•
•
Four Pushbuttons
Three LEDs
LCD (2 x 16)
SD Card Reader
RS-232 Port
ICD connector
TI TLV320AIC23B Codec
Headphone Out
Microphone In
Line Out/Line In
Speaker Out
DSP Analog Development Kit Includes:
•
•
•
•
•
•
•
DSP Analog Prototyping Board
In-Circuit Debugger/Programmer
Exercise Tutorial
9V AC Adapter
Modular Cable
USB Cable
Clip-On Microphone
Other Products
CLRspkr and CLRdsp
products from West Mountain Radio are noise reduction products using the Microchip dsPIC33FJ128GP706.
These products have the capability for a user to re-program this board via ICSP using a Tag-Connect and any CCS programmer.
