www.amccaps.com
M
ini
-S
witch
M
ode
®
c
apacitorS

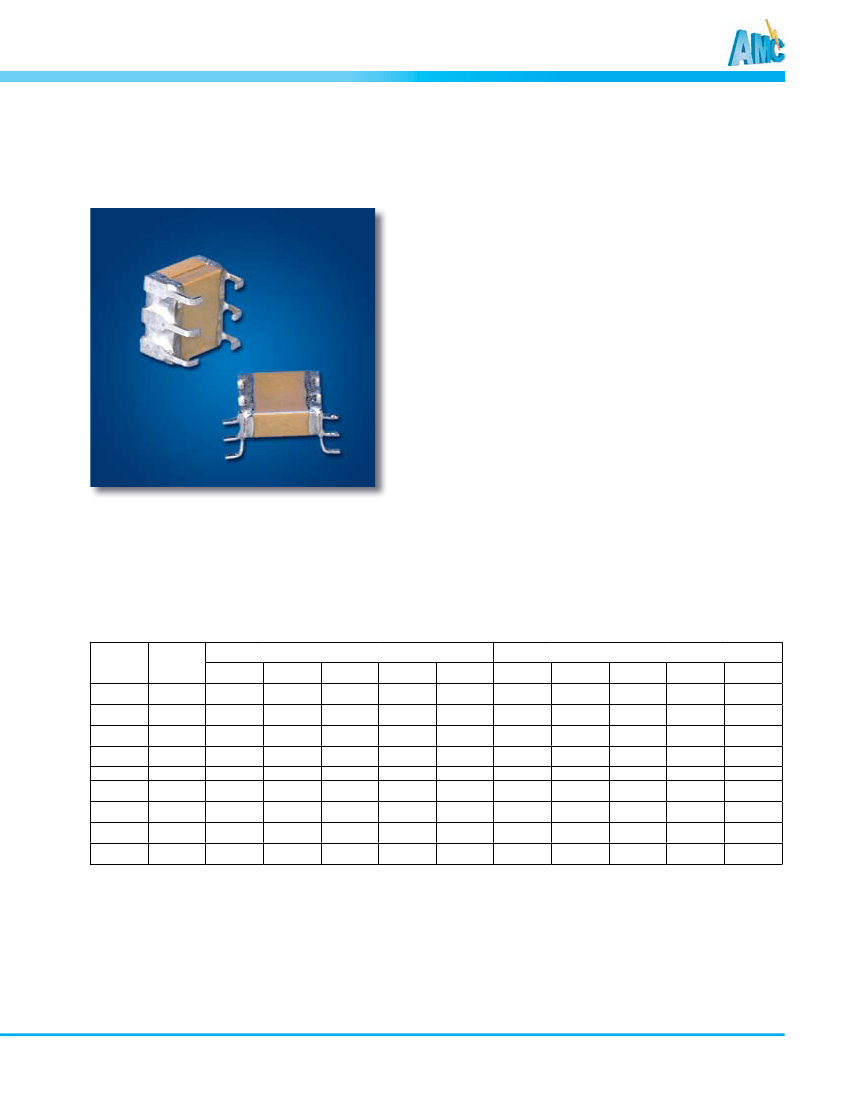

AMC’s Mini-Switch Mode® ceramic capacitors combine
the advantages of high capacitance found in tantalum
capacitors with very low ESR performance of ceramic
capacitors. The “J” and “L” lead configurations replace
1825 and 2225 SMT chips to provide stress relief and
prevent cracking due to thermal cycling or mechanical
board flexing. Another plus of the J-lead style is that
this configuration allows use of the same solder lands as
the SMT chips. See the Switch-Mode section for larger
values. See also the Technical Notes on soldering and
handling and suggested solder lands.
K
ey
F
eatureS
• Stress Relief from Cracking due to Thermal Cycling,
TCE Mis-matches or Board Flexing
• 25 to 500 VDC Ratings
• Custom Sizes, Voltages, and Values Available
• Ideal for DC-DC Power Supply Applications
C
apaCitanCe
S
eleCtion
SIZE
CODE
P09
P29
P39
P49
P08
P28
P38
P48
EIA CHIP
SIZE
1825
1825
1825
1825
2225
2225
2225
2225
25V
0.056
0.11
0.16
0.22
0.068
0.13
0.20
0.27
NPO Max Capacitance (uF)
50V
0.047
0.094
0.14
0.18
0.056
0.11
0.16
0.22
100V
0.039
0.078
0.11
0.15
0.047
0.094
0.14
0.18
200V
0.027
0.054
0.081
0.10
0.033
0.066
0.10
0.13
500V
0.018
0.036
0.054
0.07
0.027
0.054
0.081
0.10
25V
1.5
3.0
4.5
6.0
2.7
5.4
8.1
10
X7R Max Capacitance (uF)
50V
1.2
2.4
3.6
4.8
2.2
4.4
6.6
8.8
100V
0.75
1.5
2.2
3.0
1.5
3.0
4.5
6.0
200V
0.56
1.1
1.6
2.2
1.2
2.4
3.6
4.8
500V
0.27
0.54
0.81
1.0
0.39
0.78
1.1
1.5
Advanced Monolythic Ceramics, Inc., A Johanson Company 3101 Constitution Avenue, Olean, New York 14760 • (716) 372-5225 • Fax (716) 372-5467
11
www.amccaps.com

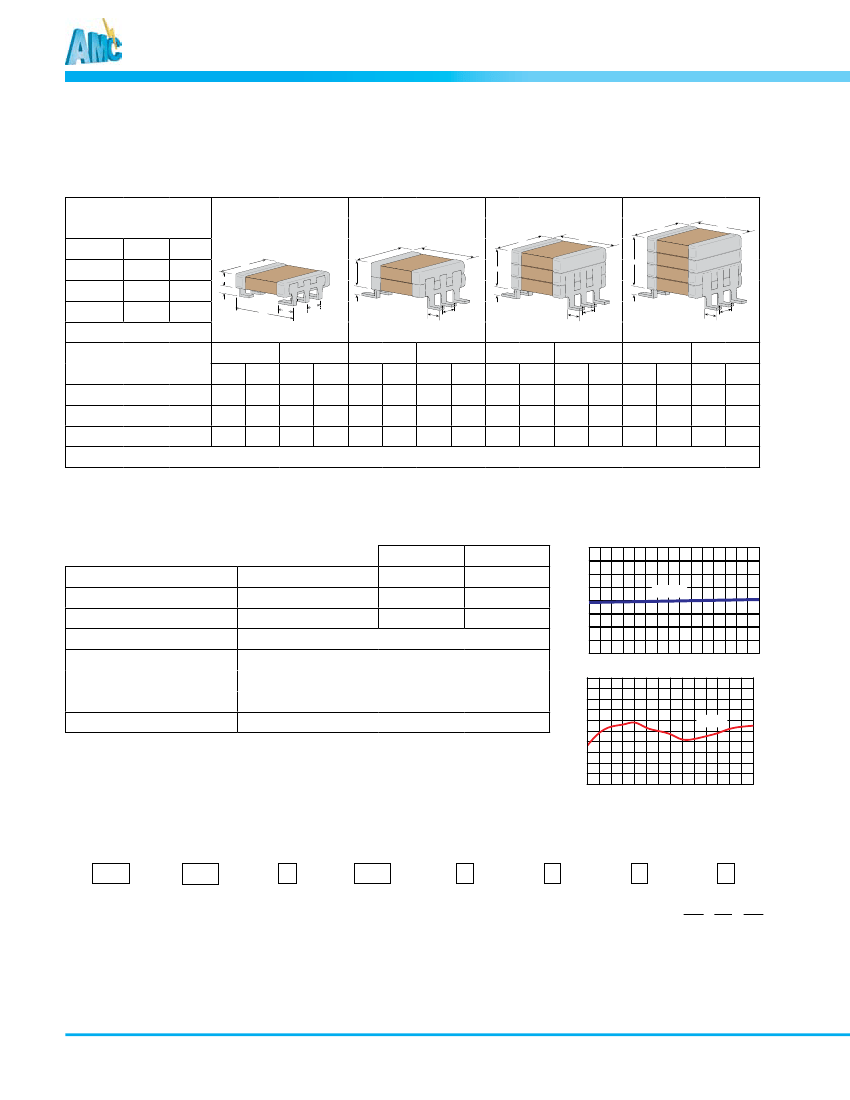

M
eChaniCal
C
haraCteriStiCS
Dimensions Applicable
to all sizes:
In.
h ± .010
c Typ.
p ± .015
.070
.100
.065
mm
1.78
2.54
1.65
P08
In.
.280
.270
.095
mm
7.11
6.86
2.41
In.
.240
.270
.095
W
T
T
h
h
h
W
W
L
L
W
L
T
T
h
L
p
c
p
c
p
c
p
c
Dimensions Applicable
to specific sizes:
L max
W max
T max
P09
mm
6.10
6.86
2.41
In.
P28
mm
7.11
6.86
4.83
In.
.280
.270
.190
P29
mm
6.10
6.86
4.83
In.
.240
.270
.190
P38
mm
7.11
6.86
7.24
In.
.280
.270
.285
P39
mm
6.10
6.86
7.24
In.
.240
.270
.285
P48
mm
7.11
6.86
9.65
In.
.280
.270
380
P49
mm
6.10
6.86
9.65
.240
.270
380
Note: J-Lead and L-Lead options are available on all sizes above
e
leCtriCal
C
haraCteriStiCS
X7R
TEMPERATURE COEFFICIENT
-55 TO 125ºC
DISSIPATION FACTOR
AGING
INSULATION RESISTANCE
DIELECTRIC STRENGTH
1kHz, 25ºC
% per decade hour
FOR 500V RATINGS
FOR 200V RATINGS
FOR 25-100V RATINGS
CAP & D.F. MEASUREMENTS
0 ± 15%
2.5% max
2.5%
NPO
0 ± 30ppm/ºC
0.1% max
None
2.0%
1.5%
1.0%
0.5%
0.0%
-0.5%
-1.0%
-1.5%
-2.0%
-55°C
-25°C
0°C
25°C
50°C
75°C
100°C
125°C
NPO
1000ΩF or 100GΩ, whichever is less at rated WVDC, 25ºC
750VDC, 25ºC, 50mA max
2xWVDC, 25ºC, 50mA max
2.5xWVDC, 25ºC, 50mA max
1kHz ± 50Hz, 1.0±0.2Vrms, 25ºC
25%
20%
15%
10%
5%
0%
-5%
-10%
-15%
-20%
-25%
-55°C
-25°C
0°C
25°C
50°C
75°C
100°C
125°C
X7R
h
ow to
o
rder
- M
ini
-S
witCh
M
ode
®
500
VOLTAGE
Standard Voltages:
250 = 25 V
500 = 50 V
101 = 100 V
201 = 200 V
501 = 500 V
P28
CASE SIZE
See Table
W
DIELECTRIC
N = NPO
W = X7R
395
CAPACITANCE
1st two digits are
significant; third digit
denotes number of
zeros.
103 = 0.01 µF
105 = 1.0 µF
106 = 10 uF
K
TOLERANCE
J = ± 5%
K = ± 10%
M = ± 20%
Z = +80% -20%
J
LEAD STYLE
J = “J” Leads
(formed in)
L = “L” Leads
(formed out)
4
MARKING
3 = Specified
4 = Unmarked
U
SPECIAL CODE
Code Type Reel
U
Embossed 13”
16mm tape
None Bulk Packaged
AMC tape specifica-
tions conform to
EIA-481.
Part number written: 500P28W395KJ4U
12
Advanced Monolythic Ceramics, Inc., A Johanson Company 3101 Constitution Avenue, Olean, New York 14760 • (716) 372-5225 • Fax (716) 372-5467
