CHM-6 Product Datasheet
Preliminary
Generation 2
CHM-6-XH20 LED
High Density White
COB Array
Features:
•
High lumen output, density
Table of Contents
Technology Overview . . . . . .2
Test Specifications . . . . . . . . .2
Chromaticity Bins . . . . . . . . . .3
Product Ordering & Shipping
Part Numbers . . . . . . . . . . . . . .4
Product Typical Flux Range .5
Operating Characteristics . .6
Optical and Electrical Character-
istics . . . . . . . . . . . . . . . . . . . . . . .7
Spectra . . . . . . . . . . . . . . . . . . . .8
Mechanical Dimensions . . . .9
Packaging Information . . . . .9
Handling Notes . . . . . . . . . . 10
•
Over 1,500 lumens, @ 3000K, 80 CRI, 85ºC
•
Over 4,700 lumens per square centimeter of Light Emitting Surface (LES)
•
Complete CCT range 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
•
CRI Ra 80 or 90 min. in all colors (except 6500K)
•
R9 up to 90 min. CRI 98 typical in 2700K, 3000K, 3500K and 4000K
•
3 SDCM color binning accuracy
•
Excellent optical emission uniformity and color over angle consistency
•
Exceptional long term color stability
•
Package thermal conductivity more than twice the industry average
•
Environmentally friendly: RoHS and REACH compliant
•
Applications
•
Spotlights/Track Lights
•
Downlights
•
Replacement lamps
•
Shop Lighting
•
Hospitality Lighting
•
Architectural and Specialty
•
Parking Lot and Area Lighting
1
PDS-002919 Rev 02
© 2017 Luminus Devices, Inc. - All Rights Reserved
CHM-6 Product Datasheet
Preliminary
Technology Overview
Luminus Chip-on-Board (COB) LED series offers a complete lighting class solution designed for high performance illumination
applications. The selection covers a wide lumen range from less than 400lm to over 25,000lm, all major color temperatures and can
deliver color rendering greater than 95 at 2700K and 3000K and R9 greater than 90. These breakthroughs allow illumination engineers
and designers to develop beautifully lit spaces without sacrificing efficacy, brightness and overall quality.
Reliability
Designed from the ground up, the Luminus COB LED is one of
the most reliable light sources in the world today. Having
passed a rigorous suite of environmental and mechanical stress
tests, including mechanical shock, vibration, temperature
cycling and humidity. Only then are the devices qualified for
use in a wide range of lighting application including some of the
most demanding commercial applications. Delivered with fully
qualified LM80 test data and TM21 lifetime results that certify
lumen maintenance at 35,000 hours or more, Luminus COB
LEDs are ready for the toughest challenges.
UL Recognized Compliance
Luminus COB arrays are tested in accordance with ANSI/UL 8750
to ensure safe operation for their intended applications.
REACH & RoHS Compliance
All LED products manufactured by Luminus are REACH and
RoHS compliant and free of hazardous materials, including lead
and mercury.
Understanding Luminus COB LED Test Specifications
Every Luminus LED is fully tested to ensure it meets the high quality standards customers have come to expect from Luminus’ products.
Traceability
Each Luminus COB LED is marked with a 2D bar code that
contains a unique serial number. With this serial number,
Luminus has the ability to provide customers with actual test
data measurements for a specific LED. In addition, the 2D bar
code is linked to manufacturing date codes that enables
traceability of production processes and materials.
Chromaticity Bin Range
Chromaticity binning delivers color consistency for every order.
Standard products are delivered with a 3-step MacAdam ellipse.
This ensures color performance matching in the application. For
the most demanding application, Luminus is one of only a few
companies that can provide a 2-step ellipse bin. These tightly
controlled, small distribution bins provide customers
predictable, repeatable colors.
Testing Temperature
Luminus COB products are measured at temperatures typical for
the LED operating in the fixture. Each device is tested at 85ºC
junction temperature eliminating the need to scale data sheet
specifications to real world situations.
2
PDS-002919 Rev 02
© 2017 Luminus Devices, Inc. - All Rights Reserved
CHM-6 Product Datasheet
Preliminary

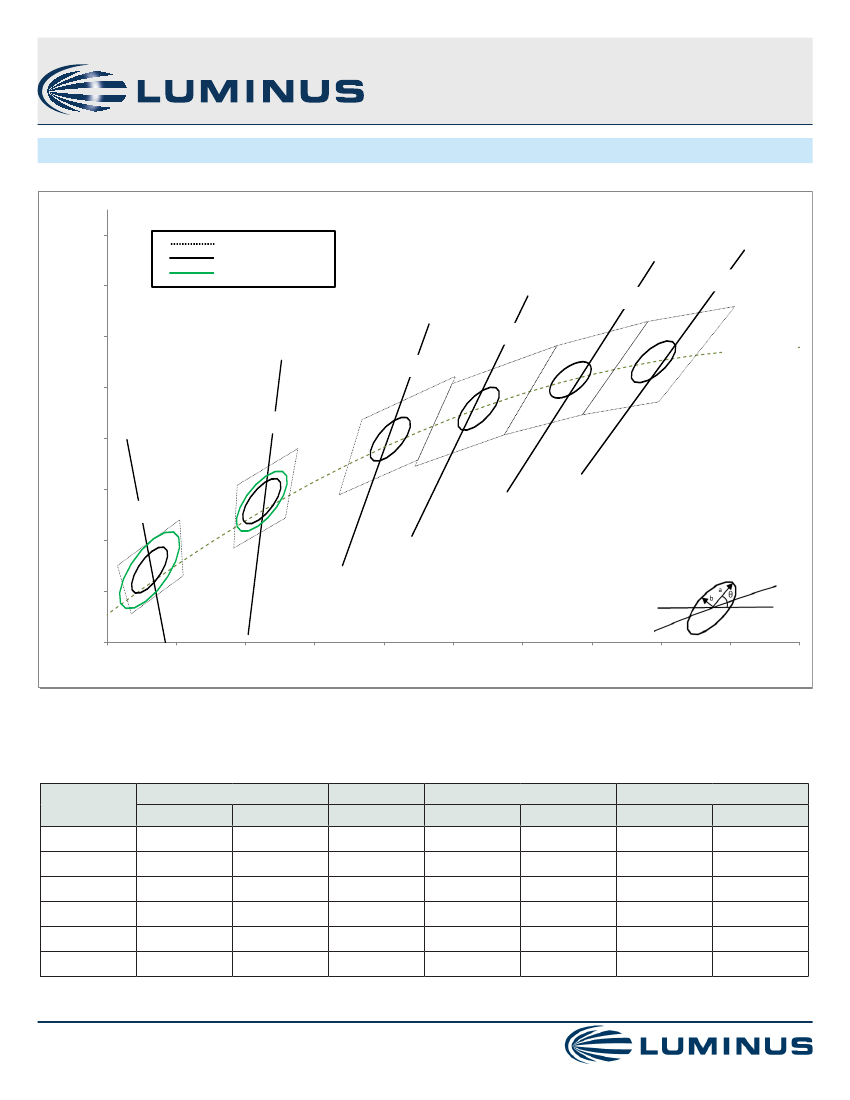

Chromaticity Bin Structure
Chromaticity Bins: 1931 CIE Curve
0.46
0.46
0.44
0.44
ANSI C78.377-2008
ANSI C78.377-2008
2-step Ellipse
3-step Ellipse
3-step Ellipse
5-step Ellipse
5-step Ellipse
3000K
3000K
3500K
3500K
4000K
4000K
2700K
2700K
0.42
0.42
Black
Body
Black
Body
0.4
0.4
CIE
y
CIE
y
0.38
0.38
5000K
5000K
0.36
0.36
6500K
6500K
0.34
0.34
0.32
0.32
0.3
0.3
0.3
0.3
0.32
0.32
0.34
0.34
0.36
0.36
0.38
0.38
0.4
0.4
CIE
CIE x
x
0.42
0.42
0.44
0.44
0.46
0.46
0.48
0.48
0.5
CHM-6 White Chromaticity Bins
The following tables describe the ANSI bin center points, the orientation angle for the MacAdam ellipse (θ
°),
and the maximum radii for
the ellipses. The ANSI Bin is provided for reference.
CCT
2700K
3000K
3500K
4000K
5000K
6500K
*Note:
3
PDS-002919 Rev 02
© 2017 Luminus Devices, Inc. - All Rights Reserved
Center Point
CIEx
0.4578
0.4338
0.4073
0.3818
0.3447
0.3123
CIEy
0.4101
0.403
0.3917
0.3797
0.3553
0.3282
Angle
θ (°)
53.7
53.2
54
53.7
59.6
58.57
a
3-step Bin
b
0.0042
0.00408
0.00414
0.00402
0.00354
0.00285
a
0.0081
0.00834
0.00927
0.00939
0.00822
0.00669
5-step Bin
b
0.0137
0.01115
0.0059
0.00475
Luminus maintains a +/- 0.005 tolerance on chromaticity (CIEx and CIEy) measurements.
CHM-6 Product Datasheet
Preliminary
Product Ordering and Shipping Part Number Nomenclature
All CHM-6 products are packaged and labeled with part numbers as outlined in the table on page 5. When shipped, each package will
contain only a single flux and chromaticity bin. The part number designation is as follows:
CHM
Product Fam-
ily
CHM: Chip on
Board, Lumi-
nus, Multi-die
Note 1:
6
Light Emit-
ting Surface
Diameter
6.3 : LES
Diameter
(mm)
NN
Color
Temperature
Color
See Note 1
below
XX
Color Ren-
dering Index
(CRI)
CRI
27
Voltage (typi-
cal)
Volts
QQPP
Package
Configurator
XH20
(Basic pack-
age)
FG
Flux Bin
W
Chromaticity
Bin
See page 3 for
bins
Lumens
NN nomenclature corresponds to the following:
27 = 2700K
30 = 3000K
35 = 3500K
40 = 4000K
50 = 5000K
65 = 6500K
Color Temperature, CRI and R9 Values
Color Temperatures
4000K, 5000K, 6500K
2700K, 3000K, 3500K, 4000K, 5000K, 6500K
2700K, 3000K, 3500K, 4000K, 5000K
2700K, 3000K
3500K, 4000K
XX Value
70
80
90
95
CRI
>70
>80
>90
>95
R9
-
>0
>50
>90
>75
Note:
Luminus part numbers may be accompanied by prefixes or suffixes. The most common is the “Rev01” suffix indicating a part is fully released
and carries a full warranty. These additional characters may appear on shipping labels, packing slips and invoices. In all cases the basic part
number described above will always be included.
4
PDS-002919 Rev 02
© 2017 Luminus Devices, Inc. - All Rights Reserved
CHM-6 Product Datasheet
Preliminary
CHM-6-XH20 Part Numbers
The following tables describe products with typical flux and minimum flux measured at 480mA and specified at Tj = 85ºC. The values at
25ºC are calculated and shown for reference only.
Color
Rendering
Index
CRI (min.)
80
90
95
80
90
95
80
90
95
70
80
90
95
Output Flux (lm)
CCT
Typ. (85ºC)
1,505
2700K
1,240
1,185
1,590
3000K
1,335
1,250
1,635
3500K
1,365
1,305
1,780
4000K
1,660
1,440
1,335
Min.
(85ºC)
1,400
1,155
1,100
1,480
1,240
1,165
1,520
1,270
1,215
1,655
1,545
1,340
1,240
Reference
Typ.
Ordering Part Number
(calculated)
3-step MacAdam Ellipse
CHM-6-27-80-27-XH20-F3-3
CHM-6-27-90-27-XH20-F3-3
CHM-6-27-95-27-XH20-F3-3
CHM-6-30-80-27-XH20-F3-3
CHM-6-30-90-27-XH20-F3-3
CHM-6-30-95-27-XH20-F3-3
CHM-6-35-80-27-XH20-F3-3
CHM-6-35-90-27-XH20-F3-3
CHM-6-35-95-27-XH20-F3-3
CHM-6-40-70-27-XH20-F3-3
CHM-6-40-80-27-XH20-F3-3
CHM-6-40-90-27-XH20-F3-3
CHM-6-40-95-27-XH20-F3-3
(25ºC)
1,625
1,340
1,280
1,715
1,440
1,350
1,765
1,475
1,410
1,920
1,790
1,555
1,440
Output Flux (lm)
CCT
Typ. (85ºC)
1,810
5000K
1,670
1,445
6500K
1,810
1,665
Min.
(85ºC)
1,685
1,555
1,345
1,685
1,550
Reference
Typ.
Color
Rendering
Index
CRI (min.)
70
80
90
70
80
Part Number
(calculated)
5-step MacAdam Ellipse
CHM-6-50-70-27-XH20-F3-5
CHM-6-50-80-27-XH20-F3-5
CHM-6-50-90-27-XH20-F3-5
CHM-6-65-70-27-XH20-F3-5
CHM-6-65-80-27-XH20-F3-5
3-step MacAdam Ellipse
CHM-6-50-70-27-XH20-F3-3
CHM-6-50-80-27-XH20-F3-3
CHM-6-50-90-27-XH20-F3-3
CHM-6-65-70-27-XH20-F3-3
CHM-6-65-80-27-XH20-F3-3
(25ºC)
1,955
1,800
1,560
1,955
1,795
*Note:
5
Luminus maintains a +/- 6% tolerance on flux measurements, a +/- 2% tolerance on CRI measurements, and a +/- 5% tolerance of R9
PDS-002919 Rev 02
© 2017 Luminus Devices, Inc. - All Rights Reserved
