Power Entry Modules with Line Filter
https://www.schurter.com /PG06
CD
IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole (5x20 mm or 6.3x32 mm), Line Switch 1- or
2-pole, Voltage Selector (Step)
C14
See below:
70° C
Approvals and Compliances

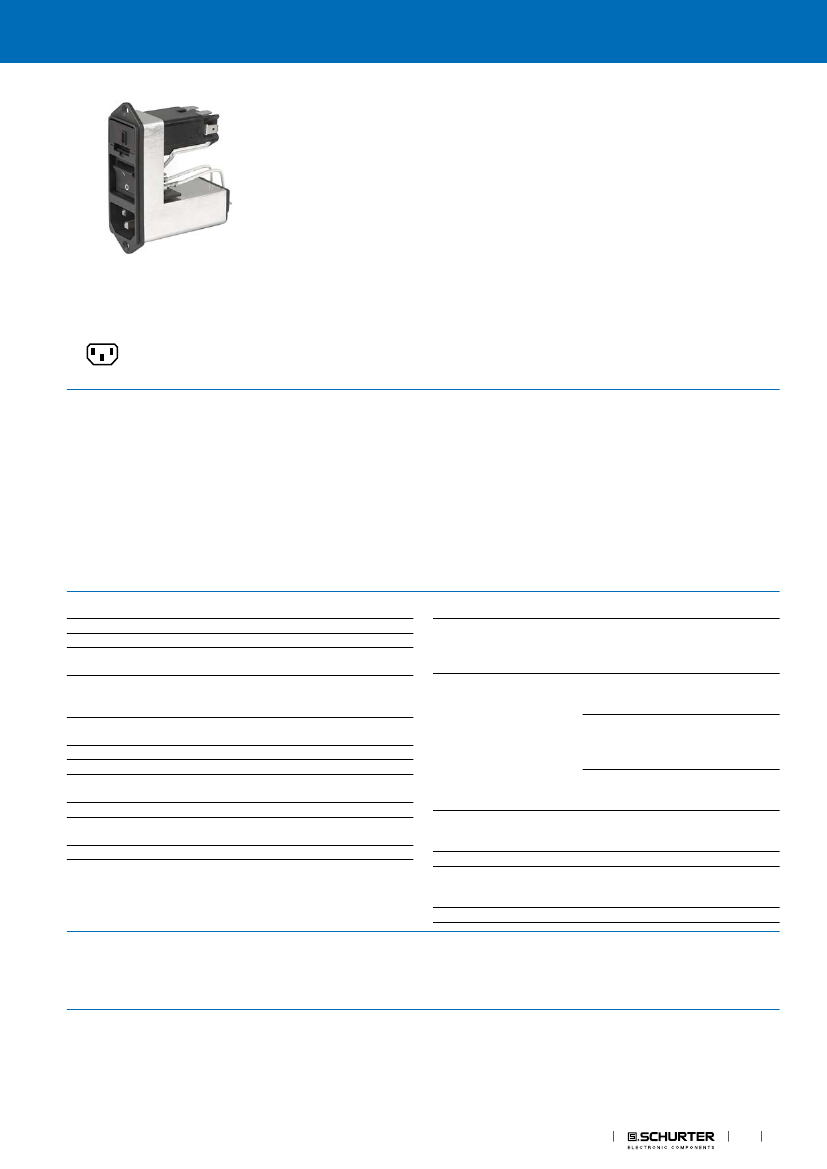

Description
Characteristics
- Panel Mount :
Screw-on mounting from front side
- 5 Functions :
Appliance Inlet , Line Switch , Fuseholder with interchangeable fuse
drawer for Fuse-links 5x20 mm or 6.3x32 mm , with or without voltage
selector (step switch) , Line filter in standard and medical version
- V-Lock notch standard
- Quick connect terminals 4.8 x 0.8 mm
- All single elements are already wired
- The fuse drawer "Fingergrip" can be removed by hand
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
References
Weblinks
Alternative: version without line filter
KD
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Unique Selling Proposition
-
-
-
-
Multifunctional Power Entry Module
Solid metal flange
Various fuse drawers
Slim design
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz
1 - 10 A @ Ta 40 °C / 125 VAC; 60 Hz
standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 4.8 x 0.8 mm
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I
1 or 2 pole, Shocksafe category PC2
acc. to IEC 60127-6,
for fuse-links 5 x 20 or 6.3 x 32 mm
5 x 20: 2.5 W (1 pole)/ 2 W (2-pole) per
pole
6.3 x 32: 3.15 W (1 pole)/ 2.5 W (2-pole)
per pole
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
2-pole, non-illuminated, acc. to IEC
61058-1
Technical Details
optional, step, 2-4 digits
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 1'200'000 h acc. to MIL-HB-217 F
Fuseholder
Allowable Operation Tempe-
rature
Climatic Category
IP-Protection
Protection Class
Terminal
Panel Thickness S
Material: Housing
Rated Power Acceptance @
Ta 23 °C
Power Acceptance @ Ta >
23°C
Line Switch
Voltage Selector
Line Filter
MTBF
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
EMC Products
1
CD
Approvals
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: CD
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40004665 (FKSO, FKSP, FKSU, FKSV)
UL File Number: E72928 (FKSO, FKSP, FKSU, FKSV)
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
IEC 60127-6
IEC 61058-1
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
Medical Equipment
SCHURTER AG
2
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
CD

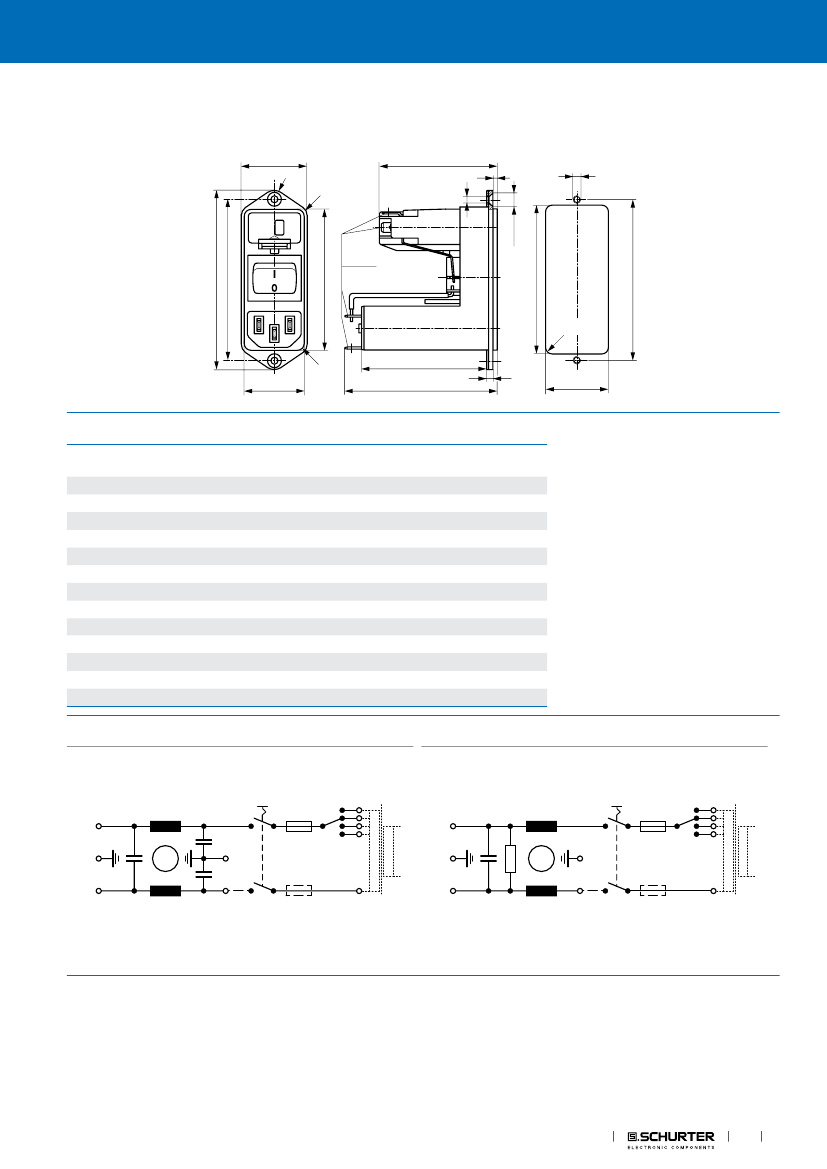

Dimensions [mm]
CD
30
R6
R 4.5
ø 3.2
55
2
M3/ø 3.6
67.5
0
R 3
-0.2
56
3
69
28.5
+0.3
0
0
R 3.1
27.2
Technical Data of Filter-Components
Rated Current
[A]
1
2
4
6
10
1
2
4
6
10
2
4
10
Filter-Type
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical (M80)
Medical (M80)
Medical (M80)
Inductances
L [mH]
2 x 10
2x4
2 x 1.5
2 x 0.8
2 x 0.3
2 x 10
2x4
2 x 1.5
2 x 0.8
2 x 0.3
2x4
2 x 1.5
2 x 0.3
Capacitance
CX [nF]
68
68
68
68
68
68
68
68
68
68
68
68
68
Capacitance
CY [nF]
2.2
2.2
2.2
2.2
2.2
-
-
-
-
-
0.47
0.47
0.47
R [MΩ]
-
-
-
-
-
1
1
1
1
1
1
1
1
Diagrams
Standard version
with voltage selector
6
5
4
3
Medical version
with voltage selector
6
5
4
3
L
1)
PE
N
Cx
L1
Cy
L2
Cy
1a
1
F1
L
2)
1)
PE
Cx
R
L1
1a
75.5
±0.15
1
F1
83.5
75.5
66.2
+0.3
4.8x0.8
ø 6.3x90°
230
2)
PE’
X)
2a
2
F2
7
PE’
L2
X)
2a
2
F2
7
N
1) Line
2) Load
x) External connection to be made by the customer
1) Line
2) Load
x) External connection to be made by the customer
EMC Products
3
CD
Derating Curves
Fuses
5 x 20 mm (1-pole)
Admissible power
acceptance in Watt
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = << I
n
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
Fuses
5 x 20 mm (2-pole, per pole)
Admissible power
acceptance in Watt
2.0
1.5
I = 1.0 I
n
1.0
I = 0.7 I
n
I = < < I
n
0.5
Fuses
6.3 x 32 mm (1-pole)
Admissible power
acceptance in Watt
3.15
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
Fuses
6.3 x 32 mm (2-pole, per pole)
Admissible power
acceptance in Watt
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
0.0
0
20
40
60
80
100
Ambient air temperature T
a
°C
Ambient air temperature T
a
°C
Ambient air temperature T
a
°C
Ambient air temperature T
a
°C

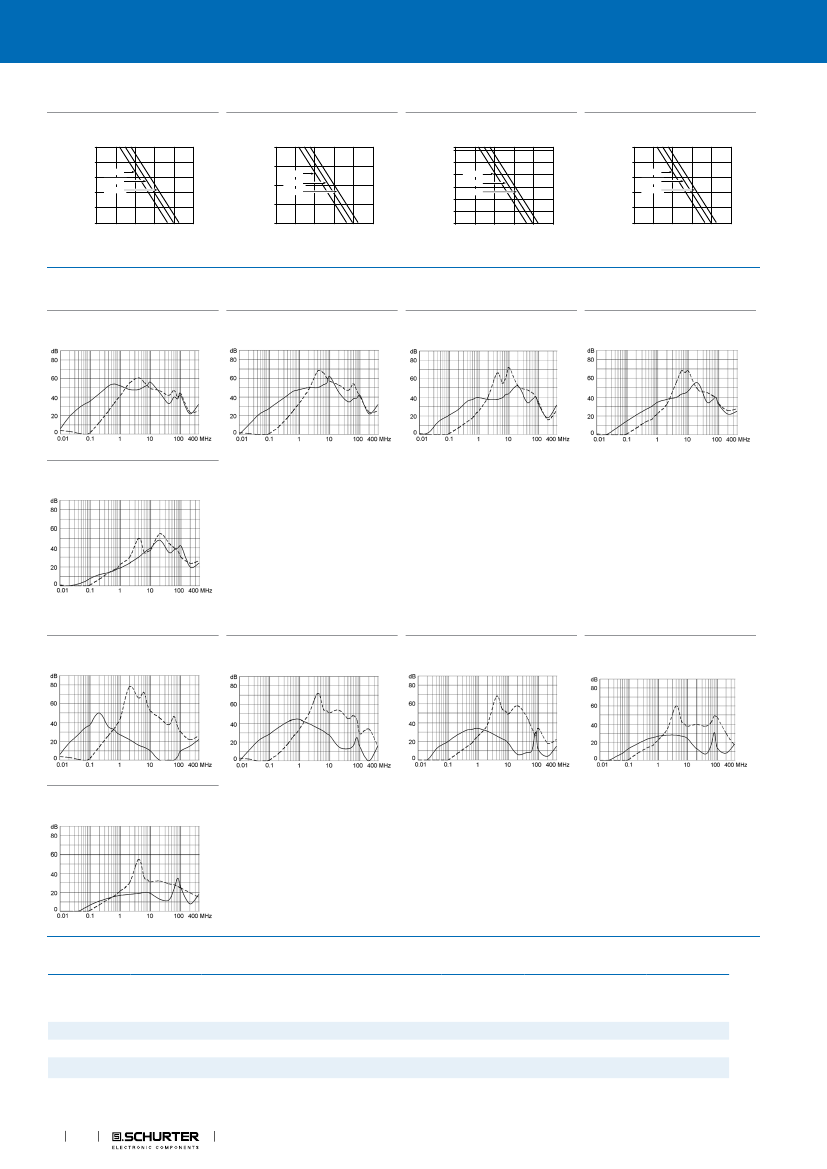

Attenuation Loss
Standard version
- - - - 50Ω differential mode _____ 50Ω common mode
1A
2A
4A
6A
10 A
Medical version (M5)
1A
2A
4A
6A
10 A
All Variants
Type
Rated Current
[A]
Filter-Type
Fuseholder
Line Switch
Voltage Selector
V-Lock
Order Number
CD
CD
CD
CD
1
2
4
6
Standard Version
Standard Version
Standard Version
Standard Version
1-pole
1-pole
1-pole
1-pole
2-pole
2-pole
2-pole
2-pole
-
-
-
-
l
l
l
l
CD11.1501.151
CD21.1501.151
CD31.1501.151
CD41.1501.151
█
█
4
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
CD
Fuseholder
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
Line Switch
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
Voltage Selector
-
2-4 digits
2-4 digits
2-4 digits
2-4 digits
2-4 digits
-
-
-
-
-
2-4 digits
2-4 digits
2-4 digits
2-4 digits
2-4 digits
-
2-4 digits
2-4 digits
2-4 digits
2-4 digits
2-4 digits
2-4 digits
2-4 digits
2-4 digits
V-Lock
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
Order Number
CD61.1501.151
CD11.4501.151
CD21.4501.151
CD31.4501.151
CD41.4501.151
CD61.4501.151
CD14.1101.151
CD24.1101.151
CD34.1101.151
CD44.1101.151
CD64.1101.151
CD14.4101.151
CD24.4101.151
CD34.4101.151
CD44.4101.151
CD64.4101.151
CDE4.1101.151
CDG4.4101.151
CDA4.4101.151
CDC4.4101.151
CDE4.4101.151
CDL4.4101.151
CDB4.4101.151
CDD4.4101.151
CDM4.4101.151
█
█
█
█
█
█
█
█
█
█
█
█
█
Type
CD
CD
CD
CD
CD
CD
CD
CD
CD
CD
CD
CD
CD
CD
CD
CD
CD
CD
CD
CD
CD
CD
CD
CD
CD
█
Most Popular.
Rated Current
[A]
10
1
2
4
6
10
1
2
4
6
10
1
2
4
6
10
6
1
2
4
6
10
2
4
10
Filter-Type
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical (M80)
Medical (M80)
Medical (M80)
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Packaging unit
Required Accessory
10 Pcs
Description
Fusedrawer 3
Fusedrawer for Fuse Links 5x20 mm resp. 6.3x32 mm
Fingergrip, 5 x 20, 2-pole, Voltage Selector
Fingergrip, 5 x 20, 2-pole, Voltage Selector, 100, 120, 220, 240
Fingergrip, 5 x 20, 2-pole, Voltage Selector, 110, 150, 220
Fingergrip, 5 x 20, 2-pole, Voltage Selector, 110, 220
4303.2014.00
4303.2014.01
4303.2014.02
4303.2014.03
...
EMC Products
5
京公网安备 11010802033920号
EEWORLD
