SAW Components
SAW RF filter
Data sheet
Application
s
Low-loss RF filter for GPS/GLONASS/Galileo appli-
B3913
1588.0 MHz
cation
s
Usable passband 56 MHz
s
No matching network required for operation at 50
Ω
Features
s
s
s
s
s
s
s
s
s
Package size 3.0 x 3.0 x 1.1 mm
3
Package code DCC6C
RoHS compatible
Approximate weight 0.037 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Lead free soldering compatible with J - STD20C
AEC-Q200 qualified component family
Electrostatic Sensitive Device
(ESD)

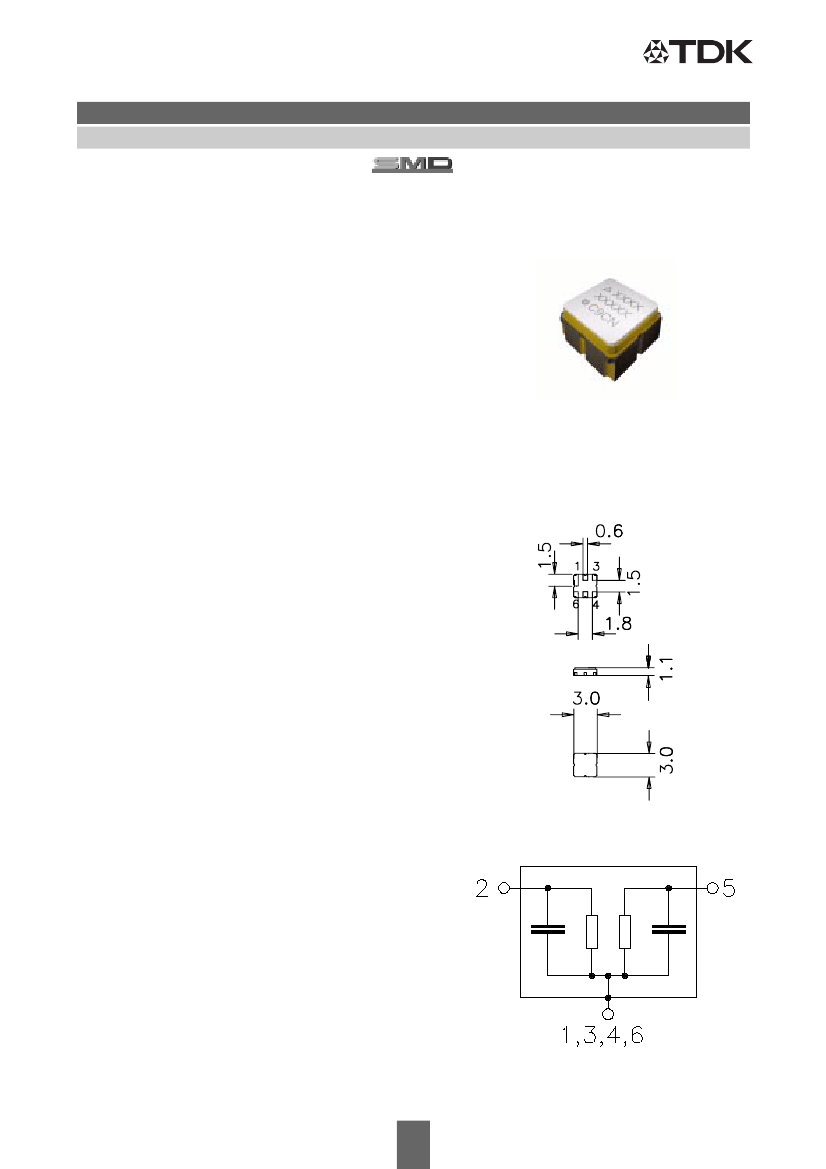

Pin configuration
s
2
s
5
s
1,3,4,6
Input
Output
Case ground
Please read
cautions and warnings and
important notes
at the end of this document.
2
January 31, 2013
SAW Components
SAW RF filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –45 ˚C to +85 ˚C
Z
S
=
50
Ω
Z
L
=
50
Ω
min.
Center frequency
f
C
—
typ.
@ 25 ˚C
1588.0
max.
—
B3913
1588.0 MHz
MHz
Maximum insertion attenuation
α
max
1560.00 ... 1616.00 MHz
Amplitude ripple
(p-p)
∆α
1560.00 ... 1616.00 MHz
VSWR
1560.00 ... 1616.00 MHz
Group delay ripple
1)
(p-p)
1560.0 ... 1616.0
1597.0 ... 1616.0
Attenuation
100.00
1400.00
1645.00
1650.00
1840.00
2000.00
1)
—
2.0
3.0
dB
—
0.8
2.1
dB
—
2.1
2.5
MHz
MHz
α
—
—
14
7
26
15
ns
ns
...
...
...
...
...
...
1400.00
1525.00
1650.00
1840.00
2000.00
2500.00
MHz
MHz
MHz
MHz
MHz
MHz
38
25
8
30
38
32
44
30
30
34
41
35
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
Averaged over 500 kHz
Maximum ratings
Operable temperature range T
Storage temperature range T
stg
DC voltage
V
DC
Source power
P
S
–45/+125 ˚C
–45/+125 ˚C
6
V
10
dBm
source impedance 50
Ω
Please read
cautions and warnings and
important notes
at the end of this document.
3
January 31, 2013
