Mobile Load Coil Antenna
Innovative
Technology
for a
Connected
World
Standard B8063
PREMIUM MOBILE LOAD COIL ANTENNAS ARE INDUSTRY STANDARD
Laird Technologies’ongoing commitment to refinement in mechanical and electrical
design has resulted in the most technically advanced mobile load coil antennas on the
market. Exclusive features such as stainless steel whips, housings constructed with ABS
material injected molded around a solid brass insert, and gold plated push pin contacts
make Laird Technologies the obvious choice for quality and long lasting value for
demanding mobile radio communications.
FEATURES
• Easily removable rod allows the mount
to stay water tight during car washes
• O-ring built into the base creates a
weather-tight seal
• ABS material is injection molded
directly around the solid brass inserts
for a virtually indestructible housing
that will not leak or dissassemble
• All silver soldered joints provide
an electrically and mechanically
secure connection
MARKETS
• Public safety
• Transportation
• Utility
• Military mobile

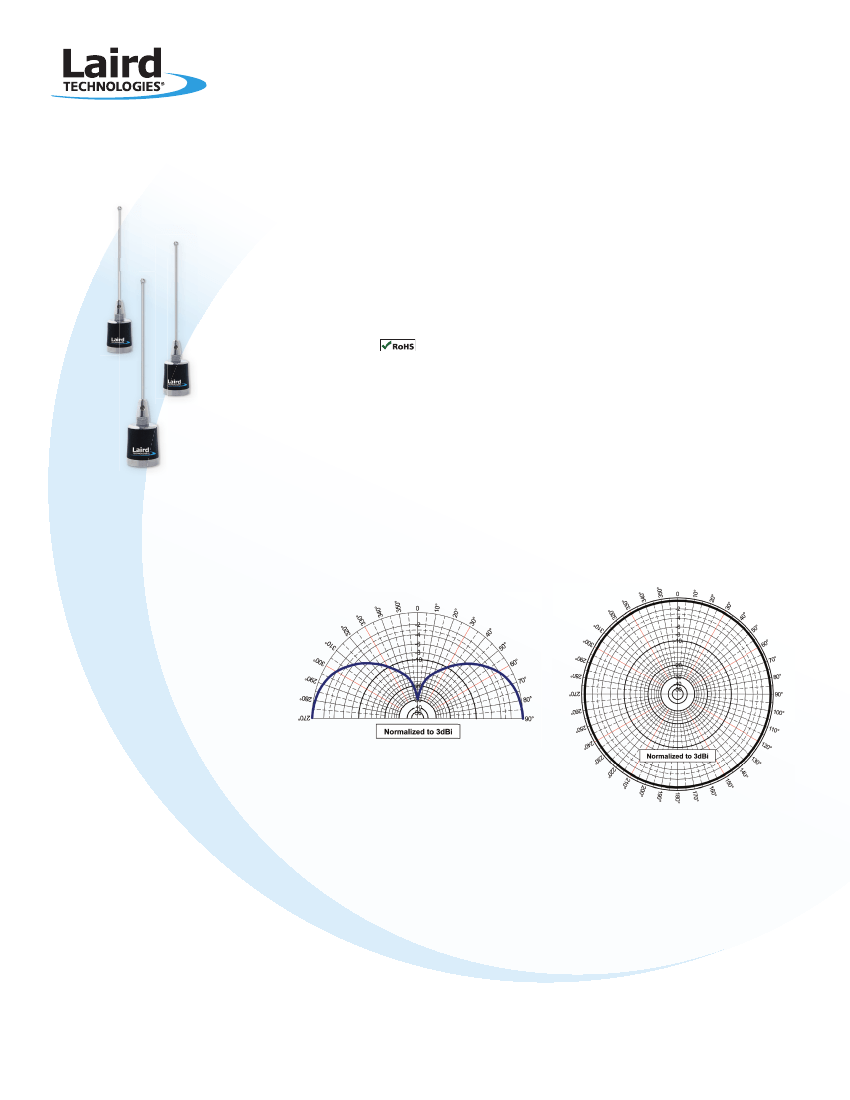

ANTENNA PATTERNS
Elevation Pattern (Y, Z, or H-plane)
Azimuth Pattern (X, Y, or E-plane)
global
solutions:
local
support
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +1.32.80.7866.12
IAS-EUSales@lairdtech.com
Asia: +1.65.6.243.8022
IAS-AsiaSales@lairdtech.com
TM
www.lairdtech.com
Mobile Load Coil Antenna
Standard B8063
Innovative
Technology
for a
Connected
World
SPECIFICATIONS
ELECTRICAL
Frequency Range
VSWR
Gain
Maxmium Power
Input Impedance
806-866 MHz
< 2.1
2 dBi
200 W
50
Ω
MECHANICAL
Radiator
Contact
Brass Fitting
Coil Form
Mounting
Quality Assurance
4⅞” 17-7 ph, straight
stainless steel rod
Gold plated push internal contact and gold plated push
pin external contact
Copper, nickel, and chrome plated
3 dimensional precision machine delrin
¾
or
⅜”
hole permanent,
⅜”
Snap, Magnetic and Trunk Lid Mounts
100% tested on a network analyzer
Normal rain and splash degree
•
O-ring seal built into the coil bottom
•
Coil housing may be left on and the ferrule can
be removed from a car wash in order to protect the
mount from moisture.
Water Resistance
MODEL AND ORDERING INFORMATION
MODEL
B8063
BB8063
DESCRIPTION
806-866 MHz, Base Loaded
⅝
Wave, Chrome Finish
806-866 MHz, Base Loaded
⅝
Wave, Black Finish
OVERALL HEIGHT
7”
7”
TUNING
Fixed tune @836 MHz
Fixed tune @836 MHz
ANT-DS-B8063 0809
