q
Computer with DisplayPort 1.2-compatible graphics card (e.g. AMD Radeon with AMD Eyefinity)
required for video wall mode. Backward compatible with most DisplayPort 1.1a equipment running
current graphics drivers with feature set limited to that of your equipment. Compatibility with older
graphics cards not guaranteed.
Highlights
q
Supports UHD video resolutions
up to 3840 x 2160 (4K x 2K) @
60Hz
q
MST-compliant DisplayPort 1.2 graphics cards are limited to a bandwidth of 21.6 Gbps amongst all
monitors with higher resolution monitors using up more bandwidth. 1080p monitors will use up
approximately 22% of bandwidth, whereas 4K monitors will use 40% or more. As each monitor will be
different, it is necessary to verify the percentage of bandwidth being used by each monitor in the display
settings interface of your graphics card. If the total percentage of bandwidth taken up by all the
connected monitors exceeds 100%, an image will not display on one or more of them.
q
Built-in 6 in. cable connects
directly to DisplayPort source
q
Supports up to 48-bit Deep
Color (16 bits per channel)
q
Works with all operating
systems
q
Maximum supported video resolutions and number of monitors will be dependent upon your graphics
card. Check the specifications of your graphics card to determine its capabilities.
q
Supports DTS-HD, Dolby
TrueHD and 7.1-channel
surround sound

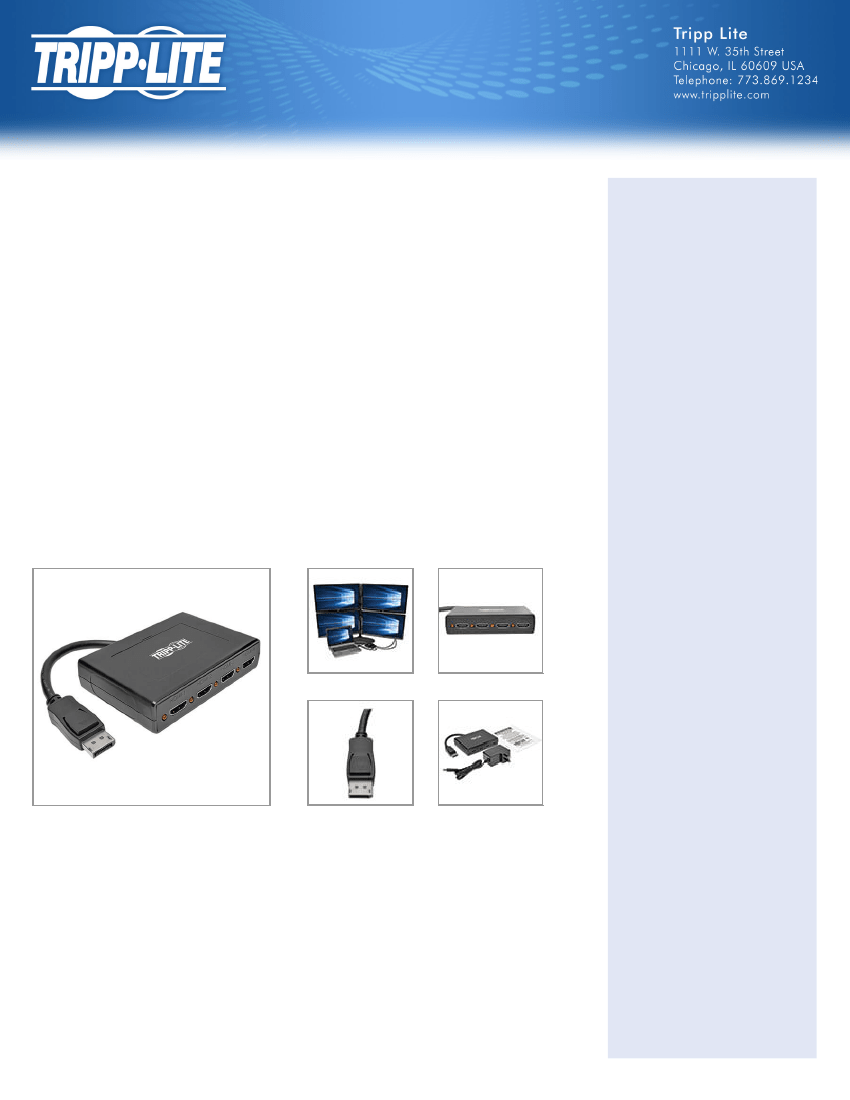

4-Port DisplayPort 1.2 to HDMI Multi-Stream
Transport (MST) Hub, 3840 x 2160 (4K x 2K) @
60Hz UHD, TAA
MODEL NUMBER:
B156-004-HD-V2
System Requirements
q
Computer with DisplayPort 1.2-
compatible graphics card (e.g.
AMD Radeon with AMD
Eyefinity) required for video wall
mode.
q
Backward compatible with most
DisplayPort 1.1a equipment
running current graphics drivers
with feature set limited to that of
your equipment. Compatibility
with older graphics cards not
guaranteed.
q
Mac OS X does not support
MST for NVIDIA and Intel
Displays the same image on 4 HDMI monitors, extends the desktop across all four, or combines all into
one large monitor. Ideal for digital signage in schools, churches, conference rooms, trade shows and retail
outlets.
Graphics Processor Units,
limiting video display on
connected monitors to mirror
mode.
q
Description
The B156-004-HD-V2 4-Port DisplayPort 1.2 to HDMI MST Hub connects up to four HDMI monitors to the
DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms,
trade shows, hotels and retail outlets, this hub allows you to display the same image on all four monitors,
extend the desktop across them, or combine all four as one large monitor in video wall mode.
The B156-004-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and
1.1a with the feature set being limited to that of your equipment. It supports high-definition video
resolutions up to 1920 x 1080 per monitor. In video wall mode, it supports expanded resolutions, such as
3840 x 2160 (4K x 2K) @ 60Hz in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1
configuration.
1/4
Maximum supported video
resolutions and number of
monitors depend on your
graphics card. Check graphics
card specifications to determine
its capabilities.
q
MST-compliant graphics cards
are limited to a bandwidth of
21.6 Gbps amongst all monitors
with higher resolution monitors
using up more bandwidth.
1080p monitors will use up
approximately 22% of
bandwidth, whereas 4K
monitors will use 40% or more.
As each monitor will be different,
it is necessary to verify the
percentage of bandwidth being
used by each monitor in the
display settings interface of your
graphics card. If the total
percentage of bandwidth taken
up by all the connected monitors
exceeds 100%, an image will
not display on one or more of
them.
This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as
DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It works with all operating systems. Plug-
and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly
to a DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B156-004-HD-V2
complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
Connects Up to 4 HDMI Monitors to Your Computer’s DisplayPort Output
q
Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings
Displays same image on 4 monitors simultaneously in mirror mode
Extends desktop across 4 monitors in extended mode
Combines 4 monitors into one large monitor in video wall mode
Built-in 6 in. cable connects directly to DisplayPort source
LEDs indicate when monitors are receiving a signal
q
q
q
q
q
Meets the Latest Performance Standards
q
Supports HD video resolutions up to 1920 x 1080 per monitor
Supports expanded resolutions in video wall mode, such as 3840 x 2160 (4K x 2K) @ 60Hz in a 2 x 2
monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration
q
q
Supports HDCP, EDID and DDC
Supports 48-bit Deep Color (16 bits per channel)
Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
q
q
q
Easy to Use Almost Anywhere
q
Monitor(s) with HDMI input.
Works with all operating systems
Plug and play—no software or drivers required
q
Package Includes
q
B156-004-HD-V2 4-Port
DisplayPort 1.2 to HDMI MST
Hub
TAA Compliant
q
Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
q
External power supply w/NEMA
1-15P plug and 5 ft. cord (Input:
100–240V, 50/60 Hz, 0.5A;
Output: 5V, 2A)
q
Owner’s manual
Specifications
OVERVIEW
UPC Code
AC Adapter
037332193186
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
2/4
INPUT
External Power Supply Input Specs
(V / Hz / A)
External Power Supply Output
Specs (V / A)
External Power Supply Cord Length
(ft.)
External Power Supply DC Barrel
Connector Specs
External Power Supply Plug(s)
External Power Supply Certifications
100-240V, 50/60Hz, 0.5A
5V, 2A
4.5
OD: 5.5 x 2.1 x 9.5mm, Positive Pin, Negative Sleeve
NEMA 1-15P North America
FCC; UL; cUL
USER INTERFACE, ALERTS & CONTROLS
LED Indicators
(x4) Orange (Monitor Signal); (x1) Green (Power)
PHYSICAL
Shipping Dimensions (hwd / in.)
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Unit Packaging Type
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Unit Weight (lbs.)
Unit Weight (kg)
Material of Construction
Color
Rackmountable
2.20 x 6.50 x 8.40
5.59 x 16.51 x 21.34
0.84
0.38
Box
4.3 x 3.0 x 0.9
10.8 x 7.5 x 2.4
0.20
0.09
PC
Black
No
ENVIRONMENTAL
Operating Temperature Range
Storage Temperature Range
Relative Humidity
BTUs
Power Consumption (Watts)
14 to 167 F (-10 to 75 C)
-4 to 176 F (-20 to 80 C)
0% to 85%, Non-Condensing
23.9 BTU/Hr
7W
CONNECTIONS
Ports
4
3/4
Side A - Connector 1
Side B - Connector 1
Connector Plating
Contact Plating
DISPLAYPORT (MALE)
(4) HDMI (FEMALE)
Nickel
Gold
FEATURES & SPECIFICATIONS
Max Supported Video Resolution
Displayport Specification
HDMI Specification
Audio Specification
Driver Required
Max Supported Color Depth
Technology
3840 x 2160 (4K x 2K) @ 60Hz
1.2
1.4
DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
No
48-bit Deep Color
DisplayPort; HDMI
CERTIFICATIONS
Approvals
FCC, RoHS, and REACH
WARRANTY
Product Warranty Period
(Worldwide)
3-year limited warranty
© 2018 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
4/4
