AMS22B5A1BHASL329N Overview

ROTARY NON-CONTACT ANALOG SENSOR

AMS22B5A1BHASL329N Parametric

Parameter Name	Attribute value
for measurement	rotation position
technology	Hall Effect
Angle of rotation - electrical, mechanical	10° ~ 290°, continuous
linear range	-
output	Analog voltage
output signal	increasing clockwise
Actuator type	slotted shaft
linearity	±0.5%
Resistor tolerance	-
Voltage - Power	5V
Installation type	Panel mounting
Terminal type	Lug
Operating temperature	-40°C ~ 125°C

Preview

Download Datasheet

View All

Features

Non-contacting magnetic technology

Highly resistant to vibration/shock

Highly resistant to fluid/dust ingress

Programmable at factory for zero position

Robust design for industrial applications

RoHS compliant*

Highly repeatable

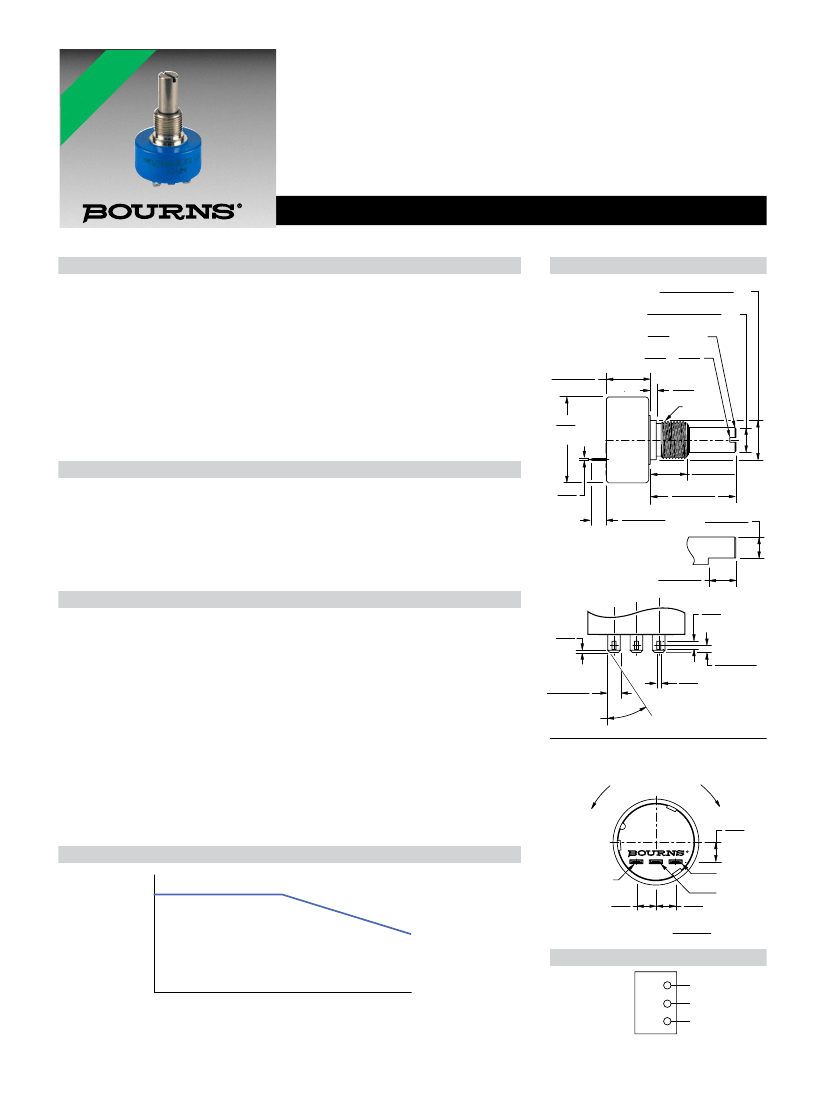

AMS22B

Non-Contacting Analog Rotary Position Sensor

Product Dimensions

10.29 +0.00/-0.05

DIA.

(.4051 +.0000/-.0020)

6.342 +0.000/-0.007

DIA.

(.2497 +.0000/-.0003)

0.25

45 ° ±5 ° X (.010) CHAMFER

1.60

1.19

SLOT (.047) X (.063)

11.3 ± 0.38

(.445 ± .015)

1.57

(.062)

3/8-32-

UNEF

VDD Supply Voltage ..................................................................................................5 V ± 10 %

Supply Current

For Low Speed Processing (Code L) ................................................................... 10 mA max.

For High Speed Processing (Code H) ................................................................. 20 mA max.

Output Signal (Single) ..................................................................................................... Analog

Independent Linearity ...................................................... ±0.5 % (±0.3 % available on request)

Hysteresis .........................................................................................................0.2 % VDD max.

Effective Electrical Angle

.................................................................................................. 340 °

Programmable Electrical Angle .................................................. 10 ° to 360 ° (10 ° increments)

Voltage Output (Programmable) ................................................................ 1 to 99 % VDD ±1 %

Output Resolution .................................................................................................12 bit @ 360 °

Load Resistance Recommended ....................................................................... 10K ohms to

∞

Overvoltage Protection .................................................................................................+20 VDC

Reverse Voltage Protection ...........................................................................................-10 VDC

Operating Temperature......................................................................................-40 ° to +125 °C

Moisture Resistance .........................................................................MIL-STD-202, Method 106

Insulation Resistance @ 500 VAC..........................................................................500 MW min.

Rotational Life (Shaft Revolutions) .............................................................................. 50 million

Vibration ..............................................................................................................................15 G

Shock...................................................................................................................................50 G

IP Rating .............................................................................................................................. IP50

ESD Rating ................................................................................................................. 2 kV max.

Ro VE LEA

HS RS D

C ION FRE

OM S E

PL AR

IA E

Electrical Characteristics

(@ 25 °C)

22.23

(.875)

DIA.

Environmental Characteristics

0.51

(.020)

3 PLCS.

9.53 ± 0.78

(.375 ± .031)

22.23 ± 0.76

(.875 ± .030)

4.06 ± 0.38

(.160 ± .015)

FLATTED

OPTION

6.35 ± 0.08

(.250 ± .003)

2.03

(.080)

4.83 ± 0.51

(.190 ± .002)

Mechanical Characteristics (@ 25 °C)

Mechanical Angle ....................................................... Continuous (340 ° +4/-0 stops available)

Shaft/RPM ...........................................................................................................500 RPM max.

Torque

Starting & Running ......................................................................1.06 N-cm. (1.5 oz-in.) max.

Mounting ........................................................................... 170-200 N-cm (15-18 lb.-in.) max.

Shaft Material ...................................................................................................... Stainless steel

Terminals ................................................................. Brass / 100 % matte tin over Ni Strike (e3)

Bearing .................................................................................................................Bronze sleeve

Soldering Condition

Manual Soldering ................................................. 96.5Sn/3.0Ag/0.5Cu solid wire or no-clean

rosin cored wire; 370 °C (700 °F) max. for 3 seconds

Wave Soldering ............................................. 96.5Sn/3.0Ag/0.5Cu solder with no-clean fl ux;

260 °C (500 °F) max. for 5 seconds

Wash processes ........................................................................................Not recommended

At room ambient: +25 °C nominal and 50 % relative humidity nominal, except as

See “Processing Speed” in How to Order selection guide.

Other Effective Electrical Angles available. See How to Order selection guide.

0.51

(.020)

2.80 ± 0.10

(.110 ± .004)

45 ° ± 5 °

1.02

(.040)

1.55 ± 0.25

(.061 ± .010)

Figure 1

OUTPUT VOLTAGE INCREASES WHEN

SHAFT IS ROTATED IN THIS DIRECTION

(SEE HOW TO ORDER FOR

DIRECTION CODE)

CCW

noted.

Rotational Life vs. Side Load

Rotational Life (Millions of Cycles)

5.08

(.200)

3 PLCS.

–

MEXICO

V+ SUPPLY

(INPUT)

5.08

(.200)

5.08

(.200)

GND

(GROUND)

SIGNAL

(OUTPUT)

DIMENSIONS:

(INCHES)

Schematic

100

150

200

250

300

350

400

450

500

(5 V)

OUT

GND

Shaft Side Load (grams)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their specific applications.

–
