Part Number

Search

0191951037

Description
CONN RING CIRC 10380-52480 #1/2
CategoryThe connector
File Size26KB,1 Pages
ManufacturerMolex Premise Network
Environmental Compliance
Download Datasheet Parametric View All

0191951037 Online Shopping

Suppliers Part Number Price MOQ In stock
0191951037 - - View Buy Now

0191951037 Overview

CONN RING CIRC 10380-52480 #1/2

0191951037 Parametric

Parameter NameAttribute value
Terminal typeround
Stud/Tab Dimensions1/2 binding post
thickness0.062"(1.57mm)
Width - outer edge-
Length - total-
Installation typefree hanging
Terminationcrimp, pierce
Wire gauge10380-52480 CMA
insulationnon-insulated
characteristic-
color-
Contact materialcopper alloy
Contact platingelectroplated tin
Insulation layer diameter-
Material - Insulation-

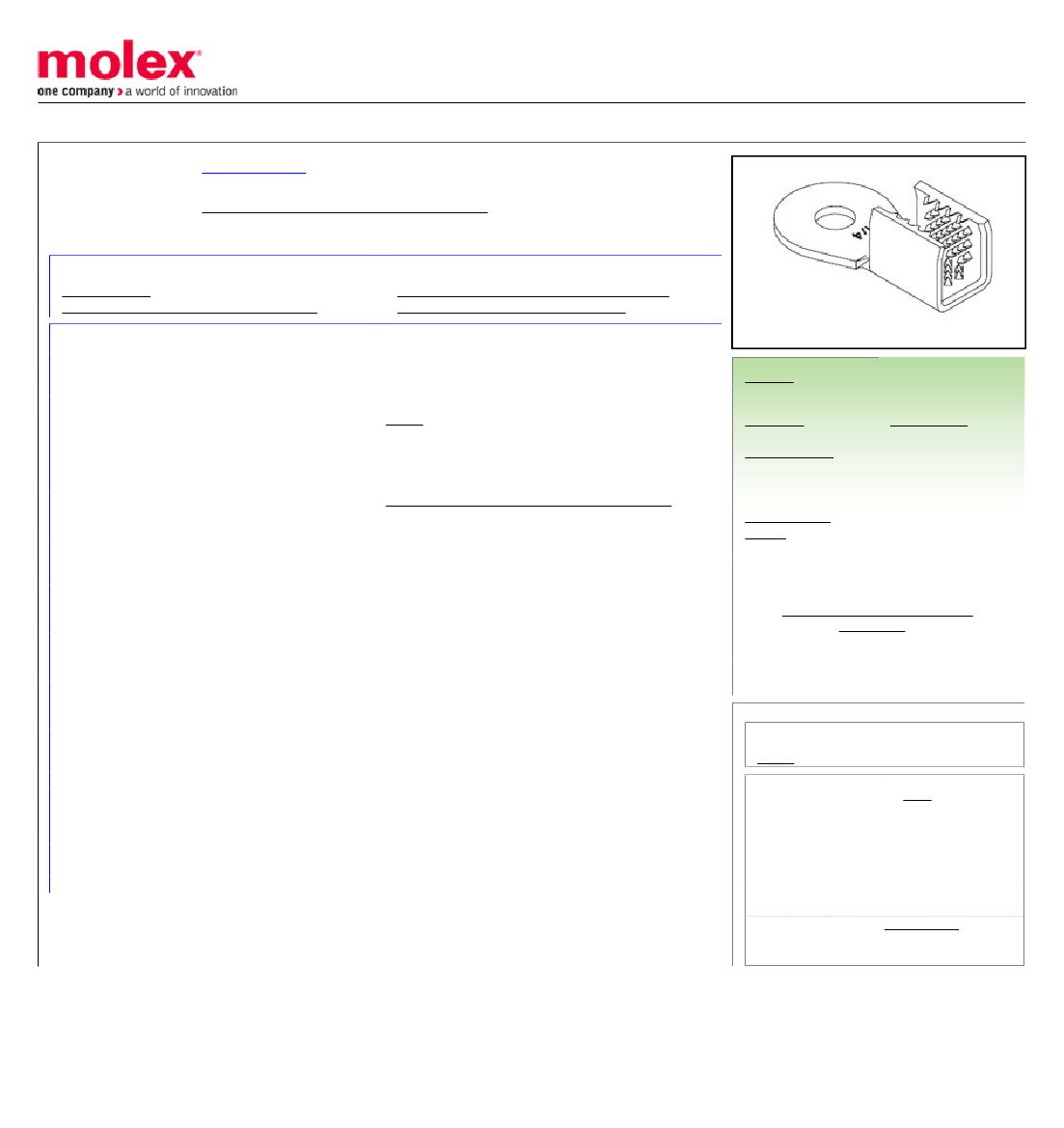

This document was generated on 06/28/2016
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0191951037
Active
MagKrimp™ Connectors, Terminals and Splices
MagKrimp™ Round Ring Tongue Terminal for 12 AWG Magnet Wire, 10,380-52,480
Circular Mil Area, Stud Size 1/2" (M12), Plated
Documents:
Drawing (PDF)
Product Specification PS-19902-001 (PDF)
Agency Certification
UL
General
Product Family
Series
Comments
Crimp Quality Equipment
Mil-Spec
Overview
Product Name
Type
UPC
Physical
Barrel Type
Insulation
Material - Plating Mating
Net Weight
Packaging Type
Plating min - Mating
Plating min - Termination
Stud Size
Temperature Range - Operating
Wire Size AWG
Electrical
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Packaging Specification PK-19195-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
E32244
Ring and Spade Terminals
19195
6 wires maximum for 12 AWG. Conductors heavier than
6 AWG require special dies - contact Molex.
Yes
N/A
MagKrimp™ Connectors, Terminals and Splices
MagKrimp™(Magnet Wire)
Ring
756054492451
Open
None
Tin
11.177/g
Bag
2.540µm
2.540µm
1/2" (M12)
-40°C to +100°C
12
2000V
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
MagKrimp™ Tooling 0190780131
Kit - Round Dies for
10,380-52,480 CMA
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/79/2015 (17
December 2015)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
Green Image
Not Relevant
Search Parts in this Series
19195 Series
PK-19195-001
PS-19902-001
SD-19195-016
This document was generated on 06/28/2016
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
