1256.1001 datasheet, PDF - EEWORLD Datasheet

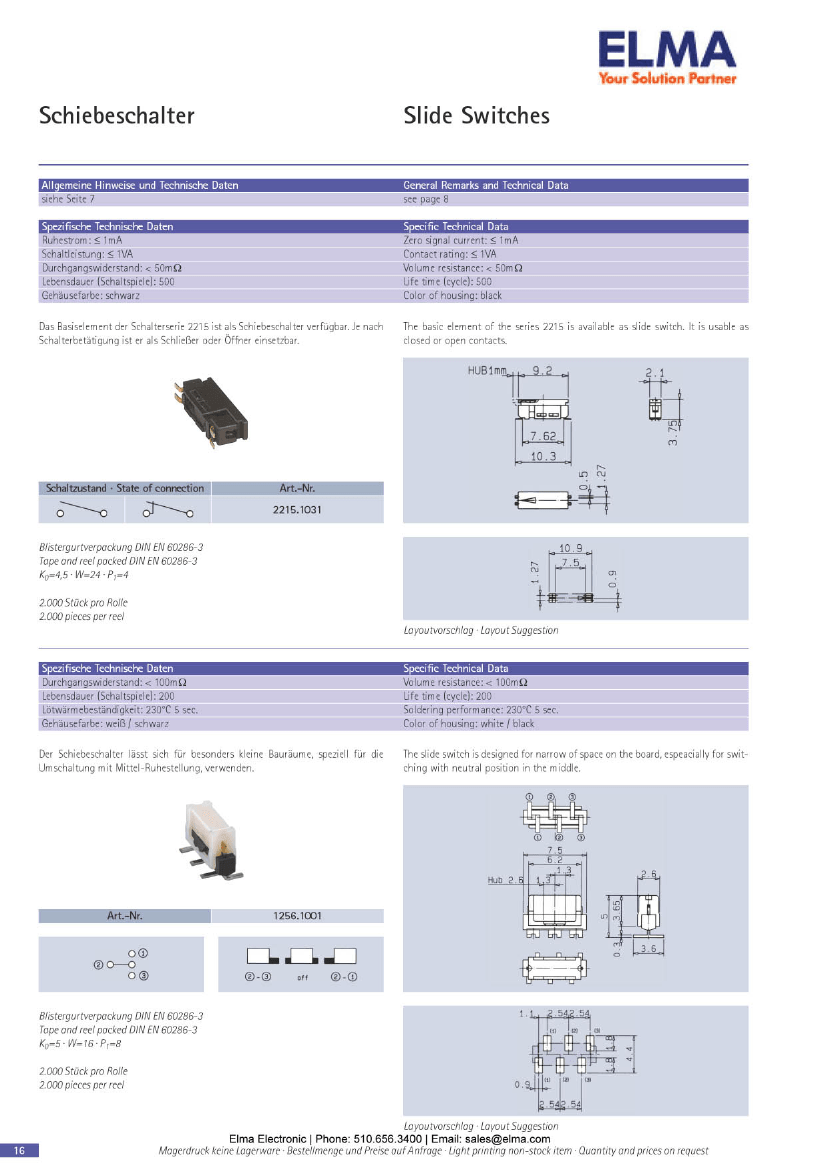

1256.1001: DescriptionSlide Switch, SPDT, Latched, Solder Terminal, Surface Mount-right Angle; CategoryMechanical and electronic products switch; File Size220KB，1 Pages; ManufacturerElma Electronic Inc

Download Datasheet Parametric Compare View All

1256.1001 Overview

Slide Switch, SPDT, Latched, Solder Terminal, Surface Mount-right Angle

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
body width	2.6 mm
body height	3.65 mm
Body length or diameter	7.5 mm
Electrical life	200 Cycle(s)
Manufacturer's serial number	1256
Installation features	SURFACE MOUNT-RIGHT ANGLE
method of packing	TAPE AND REEL
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	SLIDE SWITCH
Termination type	SOLDER
Base Number Matches	1

	1256.1001	2215.1031
Description	Slide Switch, SPDT, Latched, Solder Terminal, Surface Mount-right Angle	Slide Switch, SPST, Latched, Solder Terminal, Surface Mount-right Angle
Reach Compliance Code	compli	compliant
ECCN code	EAR99	EAR99
body width	2.6 mm	2.1 mm
body height	3.65 mm	3.75 mm
Body length or diameter	7.5 mm	9.2 mm
Electrical life	200 Cycle(s)	500 Cycle(s)
Manufacturer's serial number	1256	2215
Installation features	SURFACE MOUNT-RIGHT ANGLE	SURFACE MOUNT-RIGHT ANGLE
method of packing	TAPE AND REEL	TAPE AND REEL
surface mount	NO	NO
Switch action	LATCHED	LATCHED
switch function	SPDT	SPST
Switch type	SLIDE SWITCH	SLIDE SWITCH
Termination type	SOLDER	SOLDER
Base Number Matches	1	1
